@acarmisc/backstage-plugin-litellm

Frontend for the Backstage LiteLLM Governance Plugin — lets developers manage their LiteLLM virtual keys and follow their AI usage and budgets from Backstage.

Built for the New Frontend System (@backstage/frontend-plugin-api). It needs the backend, @acarmisc/backstage-plugin-litellm-backend, which talks to LiteLLM and enforces every rule.

Full documentation — adoption guide, configuration, permissions, security model and architecture — starts at the project README.

Installation

yarn --cwd packages/app add @acarmisc/backstage-plugin-litellm

If your app discovers features from its dependencies (app.packages: all), the plugin is picked up automatically. Otherwise register it:

// packages/app/src/App.tsx
import { createApp } from '@backstage/frontend-defaults';
import litellmPlugin from '@acarmisc/backstage-plugin-litellm';

const app = createApp({
  features: [litellmPlugin],
});

This adds the /litellm page and the liteLlmApiRef API used by every component below.

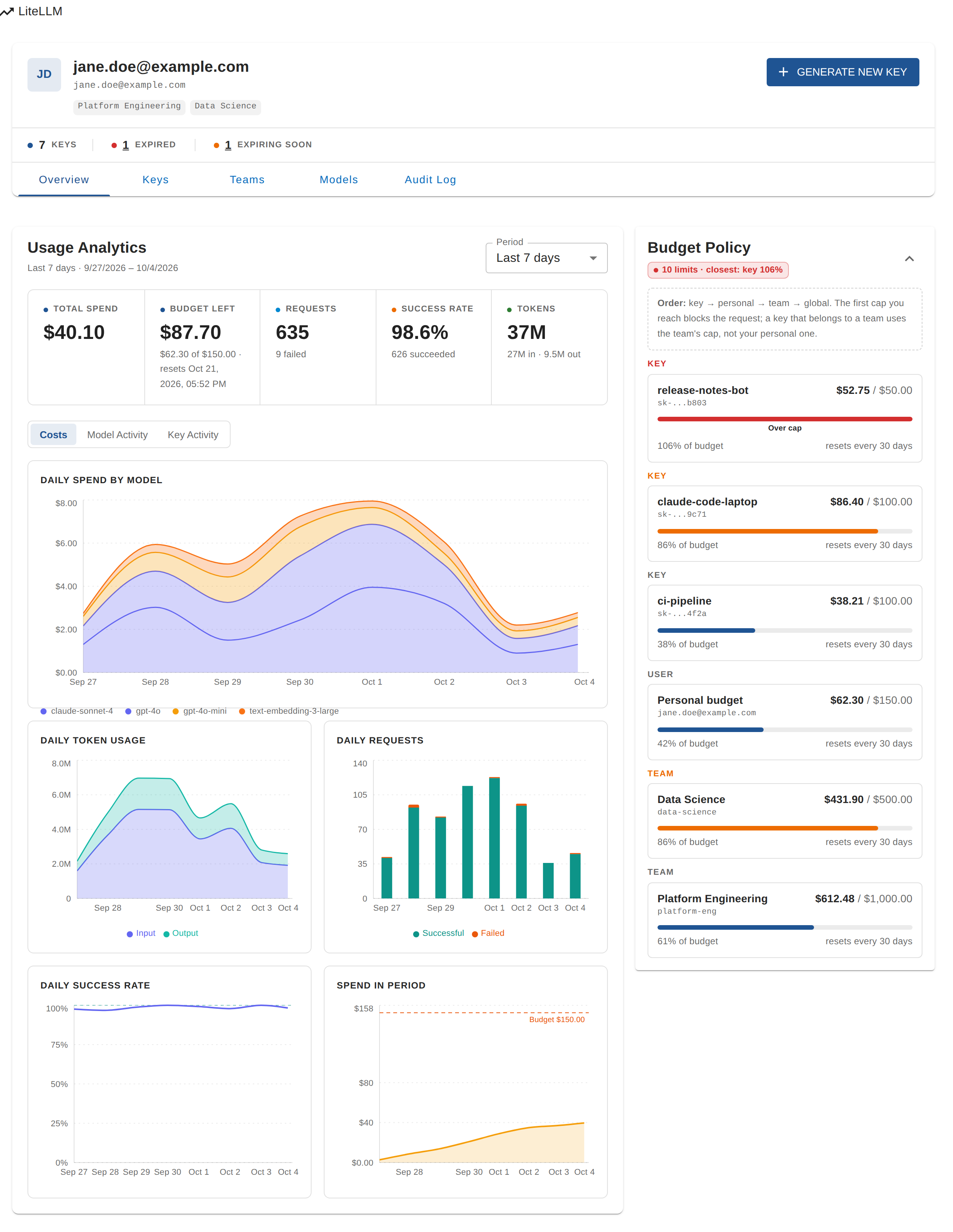

The /litellm page

Tabs: Overview (usage KPIs and charts), Keys (your virtual keys: edit, block / unblock, reset spend, delete), Teams (team usage, and team management for admins), Models (the proxy's model catalogue) and Audit Log (members of litellm.audit.group only). ?tab=<name> opens a tab and ?generate=1 opens the Generate New Key dialog.

Homepage components

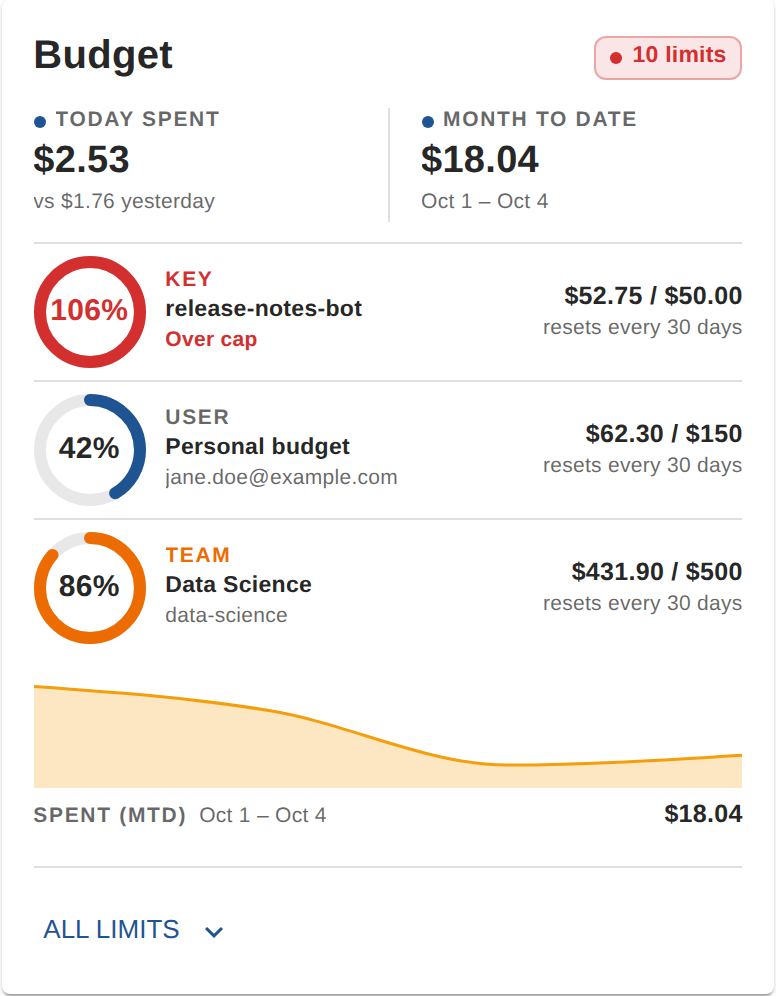

| Component | What it shows | |---|---| | LiteLLMHomeWidget | Spend and tokens for Today / 7d / 30d with a daily sparkline | | LiteLLMBudgetWidget | The budget hierarchy (key → personal → team → global) with a meter per limit | | LiteLLMBudgetGauges | A condensed budget card: one ring per level and a month-to-date chart | | GenerateKeyButton | The shared "Generate New Key" button (onClick, or to="/litellm?generate=1") |

import {
  LiteLLMHomeWidget,
  LiteLLMBudgetGauges,
} from '@acarmisc/backstage-plugin-litellm';

<LiteLLMHomeWidget defaultPeriod="7d" />
<LiteLLMBudgetGauges />

Props for each component are documented in docs/frontend.md.

To try it without a backend, run npm start in this package: it serves the plugin with mock data at http://localhost:3000/litellm (see CONTRIBUTING.md).

Other exports

• litellmPlugin (also the default export)
• LiteLLMPage, and the building blocks it uses: DashboardHeader, KeysTable, UsageStats, TeamUsage, KeyFormDialog, ManageTeamDialog. Prefer LiteLLMPage; composing the pieces yourself means wiring their data and callbacks the way the page does.
• LiteLlmApi, liteLlmApiRef, the shared API types, and the litellmTeam*Permission definitions.

License

Apache-2.0
