Call PostgreSQL Function

Directus custom operation for Flows that calls a PostgreSQL function with named parameters and returns a consistent result shape.

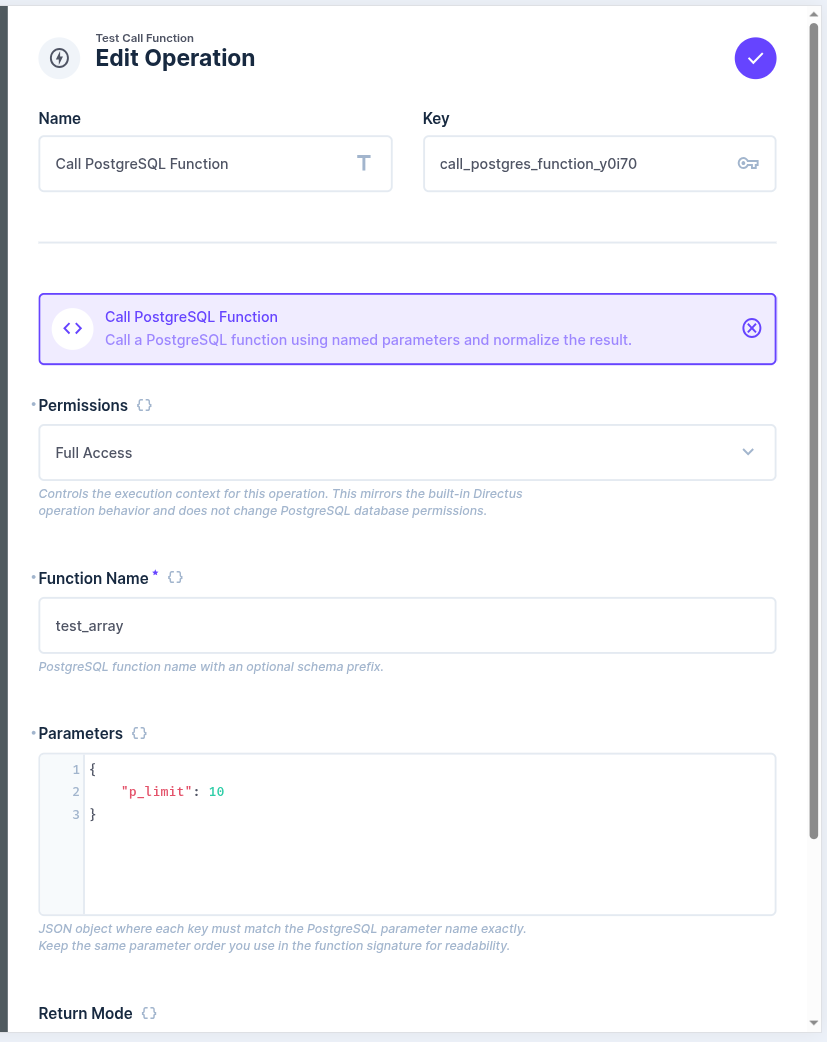

Screenshot

Features

• Calls PostgreSQL functions safely with bind parameters
• Supports named arguments only
• Can also call functions that read from PostgreSQL views and return the result
• Normalizes the result into a list-friendly structure
• Supports a raw return mode when you need the original result
• Rejects unsafe function and parameter names

Requirements

• Directus ^11.0.0
• PostgreSQL database

Install

npm install
npm run build

For local development:

npm run dev

To link the extension into a Directus project:

npm run link

Usage

Add the operation to a Flow and configure:

• Permissions: execution-context selector that follows the same accountability rules used by Directus native operations such as Read Data, Create Data, Update Data, and Delete Data
• Function Name: PostgreSQL function name, with or without schema
• Parameters: JSON object where each key is a named PostgreSQL argument
• Return Mode: auto_list or raw

Example:

{
  "function_name": "obtener_impresiones_pendientes",
  "parameters": {
    "p_punto_venta_id": "{{$trigger.body.punto_venta_id}}",
    "p_limit": 1
  },
  "return_mode": "auto_list"
}

Options

Permissions

Optional. Default: From Trigger

This setting controls the flow accountability context used by the operation. It follows the same UX pattern used by Directus native operations for selecting execution context, but in this extension it does not grant or revoke PostgreSQL privileges and it does not map to collection permissions.

How it applies:

• From Trigger keeps the flow accountability inherited from the trigger
• Full Access requires an admin flow context
• Other... requires the current flow role to match the provided role UUID

This is a validation layer at the operation level. It does not:

• read or write Directus collections
• evaluate Directus collection permissions
• create Directus activity entries by itself
• change PostgreSQL permissions

If you choose Other..., enter the role UUID directly in the same field.

Use this when you want the operation to reject execution unless the current flow accountability matches the configured level.

Function Name

Required.

Use a PostgreSQL function name with an optional schema prefix.

Examples:

• my_function
• public.my_function
• api.check_print

Parameters

Optional.

JSON object where each key is a named PostgreSQL parameter. Keep the parameter names exactly as they appear in the PostgreSQL function signature.

Example:

{
  "p_request_id": "{{$trigger.body.request_id}}",
  "p_user_id": "{{$accountability.user}}",
  "p_force": false
}

Return Mode

Optional. Default: auto_list

• auto_list
• raw

auto_list always returns:

{
  "data": [],
  "meta": {
    "status": "OK",
    "count": 0
  }
}

Examples

The SQL snippets below are illustrative examples only. They are provided to show recommended usage patterns and do not represent a real database schema.

Function with multiple steps and ON CONFLICT

Use this pattern when the PostgreSQL function must perform an atomic business operation.

This example:

1. upserts a customer snapshot
2. writes an audit record
3. returns the business result and leaves response normalization to the Directus operation

CREATE OR REPLACE FUNCTION public.upsert_customer_snapshot(
  p_customer_id uuid,
  p_snapshot jsonb,
  p_event_id uuid
)
RETURNS jsonb
LANGUAGE plpgsql
AS $$
DECLARE
  v_action text;
  v_result jsonb;
BEGIN
  INSERT INTO public.customer_snapshots (
    customer_id,
    snapshot,
    updated_at
  )
  VALUES (
    p_customer_id,
    p_snapshot,
    now()
  )
  ON CONFLICT (customer_id)
  DO UPDATE SET
    snapshot = EXCLUDED.snapshot,
    updated_at = now()
  RETURNING
    CASE WHEN xmax = 0 THEN 'created' ELSE 'updated' END
  INTO v_action;

  INSERT INTO public.customer_snapshot_audit (
    event_id,
    customer_id,
    action,
    payload,
    created_at
  )
  VALUES (
    p_event_id,
    p_customer_id,
    v_action,
    p_snapshot,
    now()
  );

  SELECT jsonb_build_object(
    'customer_id', p_customer_id,
    'action', v_action
  )
  INTO v_result;

  RETURN v_result;
END;
$$;

Flow configuration:

{
  "permissions": "$trigger",
  "function_name": "public.upsert_customer_snapshot",
  "parameters": {
    "p_customer_id": "{{$trigger.body.customer_id}}",
    "p_snapshot": "{{$trigger.body.snapshot}}",
    "p_event_id": "{{$trigger.body.event_id}}"
  },
  "return_mode": "auto_list"
}

Function that reads from a view

Use this pattern when the PostgreSQL function queries a view that already consolidates business logic that is difficult to reproduce cleanly with GraphQL alone.

CREATE OR REPLACE FUNCTION public.get_customer_activity(
  p_customer_id uuid
)
RETURNS jsonb
LANGUAGE plpgsql
AS $$
DECLARE
  v_result jsonb;
BEGIN
  SELECT COALESCE(jsonb_agg(to_jsonb(t)), '[]'::jsonb)
  INTO v_result
  FROM (
    SELECT
      customer_id,
      activity_type,
      reference_id,
      reference_number,
      amount,
      activity_status,
      occurred_at
    FROM public.v_customer_activity
    WHERE customer_id = p_customer_id
    ORDER BY occurred_at DESC
  ) t;

  RETURN v_result;
END;
$$;

The underlying view can combine data from multiple sources using SQL features such as:

• UNION ALL across different event sources
• INNER JOIN and LEFT JOIN to enrich the result
• computed columns and derived statuses
• aggregate values or ranking functions

Example view structure:

CREATE OR REPLACE VIEW public.v_customer_activity AS
SELECT
  o.customer_id,
  'order' AS activity_type,
  o.id AS reference_id,
  o.order_number AS reference_number,
  o.total AS amount,
  CASE
    WHEN o.status = 'paid' THEN 'completed'
    WHEN o.status = 'pending' THEN 'pending'
    ELSE 'unknown'
  END AS activity_status,
  o.date_created AS occurred_at
FROM public.orders o

UNION ALL

SELECT
  p.customer_id,
  'payment' AS activity_type,
  p.id AS reference_id,
  p.payment_number AS reference_number,
  p.amount,
  'completed' AS activity_status,
  p.date_created AS occurred_at
FROM public.payments p;

Flow configuration:

{
  "permissions": "$trigger",
  "function_name": "public.get_customer_activity",
  "parameters": {
    "p_customer_id": "{{$trigger.body.customer_id}}"
  },
  "return_mode": "auto_list"
}

Development

npm run build
npm run validate
npm test

License

MIT
