@chestnutlabs/gcode-model-renderer

Three.js presentation renderer for source models — draws an .stl or .3mf mesh as a clean, studio-lit thumbnail. It answers "what object is this?", and is deliberately separate from the toolpath renderer, which answers "how does this print/cut run?" (design: DD-018).

Peer dependency: three (supported range ^0.178.0) — install it alongside this package.

Use it for file-browser thumbnails, library cards, and "what's in this file" previews — the picture a slicer shows of a part, not the toolpath. For inspecting the actual moves (layers, travel, seams, color modes, live progress), use @chestnutlabs/gcode-renderer-three instead.

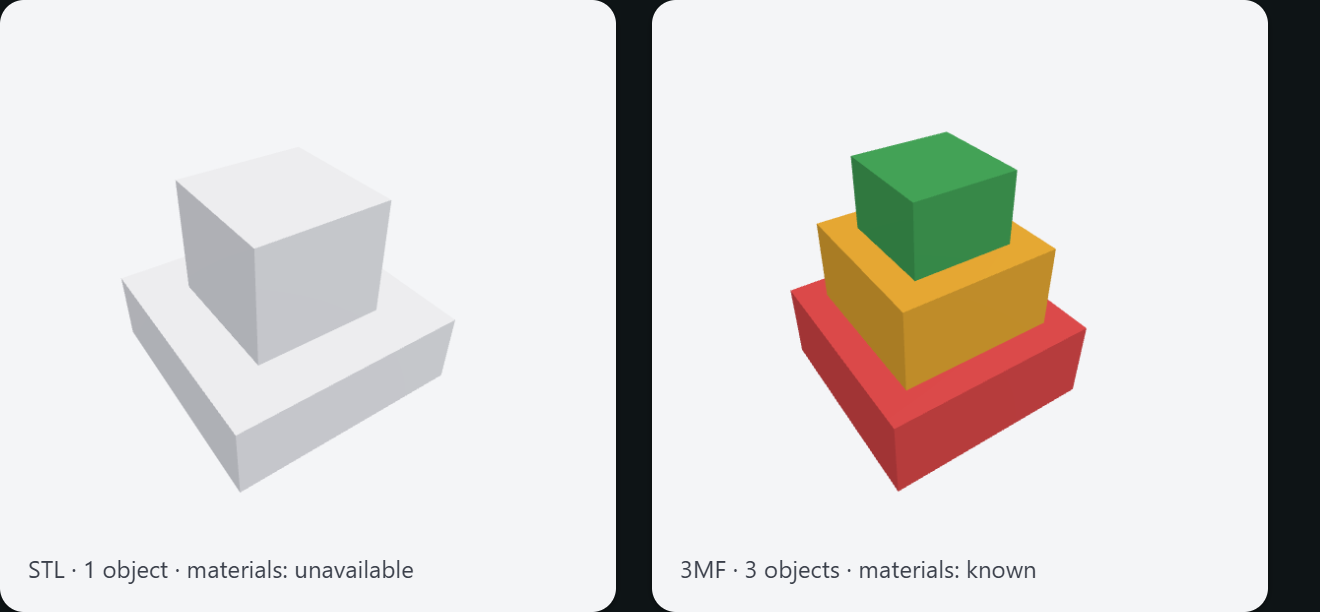

• STL and 3MF — a bare STL is a single object with no declared material; a 3MF brings its own multi-object structure, per-object transforms, and per-object / per-triangle material colors, including files that use the 3MF Production Extension (p:path external parts).
• Production multicolor — real Bambu Studio / OrcaSlicer files paint per-region color with a proprietary paint_color facet attribute and keep the palette in project_settings.config, not in standard 3MF materials. The renderer decodes that facet-paint format (clean-room, see RR-005) and reads the filament_colour palette itself, so a designer's multicolor model renders in its true colors without slicing.
• Capability-honest color — when the source declares colors — standard 3MF basematerials, or paint_color + a filament palette — the render uses them and reports materials: 'known' ('approximated' when a handful of multi-color facets are flattened). When it declares none — a plain STL, or a paint format with no palette present — it draws a neutral default and reports materials: 'unavailable'. It never invents a source color.
• Fixed presentation pose — framed at a 3/4 angle on the shared render "stage" from @chestnutlabs/gcode-renderer-three, under a neutral studio light rig, on a transparent (default) or solid background you can composite onto a card.
• Headless still — renderModelStill mirrors the toolpath side's renderStill: hand it bytes, get back a canvas plus a stable cacheKey and the materials confidence for that render. Runs in any Chromium-class WebGL2 context (an OffscreenCanvas in a Worker, or headless Chromium).
• Interactive viewer — createModelViewer is the live analogue of the still: orbit, zoom, and pan the same STL / 3MF (including production multicolor) in a browser <canvas>, with camera presets, a serializable camera state, and an event stream for readiness and errors.
• Three-free public types — ModelScene / ModelObject / MeshGeometry are plain typed arrays, so the package's surface never leaks three; the renderer builds three meshes internally.

import { renderModelStill } from '@chestnutlabs/gcode-model-renderer';

// In a Worker with an OffscreenCanvas, or headless Chromium:
const { canvas, objectCount, materials, cacheKey } = await renderModelStill(
  { kind: '3mf', bytes },                        // or { kind: 'stl', bytes }
  { canvas: new OffscreenCanvas(512, 512), background: 'transparent' }
);
// materials === 'known'  → the render used colors the file declared
// materials === 'unavailable' → the file carried none; a neutral default was used (never faked)
const blob = await canvas.convertToBlob();

Already hold a corrected or richer filament palette (e.g. re-rendering a sliced file)? Pass filamentPalette (hex per 0-based slot) to renderModelStill / parse3mf to override the one read from project_settings.config. Optional — the renderer reads the file's own palette without it.

Interactive viewer

For a live surface a user can orbit — a "View in 3D" for a source model, as opposed to a static thumbnail — createModelViewer drives the same scene under the shared camera and orbit controls the toolpath renderer uses:

import { createModelViewer } from '@chestnutlabs/gcode-model-renderer';

const viewer = createModelViewer(canvas);           // a real <canvas> in the page
viewer.onEvent((e) => {
  if (e.type === 'ready') {
    // e.info.materials === 'known' | 'approximated' → showing the file's true colors
    // e.info.materials === 'unavailable'            → neutral render; don't claim "true colors"
    console.log(e.info.objectCount, e.info.materials, e.info.bounds);
  }
  if (e.type === 'renderer-unsupported') {
    // No WebGL — fall back to a renderModelStill image or a static thumbnail
  }
});

await viewer.setSource({ kind: '3mf', bytes });     // or { kind: 'stl', bytes }; parse → build → frame
viewer.setView('front');                            // 'iso' | 'top' | 'front' | 'back' | 'left' | 'right' | 'bottom'
// ...on unmount:
viewer.dispose();

Drag to orbit, scroll to zoom, right-drag to pan. getCameraState() / setCameraState() persist and restore a pose (the same serializable CameraState as the toolpath renderer), resize(w, h) matches a ResizeObserver, and setInteractionQuality('auto') trades detail for smoothness while orbiting. New source formats become viewable by registering a ModelLoader for a new kind, with no change to the viewer's API (design: DD-021).

Prefer to build your own scene? parseStl / parse3mf return a three-free ModelScene, and both the still and the viewer accept a pre-built ModelScene directly.

Determinism (stills): same input + same environment ⇒ identical output. Cross-GPU/driver pixel identity is not promised — cache by the returned cacheKey.

Part of Chestnut Labs G-code Preview · MIT
