cx-tools

ConnexCS Tools

Installation

npm install -g @connexcs/tools

Usage

Configure Credentials

Set up your ConnexCS credentials to obtain a 30-day refresh token that will be stored in a .env file:

# Interactive prompts (recommended)
cx configure

# Using command line flags
cx configure --username myuser --password mypass

# Force overwrite existing .env file
cx configure --force

How it works:

1. Your username and password are validated against the ConnexCS API
2. If valid, a 30-day refresh token is obtained from /api/cp/auth/jwt/refresh
3. The token is tied to your machine using an audience claim (cx-tools@hostname)
4. The refresh token is securely saved to your .env file
5. This token is used to obtain short-lived access tokens for each API request
6. Automatic Renewal: When a token has less than 15 days remaining, it's automatically renewed during any API request
7. You can manually refresh anytime by running cx configure --force

Configure App

Select an App ID to use for API requests. This requires credentials to be configured first:

# Interactive app selection
cx configure:app

This command will:

1. Fetch all available apps from your ConnexCS account
2. Display them in a selectable list
3. Save the selected App ID to your .env file

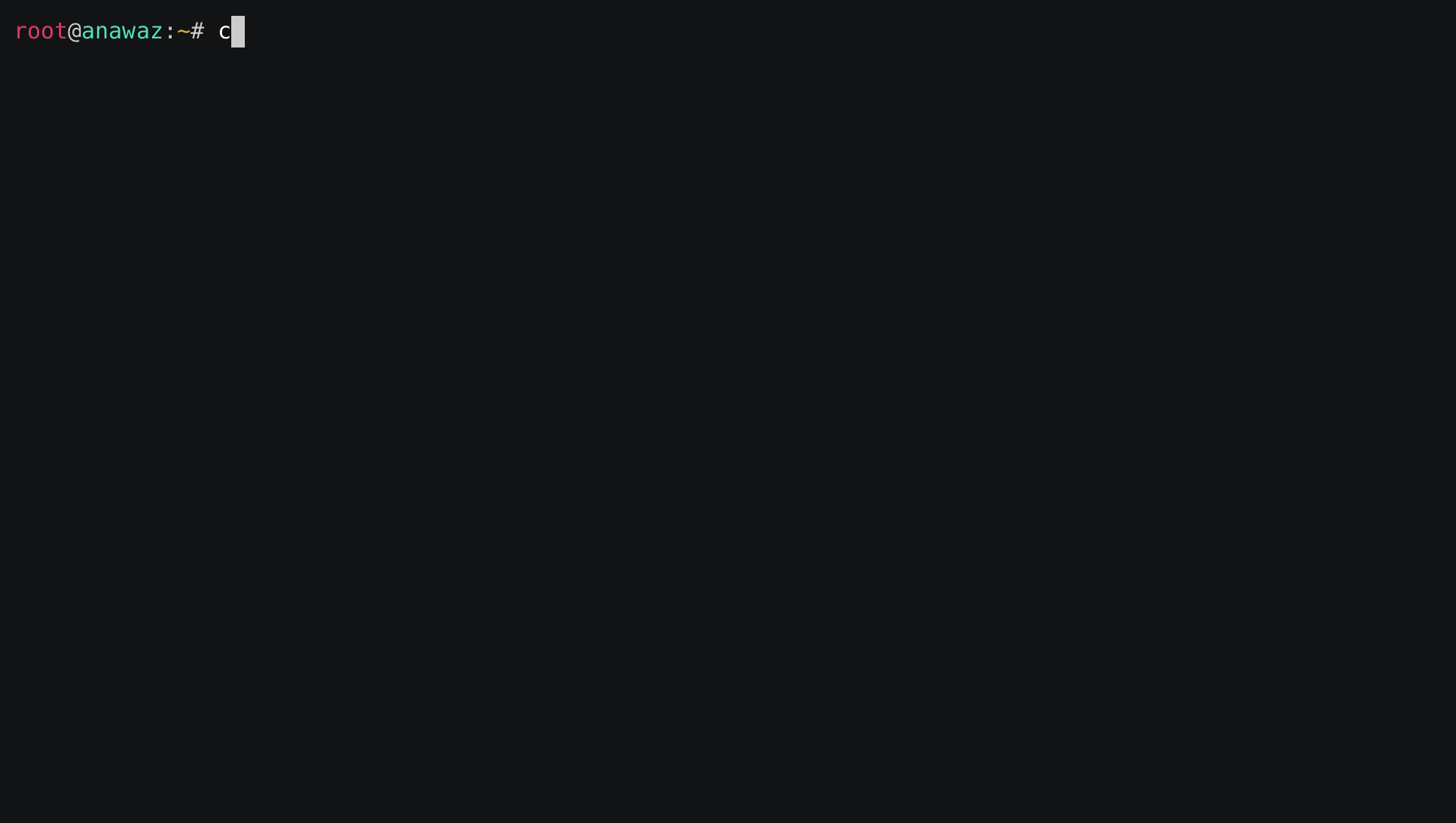

Run ScriptForge Scripts

Execute ScriptForge scripts on your ConnexCS platform:

# Interactive mode - fetches and displays available scripts
cx run

# If APP_ID is configured, only shows scripts for that app
# Otherwise, shows all scripts

# Provide script identifier as argument (ID, UUID, or filename without extension)
cx run 12345
cx run my-script

# No body (default)
cx run 12345

# Prompt for body input
cx run 12345 -b

# Provide JSON request body
cx run my-script -b '{"key": "value"}'

# Use a JSON file as request body
cx run 12345 -b request.json

# Silent/raw mode for piping
cx run 12345 -s | jq '.result'
cx run my-script --raw > output.json

Execute SQL Queries

Query the CDR database or Userspace databases:

# Interactive mode - prompts for SQL query
cx sql

# Provide SQL query as argument (CDR database by default)
cx sql "SELECT * FROM cdr WHERE dt > DATE_SUB(NOW(), INTERVAL 1 DAY) LIMIT 10"

# Query userspace database with -u flag
cx sql "SELECT * FROM myTable WHERE status = 'active'" -u

# Return results as CSV
cx sql "SELECT * FROM cdr WHERE dt > DATE_SUB(NOW(), INTERVAL 1 DAY) LIMIT 10" --csv

# Prepared statements with parameters
cx sql "SELECT * FROM cdr WHERE dest_number = :dest LIMIT 10" -p '{"dest": "+1234567890"}'

# Parameters from JSON file
cx sql "SELECT * FROM cdr WHERE dt > :start_date AND status = :status" -p ./params.json

# Silent mode for piping to files
cx sql "SELECT * FROM cdr WHERE dt > DATE_SUB(NOW(), INTERVAL 1 DAY) AND duration > 60" -s > results.json
cx sql "SELECT * FROM cdr WHERE dt > DATE_SUB(NOW(), INTERVAL 1 DAY) LIMIT 100" --csv -s > data.csv

# Pipe to other tools
cx sql "SELECT dest_number, COUNT(*) as calls FROM cdr WHERE dt > DATE_SUB(NOW(), INTERVAL 1 DAY) LIMIT 100" -s | jq '.[] | select(.calls > 10)'

Key-Value Store Operations

Manage KV (Key-Value) store records:

# List all KV keys
cx kv:list

# List keys in silent mode for piping
cx kv:list -s | jq '.[] | .id'

# Get a specific KV record
cx kv:get mykey

# Get with silent mode
cx kv:get mykey -s

# Set a KV record (upsert)
cx kv:set mykey -v '{"data": "value"}'

# Set a simple string value
cx kv:set mykey -v "Hello World"

# Set from a JSON file
cx kv:set mykey -v ./data.json

# Set from a text file
cx kv:set config -v ./config.txt

# Interactive mode - prompts for key and value
cx kv:set

# Delete a KV record
cx kv:del mykey

# Delete with silent mode
cx kv:del mykey -s

# Interactive delete - prompts for key
cx kv:del

# Pipe and process
cx kv:get config -s | jq '.settings.enabled'

Configure Command Options

configure

• -u, --username <username>: Specify username via command line
• -p, --password <password>: Specify password via command line
• -f, --force: Force overwrite existing .env file

configure:app

• No options - interactive app selection from available apps

Run Command Options

• [id]: ScriptForge ID (optional, will be prompted if not provided)
• -b, --body [body]: Include JSON request body (optionally provide JSON string or file path)
  • No -b flag: Sends empty body {}
  • -b with no value: Prompts for JSON input
  • -b with value: Uses provided JSON or file path
• -s, --silent: Silent/raw mode - outputs only response data for piping
• -r, --raw: Alias for --silent

SQL Command Options

• [query]: SQL query (optional, will be prompted if not provided)
• --csv: Return results in CSV format instead of JSON
• -s, --silent: Silent/raw mode - outputs only response data for piping
• -r, --raw: Alias for --silent

KV Command Options

kv:list

• -s, --silent: Silent/raw mode - outputs only response data for piping
• -r, --raw: Alias for --silent

kv:get

• [id]: Key ID (optional, will be prompted if not provided)
• -s, --silent: Silent/raw mode - outputs only response data for piping
• -r, --raw: Alias for --silent

kv:set

• [id]: Key ID (optional, will be prompted if not provided)
• -v, --value [value]: Value to set (string, JSON data, or file path)
  • No -v flag: Prompts for value
  • -v with no value: Prompts for value input
  • -v with value: Uses provided string/JSON or reads from file path
  • Automatically detects JSON and parses it, otherwise stores as string
• -s, --silent: Silent/raw mode - outputs only response data for piping
• -r, --raw: Alias for --silent

kv:del

• [id]: Key ID to delete (optional, will be prompted if not provided)
• -s, --silent: Silent/raw mode - outputs only response data for piping
• -r, --raw: Alias for --silent

Environment Variables Operations

Manage server-side environment variables:

# List all environment variables
cx env:list

# List variables in silent mode for piping
cx env:list -s | jq '.[].key'

# Get a specific environment variable by key
cx env:get myvar

# Get with silent mode
cx env:get myvar -s

# Set an environment variable (upsert by key)
cx env:set myvar -v 'my value'

# Set from a file
cx env:set myvar -v ./config.txt

# Interactive mode - prompts for key and value
cx env:set

# Delete an environment variable by key
cx env:del myvar

# Delete with silent mode
cx env:del myvar -s

# Interactive delete - prompts for key
cx env:del

# Pipe and process
cx env:list -s | jq '.[] | select(.key == "myvar")'

ENV Command Options

env:list

• -s, --silent: Silent/raw mode - outputs only key/value pairs as JSON array
• -r, --raw: Alias for --silent

env:get

• [key]: Variable key (optional, will be prompted if not provided)
• -s, --silent: Silent/raw mode - outputs only key/value as JSON
• -r, --raw: Alias for --silent

env:set

• [key]: Variable key (optional, will be prompted if not provided)
• -v, --value [value]: Value to set (string or file path)
  • No -v flag: Prompts for value
  • -v with no value: Prompts for value input
  • -v with value: Uses provided string or reads from file path
• -s, --silent: Silent/raw mode - outputs only key/value as JSON
• -r, --raw: Alias for --silent

env:del

• [key]: Variable key to delete (optional, will be prompted if not provided)
• -s, --silent: Silent/raw mode - suppress decorative output
• -r, --raw: Alias for --silent

Authentication Validation

The tool uses JWT (JSON Web Token) authentication with a two-step process:

1. Initial Setup (cx configure):

   • Validates your username and password via Basic Auth
   • Requests a 30-day refresh token from /api/cp/auth/jwt/refresh
   • Saves the refresh token to .env file

2. API Requests (automatic):

   • Uses the refresh token to obtain a short-lived access token from /api/cp/auth/jwt
   • Uses the access token in Authorization: Bearer <token> header for API requests
   • This happens automatically for every command

3. Automatic Token Renewal:

   • Before each API request, the system checks if the refresh token has less than 15 days remaining
   • If it does, the token is automatically renewed for another 30 days
   • A notification is displayed (unless in silent mode): "🔄 Refresh token has less than 15 days remaining. Renewing automatically..."
   • Your .env file is automatically updated with the new token
   • No manual intervention needed!

If username or password are not provided via flags, you will be prompted to enter them interactively.

Token Expiration:

• Refresh tokens are valid for 30 days
• Access tokens are short-lived (typically minutes)
• Tokens with less than 15 days remaining are automatically renewed
• Manual refresh available with cx configure --force

Output Format

Upon successful authentication, a refresh token is saved to a .env file in the current working directory:

# Company: Your Company Name
# Refresh Token (Valid for 30 days)
CX_REFRESH_TOKEN="your_refresh_token_here"

Note: The refresh token is wrapped in quotes and valid for 30 days from the time it was issued.

Security

• JWT Authentication: Uses industry-standard JWT tokens instead of storing passwords
• Token Lifecycle: Refresh token (30 days) and short-lived access tokens for enhanced security
• Authentication Required: Credentials are validated before token issuance
• Git Protection: The .env file is automatically ignored by git to prevent accidental commit
• Local Storage: Tokens are stored locally and never transmitted except during authentication
• Automatic Token Management: Access tokens are automatically refreshed for each request

Input Detection

The run command automatically detects whether your input is a file path or JSON data:

• File Path: If the input matches an existing file, it reads and uses the file content
• JSON Data: If the input is not a file path, it treats it as inline JSON
• Validation: All JSON data is validated before sending to the API

Response Handling

The tool intelligently handles different response types:

• JSON Response: Pretty-formatted JSON output with syntax highlighting
• Text/HTML Response: Raw text output for non-JSON responses
• Error Responses: Clear error messages with HTTP status codes

Error Handling

The tool provides clear error messages for common issues:

• Invalid username or password: Check your ConnexCS login credentials
• Refresh token expired or invalid: Run cx configure again to obtain a new token
• Failed to get access token: Check your refresh token or reconfigure
• API endpoint not found: Verify the ConnexCS API is accessible
• Server error: Try again later or contact ConnexCS support
• Network error: Check your internet connection
• Invalid JSON data: Check your JSON syntax in request body
• ScriptForge does not exist: Verify the ScriptForge ID is correct

Sync Commands

Sync your ScriptForge scripts and SQL queries between ConnexCS and your local filesystem.

Performance: All network requests (GET/PUT/POST) are executed in parallel for maximum speed.

Pull Scripts

Download all ScriptForge scripts and SQL queries to your local folders:

# Pull scripts and queries (filtered by configured APP_ID)
cx pull

This command will:

1. Fetch all ScriptForge scripts and SQL queries from your account
2. Fetch all file contents in parallel for faster performance
3. Filter by configured APP_ID (if set)
4. Detect any local files that will be overwritten
5. Show diffs for files with local changes (if any)
6. Ask for confirmation
7. Save each script as <name>.js in ./src and queries as <name>.sql in ./query

Example output with diff viewing:

📥 Files to be pulled:
══════════════════════════════════════════════════

📜 ScriptForge Scripts: 2 file(s)
  • my-script.js ⚠️  (will overwrite local changes)
  • another-script.js

══════════════════════════════════════════════════
📊 Total: 2 file(s) (2 scripts, 0 queries)
⚠️  Warning: 1 file(s) have local changes that will be overwritten

? Files with local changes detected. What would you like to do?
  ❯ View diffs before proceeding
    Continue without viewing diffs
    Cancel pull operation

If you choose to view diffs, you'll see a color-coded diff for each file:

• Green lines (+): Content that will be added (from remote)
• Red lines (-): Content that will be removed (your local changes)

Push Changes

Upload local changes back to ScriptForge and SQL queries:

# Push local changes
cx push

This command will:

1. Read all .js files from ./src and .sql files from ./query
2. Fetch remote scripts and queries in parallel for faster comparison
3. Detect changes (modified or new files)
4. Show diffs for files that will be updated (if any)
5. Show you what will be updated/created
6. Ask for confirmation
7. UPDATE and CREATE all changes in parallel for maximum speed
8. Display results as they complete

Example output with diff viewing:

📤 Changes to be pushed:
══════════════════════════════════════════════════

� ScriptForge Scripts:
  📝 To UPDATE:
    • my-script.js (ID: 123)
  ✨ To CREATE:
    • new-script.js

══════════════════════════════════════════════════
📊 Total: 2 change(s) (1 update, 1 create)

? Would you like to view diffs before pushing?
  ❯ View diffs for files to be updated
    Continue without viewing diffs
    Cancel push operation

If you choose to view diffs, you'll see a color-coded diff for each file being updated:

• Red lines (-): Content that will be removed (current remote version)
• Green lines (+): Content that will be added (your local changes)

Important Notes:

• Changed files are detected by comparing local code with remote code
• Unchanged files are skipped automatically
• New files require an APP_ID to be configured (cx configure:app)
• File names must match the script/query names (e.g., my-script.js → script name: my-script)

Clear Local Files

Clear all files from your ./src and ./query folders:

# Clear ./src folder
cx clear

This command will:

1. List all files in ./src
2. Ask for confirmation (defaults to No for safety)
3. Delete all files from the folder

Example output:

🗑️  Files to be deleted:
══════════════════════════════════════════════════
  • my-script.js
  • another-script.js
══════════════════════════════════════════════════
📊 Total: 2 file(s)
⚠️  Delete all 2 file(s) from ./src? (y/N)

Sync Workflow

Typical workflow for syncing scripts:

# 1. Configure credentials and app
cx configure
cx configure:app

# 2. Pull existing scripts from ConnexCS
cx pull

# 3. Edit scripts locally in ./src/
# ... make your changes ...

# 4. Push changes back to ConnexCS
cx push

# 5. Optional: Clear local files when done
cx clear

AI Instructions

Copy AI instruction files to your project's .github/ directory. These instructions help GitHub Copilot understand how to work with ConnexCS tools in your project:

# Copy AI instructions to .github/ directory
cx ai-instructions

# Silent mode (no output)
cx ai-instructions --silent

This command will:

1. Create .github/ directory if it doesn't exist
2. Copy all AI instruction files (*.instructions.md) from the package
3. Download comprehensive ScriptForge API documentation from ConnexCS CDN:
   • Main ScriptForge environment documentation
   • Complete API reference for all built-in modules (cxKV, cxRest, cxJob, cxC5Server, etc.)
4. Update .gitignore with rules to ignore instruction and API files
5. Update .npmignore if it exists

The AI instructions include detailed guidance for:

• Setup and authentication
• ScriptForge script development
• Sync operations (pull/push)
• SQL query execution
• Key-Value store operations
• Environment variable management

ScriptForge API Documentation: The command downloads the complete runtime API documentation including:

• Environment overview and execution types
• All built-in modules (cxKV, cxRest, cxJob, cxCallControl, cxC5Server, etc.)
• Function parameters and authentication
• ES module syntax and NPM library usage

Note: GitHub Copilot automatically uses instruction files found in the .github/ directory to provide better context-aware assistance for your project.

TODO

• ~~Checkout App ID~~ ✅ Implemented
• ~~SQL on CDR & Userspace Databases + Export as CSV~~ ✅ Implemented
• ~~KV Get/Set/List~~ ✅ Implemented
• ~~Sync between local file system and ConnexCS~~ ✅ Implemented
• Query Builder ✅ Implemented
• ScriptForge Remote Logs
• Investigate Call-ID
• Live Tail
• Live Calls Line per call / Dialogs Live UI
