@contensu/directus-extension-image-carousel-interface

A Directus interface for Files (M2M) fields that presents the linked image files as a browsable carousel with a full-screen lightbox.

Install

Open Settings → Marketplace in Directus, search for @contensu/directus-extension-image-carousel-interface, and press Install. Directus unpacks the extension and reloads on its own — no restart required.

If a self-hosted instance refuses the install, it is running the default MARKETPLACE_TRUST=sandbox; set MARKETPLACE_TRUST=all to allow it.

Then create or edit a field and pick Image Carousel under Interface.

Features

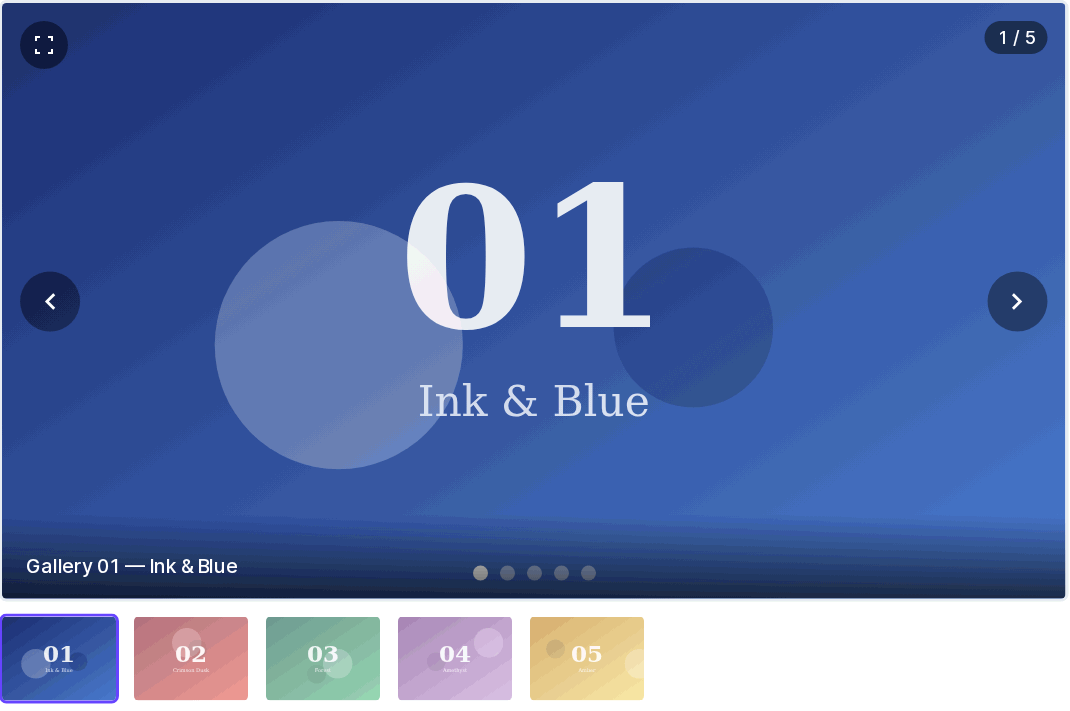

• Main stage with previous/next navigation, counter, optional dot indicators and caption
• Full screen: expand button, double-click, or the F key opens a lightbox that fills the screen (native Fullscreen API, with an overlay fallback when the browser blocks it)
• Zoom and pan in full screen: scroll to zoom toward the cursor, drag to pan, double-click to toggle, + / − / 0 on the keyboard
• Swipe left/right on touch and pen
• Thumbnail strip that scrolls the active image into view
• Fade, slide, or no transition between images
• Optional looping — off, navigation stops at the first and last image
• Optional autoplay, paused on hover and while the lightbox is open
• Keyboard: ← / → to move, F for full screen, Esc to close
• Neighbouring images are preloaded, so navigation does not flash
• Respects the junction table's sort field
• Shows staged (not-yet-saved) file selections alongside saved ones
• Non-image files linked to the same field are silently skipped
• Honours prefers-reduced-motion

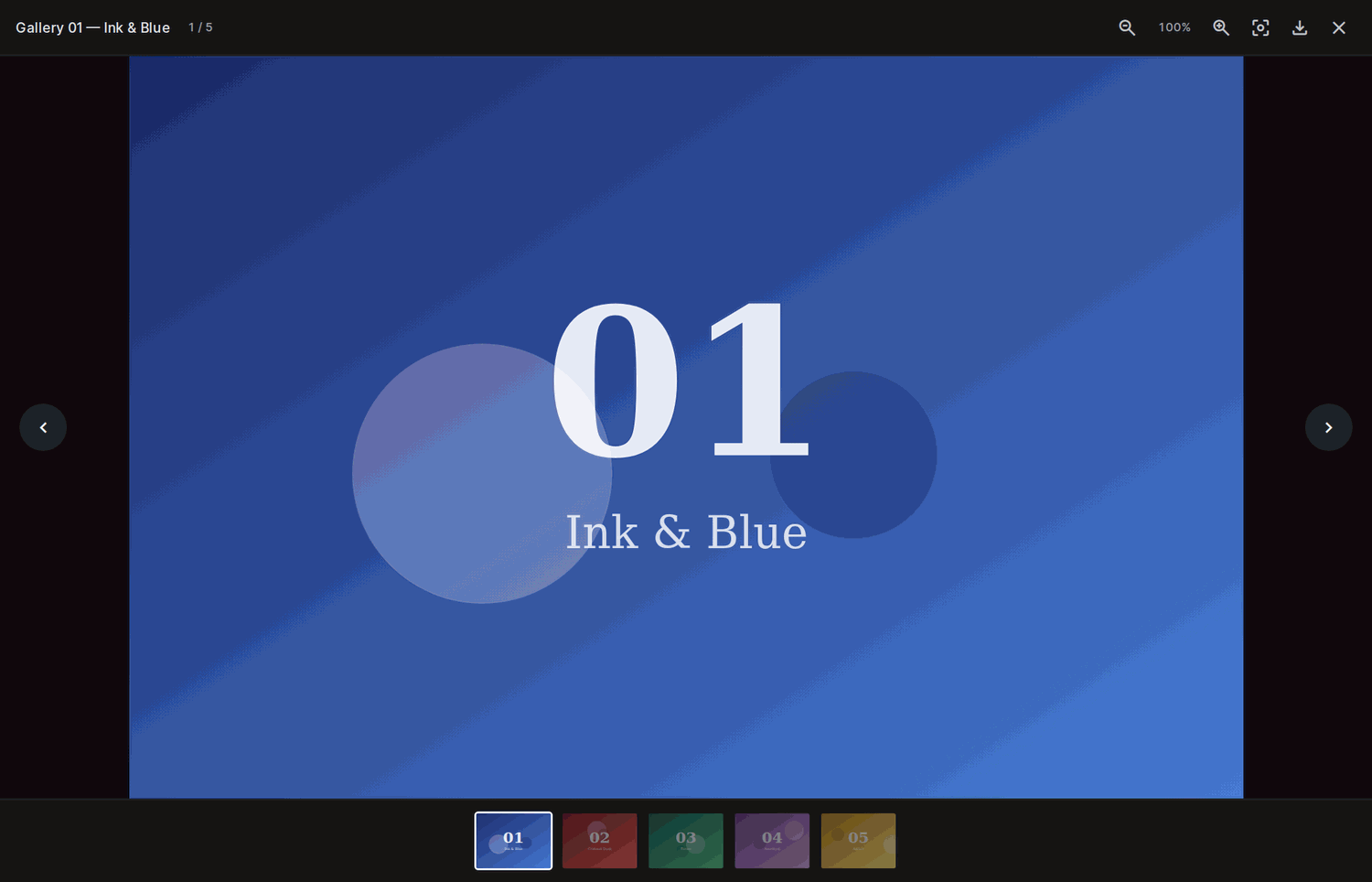

Full screen

Press F, double-click the stage, or use the expand button. The lightbox fills the screen with the title, counter, zoom controls, download, and a thumbnail rail. Esc returns to the form in one press.

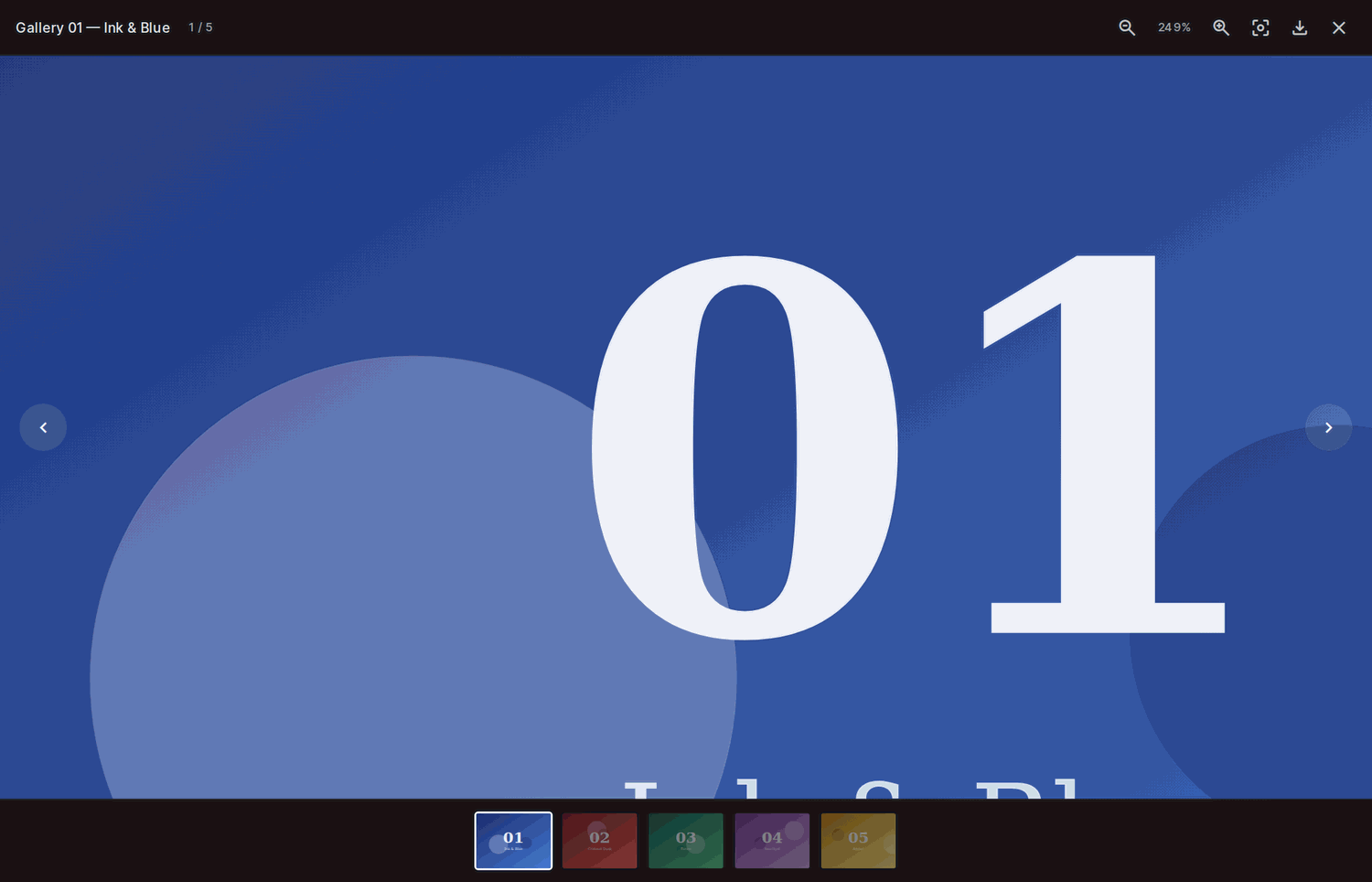

Scroll to zoom toward the cursor and drag to pan; the current magnification is shown in the toolbar.

Options

| Option | Default | Description | | --- | --- | --- | | Aspect Ratio | 16 / 9 | Shape of the main stage (16:9, 4:3, 1:1, 3:4, 21:9) | | Image Fit | contain | contain letterboxes, cover fills the frame. Full screen always uses contain | | Transition | fade | fade, slide, or none | | Loop | true | Wrap around at the ends | | Show Thumbnails | true | Thumbnail strip below the stage | | Show Dot Indicators | false | Dots overlaid on the stage | | Show Counter | true | "3 / 5" badge | | Show Caption | false | Overlays the file title | | Enable Full Screen | true | Expand button, double-click, and F | | Enable Zoom | true | Scroll-to-zoom and drag-to-pan in full screen | | Autoplay | false | Advance automatically | | Autoplay Interval | 5000 ms | Time between slides (min 1000 ms) |

Notes

• This interface is presentational: it displays the linked images but does not add or remove them. Manage the files themselves with the standard Files interface (for example in a different tab or detail group), or via the API.
• Use it on a field with local type files — the M2M relation to directus_files that the field wizard creates.

Versions

Every dependency is pinned to an exact version — no ^ ranges. Two of them are load-bearing:

• vue must match the copy @directus/extensions-sdk resolves internally (3.5.24 for SDK 18.0.2). A caret lets a newer vue in alongside it, and vue-tsc then compares component types across the two instances and crashes mid-elaboration instead of reporting an error. pnpm why vue must say Found 1 version.
• typescript stays on 5.x — vue-tsc 3.x cannot drive TS 6 (internal tsc crash) or TS 7 (no ./lib/tsc export). The extension build itself uses esbuild and does not care; only pnpm typecheck does.

The directus:extension.host field is deliberately still a range: it declares which Directus versions this extension supports, not a dependency to install.

Development

A Docker Compose stack runs the extension inside a real Directus while you build it:

pnpm install
pnpm dev            # rebuilds dist/ on every save
docker compose up   # http://localhost:8055 — [email protected] / d1r3ctu5

dist/ and package.json are mounted into the container's extensions folder and EXTENSIONS_AUTO_RELOAD is on, so saving a file rebuilds the bundle and Directus reloads it — refresh the browser to see the change.

Then create a field using the Image Carousel interface to try it out.

pnpm typecheck      # vue-tsc
pnpm validate       # directus-extension validate

CI & Releases

Every push runs typecheck, build, and extension validation via GitHub Actions. Releases are published to npm manually:

pnpm build
npm publish --access public

Contributing

Pull requests are welcome. Please open an issue first to discuss what you would like to change.

License

MIT © Contensu
