@contensu/directus-extension-model-viewer-interface

A Directus interface for file fields that renders 3D model files in an interactive three.js viewer.

Install

Open Settings → Marketplace in Directus, search for @contensu/directus-extension-model-viewer-interface, and press Install. Directus unpacks the extension and reloads on its own — no restart required.

If a self-hosted instance refuses the install, it is running the default MARKETPLACE_TRUST=sandbox; set MARKETPLACE_TRUST=all to allow it.

Then create or edit a field and pick 3D Model Viewer under Interface.

Supported formats

| Format | Loader | Notes | | --- | --- | --- | | .glb | GLTFLoader | Full support: materials, textures, scenes, animations | | .gltf | GLTFLoader | Self-contained files only (embedded buffers/textures) — external .bin and texture references cannot be resolved from a single Directus asset | | .stl | STLLoader | Rendered with the configured model colour | | .obj | OBJLoader | Geometry only; .mtl materials are not fetched | | .ply | PLYLoader | Vertex colours respected when present |

Compression: EXT_meshopt_compression works out of the box (the decoder is bundled). Draco needs a decoder path — set Draco Decoder Path (e.g. https://www.gstatic.com/draco/versioned/decoders/1.5.7/); the viewer says so explicitly when it meets a Draco file without one. KTX2/Basis textures are not supported.

A file whose extension lies is still detected correctly — the binary glTF magic number wins over the name.

Features

Camera — orbit with damping, seven view presets (isometric, front, back, left, right, top, bottom), perspective or orthographic projection, configurable field of view, auto-framing that fits any model regardless of size or origin, and a one-key reset.

Lighting — three environments: Studio (neutral product lighting), Daylight (sky/ground gradient), and Lights only. Intensity and tone-mapping exposure are adjustable, live, from the toolbar.

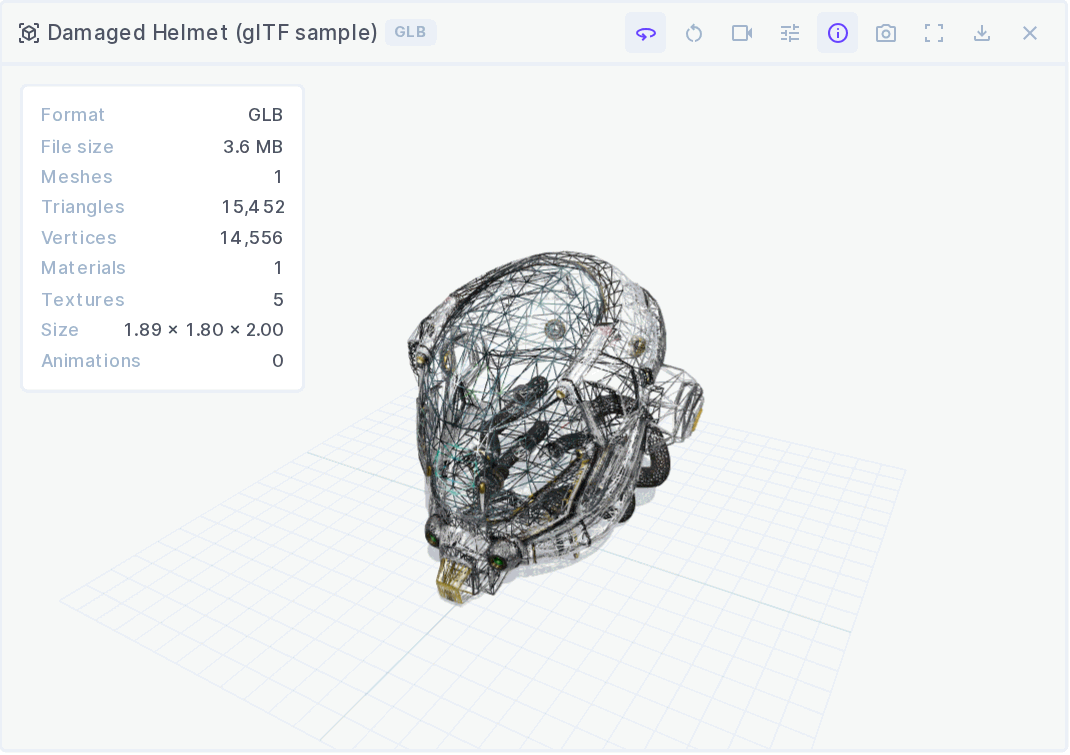

Display — wireframe, flat shading, ground grid, axes helper, bounding box, and a soft ground shadow, each toggleable at runtime.

Animation — glTF clips are detected automatically: play/pause, clip selector, scrubber, and a speed control. Optional auto-play.

Model info — meshes, triangles, vertices, materials, textures, bounding-box dimensions, animation count, file size, and detected format.

Output — full screen (button or F) and a one-click PNG screenshot of the current view, transparent where the background is.

Keyboard — F full screen, R reset view, Space play/pause the animation (or auto-rotate when there is none). Keys are ignored while a control is focused.

Performance — rendering stops entirely when the field scrolls out of view or the tab is hidden; the pixel ratio is capped at 2; WebGL context loss is reported rather than failing silently. Every geometry, material, texture, and the renderer itself are disposed on unmount.

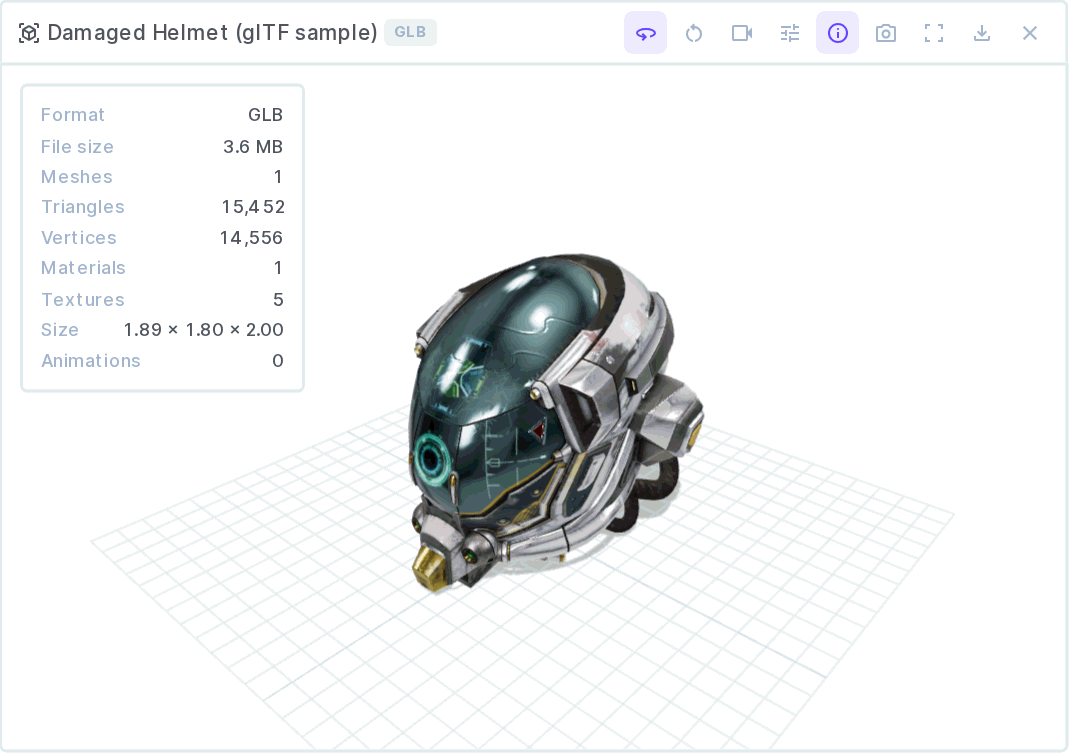

In the editor

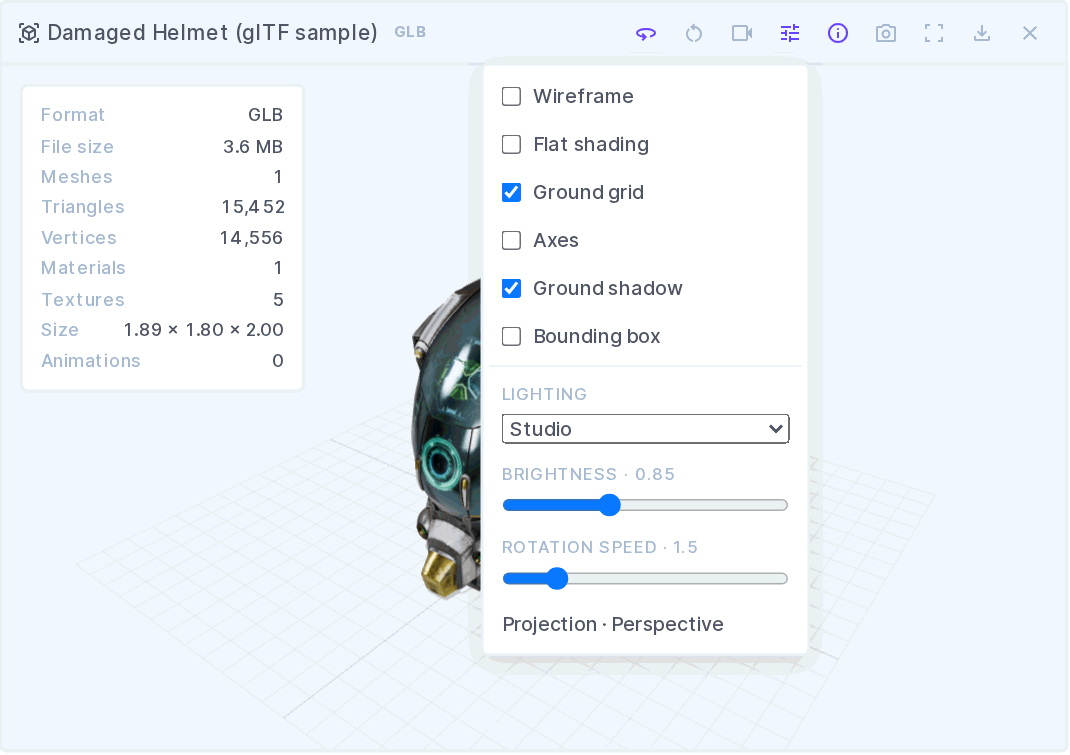

Every display setting is a live control, so editors can inspect a model without touching the field configuration.

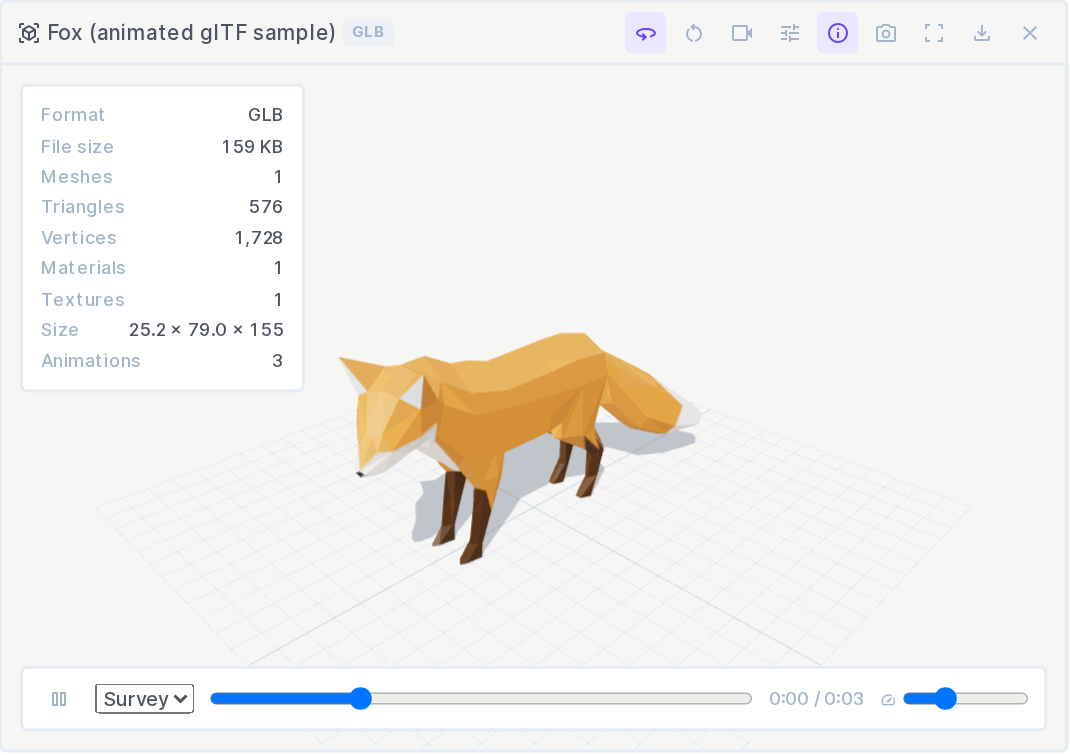

glTF animation clips are detected automatically and get a play/pause button, a clip selector, a scrubber, and a speed control.

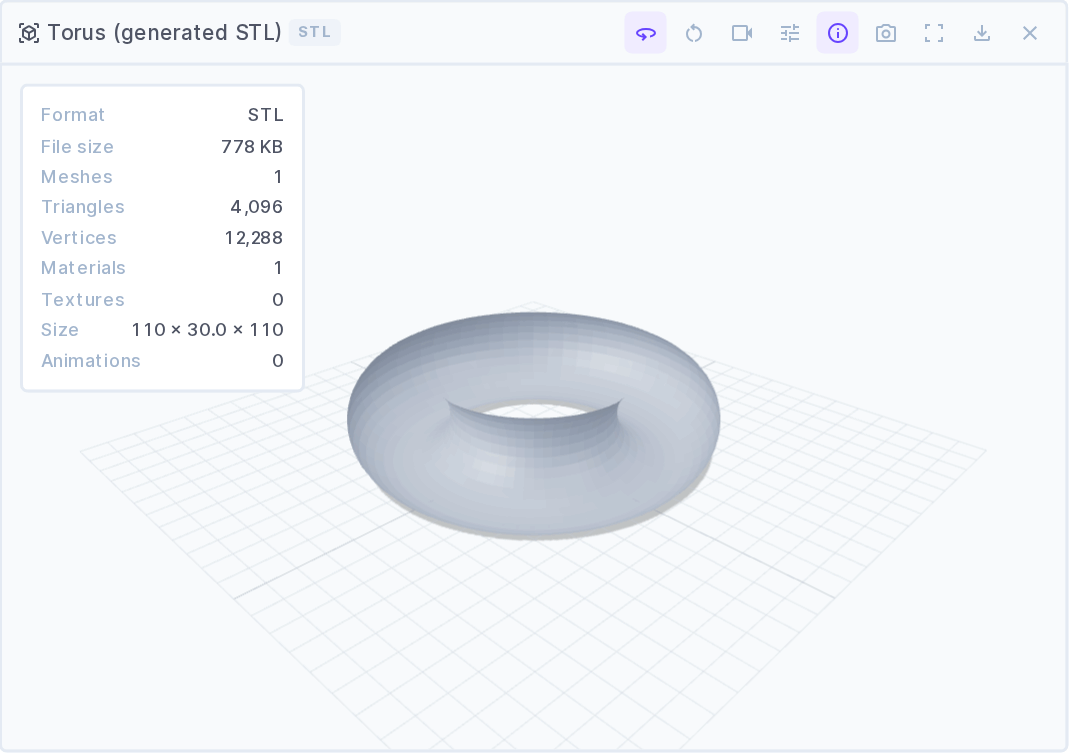

Formats that carry no materials — STL, OBJ, PLY — are shaded with the configured model colour.

Options

| Option | Default | Description | | --- | --- | --- | | Viewer Height | 420 px | Canvas height outside full screen | | Background Color | theme | Stage background; empty keeps the canvas transparent | | Lighting | studio | studio, sky (daylight), or none | | Lighting Intensity | 0.9 | Environment map contribution | | Brightness | 0.85 | Tone-mapping exposure | | Model Color | #9aa7bd | Applied to STL, OBJ, and PLY, which carry no materials | | Projection | perspective | perspective or orthographic | | Initial View | iso | Camera preset applied on load | | Field of View | 45 | Perspective only | | Rotation Speed | 1.5 | Auto-rotate speed | | Auto Rotate | true | Slowly orbit the model | | Ground Shadow | true | Soft shadow under the model | | Ground Grid | false | Grid at the model's base | | Axes Helper | false | Red X, green Y, blue Z | | Bounding Box | false | Wireframe box around the extents | | Wireframe | false | Render edges only | | Flat Shading | false | Facets instead of smoothed normals | | Show Model Info | false | Opens the statistics panel by default | | Enable Full Screen | true | Full-screen button and F | | Enable Screenshot | true | PNG export button | | Auto-play Animations | true | Start the first clip on load | | Draco Decoder Path | — | Required only for Draco-compressed glTF; a trailing slash is added if missing |

Every display option is also a live toolbar control, so editors can change the view without touching the field configuration.

CSP note: Directus's default Content-Security-Policy allows blob: URLs in img-src but not in connect-src. three.js's preferred ImageBitmapLoader fetches embedded glTF textures from blob: URLs, which that CSP silently blocks — models would render untextured white. This extension therefore forces GLTFLoader onto the <img>-based TextureLoader path, which works under the default CSP with no server configuration.

Versions

Every dependency is pinned to an exact version — no ^ ranges. Two of them are load-bearing:

• vue must match the copy @directus/extensions-sdk resolves internally (3.5.24 for SDK 18.0.2). A caret lets a newer vue in alongside it, and vue-tsc then compares component types across the two instances and crashes mid-elaboration instead of reporting an error. pnpm why vue must say Found 1 version.
• typescript stays on 5.x — vue-tsc 3.x cannot drive TS 6 (internal tsc crash) or TS 7 (no ./lib/tsc export). The extension build itself uses esbuild and does not care; only pnpm typecheck does.

The directus:extension.host field is deliberately still a range: it declares which Directus versions this extension supports, not a dependency to install.

Development

A Docker Compose stack runs the extension inside a real Directus while you build it:

pnpm install
pnpm dev            # rebuilds dist/ on every save
docker compose up   # http://localhost:8055 — [email protected] / d1r3ctu5

dist/ and package.json are mounted into the container's extensions folder and EXTENSIONS_AUTO_RELOAD is on, so saving a file rebuilds the bundle and Directus reloads it — refresh the browser to see the change.

Then create a field using the 3D Model Viewer interface to try it out.

pnpm typecheck      # vue-tsc
pnpm validate       # directus-extension validate
pnpm test           # vitest

CI & Releases

Every push runs typecheck, build, and extension validation via GitHub Actions. Releases are published to npm manually:

pnpm build
npm publish --access public

Contributing

Pull requests are welcome. Please open an issue first to discuss what you would like to change.

License

MIT © Contensu
