Flow Documentation Generator

Screenshots

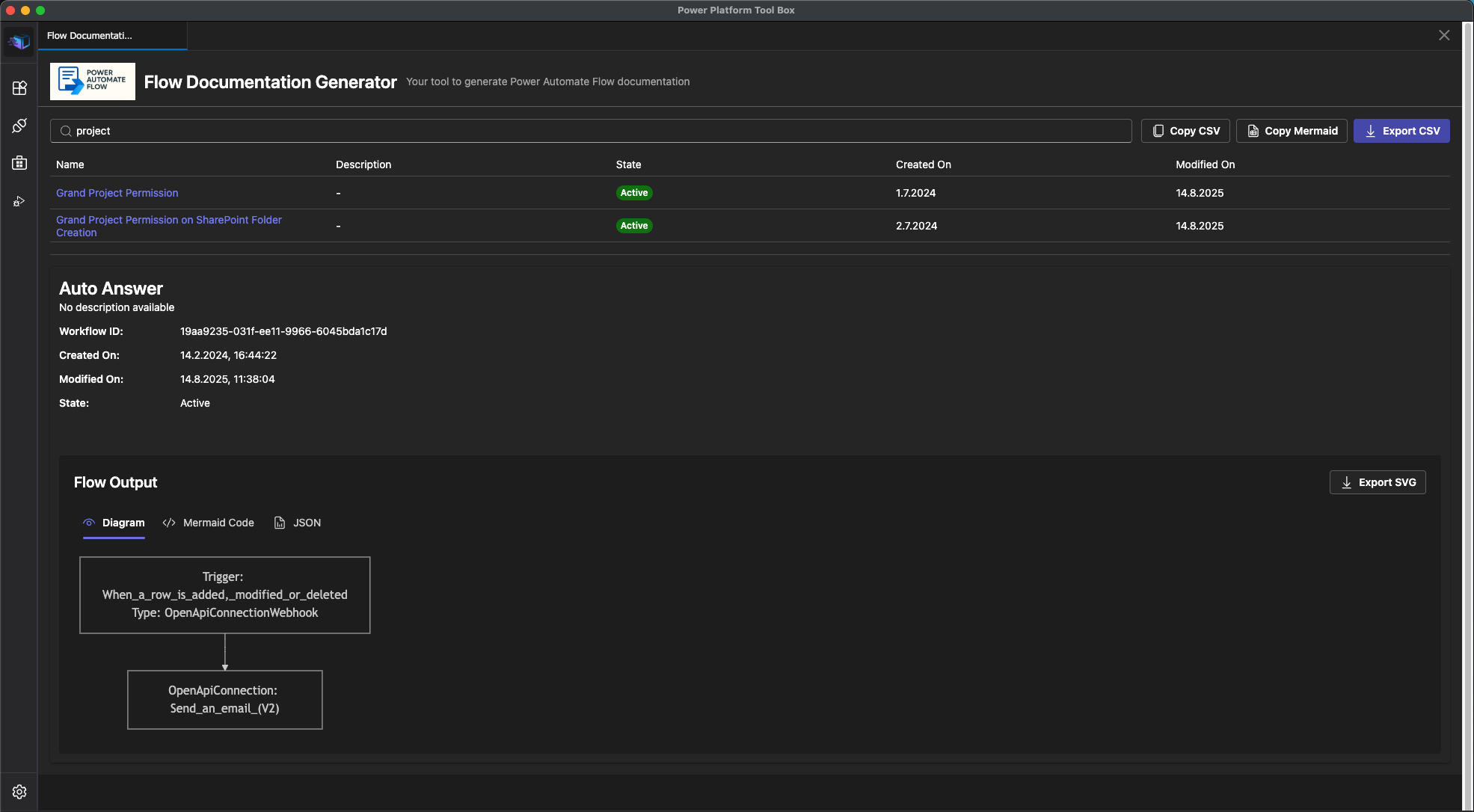

Dark Theme

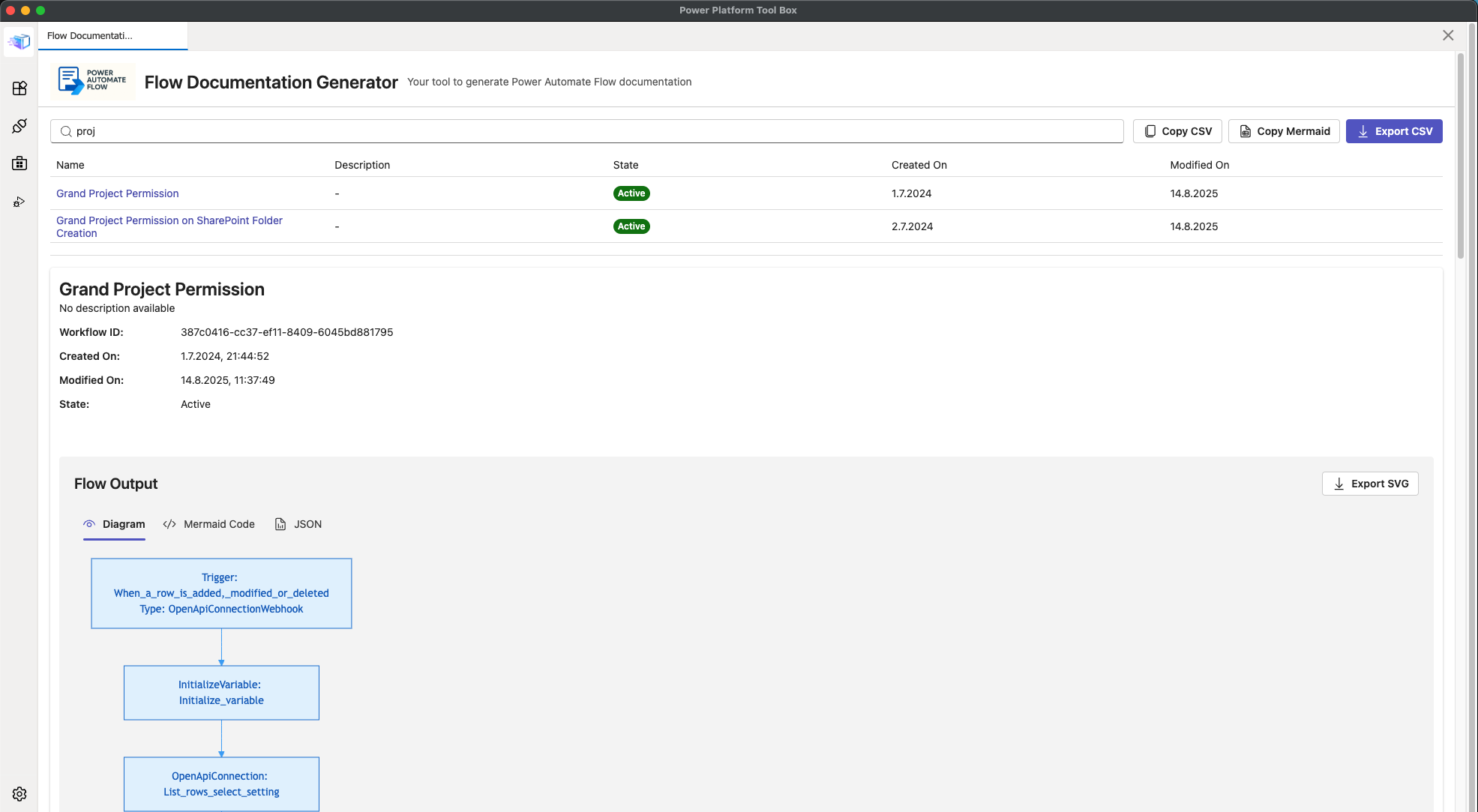

Light Theme

Features

Core Capabilities

• 📋 Flow List View - View all Cloud Flows in your Dynamics 365 environment in a sortable table
  • Sortable columns with visual arrow indicators (ascending/descending)
  • Optimized column widths for better data visibility
  • Click any row to open details in a side drawer
• 🔍 Advanced Filtering - Real-time search by flow name and description
• 📈 Interactive Mermaid Diagrams - Visualize flow logic with auto-generated Mermaid flowcharts
• 🖼️ Multiple View Modes:
  • Diagram View: Interactive flowchart visualization with zoom controls
  • Mermaid Code: View and copy the raw Mermaid syntax (formatted with line breaks)
  • JSON View: Inspect the original flow definition data
• 🔍 Advanced Zoom Controls:
  • Zoom range from 50% to 1000%
  • Interactive slider for precise control
  • +/- buttons for quick adjustments
  • Mouse wheel zoom with Ctrl/Cmd modifier
  • Reset button to return to 100%
• 📤 Multiple Export Formats:
  • Export flow list as CSV file
  • Copy flow list to clipboard as CSV
  • Copy flow list as Markdown table with flow details
  • Export individual flow diagrams as SVG file
  • Copy individual flow diagrams as SVG to clipboard
• 🎨 Modern Theme Support:
  • Automatic light/dark theme switching based on PPTB settings
  • Fresh, modern color palette for light mode diagrams (Material Design)
  • Optimized dark mode styling
• 📢 Visual Notifications - Toast notifications for all operations
• 📝 Event Logging - Track all operations and API calls in real-time
• 🔄 Real-time Updates - Automatic refresh on connection changes

Technical Stack

• ✅ React 18 with TypeScript
• ✅ Fluent UI React Components v9 for consistent Microsoft design
• ✅ Mermaid.js for diagram rendering
• ✅ Vite for fast development and optimized builds
• ✅ Power Platform Toolbox API integration
• ✅ Dataverse API for querying flow data
• ✅ Custom hooks for state management
• ✅ Centralized logging service
• ✅ Hot Module Replacement (HMR) for development

Structure

pptb-flow-documentation-generator/
├── src/
│   ├── components/
│   │   ├── AssemblySteps.tsx      # (Legacy component)
│   │   ├── EventLog.tsx           # Real-time event log display
│   │   ├── Filter.tsx             # Text filtering for flow list
│   │   ├── FlowDetails.tsx        # Flow detail view with Mermaid diagram
│   │   ├── Overview.tsx           # Flow list table view
│   │   └── ToolBar.tsx            # Action buttons toolbar
│   ├── hooks/
│   │   ├── useConnection.ts       # Dataverse connection management
│   │   ├── useToolboxAPI.ts       # PPTB API integration
│   │   └── useToolboxEvents.ts    # PPTB event subscription
│   ├── mappers/
│   │   └── flowDefinitionMapper.ts  # Map API responses to flow models
│   ├── services/
│   │   ├── dataverseService.ts    # Dataverse API queries
│   │   └── loggerService.ts       # Centralized logging singleton
│   ├── types/
│   │   └── flowDefinition.ts      # Flow definition type definitions
│   ├── utils/
│   │   ├── exportUtils.ts         # Export and clipboard utilities
│   │   └── Flow2MermaidConverter.ts  # Convert flow JSON to Mermaid syntax
│   ├── App.tsx                    # Main application component
│   ├── main.tsx                   # Entry point
│   └── index.css                  # Global styling
├── dist/                          # Build output
├── index.html
├── package.json
├── tsconfig.json
└── vite.config.ts

Installation

Prerequisites

• Node.js >= 18.0.0
• npm or yarn
• Power Platform Toolbox installed

Setup

1. Clone the repository:

git clone <repository-url>
cd pptb-flow-documentation-generator

2. Install dependencies:

npm install

Development

Development Server

Start development server with HMR:

npm run dev

The tool will be available at http://localhost:5173

Watch Mode

Build the tool in watch mode for continuous updates:

npm run watch

Production Build

Build the optimized production version:

npm run build

The output will be in the dist/ directory.

Preview Build

Preview the production build locally:

npm run preview

Usage

In Power Platform Toolbox

1. Build the tool:

   npm run build

2. Package the tool (creates npm-shrinkwrap.json):

   npm run finalize-package

3. Install in Power Platform Toolbox using the PPTB interface

4. Connect to a Dataverse environment

5. Launch the tool to view and document your Cloud Flows

User Interface

Flow List View

• Searchable Table: View all flows with sortable columns (Name, Description, State, Created On, Modified On)
  • Click column headers to sort
  • Visual arrow indicators show sort direction (ascending/descending)
  • Optimized column widths: Name (25%), Description (35%), State (10%), Dates (15% each)
• Text Filter: Real-time search across flow names and descriptions
• Action Buttons:
  • Copy CSV: Copy flow list to clipboard in CSV format
  • Copy Markdown: Copy flow list as a Markdown table with flow details
  • Export CSV: Download flow list as a CSV file
• Flow Selection: Click any row to open the detailed view in a side drawer (80% viewport width, max 1400px)

Flow Detail View (Drawer)

• Flow Information:
  • Flow name displayed in drawer header
  • State, Workflow ID, Created On, Modified On in fixed details section
• View Mode Tabs (combined with context-aware controls in single row):
  • Diagram: Interactive Mermaid flowchart with modern styling and zoom controls
  • Mermaid Code: View and copy the raw Mermaid syntax (formatted with line breaks after semicolons)
  • JSON: Inspect the complete flow definition
• Context-Aware Controls:
  • Diagram View: Zoom slider (50%-1000%), +/- buttons, reset button, Copy SVG button, Export SVG button
  • Mermaid View: Copy to Clipboard button
  • JSON View: Copy to Clipboard button
• Mouse Wheel Zoom: Hold Ctrl (Windows/Linux) or Cmd (Mac) and scroll to zoom in/out
• Scrollable Content: Only the diagram/code/JSON area scrolls, header and controls remain fixed

Event Log

• Monitor all operations and API calls
• Color-coded log levels (info, success, warning, error)
• Auto-scrolls to show latest entries

API Usage

The tool demonstrates various Power Platform Toolbox and Dataverse API features:

Connection Management

// Get current connection
const connection = await window.toolboxAPI.getConnection();
console.log(connection.connectionUrl);

// Listen for connection changes
window.toolboxAPI.onToolboxEvent((event, payload) => {
  if (event === "connection:updated") {
    // Refresh data with new connection
  }
});

Dataverse Queries

// Query Cloud Flows (workflows)
const flows = await window.dataverseAPI.executeQuery(
  `workflows?$select=workflowid,name,description,createdon,modifiedon,statecode,clientdata&$filter=category eq 5`
);

Notifications

await window.toolboxAPI.utils.showNotification({
  title: "Export Successful",
  body: "Exported 15 plugin assembly steps",
  type: "success",
  duration: 3000,
});

File Operations

// Save CSV file
await window.toolboxAPI.utils.saveFile("flow_definitions.csv", csvContent);

// Save SVG diagram
await window.toolboxAPI.utils.saveFile("flow_diagram.svg", svgString);

// Copy to clipboard
await window.toolboxAPI.utils.copyToClipboard(content);

Theme Management

// Get current theme
const theme = await window.toolboxAPI.utils.getCurrentTheme();
// Returns 'light' or 'dark'

// Listen for theme changes
window.toolboxAPI.onToolboxEvent((event) => {
  if (event === "settings:updated") {
    updateThemeBasedOnSettings();
  }
});

Event Subscription

// Subscribe to all PPTB events
window.toolboxAPI.onToolboxEvent((event, payload) => {
  console.log("Event:", event);
  console.log("Data:", payload.data);

  // Handle specific events
  switch (event) {
    case "connection:created":
    case "connection:updated":
      refreshConnection();
      break;
    case "connection:deleted":
      clearData();
      break;
  }
});

Architecture

Custom Hooks

• useConnection: Manages Dataverse connection state and refresh logic
• useToolboxAPI: Provides PPTB API access with theme management
• useToolboxEvents: Subscribes to PPTB events and handles callbacks

Services

• loggerService: Singleton service for centralized logging with callback pattern

  • Methods: info(), success(), warning(), error()
  • Eliminates prop drilling for logging across components

• dataverseService: Handles all Dataverse API queries

  • Queries Cloud Flow definitions (workflows)
  • Maps raw API responses to typed models

Export Utilities

• exportFlowDefinitionsToCSV: Export flow list to CSV file
• copyFlowDefinitionsAsCSV: Copy flow list as CSV to clipboard
• copyFlowDefinitionsAsMarkdown: Copy flows as Markdown table format
• handleExportSVG: Export individual flow diagram as SVG file
• handleCopySVG: Copy individual flow diagram as SVG to clipboard

All export functions support optional notifications for user feedback and use the Power Platform Toolbox API for file operations and clipboard access.

Flow Visualization

• Flow2MermaidConverter: Converts Power Automate flow JSON definitions to Mermaid flowchart syntax
  • Parses flow actions, triggers, and control structures
  • Generates clean, readable Mermaid diagrams
  • Supports branching, loops, and nested conditions

Type Safety

Full TypeScript coverage with:

• Interface definitions for all data models
• Type-safe API responses
• Strongly typed component props
• PPTB API types from @pptb/types package

Configuration

Vite Build Configuration

The tool uses a custom Vite configuration for PPTB compatibility:

• IIFE format: Bundles as Immediately Invoked Function Expression for iframe compatibility
• Single bundle: Uses inlineDynamicImports to avoid module loading issues with file:// URLs
• HTML transformation: Custom plugin removes type="module" and moves scripts to end of body
• Chunk size limit: Set to 1000 kB to accommodate Fluent UI bundle size

Data Models

FLowDefinition

{
  workflowid: string;
  name: string;
  description: string | null;
  createdon: Date;
  modifiedon: Date;
  statecode: number; // 0=Draft, 1=Active, 2=Inactive
  clientdata: string; // JSON string of flow definition
}

Troubleshooting

Build Issues

If you encounter chunk size warnings:

• The tool uses IIFE format which requires a single bundle
• Chunk size limit is configured in vite.config.ts
• This is expected for Fluent UI and Mermaid.js components

Connection Issues

• Ensure you're connected to a Dataverse environment in PPTB
• Check the Event Log for connection-related errors
• Verify permissions to read workflow data

Diagram Rendering Issues

• If diagrams don't appear, check browser console for Mermaid errors
• Try switching to another view mode and back to Diagram
• Verify the flow has valid clientdata in JSON format

Theme Not Updating

• The tool automatically syncs with PPTB theme settings
• Check console for theme update events
• Verify PPTB version supports theme API

Contributing

Contributions are welcome! Please:

1. Fork the repository
2. Create a feature branch
3. Make your changes with appropriate TypeScript types
4. Test the build process
5. Submit a pull request

GitHub Actions

The project includes automated CI/CD workflows:

CI Workflow (.github/workflows/ci.yml)

Runs on every push and pull request to main and develop branches:

• Build and Test:

  • Tests on Node.js 18.x and 20.x
  • TypeScript type checking
  • Build verification
  • Uploads build artifacts

• Lint Check:

  • Runs ESLint if configured
  • Validates code quality

• Security Audit:

  • Checks for npm package vulnerabilities
  • Fails on critical vulnerabilities
  • Warns on high-severity issues

• Package Validation:

  • Validates package.json structure
  • Creates npm-shrinkwrap.json
  • Verifies all required fields

Release Workflow (.github/workflows/release.yml)

Triggered when pushing a version tag (e.g., v1.0.0):

• Builds the project
• Creates distribution packages (tar.gz and zip)
• Creates GitHub release with auto-generated notes
• Attaches build artifacts to release

To create a release:

# Update version in package.json
npm version patch  # or minor, major

# Push with tags
git push origin main --tags

License

MIT - See LICENSE file for details

Author

Lars Hildebrandt
