@dev-ryo/treeview

🌲 High-performance, ultra-lightweight CLI tool and NPM library that generates clean, token-efficient ASCII repository trees wrapped in Markdown for LLMs.

💡 Why treeview?

When feeding codebases to AI models like Claude, ChatGPT, or Gemini, providing clear repository context is essential. Standard directory listing commands either include thousands of unnecessary files (node_modules, dist, .git) or produce plain text that wastes context tokens.

treeview scans your directory asynchronously and outputs an optimized ASCII tree inside a Markdown file (treeview.md). With optional --indepth metadata, it calculates human-readable file sizes, streaming line counts, and estimated LLM token usage for every file node.

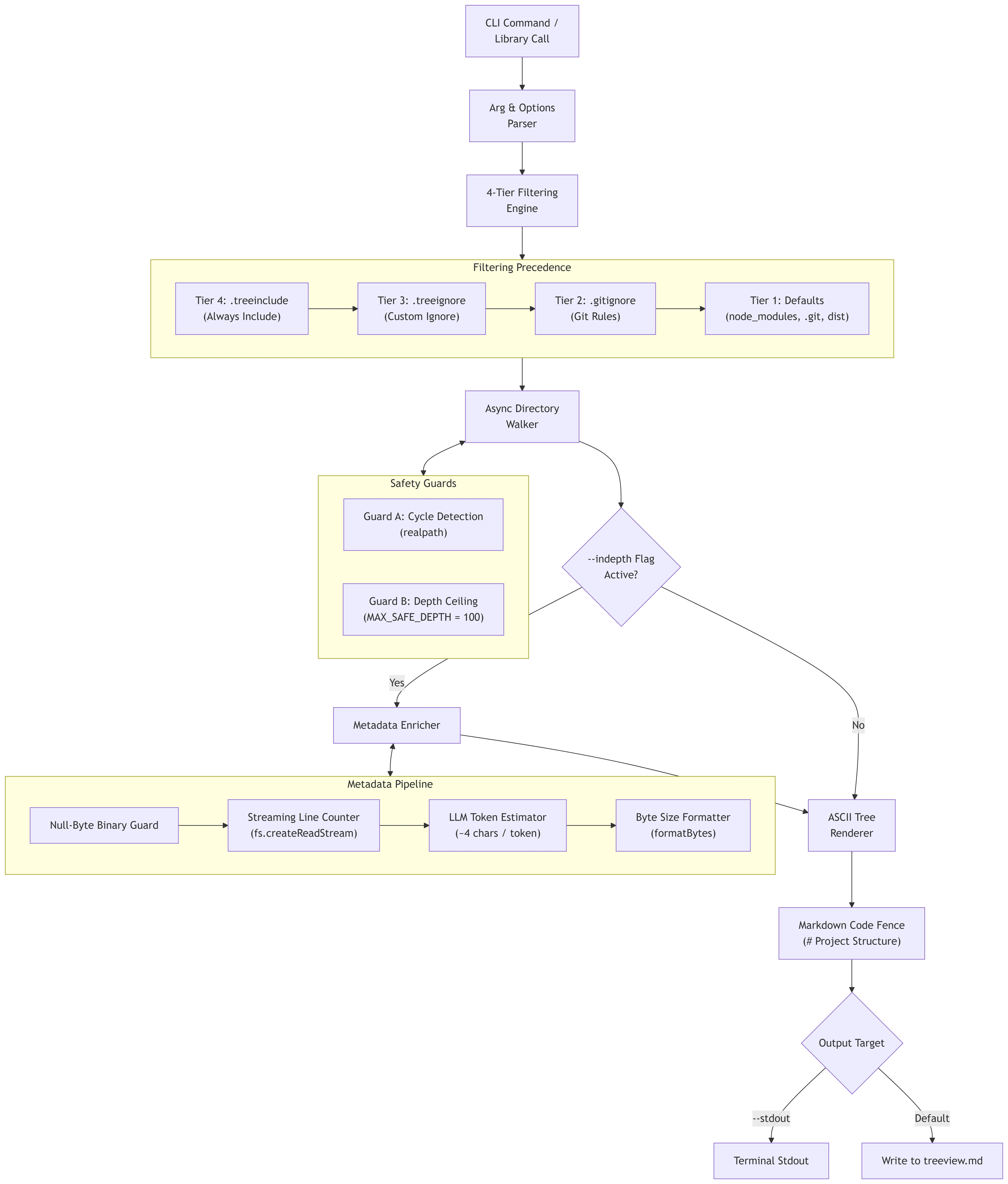

🏗️ Architecture & How It Works

⚡ Quick Start (Zero Installation)

Run treeview directly in any project folder without installing anything:

# Generate treeview.md for the current directory
npx @dev-ryo/treeview

# Include file sizes, line counts, and estimated LLM tokens
npx @dev-ryo/treeview --indepth

# Cap estimated LLM token footprint within context budget globally
npx @dev-ryo/treeview --max-tokens 2000

# Cap estimated LLM token footprint per directory branch (prevents single folder domination)
npx @dev-ryo/treeview --max-dir-tokens 500

# Customize token ratio using model presets (e.g. claude, gpt4, dense) or custom multiplier (e.g. 0.33)
npx @dev-ryo/treeview --token-ratio claude

# Print tree directly to your terminal stdout
npx @dev-ryo/treeview --stdout

📦 Global Installation

If you prefer to have the treeview command permanently available everywhere:

npm install -g @dev-ryo/treeview

Then run anywhere:

treeview
treeview --indepth -d 3
treeview --max-tokens 1500
treeview --max-dir-tokens 500
treeview --token-ratio claude

📋 CLI Flags & Usage Reference

npx @dev-ryo/treeview [path] [options]

| Flag | Short | Default | Description | |------|-------|---------|-------------| | [path] | — | . (CWD) | Target directory path to traverse. | | --output <file> | -o | treeview.md | Custom output Markdown file path. | | --depth <num> | -d | 100 | Maximum directory recursion depth limit (capped at 100). | | --max-tokens <num> | -m | — | Maximum token budget before pruning branches globally (auto-enables --indepth). | | --max-dir-tokens <num> | — | — | Maximum token budget per directory sub-tree branch (auto-enables --indepth). | | --token-ratio <num\|preset> | — | 0.25 | Custom token estimation ratio (0.05-1.0) or preset alias (gpt4, claude, llama, dense). | | --min-file-tokens <num> | — | — | Filter out individual files below this token count (auto-enables --indepth). | | --max-file-tokens <num> | — | — | Filter out individual files above this token count (auto-enables --indepth). | | --silent | — | false | Suppress roll-up summary nodes for token threshold filters. | | --indepth | — | false | Enables metadata annotations (size, line count, LLM tokens). | | --stdout | -s | false | Prints Markdown tree to terminal stdout instead of writing a file. | | --help | -h | — | Displays the CLI help menu. | | --version | -v | — | Displays installed package version. |

🎯 Filtering Engine & 4-Tier Precedence

treeview evaluates every file and directory against a 4-tier filtering hierarchy. Rules with higher priority explicitly override rules below them:

1. Tier 4 (Highest Priority — .treeinclude)

Create a .treeinclude file in your repository root to force-include specific folders or files that would otherwise be ignored by .gitignore or built-in defaults:

# .treeinclude example
dist/
node_modules/custom-internal-pkg/

2. Tier 3 (.treeignore)

Create a .treeignore file to specify rules exclusively for repository structure generation without affecting your Git tracking:

# .treeignore example
docs/
fixtures/
*.tmp

3. Tier 2 (.gitignore)

Automatically parses your project's .gitignore rules relative to the repository root using glob matching.

4. Tier 1 (Built-in Defaults)

Automatically excludes common heavy/built directories and lockfiles:

• Directories: .git, node_modules, dist, build, .next
• System files: .DS_Store
• Lockfiles: package-lock.json, yarn.lock, pnpm-lock.yaml
• Output target: treeview.md (or custom -o filename)

📊 Output Modes & Visual Examples

1. Standard Tree (Default)

Clean ASCII tree without metadata annotations. Perfect for lightweight file listing.

npx @dev-ryo/treeview

my-project/
├── assets/
│   └── logo.png
├── bin/
│   └── shim.js
├── src/
│   ├── cli.ts
│   ├── index.ts
│   └── utils.ts
└── package.json

2. In-Depth Metadata Mode (--indepth)

Annotates files with human-readable size, stream line counts, LLM token estimates, and binary flags.

npx @dev-ryo/treeview --indepth

my-project/
├── assets/
│   └── logo.png (24.5 KB, binary)
├── bin/
│   └── shim.js (134 B, 4 lines, ~12 tokens)
├── src/
│   ├── cli.ts (5.2 KB, 174 lines, ~1340 tokens)
│   ├── index.ts (1.7 KB, 49 lines, ~427 tokens)
│   └── utils.ts (411 B, 18 lines, ~103 tokens)
└── package.json (1.2 KB, 55 lines, ~311 tokens)

3. Total Token Budget Limit (--max-tokens <num>)

Caps cumulative token usage across your project. Automatically prunes remaining branches once the token limit is reached.

npx @dev-ryo/treeview --max-tokens 1500

my-project/
├── assets/
│   └── logo.png (24.5 KB, binary)
├── bin/
│   └── shim.js (134 B, 4 lines, ~12 tokens)
├── src/
│   ├── cli.ts (5.2 KB, 174 lines, ~1340 tokens)
│   └── ... [pruned: 2 items omitted (exceeded --max-tokens budget of 1500)]
└── ... [pruned: 1 item omitted (exceeded --max-tokens budget of 1500)]

4. Per-Directory Branch Token Limit (--max-dir-tokens <num>)

Caps aggregate tokens per directory branch sub-tree. Prevents any single heavy folder (e.g. docs/ or tests/) from dominating your token allocation, ensuring sibling directories continue rendering cleanly.

npx @dev-ryo/treeview --max-dir-tokens 500

my-project/
├── .agent/
│   ├── features/
│   │   └── treeview-cli/
│   │       ├── 00-scaffolding.md (4.2 KB, 166 lines, ~1078 tokens)
│   │       └── ... [pruned: 6 items omitted (exceeded --max-dir-tokens budget of 500)]
│   └── ... [pruned: 2 items omitted (exceeded --max-dir-tokens budget of 500)]
├── bin/
│   └── shim.js (134 B, 4 lines, ~12 tokens)
├── src/
│   ├── cli.ts (5.2 KB, 174 lines, ~1340 tokens)
│   └── ... [pruned: 4 items omitted (exceeded --max-dir-tokens budget of 500)]
└── tests/
    ├── cli.test.ts (2.8 KB, 85 lines, ~710 tokens)
    └── ... [pruned: 8 items omitted (exceeded --max-dir-tokens budget of 500)]

5. Custom Token Ratio & Model Profiles (--token-ratio <num|alias>)

Overrides the default $0.25$ token/char ratio ($1/4$). Allows passing custom multipliers (e.g., 0.33 for dense code, 0.2 for text) or model alias presets (gpt4: 0.25, claude: 0.28, llama: 0.30, dense: 0.35).

npx @dev-ryo/treeview --token-ratio claude

my-project/
├── bin/
│   └── shim.js (134 B, 4 lines, ~38 tokens)
├── src/
│   ├── cli.ts (5.2 KB, 174 lines, ~1501 tokens)
│   ├── index.ts (1.7 KB, 49 lines, ~479 tokens)
│   └── utils.ts (411 B, 18 lines, ~116 tokens)
└── package.json (1.2 KB, 55 lines, ~348 tokens)

6. Per-File Token Thresholds (--min-file-tokens, --max-file-tokens)

Filters individual files outside a specific token range and aggregates omitted files into clean roll-up summary nodes. Binary files bypass this filter safely.

npx @dev-ryo/treeview --min-file-tokens 100

my-project/
├── assets/
│   └── logo.png (24.5 KB, binary)
├── bin/
│   └── [+ 1 file omitted < 100 tokens]
├── src/
│   ├── cli.ts (5.2 KB, 174 lines, ~1340 tokens)
│   ├── index.ts (1.7 KB, 49 lines, ~427 tokens)
│   └── utils.ts (411 B, 18 lines, ~103 tokens)
└── package.json (1.2 KB, 55 lines, ~311 tokens)

7. Silent Threshold Mode (--silent)

Suppresses roll-up summary nodes when using --min-file-tokens or --max-file-tokens for completely silent filtering.

npx @dev-ryo/treeview --min-file-tokens 100 --silent

my-project/
├── assets/
│   └── logo.png (24.5 KB, binary)
├── bin/
├── src/
│   ├── cli.ts (5.2 KB, 174 lines, ~1340 tokens)
│   ├── index.ts (1.7 KB, 49 lines, ~427 tokens)
│   └── utils.ts (411 B, 18 lines, ~103 tokens)
└── package.json (1.2 KB, 55 lines, ~311 tokens)

💻 Programmatic Node.js / TypeScript API

You can also use treeview as an imported library inside your Node.js or TypeScript applications:

npm install @dev-ryo/treeview

import { generateTree, walkDirectory, renderTree } from '@dev-ryo/treeview';

// 1. Generate full Markdown string with max token budget
const markdownOutput = await generateTree({
  rootPath: './',
  outputPath: 'treeview.md',
  maxTokens: 2000,
});

console.log(markdownOutput);

// 2. Or walk directory programmatically to inspect TreeNode objects
const tree = await walkDirectory('./', {
  maxDepth: 2,
  maxTokens: 1000,
  shouldInclude: (relativePath, isDirectory) => !relativePath.includes('temp'),
});

console.log(tree.children);

❓ Frequently Asked Questions (FAQ)

Q1: How does treeview compare to the standard OS tree command?

Standard OS tree includes unwanted build artifacts (node_modules, .git), lacks native Markdown formatting, and provides no token or line metrics for AI prompts. treeview is specifically engineered for AI context economy: it applies a 4-tier filtering engine, formats output directly inside Markdown code blocks, and calculates token estimates.

Q2: Why does treeview use character heuristics ($\approx 4\text{ chars} = 1\text{ token}$) instead of heavy tokenizers like tiktoken?

Heavy tokenizers require large WebAssembly or C++ binaries, adding megabytes to package size and slowing execution down. The $4\text{ characters} \approx 1\text{ token}$ heuristic provides $\sim 95%$ accuracy across OpenAI, Anthropic, and Google Gemini models while keeping treeview near-instant and under 25 KB.

Q3: How does treeview prevent getting stuck in infinite loops or freezing on large repos?

treeview incorporates dual safety guards:

• Guard A (Symlink Cycle Detection): Tracks canonical real paths (realpath). If a symlink or Windows junction points to an ancestor folder, treeview detects the loop, issues a warning, and prunes recursion.
• Guard B (Hard Safety Ceiling): Enforces a safety ceiling (MAX_SAFE_DEPTH = 100) to guarantee call-stack overflow protection.

Q4: How does .treeinclude override .gitignore and default excludes?

In monorepos or complex projects, build output directories (like dist/) are listed in .gitignore, but you may want your AI assistant to view the generated structure. Adding dist/ to .treeinclude forces treeview to display it without modifying your Git configuration.

Q5: Is treeview safe to run on massive monorepos?

Yes. treeview uses non-blocking asynchronous directory iteration (fs.promises.readdir) and early branch pruning. Directories matching ignore rules are skipped immediately before recursing, preventing unnecessary disk I/O and memory overhead.

Q6: Can binary files crash or slow down the --indepth metadata scan?

No. Before calculating line or token counts, treeview inspects the first 8KB of the file for null bytes (0x00). If a binary file is detected (image, compiled binary, media), line/token scanning is safely bypassed and it is annotated as (size, binary).

Q7: How does --max-tokens (-m) pruning work?

--max-tokens <number> maintains a cumulative token estimate across files during traversal. It evaluates a Pre-Check budget: before adding any file, it verifies if adding its tokens exceeds the threshold. If a file breaches the budget, the file and remaining items in that folder are omitted, and a single condensed summary line (e.g., ... [pruned: X items omitted (exceeded --max-tokens budget of 2000)]) is rendered.

Q8: How do per-file token thresholds (--min-file-tokens, --max-file-tokens, --silent) work?

Per-file threshold flags filter individual file nodes based on their estimated token count. Small utility files (< min-file-tokens) or huge vendor scripts (> max-file-tokens) are omitted. By default, omitted files in a folder are aggregated into a summary line (e.g., [+ 3 files omitted < 30 tokens]). Adding --silent completely suppresses these summary lines for clean, silent removal. Binary files bypass these filters safely.

Q9: How does --max-dir-tokens differ from --max-tokens (-m)?

--max-tokens enforces a single global ceiling across the entire project scan—once reached, all remaining directories across the project are skipped. In contrast, --max-dir-tokens <number> caps tokens per directory sub-tree branch. Each folder branch receives an independent token allocation (e.g., max 500 tokens per folder), so a token-heavy directory (like docs/ or tests/) prunes itself without hiding or starving sibling directories (src/, bin/).

📜 License

MIT © dev-ryo
