PortLens

@forgefield/portlens is a CLI tool for scanning local project directories, discovering configured service ports from env files, and detecting port collisions across services.

Repository: https://github.com/forgefield/portlens

Why PortLens

• You have multiple microservices under one root folder (monorepo/workspace), each with its own .env file, and need a quick way to see all configured ports in one place.
• Your team keeps hitting "address already in use" errors; PortLens surfaces duplicate port assignments early so you can fix collisions before running services.
• You are onboarding to an unfamiliar codebase and need to understand which services are expected to run, what ports they use, and whether they are currently running locally.
• You want to organize services by top-level repository folder and inspect or update configuration in a local UI instead of manually checking dozens of files.

Requirements

• Node.js >=18 (from package engines)
• macOS/Linux/Windows supported
• For port status checks:
  • macOS/Linux uses lsof
  • Windows uses netstat + findstr

Installation

One-off (no install)

npx @forgefield/portlens

Global install

npm install -g @forgefield/portlens
portlens

Local project install

npm install --save-dev @forgefield/portlens
npx portlens

Quick Start

Scan the current directory:

portlens

Scan a specific root:

portlens /path/to/workspace

Show only collisions:

portlens --collisions

Machine-readable JSON:

portlens --json

Start UI mode:

portlens ui

CLI Reference

Usage:

portlens [rootPath] [--config <path>] [--json] [--collisions]
portlens ui [rootPath] [--config <path>]

Positional arguments

• rootPath (optional): root directory to scan. Defaults to process.cwd().

Commands

• ui: starts the local PortLens UI server and opens your default browser.

Flags

• --json: print JSON instead of console tables.
• --collisions: limit output to collision results.
• --config <path>: use a custom config file path (resolved relative to current shell directory).

Behavior notes

• --json --collisions outputs only collisionSummary.
• Without --json, --collisions prints only the collision text report.
• Unknown flags are ignored by the current parser (no hard failure).

How Scanning Works

1. PortLens recursively walks the target rootPath.
2. It skips ignored directories (node_modules, .git, dist, build by default).
3. It looks for configured env filenames (default list shown below).
4. It extracts the first matching configured port variable from each matching env file.
5. It groups findings by top-level directory under rootPath.
6. It marks collisions when the same port appears in multiple services.
7. It checks runtime status of each port (running or stopped) using OS-specific commands.

Configuration

PortLens supports JSON config with these keys:

• envFilePatterns: env file names/patterns to scan.
• portVariablePatterns: env variable names/patterns to treat as ports.
• ignoredDirectories: directory names to skip.

Default config lookup (CLI)

If you do not pass --config, the CLI uses:

<rootPath>/ports.config.json

Where <rootPath> is:

• the positional rootPath argument, or
• the current directory if rootPath is omitted.

Custom config path

portlens --config ./config/ports.config.json
portlens /path/to/root --config ../shared/ports.config.json

Example config

{
  "envFilePatterns": [
    ".env.local",
    ".env.development",
    ".env.production",
    ".env"
  ],
  "portVariablePatterns": [
    "PORT",
    "VITE_PORT",
    "NEXT_PUBLIC_PORT",
    "REACT_APP_PORT"
  ],
  "ignoredDirectories": ["node_modules", ".git", "dist", "build"]
}

Schema file:

• config/ports.config.schema.json

Example file:

• config/ports.config.example.json

Output Contract

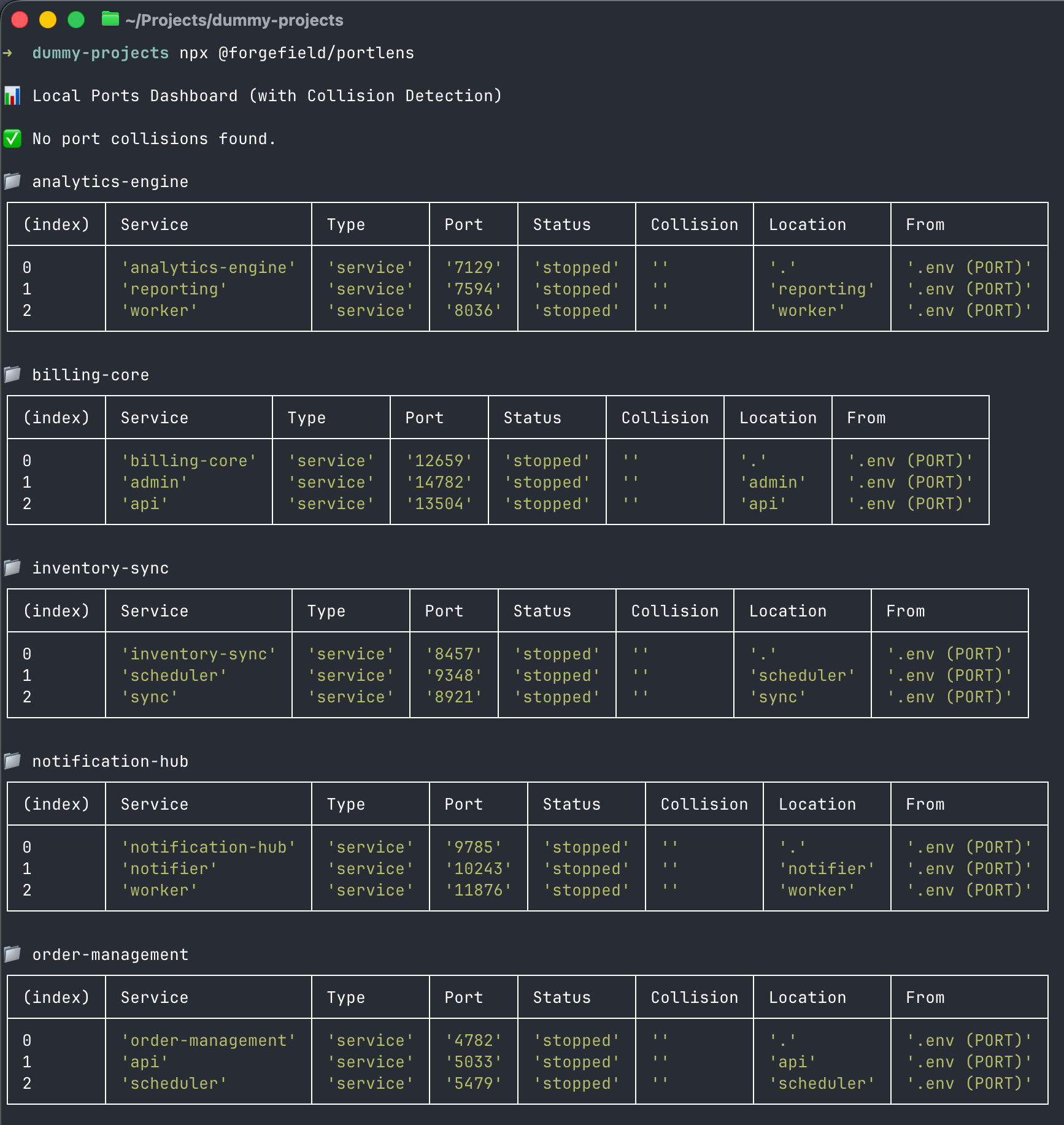

Standard mode (portlens)

• Prints a collisions section first.
• Prints per-repo service tables with columns:
  • Service
  • Type
  • Port
  • Status
  • Collision
  • Location
  • From

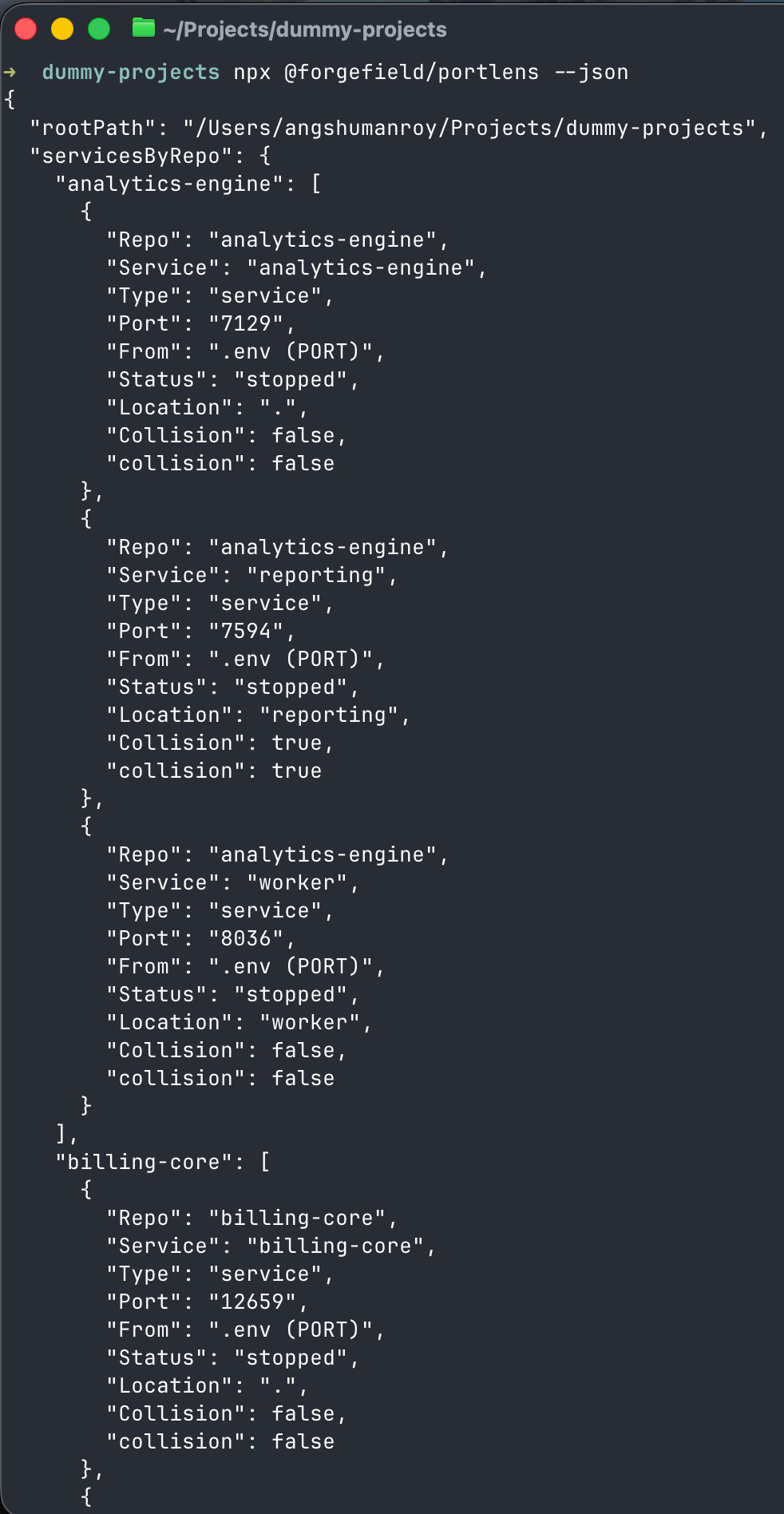

JSON mode (portlens --json)

Returns an object with:

• rootPath
• servicesByRepo
• allServices
• portMap
• collisions
• collisionSummary

Representative shape:

{
  "rootPath": "/workspace",
  "servicesByRepo": {
    "repo-a": [
      {
        "Repo": "repo-a",
        "Service": "frontend",
        "Type": "frontend",
        "Port": "3000",
        "From": ".env (PORT)",
        "Status": "running",
        "Location": "apps/frontend",
        "Collision": true,
        "collision": true
      }
    ]
  },
  "allServices": [
    {
      "Repo": "repo-a",
      "Service": "frontend",
      "Type": "frontend",
      "Port": "3000",
      "From": ".env (PORT)",
      "Status": "running",
      "Location": "apps/frontend",
      "Collision": true,
      "collision": true
    },
    {
      "Repo": "repo-b",
      "Service": "backend",
      "Type": "backend",
      "Port": "3000",
      "From": ".env (PORT)",
      "Status": "stopped",
      "Location": "services/backend",
      "Collision": true,
      "collision": true
    }
  ],
  "portMap": {
    "3000": [
      {
        "Repo": "repo-a",
        "Service": "frontend"
      },
      {
        "Repo": "repo-b",
        "Service": "backend"
      }
    ]
  },
  "collisions": [
    {
      "port": "3000",
      "services": [
        {
          "Repo": "repo-a",
          "Service": "frontend"
        },
        {
          "Repo": "repo-b",
          "Service": "backend"
        }
      ]
    }
  ],
  "collisionSummary": {
    "count": 1,
    "byPort": {
      "3000": [
        {
          "Repo": "repo-a",
          "Service": "frontend"
        },
        {
          "Repo": "repo-b",
          "Service": "backend"
        }
      ]
    }
  }
}

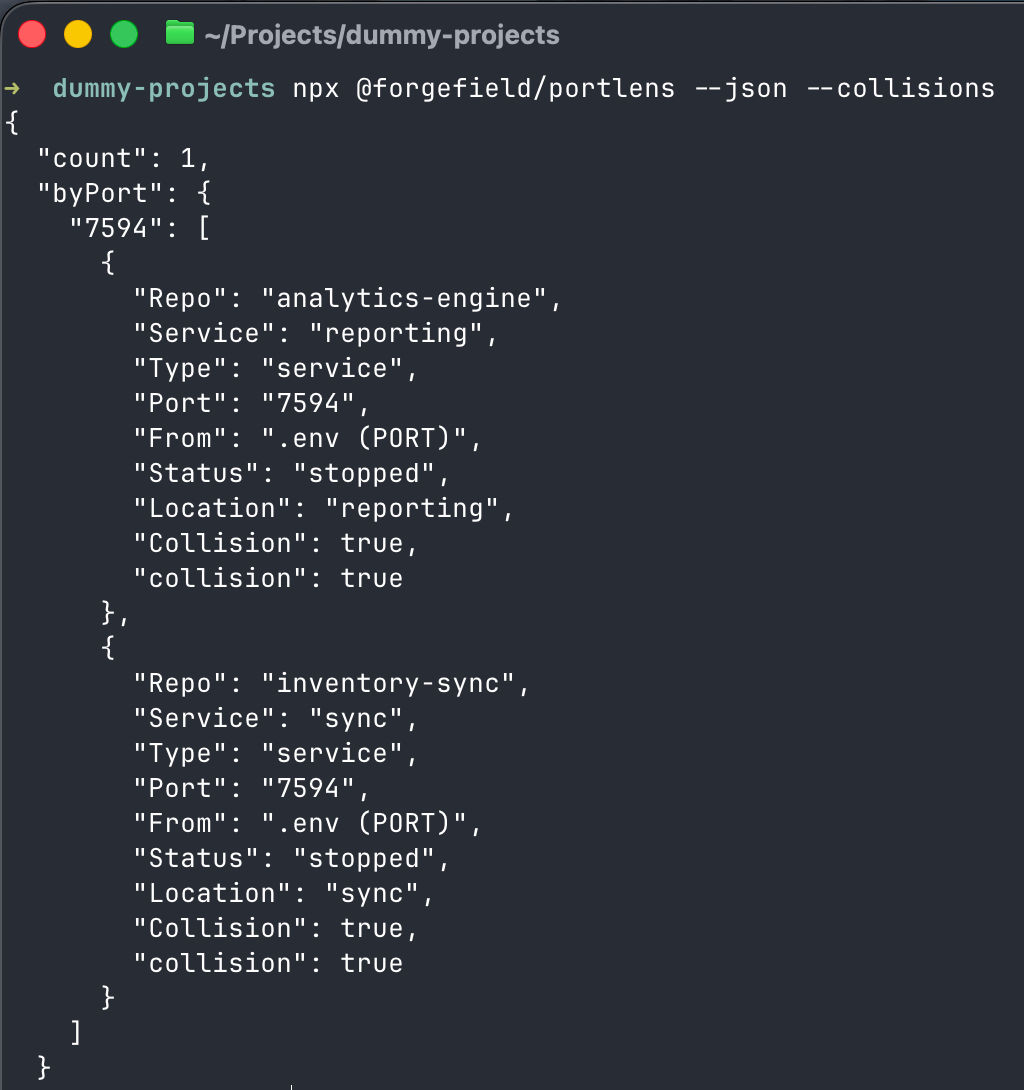

Collisions JSON only (portlens --json --collisions)

Returns only:

{
  "count": 1,
  "byPort": {
    "3000": [
      {
        "Repo": "repo-a",
        "Service": "frontend"
      }
    ]
  }
}

UI Mode

Run:

portlens ui

What it does:

• Starts a local HTTP server on an ephemeral port.
• Opens your browser automatically:
  • open on macOS
  • start on Windows
  • xdg-open on Linux
• Serves the built UI from ui/dist.

UI/API endpoints currently served by the local server:

• GET /data and GET /api/scan: scan results + merged config
• GET /config: current merged config
• POST /config: persist config changes

If UI assets are missing, you will see:

UI build not found. Run npm run build:ui.

Common Workflows

Scan current project:

portlens

Scan monorepo root:

portlens ~/code/my-monorepo

Export full JSON for tooling:

portlens ~/code/my-monorepo --json > portlens-report.json

CI-friendly collision check artifact:

portlens ~/code/my-monorepo --json --collisions > collisions.json

Screenshots

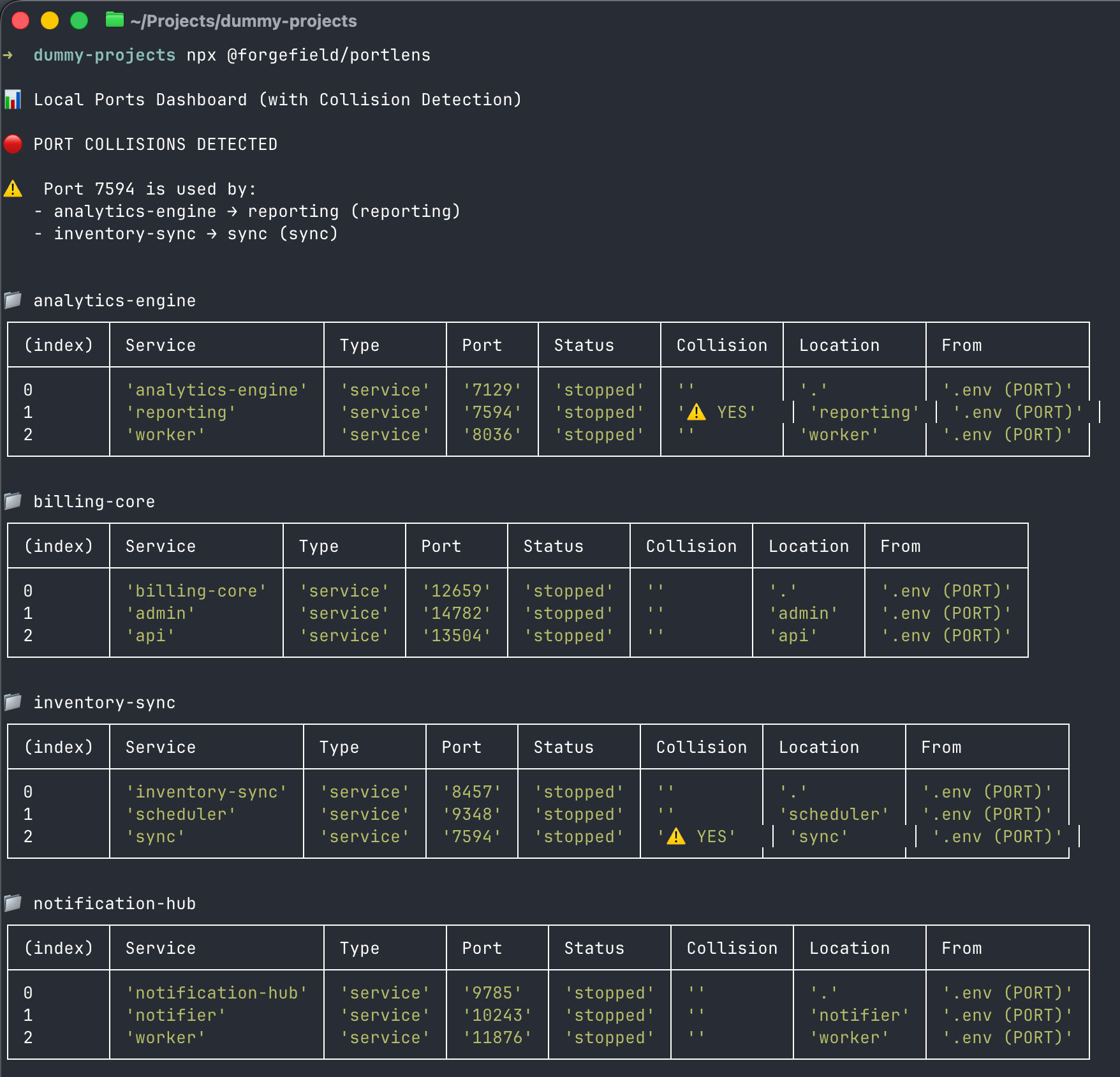

CLI screenshots

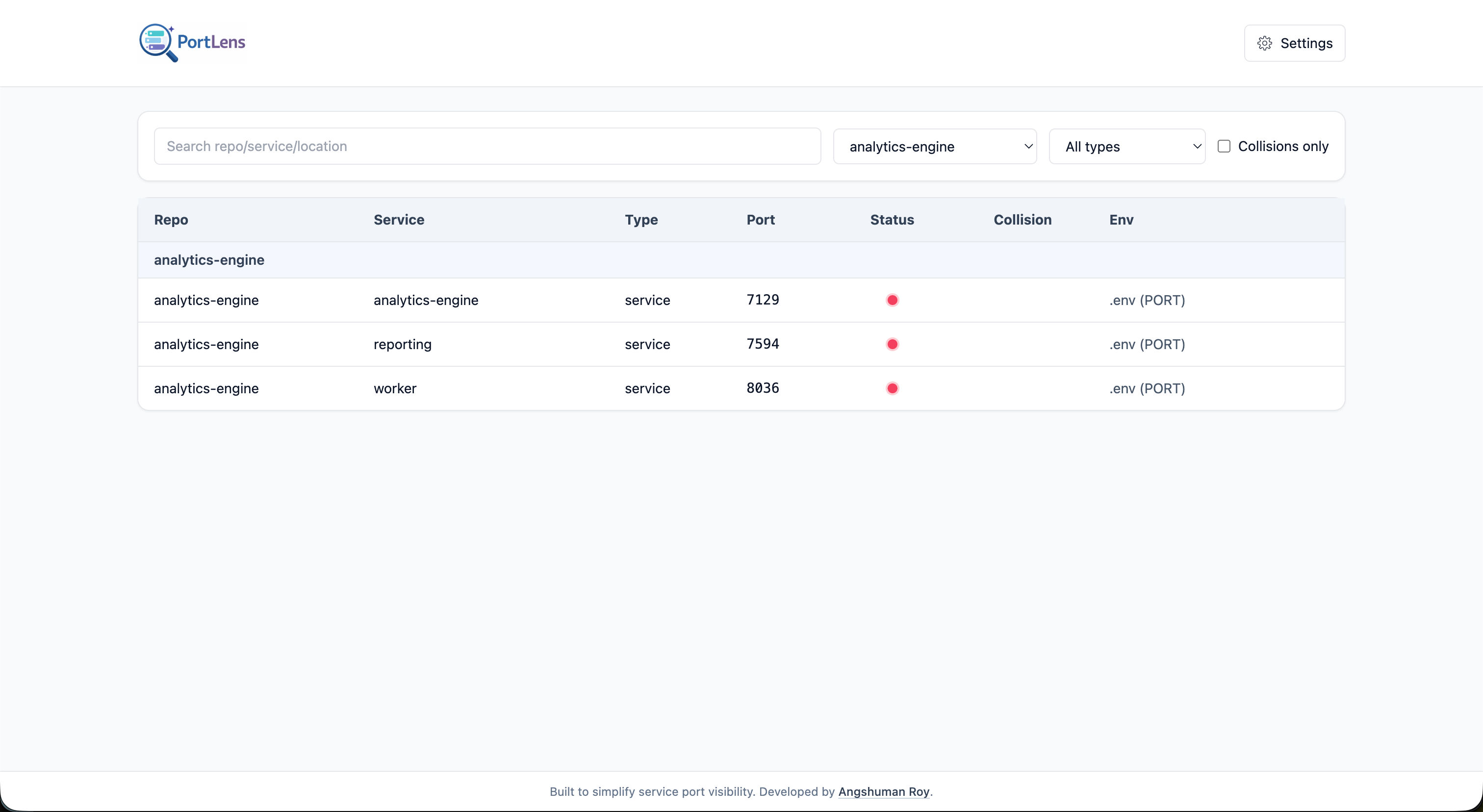

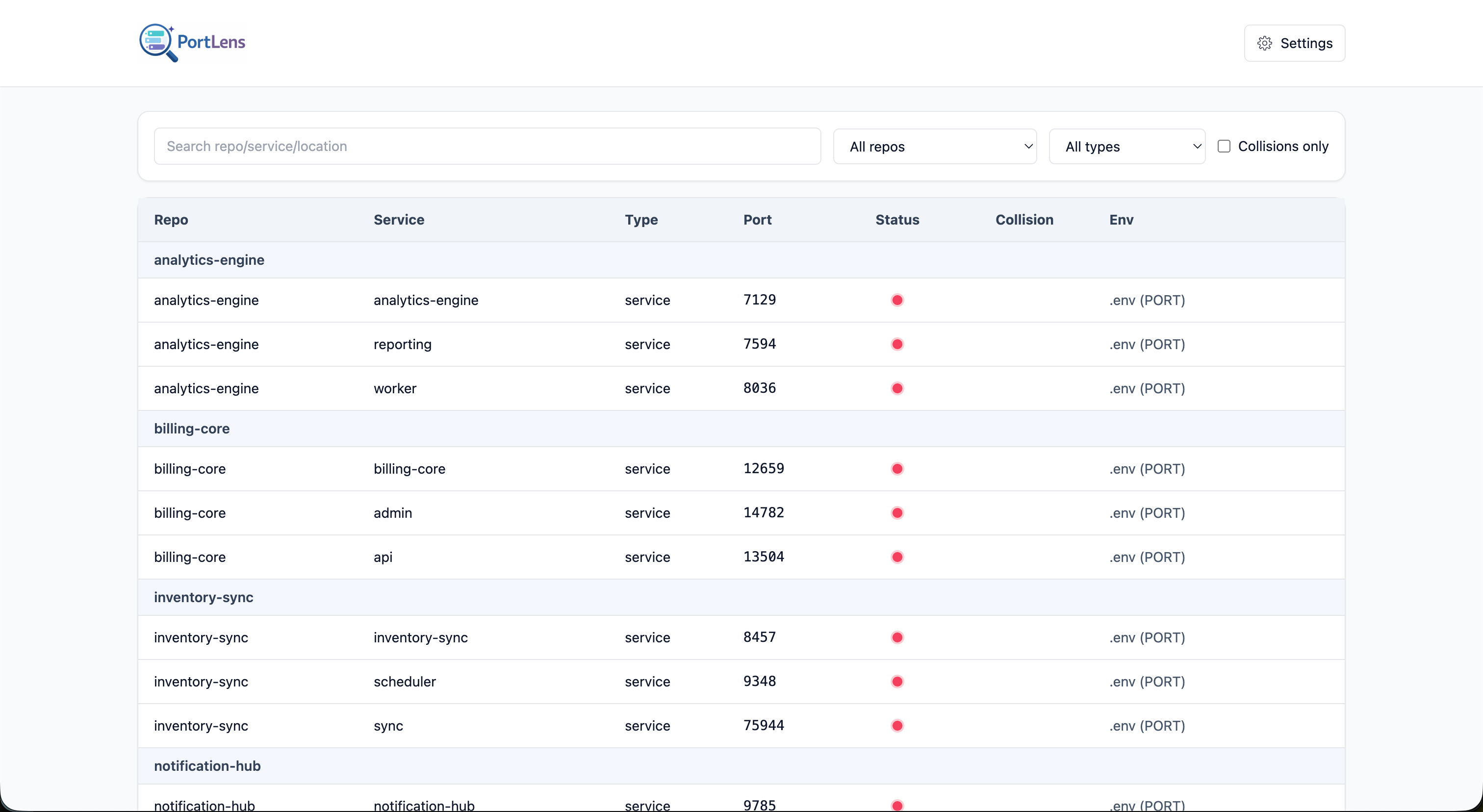

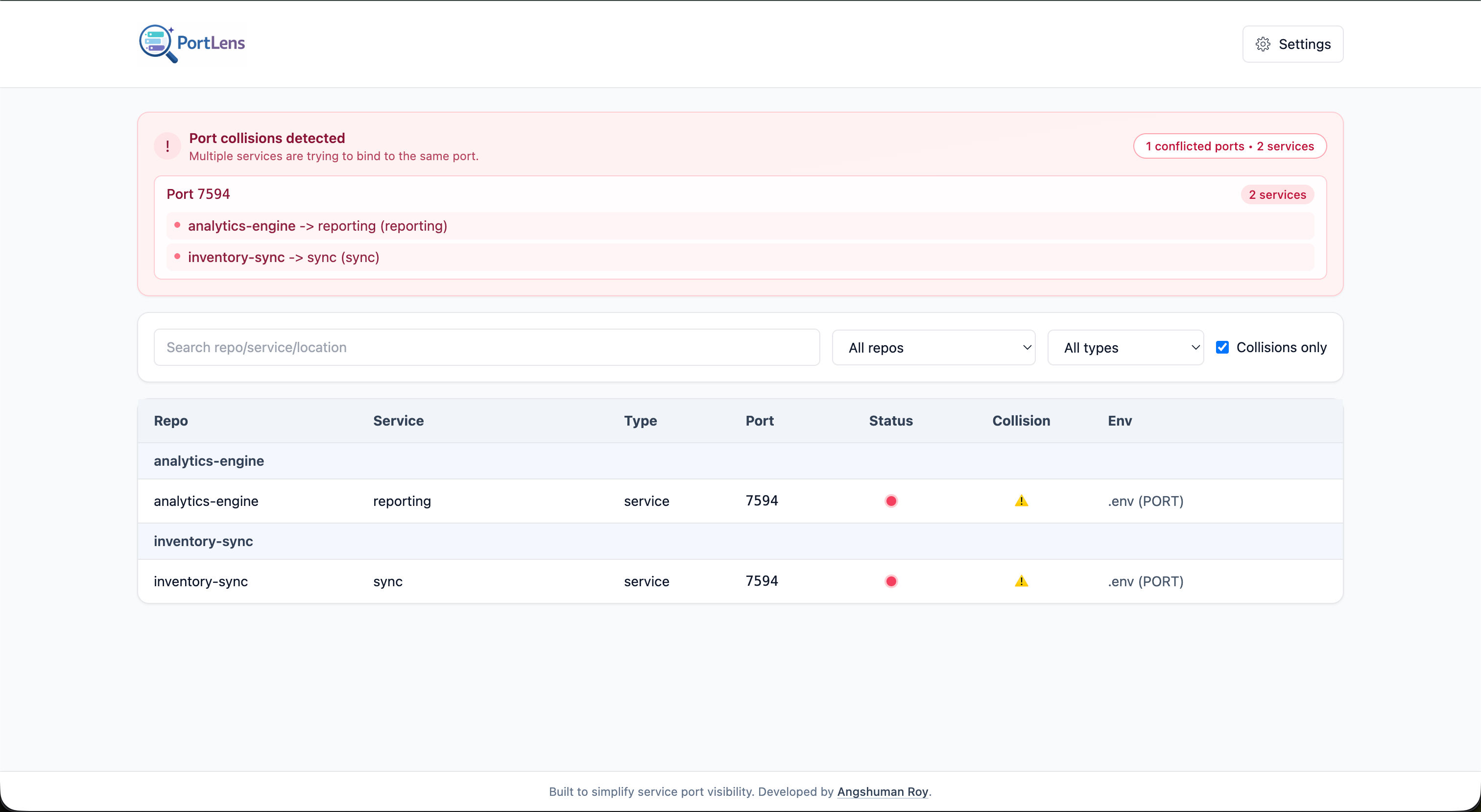

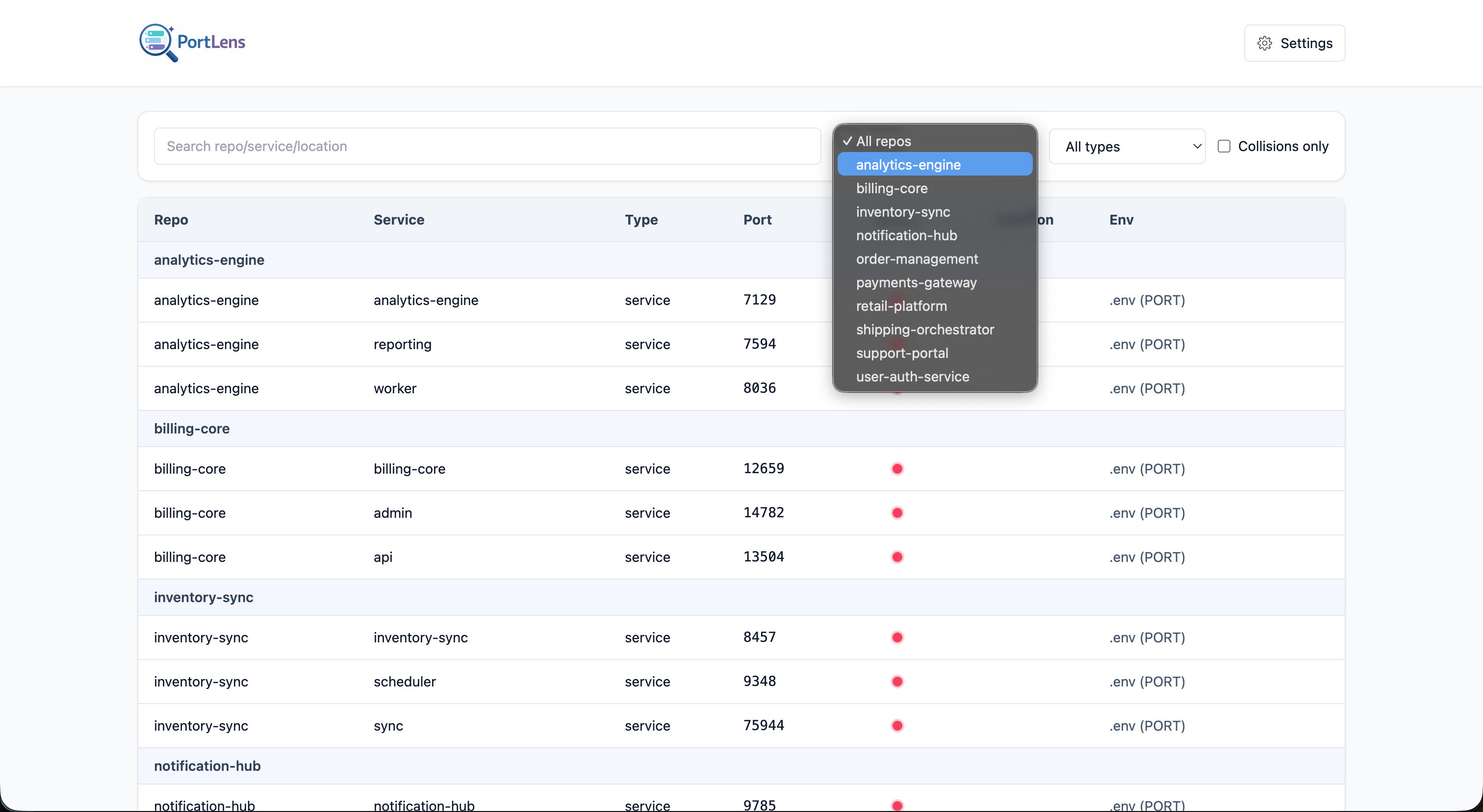

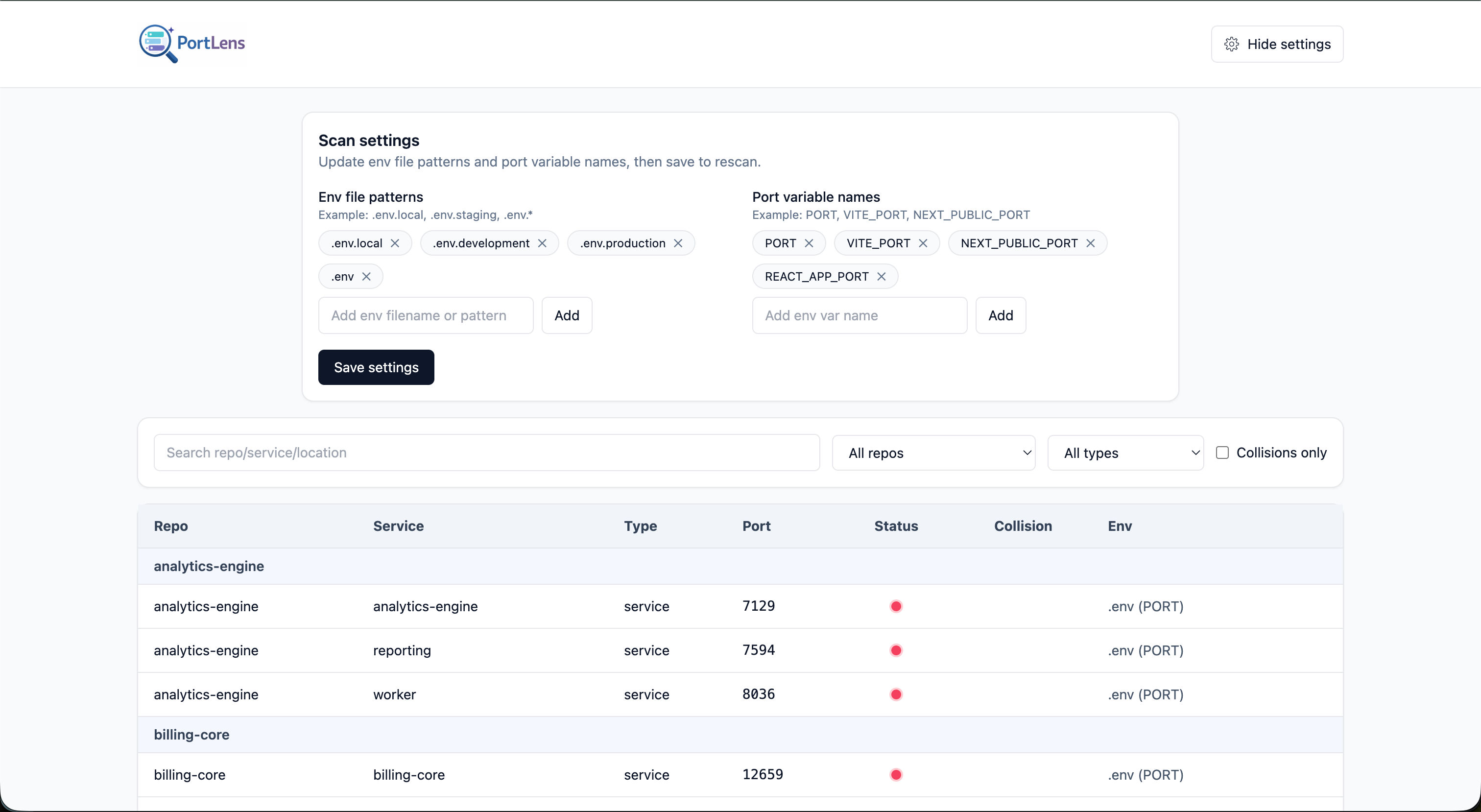

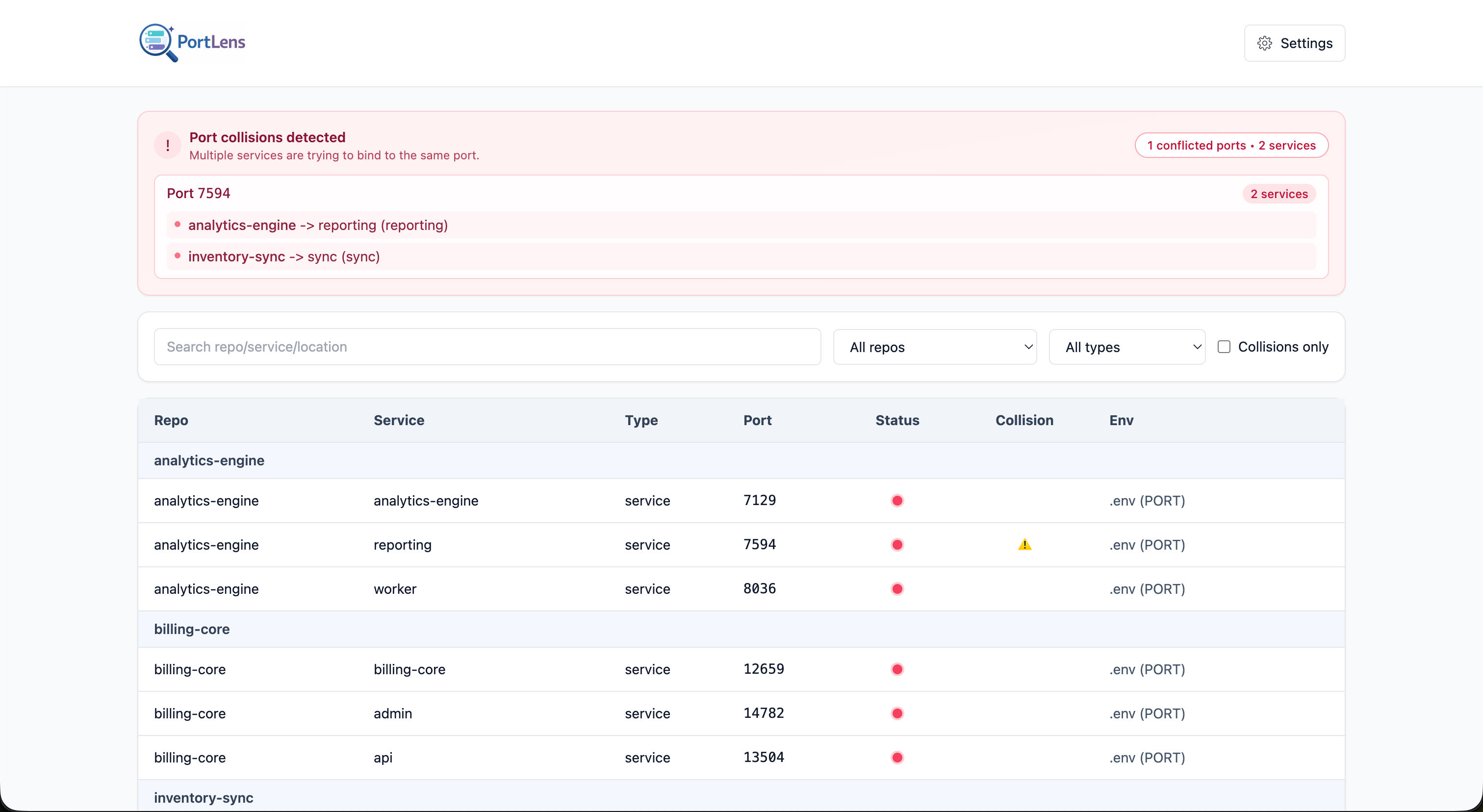

UI screenshots

Troubleshooting

No services found

• Confirm env files exist and match envFilePatterns.
• Confirm port variable names match portVariablePatterns.
• Confirm folders are not excluded by ignoredDirectories.

Port status looks incorrect

• Ensure lsof (macOS/Linux) or netstat/findstr (Windows) is available.
• Status is determined at scan time; rerun if services started/stopped recently.

UI command fails to render app

• Build UI assets first:

npm run build:ui

Invalid config payload in UI

• POST /config expects non-empty string arrays for:
  • envFilePatterns
  • portVariablePatterns

Development And Release

This repository currently uses:

• Bun for dependency installation
• npm for build and packaging scripts

Install dependencies:

bun install

Build UI assets:

npm run build:ui

Verify package contents before publish:

npm pack --dry-run

Contributing Workflow

For external contributors, please follow a fork-based workflow.

1. Fork the repository to your GitHub account.
2. Clone your fork locally.
3. Create a feature branch for your change.
4. Make and test your changes locally.
5. Push your branch to your fork.
6. Open a Pull Request from your fork branch to the main repository.

This keeps the upstream repository clean and makes reviews easier to manage.

Security And Privacy

• PortLens scans local files under the path you provide.
• It inspects env file contents for configured port variables.
• It performs local OS port checks.
• It does not require outbound network access for scanning itself.

License

MIT. See LICENSE.
