Portal

Portal is a publishable React game-input and virtual-controller component library. It provides reusable button, input, slider, panel, HUD, and controller components, a decoupled input core, and an optional React Three Fiber presentation surface.

Demo

The RadialMenu above is the flagship control: true wedge-shaped sections computed as clip-path geometry around a center hub that holds 0, 1, 2, or 4 drawn action symbols, with staggered open/close animation, paging through the center previous/next actions, and an inline collapsible form whose hub persists as the toggle. Its Tier-1 sibling RadialPad shares the same geometry and emits per-section input signals.

The Patterns/Game HUD story wires the HUD set together through real state: hotbar presses arm the cooldown chip and append mission-log entries, the rotary dial drives the reactor gauge into its redline, and the cargo key opens an inventory-grid dialog whose moves are logged too.

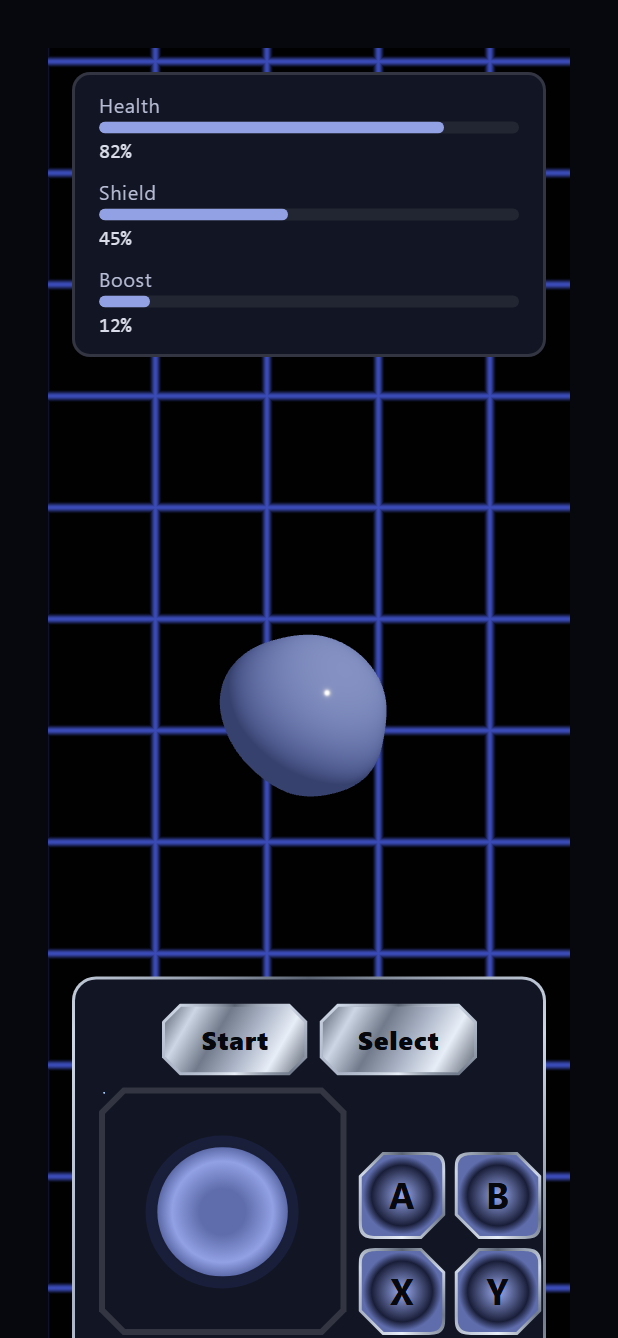

Live, interactive Storybook (every control, the controller showcase with the R3F orb backdrop, and the Unity-binding example): https://lairdwt.github.io/portal/

Stack

• React and TypeScript.
• Vite in library mode.
• CSS Modules with CSS custom-property theming.
• Anime.js for UI motion.
• React Three Fiber and Drei for the optional 3D surface.
• Storybook, Playwright, and Vitest for review and testing.

Install

pnpm add @laird-wt/portal

React, React DOM, and Anime.js are required peer dependencies (React 18 or newer, Anime.js 4 or newer). Anime.js powers the motion presets exported from the package root, so it is required even if you do not use the 3D surface:

pnpm add react react-dom animejs

The shader core depends on three (it imports Color and the IUniform type), so three is a required peer whenever you import either portal/shaders or portal/r3f. The @react-three/fiber and @react-three/drei peers are needed only for the portal/r3f surface:

pnpm add three
pnpm add @react-three/fiber @react-three/drei

Portal is ESM-only. Use a bundler (Vite, webpack, Rollup, esbuild) or Node with ESM enabled, and a TypeScript moduleResolution of bundler, node16, or nodenext so the exports subpaths (./theme, ./r3f, ./shaders) resolve.

Usage

Import components from the package root and load the stylesheet once at your application entry point. The flagship RadialMenu in a few lines - an octagonal action wheel that collapses to its own themed hub toggle (the default inline form) with a cancel key in the middle:

import { type ReactElement, useState } from 'react';

import { ERadialAction, RadialMenu } from '@laird-wt/portal';
import '@laird-wt/portal/styles.css';

export function Example(): ReactElement {
    const [open, setOpen] = useState(false);
    return (
        <RadialMenu
            open={open}
            onOpen={() => setOpen(true)}
            onClose={() => setOpen(false)}
            label="Battle actions"
            sides={8}
            items={[
                { id: 'attack', label: 'Attack' },
                { id: 'defend', label: 'Defend' },
                { id: 'item', label: 'Item' },
                { id: 'magic', label: 'Magic' },
                { id: 'talk', label: 'Talk' },
                { id: 'flee', label: 'Flee' },
                { id: 'wait', label: 'Wait' },
                { id: 'scan', label: 'Scan' },
            ]}
            centerActions={[ERadialAction.Cancel]}
            onSelect={(id) => console.log('selected', id)}
        />
    );
}

The collapsed hub is the open/close toggle: it wears a drawn plus mark by default, or pass toggleIcon / toggleText for a custom icon or short text label. Set collapsible={false} for the portaled modal-overlay form driven by your own trigger. The radial also pages: pass more items than sides plus the ERadialAction.Previous / ERadialAction.Next center actions and the wheel pages through them. Sections take an optional icon (with iconOnly for pure glyph keys), and every mode honors the user's reduced-motion preference.

The optional 3D surface lives behind a separate entry point. Mount it inside a React Three Fiber <Canvas> (the 3D peers above must be installed):

import { Canvas } from '@react-three/fiber';

import { OrbBackdrop } from '@laird-wt/portal/r3f';

export function Backdrop(): ReactElement {
    return (
        <Canvas>
            <OrbBackdrop />
        </Canvas>
    );
}

Theming

Portal exposes design tokens as CSS custom properties namespaced with the --portal- prefix. Override any token on a containing element or on :root to retheme the components:

:root {
    --portal-color-accent: #3da9fc;
    --portal-radius-md: 0.75rem;
    --portal-touch-target-min: 3rem;
}

The theme entry point exports the token names (as var() references) for programmatic use - for example to feed a React Three Fiber material the same color the DOM uses:

import { PORTAL_TOKENS, type PortalTokens } from '@laird-wt/portal/theme';

Sizing uses clamp, min, max, and intrinsic units rather than fixed pixels or viewport-stretch units. Layout is safe-area aware through the env(safe-area-inset-*) values, touch targets meet the 3rem minimum, and motion respects the user prefers-reduced-motion setting.

Entry points

Portal ships several ESM subpath exports:

• @laird-wt/portal - the component library and React hooks.
• @laird-wt/portal/styles.css - the stylesheet; import once at your entry.
• @laird-wt/portal/theme - PORTAL_TOKENS and the PortalTokens type.
• @laird-wt/portal/r3f - the optional React Three Fiber surface (OrbBackdrop, ShaderSurface, isWebGlAvailable); requires the 3D peers.
• @laird-wt/portal/shaders - the shader core behind the R3F surface (rippleGridShader, createRippleField, and the ShaderDescriptor contract) for consumers wiring their own renderer. It needs only the three peer, not the full @react-three/fiber/@react-three/drei stack.

Input and Unity binding

Portal's input core is decoupled from React and from any game. A control describes itself with an InputDescriptor (an opaque id, a value kind, and a label) and emits an InputSignal carrying the value, the interaction, and a timestamp. Controls share emit hooks so the wiring is uniform:

• useDigitalPress and useEmitBinding for button-like inputs.
• useAxis2DControl for absolute (joystick) and relative (thumbpad) pads.
• useScalarControl for sliders.

Timestamps come from an injectable TimeProvider (default performance.now). Override it through TimeProviderContext to make emission deterministic in tests or to align the clock with a host application:

import { TimeProviderContext } from '@laird-wt/portal';

<TimeProviderContext.Provider value={() => engineClock.nowMs()}>
    <Controller />
</TimeProviderContext.Provider>;

Inputs are mapped to actions by a data-driven registry rather than hard-coded in the controls. The registry is immutable; each mutator returns a new registry, and a binding can be scoped to a named context (a profile such as menu or gameplay) with a global fallback:

import { createRegistry } from '@laird-wt/portal';

const registry = createRegistry([
    { inputId: 'fire', actionId: 'weapon.primary' },
    { inputId: 'fire', actionId: 'ui.confirm', context: 'menu' },
]);

registry.resolve('fire').actionId; // 'weapon.primary'
registry.resolve('fire', 'menu').actionId; // 'ui.confirm'
const rebound = registry.rebind('fire', 'weapon.special');

At the Unity boundary, toWireInput narrows a signal to a serializable FInputWirePayload (the descriptor collapsed to its id, plus the interaction, value, and timestamp) and throws if a value does not match the descriptor's declared kind. The Patterns/Unity Binding Storybook story wires a binding profile, a custom TimeProvider, and the wire codec together.

Generic UI components

A domain-agnostic UI layer, separate from the game-input controllers above. It emits plain value and selection callbacks and never the input-signal contract, so it suits any React UI, not only game input. It spans, among others:

• Inputs and forms: CTA, TextField, TextArea, SecretField, SearchBox, Select, Combobox, TagInput, Checkbox, RadioGroup, SegmentedControl, NumberStepper, RangeSlider, Rating, ColorPicker, Toggle, OtpField, Field (form scaffolding), Calendar, DatePicker, TimePicker, FileUpload.
• Data and navigation: List / SearchableList, DataTable, TreeView, Accordion, Tabs, Breadcrumb, Pagination, NavRail, Toolbar, Link, Menu / MenuBar / ContextMenu, CommandPalette, Wizard, RadialMenu (the flagship radial action wheel; RadialPad is its game-input sibling).
• Surfaces and overlays: Panel, ReadoutPanel, Section, Dialog, Drawer (with resize snap points), Popover, Tooltip, Toast, Window, SplitPane, Carousel, Lightbox, DockLayout (the docking manager: a serializable split/tab/floating layout over SplitPane, Tabs, and Window).
• Display and feedback: Text, Badge, Chip, StatPill, StatTile, KeyValue, the Chart family (bars, Sparkline, LineChart), Progress, Spinner, Banner, Avatar, Skeleton, EmptyState, Marquee, Scanlines, StepTrack, Timeline, TitleBar, StatusFooter, SelectableTile.
• Game HUD: Gauge (radial arc meter with hub content, amount labelling, and shoulder bounds), Cooldown (unwinding ability scrim), LogConsole (virtualized scrollback with opt-in wrap, resizable time column, and a dockable fill mode), InventoryGrid (slot grid with keyboard grab/move, drag-reorder, and rectangular multi-cell item spans), Minimap (radar/map instrument with an optional sweep), Compass (heading strip), Reticle (decorative aiming glyph), FloatingText (combat-text layer), Odometer (rolling digit counter), DialogueBox (typewriter narrative line), ObjectiveTracker (quest list), plus the signal-emitting Dial, Hotbar, and VirtualKeyboard on the game-input side.
• Layout: Stack, Grid, Divider.

See the live Storybook (linked above) for the full, current catalogue with interactive examples.

Colour comes from one opaque tone prop rather than a fixed palette. A component sets --portal-tone from it and derives its accent, border, glow, and fill, so a consumer maps any domain palette without per-component CSS:

import { SelectableTile, StatPill } from '@laird-wt/portal';

<SelectableTile id="ship-1" tone="var(--faction-crimson)" onSelect={select}>
    Frigate
</SelectableTile>;
<StatPill label="Energy" value={7} tone="oklch(0.7 0.16 150)" />;

With no tone, components use the neutral portal accent. An optional SelectionProvider supplies an ambient selection sink so tiles are wired once rather than per control.

Scripts

• pnpm verify runs typecheck, lint, CSS lint, format check, tests, and build.
• pnpm storybook starts Storybook for component review.
• pnpm build produces the library bundle in dist.
• pnpm probe:hud and pnpm probe:rtl drive the built Storybook in headless Chromium (the visual-verification probes; run pnpm build-storybook first - see scripts/probes/README.md).

Example app

A runnable Vite demo lives in example/. Run pnpm -C example dev to start it locally (it renders ControlSurface with behavior fixtures selectable via a ?fixture= query), and pnpm example:typecheck to typecheck the demo against the workspace package.
