pdf-redact

True PDF content-stream redaction for Node.js and Lambda. No native binaries.

Unlike overlay-only tools that paint a black rectangle on top of text (which can be removed with a PDF editor), pdf-redact strips the text-drawing operators out of the PDF content stream and draws a visual bar over the region. The text is genuinely removed — not just hidden — and a built-in verify() step proves it.

Pure TypeScript on top of pdf-lib + pdfjs-dist. No qpdf, no Ghostscript, no native addons — deploys to AWS Lambda as-is.

The one rule: content-stream scrubbing is best-effort, so the real guarantee is redact → verify() → reject anything that isn't clean. See Limitations & security model before relying on it for high-stakes redaction.

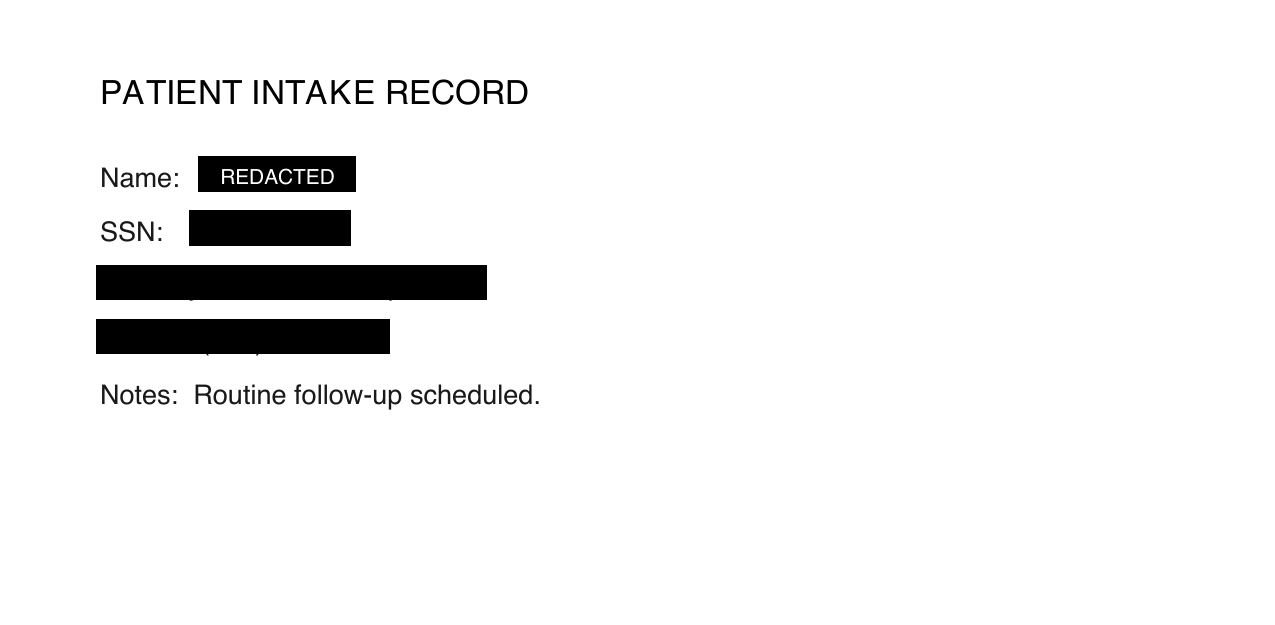

Redacted text is gone, not covered

| Before | After | |--------|-------| | | |

The bars in the "after" image aren't just paint: the underlying glyphs have been blanked in the content stream, so a copy-paste or pdftotext of that region returns nothing.

Install

npm install @liiift-studio/pdf-redact

Published as the scoped package @liiift-studio/pdf-redact. Product site: scrubzero.org.

Quick start

import { readFile, writeFile } from 'node:fs/promises';
import { redact, searchAndRedact } from '@liiift-studio/pdf-redact';

// --- Redact a known region ---
const pdfBytes = await readFile('input.pdf');
const result = await redact(pdfBytes.buffer, [
  {
    page: 1,
    x: 100,
    y: 200,
    width: 300,
    height: 20,
    color: [0, 0, 0],
  },
]);
await writeFile('output.pdf', result.pdf);
console.log(`Redacted ${result.redactedCount} region(s) on pages ${result.pagesAffected}`);

// --- Search and redact by pattern ---
const result2 = await searchAndRedact(pdfBytes.buffer, [
  { pattern: /\b\d{3}-\d{2}-\d{4}\b/g },            // Social Security Numbers
  { pattern: /\b[\w.]+@[\w.]+\.\w{2,}\b/g },         // Email addresses
  { pattern: 'John Smith', color: [0.8, 0, 0] },     // Literal string, red bar
]);
await writeFile('output-search.pdf', result2.pdf);

Buffer gotcha: the API takes an ArrayBuffer. A Node Buffer from readFile() is a view over a pooled ArrayBuffer, so buf.buffer can carry bytes from neighbouring allocations. For a copy-safe slice use buf.buffer.slice(buf.byteOffset, buf.byteOffset + buf.byteLength) (or Uint8Array.from(buf).buffer) when reading many files in a pipeline.

CLI

# Search and redact by pattern (plain text or /regex/)
npx @liiift-studio/pdf-redact search input.pdf "John Smith" --output redacted.pdf
npx @liiift-studio/pdf-redact search input.pdf "/\d{3}-\d{2}-\d{4}/" --output redacted.pdf

# Redact built-in entity types
npx @liiift-studio/pdf-redact entities input.pdf --types ssn,email,phone --output redacted.pdf

# Verify a redacted PDF has no text under visual bars (exits non-zero on a violation)
npx @liiift-studio/pdf-redact verify redacted.pdf

# Redact a specific region by coordinates
npx @liiift-studio/pdf-redact redact input.pdf '[{"page":1,"x":100,"y":200,"width":300,"height":20}]' --output out.pdf

Common flags:

| Command | Flag | Description | |---------|------|-------------| | search, entities, redact | --output <file> | Output path (default redacted.pdf) | | search | --color <hex> | Bar colour, e.g. #000000 (default black) | | search | --label <text> | Draw a label (e.g. REDACTED) inside each bar | | redact | --manifest | Also write a <output>.manifest.json audit manifest | | any | --json | Print a machine-readable JSON summary |

verify exits with a non-zero status code when it finds recoverable text, so it drops straight into CI or a pre-flight gate.

Why not overlays?

Most "redaction" tools work by drawing a black rectangle on top of the original text layer. The text is still encoded in the file and trivially extractable — copy-paste it, run pdftotext, or open the file in a PDF editor and delete the rectangle. This is not redaction.

pdf-redact removes text drawing operators from the content stream bytes before writing the output, making the redacted content unrecoverable without specialised forensic tooling.

flowchart LR
    A[Input PDF] --> B[pdfjs-dist:<br/>extract text +<br/>positions]
    B --> C{Region or<br/>pattern match?}
    C -->|yes| D[Scrub text operators<br/>in content stream<br/>length-preserving]
    C --> E[pdf-lib:<br/>draw visual bar<br/>over region]
    D --> E
    E --> F[Sanitize metadata<br/>+ flatten annotations]
    F --> G[Redacted PDF]
    G -. optional .-> H[verify:<br/>any text left<br/>under a bar?]

The visual bar and the content-stream scrub are two independent layers. The bar guarantees the region looks redacted; the scrub removes the recoverable text. verify() exists to confirm the second layer actually fired — see Limitations & security model.

API reference

redact(pdf, regions, options?)

Redact specific rectangular regions from a PDF.

async function redact(
  pdf: ArrayBuffer,
  regions: RedactionRegion[],
  options?: RedactOptions,
): Promise<RedactResult>

RedactionRegion

| Field | Type | Description | |-------|------|-------------| | page | number | 1-indexed page number | | x | number | Left edge of the region in PDF points, from the left of the page | | y | number | Top edge of the region in PDF points, from the top of the page | | width | number | Width of the region in PDF points | | height | number | Height of the region in PDF points | | color | [number, number, number] | RGB fill color, each channel 0–1. Default: [0, 0, 0] (black) | | label | string | Optional label rendered inside the bar when addRedactionMarkers is true | | exemptionCode | string | FOIA exemption code (e.g. "6", "7(C)") | | exemptionBasis | string | Human-readable basis for the exemption |

Coordinate origin (important): RedactionRegion uses a top-left origin — x/y are measured from the top-left corner of the page, like screen coordinates. This differs from the bottom-left origin used by pdfjs text items, which is what the phiDetector and redactWithPHIDetector callbacks receive and return. Example: on an 8.5×11 page (792 pt tall), to redact a 20 pt band one inch (72 pt) down from the top, pass y: 72; a PHI detector describing the same band would report it at y: 700 (bottom-left).

searchAndRedact(pdf, patterns, options?)

Find text patterns in a PDF and redact all matching locations.

async function searchAndRedact(
  pdf: ArrayBuffer,
  patterns: SearchPattern[],
  options?: RedactOptions,
): Promise<RedactResult>

SearchPattern

| Field | Type | Description | |-------|------|-------------| | pattern | RegExp \| string | Regular expression or literal string to search for | | pages | number[] | Limit to specific 1-indexed page numbers. Default: all pages | | color | [number, number, number] | RGB fill color for matched bars. Default: [0, 0, 0] | | label | string | Optional label for redaction markers | | phiDetector | function | Custom PHI detection hook — see below |

PHI detector hook

Integrate with AWS Comprehend Medical, Azure Text Analytics, or a custom NER model:

const result = await searchAndRedact(pdfBytes.buffer, [
  {
    pattern: '', // unused when phiDetector is set
    phiDetector: async (items, pageNum) => {
      // items: Array<{ str, x, y, width, height }> — text items with PDF coordinates
      // Return bounding boxes of detected PHI in the same coordinate space
      const detections = await myNERModel(items.map(i => i.str).join(' '));
      return detections.map(d => ({
        x: d.boundingBox.x,
        y: d.boundingBox.y,
        width: d.boundingBox.width,
        height: d.boundingBox.height,
      }));
    },
  },
]);

redactEntities(pdf, types, options?)

Redact built-in entity types using pre-built regex patterns.

import { redactEntities, EntityPatterns } from '@liiift-studio/pdf-redact';

const result = await redactEntities(pdfBytes.buffer, ['ssn', 'email', 'phone']);

Available entity types: ssn, phone, email, credit-card, ip-address, date, name, attorney-client-marker

The built-in name and date patterns are deliberately heuristic and will over- or under-match on real documents. Treat entity redaction as a first pass, then verify() and spot-check.

redactBatch(items, concurrency?)

Process multiple PDFs concurrently with per-item error isolation. Each result's error is a string message (empty/undefined on success).

import { redactBatch } from '@liiift-studio/pdf-redact';

const results = await redactBatch([
  { pdf: pdf1.buffer, patterns: [{ pattern: /SSN:\s*\d{3}-\d{2}-\d{4}/g }] },
  { pdf: pdf2.buffer, regions: [{ page: 1, x: 50, y: 100, width: 200, height: 20 }] },
], 4); // concurrency limit

for (const r of results) {
  if (r.error) console.error(`Item ${r.index} failed:`, r.error);
  else await writeFile(`output-${r.index}.pdf`, r.result!.pdf);
}

redactWithPHIDetector(pdf, detector, options?)

Redact PHI using a standalone detector function. The detector receives text items with their PDF coordinates (bottom-left origin) and returns bounding boxes to redact.

import { redactWithPHIDetector } from '@liiift-studio/pdf-redact';

const result = await redactWithPHIDetector(
  pdfBytes.buffer,
  async (items, pageNum) => {
    // items: Array<{ str, x, y, width, height }>
    // Return regions to redact in the same coordinate space
    return items
      .filter(item => looksLikePHI(item.str))
      .map(item => ({ x: item.x, y: item.y, width: item.width, height: item.height }));
  },
);

verify(pdf)

Verify that a redacted PDF has no text remaining beneath its visual redaction bars. Re-extracts text and filled rectangles with pdfjs-dist and reports any text that overlaps a bar — so it catches the case where a bar was drawn but the content-stream scrub missed.

import { verify } from '@liiift-studio/pdf-redact';

const result = await verify(redactedPdf.buffer);
console.log(result.clean);       // true if no text found under any bar
console.log(result.violations);  // VerificationViolation[]

interface VerificationViolation {
  page: number;
  bbox: [number, number, number, number];
  recoveredText: string;
}

Treat verify() as part of the redaction, not an afterthought. Because content-stream scrubbing is best-effort (see below), running verify() on the output — and failing closed when clean === false — is what turns "looks redacted" into "is redacted".

RedactOptions

| Field | Type | Default | Description | |-------|------|---------|-------------| | flattenAnnotations | boolean | true | Flatten existing annotations before redacting | | sanitizeMetadata | boolean | true | Wipe DocInfo dictionary fields and XMP metadata stream | | addRedactionMarkers | boolean | false | Render a visible label (e.g. REDACTED) inside each bar | | generateManifest | boolean | false | Attach a structured audit manifest to the result | | redactorId | string | — | Operator identifier recorded in the manifest | | basisCode | string | — | FOIA or other exemption code recorded in the manifest |

RedactResult

| Field | Type | Description | |-------|------|-------------| | pdf | Uint8Array | The redacted PDF bytes, ready to write to disk or stream | | redactedCount | number | Total number of regions redacted | | pagesAffected | number[] | Sorted 1-indexed list of pages that had at least one redaction | | manifest | RedactionManifest | Audit manifest — present when generateManifest: true |

The manifest (when requested) records, per region, the page, bounding box, redactorId, basisCode, an ISO timestamp, and SHA-256 digests of the input and output PDFs — an integrity-checkable audit trail for FOIA/HIPAA workflows. (The manifest is a plain JSON object; sign or seal it yourself if you need tamper-evidence.)

Limitations & security model

pdf-redact does real content-stream removal, but you should understand exactly what that guarantee covers before relying on it for high-stakes redaction:

• Content-stream scrubbing is best-effort, with a safe fallback. Scrubbing parses raw (often FlateDecode-compressed) content streams and blanks the string arguments of text operators inside the target region. If a stream can't be parsed — unusual encodings, exotic compression, malformed PDFs — the scrub is skipped and the visual bar is still drawn, so the region never looks un-redacted, but the underlying text may survive. Always run verify() and fail closed on violations.
• verify() is itself best-effort and can fail open. It re-extracts text and detects filled bars with pdfjs; if a page can't be parsed it reports no violations, so clean === true can mean "nothing left to recover" or "this page couldn't be analysed". Don't treat a clean result on an unusual/unparseable file as proof on its own — combine it with an out-of-band check (e.g. confirm pdftotext of the region is empty) for the highest-stakes documents.
• The redacted string may persist outside the page content. Redaction targets the visible text layer. Values can also live in PDF form fields (AcroForm), bookmarks/named destinations, embedded files, or prior incremental-update revisions; these are not scrubbed. Re-save through a linearising/sanitising step, or strip those structures, if they might carry the sensitive value.
• Region matching is heuristic. Text position is estimated from Tm/Td operators with a small margin and assumes scale ≈ 1 / no rotation. Heavily transformed, rotated, or vector-outlined text may not be matched precisely.
• Only the text layer is touched. Text rendered as part of an embedded image (a scanned page, a screenshot) is covered by the bar but not removed — there is no OCR layer to strip. For scanned documents, rasterise-and-replace is the safer approach.
• No image or vector-content redaction. Redaction targets text. Logos, photos, and drawings under a bar are hidden visually but remain in the file.
• Synthetic data only in examples. The sample document and patterns above use fake, non-real identifiers.

For anything where exposure is unacceptable, redact → verify() → reject any output that isn't clean, and keep the original out of the same delivery path.

Node.js and Lambda compatibility

pdf-redact targets Node.js >=18 and has no native binary dependencies. It ships as dual ESM + CJS so it works in both "type": "module" packages and CommonJS environments.

On AWS Lambda, deploy as-is — no additional configuration needed. The package uses Node.js built-in zlib for PDF stream decompression rather than native addons.

Regenerating the README visuals

The hero GIF and before/after stills are produced by a committed, reproducible harness (no manual captures):

npm run capture   # builds dist, generates a synthetic fixture, records the VHS demo, renders the stills

Requires VHS (brew install vhs) and poppler's pdftoppm (brew install poppler). Outputs land in assets/, which is kept out of the published tarball and referenced from this README via absolute raw.githubusercontent.com URLs.

License

MIT — Copyright Liiift Studio
