@low6/play-box

@low6/play-box is a library for integrating with one or more of the games provided by Low6.

Supported platforms

• Web
• React Native

Installation

npm install @low6/play-box --save

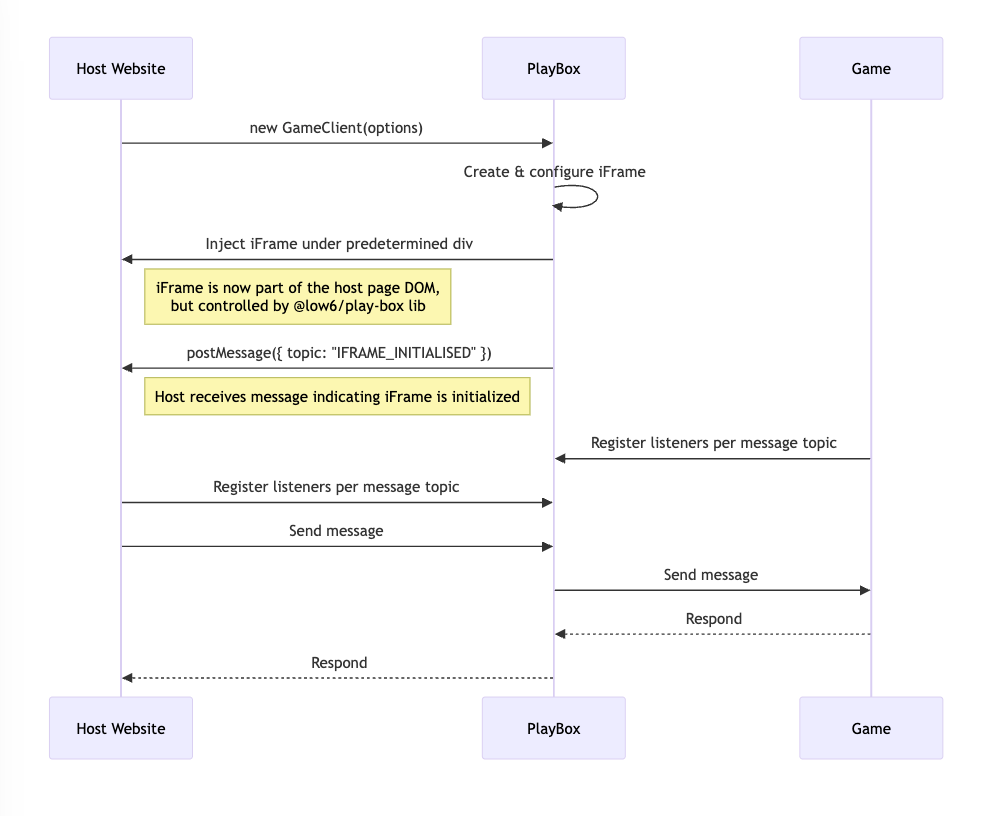

Initialisation and data flow

Usage

Step 1: Allocate a suitable div in the host website with a unique id

<div id="play-box-container"></div>

Step 2: Initialise the PlayBox in the host website

import { GameFrame, LogLevel, PlayBoxInitialisationParams } from '@low6/play-box';

const initialisationOptions: PlayBoxInitialisationParams = {
  appId: 'test-app-id',
  clientId: 'test-client-id',
  environment: 'dev',
  language: 'en-GB',
  targetElementSelector: '#play-box-container', //? the id of the div allocated in step 1
  theme: 'light',
  logLevel: LogLevel.DEBUG,
};

new GameFrame(initialisationOptions);

Step 3: Register listeners per message topic in the host website

//? register for the unknown message topic
HostClient.getInstance().registerListener(MessageTopic.UNKNOWN, 'test-listerner-id', (message: PlayBoxMessage) => {
  //..
  //? do something with the message
  //..
});

HostClient.getInstance().registerListener(
  MessageTopic.IFRAME_INITIALISED,
  'test-listerner-id',
  (message: PlayBoxMessage) => {
    //..
    //? do something with the message
    //..
  }
);

Step 4: Send messages to the game

const data: ResponseUserAuthInfoMessage['data'] = {
  userId: 123,
  token: <user_token>
};

HostClient.getInstance().emitMessageToIframe(MessageTopic.RESPONSE_USER_AUTH_INFO, data);

Note: The message data corresponding to each message topic is strictly typed. For example, the data for REQUEST_USER_AUTH_INFO is of type RequestUserAuthInfoMessage['data'].

API Reference

PlayBoxInitialisationParams

| Property | Type | Description | |---------------------------------|-------------------------------------------------|---------------------------------------------------------------------| | appId | string | ID of the app shown in the PlayBox; each game will have a unique ID | | clientId | string | ID of the client; each game will have a unique ID | | environment | 'dev' \| 'staging' \| 'demo' \| 'prod' | Environment name | | iFramePermissions? | IFramePermissions | Optional override for the iframe permissions (allow) | | iFrameUrlCompositionOverride? | IFrameURLComposition | Optional override for the iframe URL composition | | language? | string | Language code (e.g., "en-GB"); defaults to "en-GB" | | logLevel? | LogLevel | Logging verbosity; defaults to SILENT | | targetElementSelector | string | Selector of the element to which the PlayBox is attached | | theme? | string | Theme used by the PlayBox; defaults to "default" | | userPersonalisation? | UserPersonalisation | Optional user-specific settings for personalization |

IFramePermissions

| Property | Type | Description | Default | |------------------|-----------|------------------------------|-------------| | clipboardRead | boolean | Allow clipboard read access | true | | clipboardWrite | boolean | Allow clipboard write access | true | | webShare | boolean | Allow web share access | true | | geolocation | boolean | Allow geolocation access | false |

IFrameURLComposition

| Property | Type | Description | |--------------|----------|--------------------------------| | baseUrl | string | Base URL for the iframe | | path | string | Path that follows the base URL |

UserPersonalisation

| Property | Type | Description | |------------------|-----------|-----------------------------------------------------------| | cookieConsent? | boolean | Indicates if the user has consented to cookies (optional) | | ssoUserId? | string | Single sign-on user ID (optional) | | ssoSessionId? | string | Single sign-on session ID (optional) |

LogLevel

| Member | Value | Priority | |------------|------------|-------------------------| | SILENT | "silent" | Highest (no output) | | DEBUG | "debug" | Lowest (debug messages) | | INFO | "info" | | | WARN | "warn" | | | ERROR | "error" | |

Order of priority: DEBUG < INFO < WARN < ERROR < SILENT

Supported message topics

| Member | Value | Direction | Description | |---------------------------|-----------------------------|---------------|--------------------------------------------------------------------------------| | IFRAME_INITIALISED | "IFRAME_INITIALISED" | Client → Host | Sent when the iframe has finished initializing, initialised by the lib | | APP_STATE_UPDATE | "APP_STATE_UPDATE" | Client → Host | Sent when the app state has been updated | | REQUEST_APP_EXIT | "REQUEST_APP_EXIT" | Client → Host | Request to navigate the user away from the app | | REQUEST_USER_AUTH_INFO | "REQUEST_USER_AUTH_INFO" | Client → Host | Request for user authentication information sent from the game to the host | | RESPONSE_USER_AUTH_INFO | "RESPONSE_USER_AUTH_INFO" | Host → Client | Response containing user authentication information sent from the host to game | | IFRAME_RESIZED | "IFRAME_RESIZED" | Bidirectional | Triggered when the iframe is resized | | UNKNOWN | "UNKNOWN" | Bidirectional | Used for unrecognized message topics |

Note: The message data corresponding to each message topic is strictly typed. For example, the data for REQUEST_USER_AUTH_INFO is of type RequestUserAuthInfoMessage['data'].

Local development using pnpm

Clone and build the library

pnpm install
pnpm build

Link the package

pnpm link --global

Use the package in a project

pnpm link --global @low6/play-box
pnpm install
