mochi

Visualize code with simple and interactive diagrams

Drop in a path. Mochi opens a browser viewer, lets you pick a file (or directory, or a few coordinating files), and asks Claude to produce a steppable diagram of how that code behaves. Three lenses — flow, architecture, protocol — picked per scope automatically, with one-click switching between alternatives. Each diagram has 6–15 curated steps with causal "WHY" narration and code-anchored highlights.

Install

Start using in any local codebase

cd ~/some-codebase
npx @mquan/mochi          # equivalent to: npx @mquan/mochi .
npx @mquan/mochi src/     # pin to a subdirectory
npx @mquan/mochi -p 6000  # pick a port

The plain mochi slot on npm is taken by an old test runner — publish under a scope (e.g. @mquan/mochi) and adjust package.json#name to match before npm publish --access public.

For a local clone (or when hacking on mochi itself):

git clone [email protected]:mquan/mochi.git
cd mochi
nvm use            # picks Node 22.0.0 from .nvmrc
npm install
npm run build
npm start          # boot pointing at the cwd
npm start -- src/  # or any path (note the `--` arg separator)

Inside the repo, use npm start — not npx @mquan/mochi. npx short-circuits when it sees the local package.json#name matches and then fails with sh: mochi: command not found. See Troubleshooting.

Setup

Mochi reuses your Claude Code session via the claude CLI as a subprocess — there is no separate ANTHROPIC_API_KEY to manage and no separate billing surface.

Requirements:

• Node.js ≥ 22.0.0 (a .nvmrc is pinned to 22.0.0; nvm use picks it up)
• Claude Code installed and on your PATH
• Run claude /login once

Mochi probes for claude --version at startup and exits with a clear message if the CLI is missing or unauthenticated.

First diagram

npx @mquan/mochi          # from any codebase you want to read
npm start                 # from inside a local clone of the mochi repo

The browser opens (server binds to 127.0.0.1 on the first free port at or above 5173). Then:

1. Click any file in the tree on the left — code appears in the Code tab.
2. Optionally type an intent in the bar at the top — e.g. "how does auth work", "trace a request".
3. Hit Generate.

A new Diagram tab opens, streams progress (resolving scope → indexed → asking Claude → validating), and renders the spec. You can:

• Click a block in the diagram → switches back to the Code tab and scrolls to the anchored lines.
• Click a Protocol / Architecture / Flow pill in the lens switcher → re-asks Claude using that lens for the same scope.
• Click ▶ Play below the diagram → walks through the steps with narration.
• Click ✕ on any Diagram tab → closes it (and cancels its in-flight stream if still running).

Each Generate opens a new Diagram tab — old diagrams aren't overwritten.

Lenses

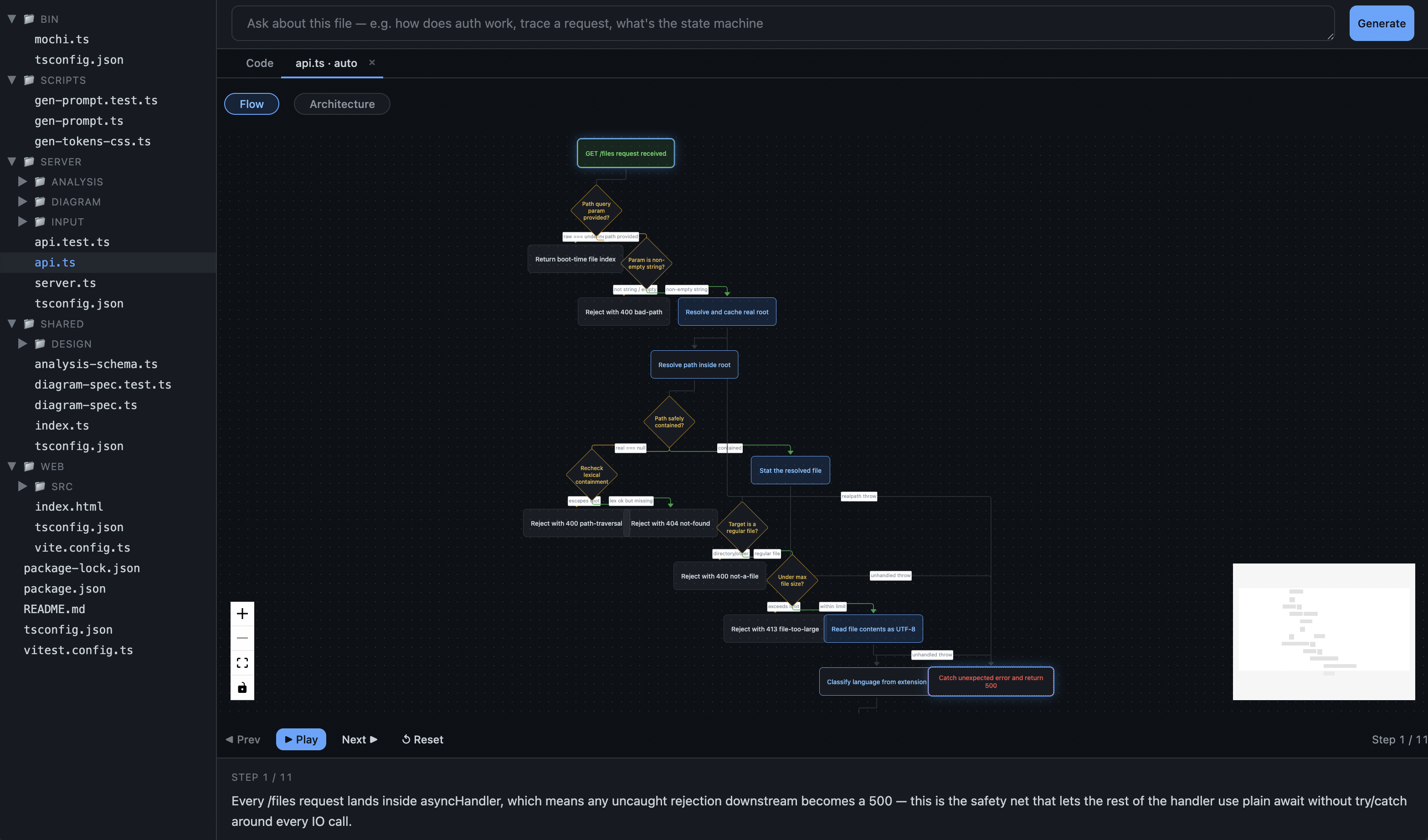

• Flow — step-by-step execution path through a single function or file. Branches, loops, early returns.

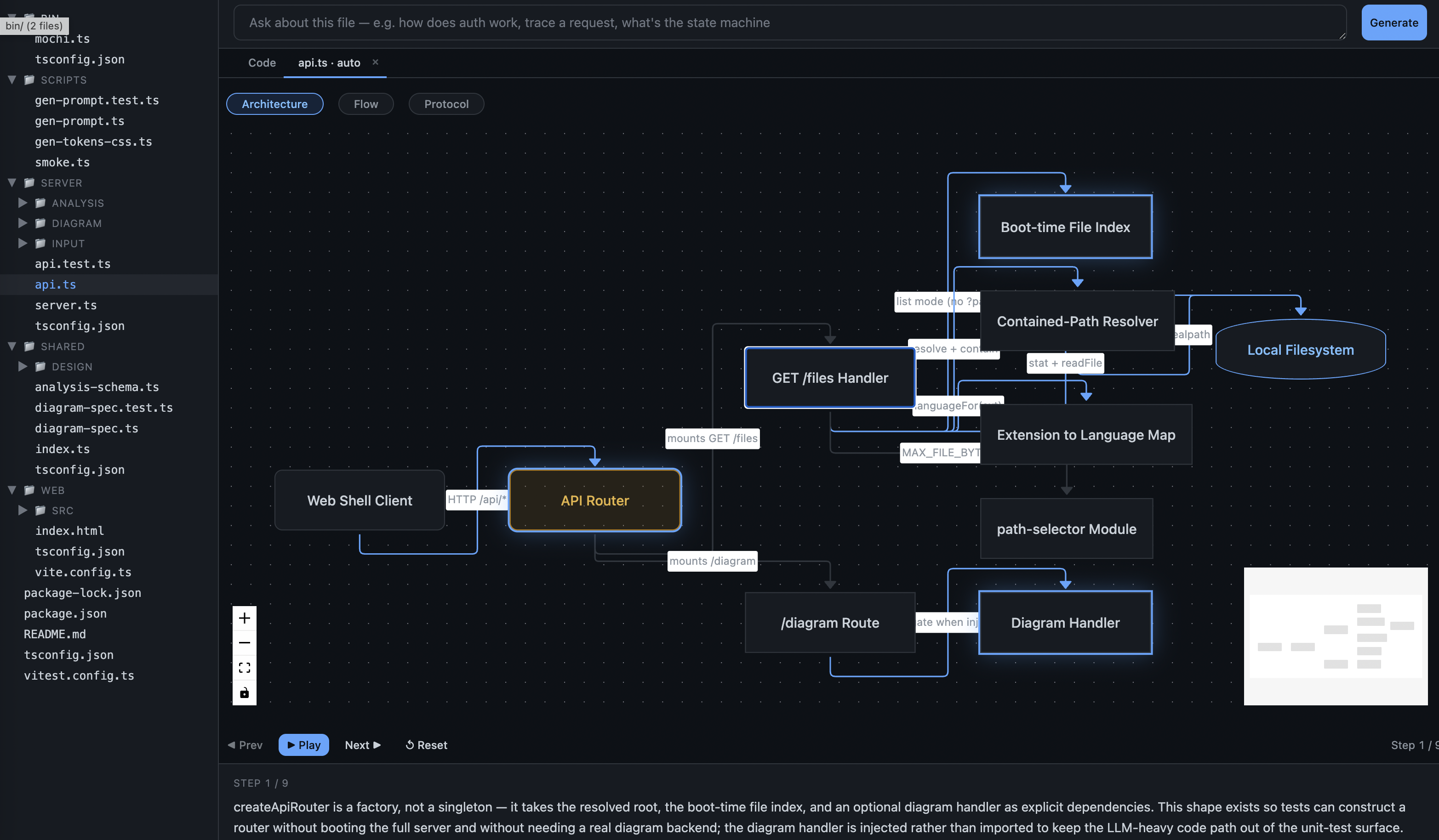

• Architecture — deployable units (services, modules, components) and how they communicate. Pick a directory or a handful of files.

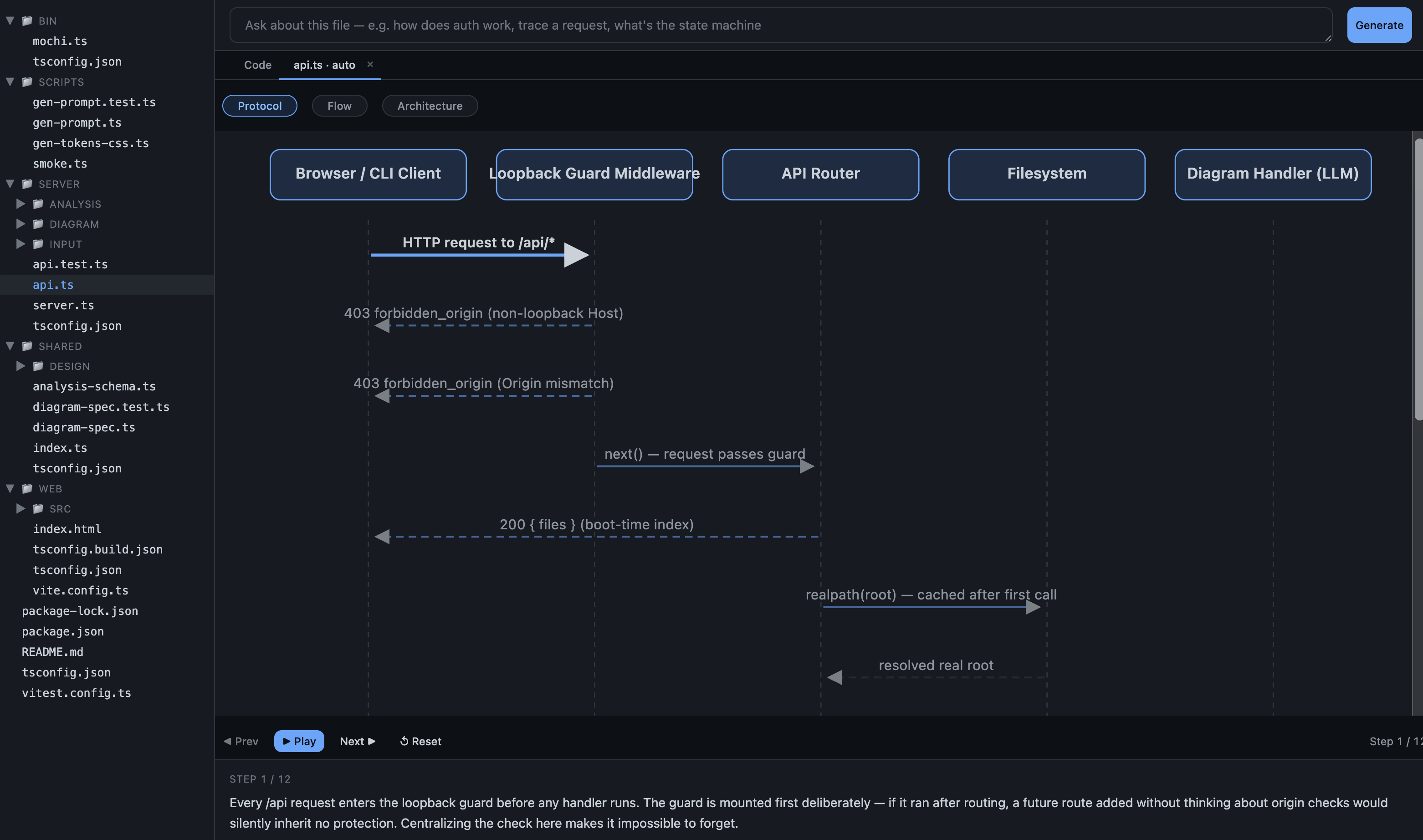

• Protocol — message exchanges between participants over time. Swim-lane sequence view. Pick two or more coordinating files.



Mochi includes alternative_lenses in every spec, so you can pivot from "this is a flow" to "show me as architecture" in one click.

Troubleshooting

• "Claude can't authenticate" — run claude /login and retry.
• "Scope is too large" — narrow the selection. Multi-file scopes work best with 2–5 closely-related files.
• "Nothing useful to diagram here" — Claude returned an empty spec. Try a different file, or add an intent to focus the question.
• claude not found at startup — install Claude Code and ensure it's on your PATH.
• Stale cache — caching is keyed by the SHA-256 of the resolved scope
  • prompt version. Edit the file (or bump PROMPT_VERSION in server/diagram/prompt-version.ts) to invalidate.
• sh: mochi: command not found when running npx @mquan/mochi from inside the mochi repo — npx sees the local package.json#name matches, skips its registry fetch, and tries to exec mochi from $PATH (where it isn't). Use npm start instead when you're inside the repo; npx is for other codebases. (See the Development section.)

Development

nvm use            # picks Node 22.0.0 from .nvmrc
npm install

Build + run — the standard loop after every change to server, prompts, or generated assets (tokens, prompt template):

npm run build       # tsc + vite + gen-prompt + gen-tokens-css
npm start           # boot the server pointing at the cwd (= node ./dist/bin/mochi.js .)

npm start is the canonical in-repo runner. npx @mquan/mochi does not work from inside this repo — npx sees the local package.json#name and short-circuits the registry install, then fails to find a mochi on PATH. That's an npx quirk for "you're inside the package you're trying to run."

Open the URL the server logs (defaults to http://127.0.0.1:5173). Ctrl-C to stop.

Fast iteration — for web-only changes, use the dev server (Vite HMR + tsx-watched server, no rebuild step):

npm run dev

Tests:

npm run test       # vitest — unit + integration
npm run smoke      # spec-contract smoke (validates every lens fixture)

Ship checks

npm run build       # production build
npm run smoke       # spec-contract smoke
npm pack --dry-run  # confirm tarball contents + size
