@panomapp/arc

Camera-readable ARC authentication toolkit.

@panomapp/arc packages the full ARC stack in one place:

• shared grid and detection primitives
• Vue client helpers for rendering and camera scanning
• Express-friendly server routes
• realistic testing and simulation utilities

It is designed for device-linking flows like WhatsApp Web or Steam Guard, where one device shows a short-lived visual code and another authenticated device scans it.

Installation

Install only the entrypoints you need.

npm install @panomapp/arc

Optional peer dependencies:

• vue for @panomapp/arc/client
• express for @panomapp/arc/server

Package entrypoints

@panomapp/arc

Shared types and low-level helpers:

• applyArcAnchors
• payloadBits
• hammingDistance
• renderArcToPixels
• detectArcPatternFromRgba
• makeArcFixtures
• makeArcScenarios

@panomapp/arc/client

Vue-facing client helpers:

• createArcHttpClient()
• useArcAuthScanner()
• useArcSlotPlayback()
• createArcScannerEngine()

@panomapp/arc/server

Server helpers:

• createArcRouter()
• createArcRouteHarness()
• createArcChallenge()
• getArcChallengeStatus()
• scanArcPattern()
• bindArcChallengeUser()

@panomapp/arc/testing

Simulation and self-test helpers:

• runArcCameraRoundTrip()
• runArcDifficultySweep()
• runArcRealisticAuthLoop()
• runArcNetworkProfileSweep()
• runArcStartupSelfTests()

Quick start

1. Server

import express, { Router } from 'express';
import {
  createArcRouter,
} from '@panomapp/arc/server';

const app = express();

app.use('/auth/arc', createArcRouter({
  routerFactory: () => Router(),
  authContext: (req) => ({
    ipHash: req.ip,
    ipEnc: null,
    userAgent: req.get('user-agent') ?? null,
    userId: req.user?.id ?? null,
  }),
  issueSession: async ({ user, res, accessToken, refreshToken }) => {
    res.json({ user, accessToken, refreshToken });
  },
  publicSessionUser: (user) => user,
  getUserById: async (userId) => findUser(userId),
  logArcLogin: async () => {},
  authMiddleware,
  optionalAuthMiddleware,
  privacySanitizer,
  requireFeature,
  ipLimiter,
}));

2. Client HTTP adapter

import axios from 'axios';
import { createArcHttpClient } from '@panomapp/arc/client';

const api = axios.create({ baseURL: '/api' });
const arcClient = createArcHttpClient(api);

3. Code display page

import type { ArcSlot } from '@panomapp/arc';
import { useArcSlotPlayback } from '@panomapp/arc/client';

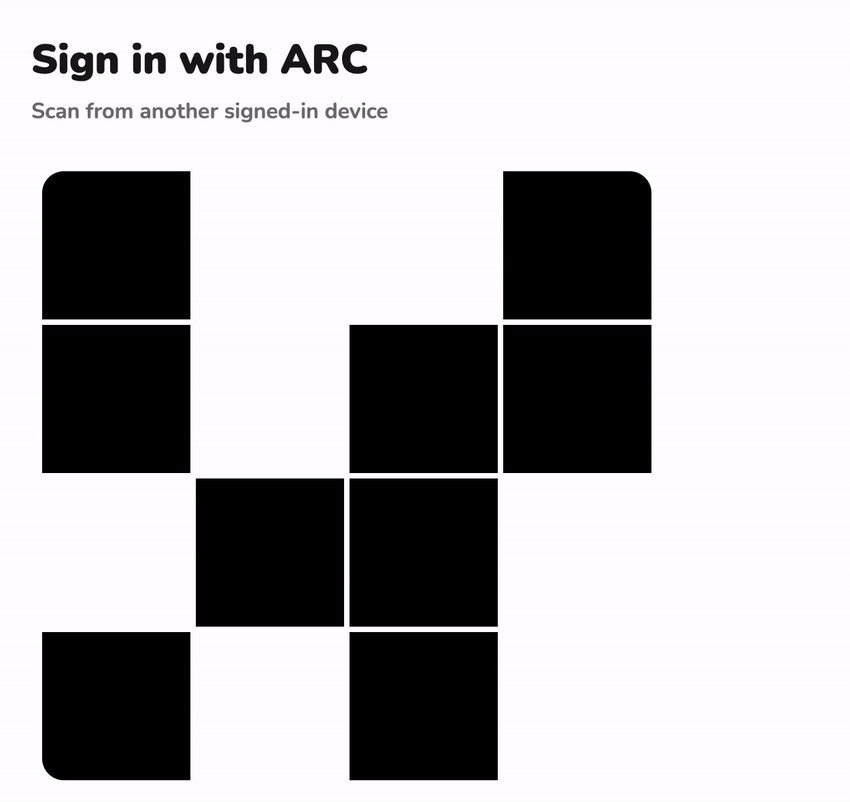

Use useArcSlotPlayback() to render the active 4x4 ARC slot sequence on the device that needs to sign in.

4. Scanner page

import { ref } from 'vue';
import { useArcAuthScanner } from '@panomapp/arc/client';

const videoRef = ref<HTMLVideoElement | null>(null);
const canvasRef = ref<HTMLCanvasElement | null>(null);

const scanner = useArcAuthScanner({
  videoRef,
  canvasRef,
  scan: (observedBits, candidateId) => arcClient.scan(observedBits, candidateId),
  onVerified: async (result) => {
    console.log('ARC verified', result.user?.id);
  },
});

Then:

await scanner.startCamera();
scanner.startScanning();

Device-linking model

Typical ARC flow:

1. Device A opens the ARC code page and requests createChallenge().
2. Device A displays the animated 4x4 ARC sequence.
3. Device B is already authenticated and opens the scanner page.
4. Device B scans the ARC sequence and sends scan(observedBits, candidateId?).
5. The server locks onto the correct challenge, verifies three slots, and binds the challenge to the scanning user.
6. Device A keeps polling pollStatus(challengeId) until the challenge becomes verified.
7. Device A receives the issued session tokens and signs in.

Testing and simulation

Run the built-in self-test suite:

npm run selftest

This covers:

• baseline detector round-trips
• realistic camera degradation
• frontend-scanner plus backend-route auth loop
• network latency and jitter profiles
• PNG and JSON artifacts in test-logs/

Notes

• The client entry is ESM-only at runtime.
• The server entry does not directly import Express; you pass your own router and middleware.
• The testing entry is intended for Node environments.
• test-logs/ is generated output and is not published.
