redflow

Redis-backed workflow runtime for Bun.

Deep internal details: INTERNALS.md

Warning

This project is still in early alpha stage.

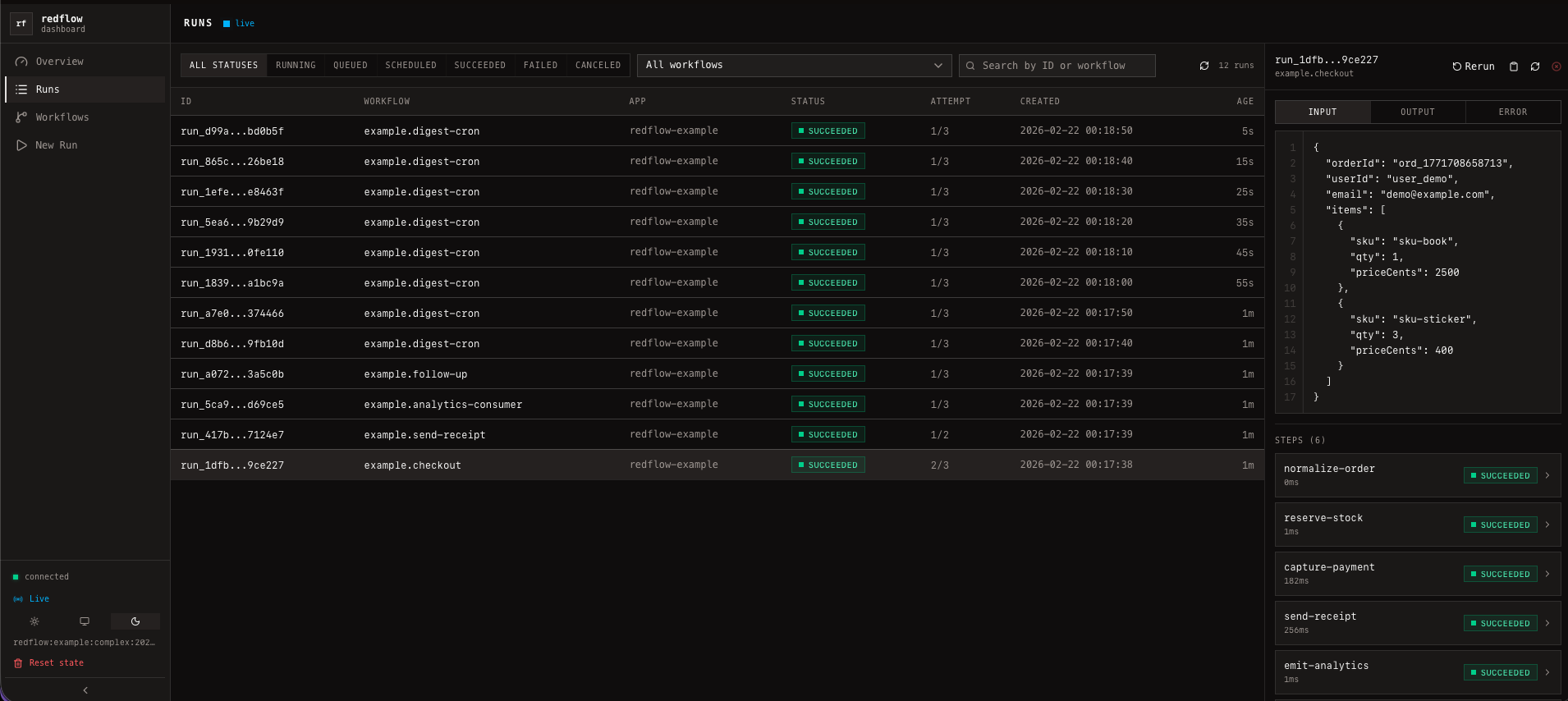

Dashboard

Run locally with CLI (npm package):

bun add -g @redflow/cli -E
# or with REDIS_URL in the env
redflow dashboard --redis redis://127.0.0.1:6379 --port 3667

Run in production via the dashboard container from GHCR (published by CI):

docker run --rm -p 3000:3000 \
  -e HOST=0.0.0.0 \
  -e PORT=3000 \
  -e REDIS_URL=redis://<redis-host>:6379 \
  -e REDFLOW_PREFIX=redflow:prod \
  ghcr.io/loomatech/redflow-dashboard:latest

Install

bun add @redflow/client -E

Environment

• REDFLOW_RUN_RETENTION_DAYS - terminal run history retention window in days (default: 30).

Most users start here: defineWorkflow

schema accepts any Standard Schema compatible validator (e.g. Zod, Valibot, ArkType).

import { defineWorkflow } from "@redflow/client";
import { z } from "zod";

export const sendWelcomeEmail = defineWorkflow(
  "send-welcome-email",
  {
    schema: z.object({ userId: z.string().min(1) }),
  },
  async ({ input, step }) => {
    const user = await step.run({ name: "fetch-user" }, async () => {
      return { id: input.userId, email: "[email protected]" };
    });

    await step.run({ name: "send-email" }, async () => {
      return { ok: true, to: user.email };
    });

    return { sent: true };
  },
);

Handler context gives you:

• input — validated input (if schema is provided)
• run — run metadata (id, workflow, queue, attempt, maxAttempts)
• signal — cancellation signal
• step — durable step API

Step API (inside workflow handlers)

1) step.run

Use for durable, cached units of work.

const payment = await step.run(
  { name: "capture-payment", timeoutMs: 4_000 },
  async ({ signal }) => {
    // pass signal to external APIs when supported
    return { chargeId: "ch_123" };
  },
);

2) step.runWorkflow

Use when parent workflow must wait for child workflow output.

const receipt = await step.runWorkflow(
  {
    name: "send-receipt",
    timeoutMs: 20_000,
    runAt: new Date(Date.now() + 500),
    idempotencyTtl: 60 * 60 * 24,
    idempotencyKey: `receipt:${input.orderId}`,
  },
  sendReceiptWorkflow,
  {
    orderId: input.orderId,
    email: input.email,
    totalCents: input.totalCents,
  },
);

step.runWorkflow waits for child completion until the step is canceled. Set timeoutMs to cap total waiting time.

3) step.waitFor

Use for durable delays inside a workflow.

await step.waitFor(
  { name: "cooldown", timeoutMs: 60_000 },
  15_000,
);

await step.waitFor(
  { name: "remind-later" },
  "5m",
);

await step.waitFor(
  { name: "resume-at" },
  new Date(Date.now() + 5 * 60_000),
);

When waiting, the current run is moved back to scheduled, so it does not hold the worker slot and does not consume a retry attempt. A numeric target is treated as relative milliseconds from the first time the step is reached; a string target supports ms, s, m, h, d units like 75s or 1d; a Date is an absolute wake-up time.

4) step.emitWorkflow

Use to trigger child workflow and keep only child run id.

const analyticsRunId = await step.emitWorkflow(
  {
    name: "emit-analytics",
    runAt: new Date(Date.now() + 2_000),
    idempotencyTtl: 60 * 60,
    idempotencyKey: `analytics:${input.orderId}`,
  },
  analyticsWorkflow,
  {
    orderId: input.orderId,
    totalCents: input.totalCents,
  },
);

You can also pass a workflow name string:

const analyticsRunId = await step.emitWorkflow(
  { name: "emit-analytics" },
  "analytics-consumer",
  { orderId: input.orderId, totalCents: input.totalCents },
);

5) step.emitEvent

Use to fan-out to all workflows subscribed to an event trigger.

const emittedRunIds = await step.emitEvent(
  {
    name: "publish-order-event",
    emitAt: new Date(Date.now() + 60_000),
  },
  "order.created",
  { orderId: input.orderId, totalCents: input.totalCents },
);

step.emitEvent returns child run ids for all matching subscribers. When emitAt is in the future, fan-out happens later and the step returns [] immediately.

Run workflows

The object returned by defineWorkflow(...) has .run(...).

const handle = await sendWelcomeEmail.run(
  { userId: "user_123" },
  {
    idempotencyKey: "welcome:user_123",
    idempotencyTtl: 60 * 60,
  },
);

const output = await handle.result({ timeoutMs: 15_000 });

Delayed run:

const handle = await sendWelcomeEmail.run(
  { userId: "user_789" },
  {
    runAt: new Date(Date.now() + 60_000),
    idempotencyKey: "welcome:user_789:delayed",
  },
);

const output = await handle.result({ timeoutMs: 90_000 });

Start a worker

Import workflows, then run startWorker({ app: ... }).

import { startWorker } from "@redflow/client";
import "./workflows";

const worker = await startWorker({
  app: "billing-worker",
  url: process.env.REDIS_URL,
  prefix: "redflow:prod",
  concurrency: 4,
});

Explicit queues + runtime tuning:

const worker = await startWorker({
  app: "billing-worker",
  url: process.env.REDIS_URL,
  prefix: "redflow:prod",
  queues: ["critical", "io", "analytics"],
  concurrency: 8,
  runtime: {
    leaseMs: 5000,
    blmoveTimeoutSec: 1,
    reaperIntervalMs: 500,
    runHistoryCleanupIntervalMs: 60_000,
  },
});

await worker.stop() stops polling and releases local execution. It does not cancel active runs: they remain in processing without a lease, and another worker's reaper returns them to ready so unfinished durable steps can resume. Use cancelRun(...) when a run should become terminally canceled.

Workflow options examples

maxConcurrency

maxConcurrency limits concurrent running runs per workflow. Default is 1.

defineWorkflow(
  "heavy-sync",
  {
    queue: "ops",
    maxConcurrency: 1,
  },
  async () => ({ ok: true }),
);

debounce

Use debounce when repeated triggers for the same derived key should collapse into one pending run, and only the latest input should be executed.

defineWorkflow(
  "reindex-user",
  {
    queue: "search",
    debounce: {
      period: "5s",
      timeout: "30s",
      key: input => input.userId,
    },
  },
  async ({ input }) => ({ reindexed: input.userId }),
);

debounce.key may be a static string or a function that derives the key from input.

debounce is trailing-edge. Each matching enqueue resets the debounce window. While the run is still pending, the latest input wins and the returned handle points to the same run id. If timeout is set, the run will execute no later than first_enqueue + timeout, even if new events keep arriving.

When debounce.key is a function, it must be resolved in the enqueueing process. Use workflow.run(...), or import the workflow definitions before calling client.runByName(...) / emitEvent(...) when you rely on debounce semantics. Static string keys do not require local workflow registration.

throttle / rateLimit

Use throttle to limit how often runs with the same derived key are allowed to start.

defineWorkflow(
  "send-sms",
  {
    queue: "messaging",
    throttle: {
      limit: 1,
      period: "5s",
      key: input => input.phoneNumber,
    },
  },
  async ({ input }) => ({ sent: true, to: input.phoneNumber }),
);

throttle.key and rateLimit.key may be either static strings or functions.

Admission control happens before the attempt starts. If a run is delayed by throttle, it is rescheduled and does not increment run.attempt.

Use rateLimit when exceeding the window should fail the run immediately instead of rescheduling it.

defineWorkflow(
  "sync-contact",
  {
    queue: "crm",
    rateLimit: {
      limit: 10,
      period: "1m",
      key: input => input.workspaceId,
    },
  },
  async ({ input }) => ({ ok: true, workspaceId: input.workspaceId }),
);

When rateLimit is exceeded, the run fails before handler execution with a RateLimitExceededError payload in run.error.

mutex

Use mutex when runs from different workflows must not be running at the same time for the same derived key.

defineWorkflow(
  "tenant-rebuild",
  {
    queue: "ops",
    mutex: input => `tenant:${input.tenantId}`,
  },
  async ({ input }) => ({ rebuilt: input.tenantId }),
);

mutex may be either a static string or a function that derives the key from input.

The mutex key is global within the current Redis prefix, so other workflows that return the same mutex key will wait too, even if they use different queues. The lock is held only while the run is actively running; it is released on success, failure, retry scheduling, cancellation, and step.waitFor(...).

retries

Use retries for custom retry policy. retries.maxAttempts is equivalent to top-level maxAttempts, but keeps the retry config in one place.

import { RetryAfterError } from "@redflow/client";

defineWorkflow(
  "contact-sync",
  {
    queue: "crm",
    retries: {
      maxAttempts: 5,
      shouldRetry: ({ error }) =>
        error instanceof Error && error.message !== "bad input",
      delay: ({ run }) => (run.attempt === 1 ? "500ms" : "5s"),
    },
  },
  async ({ run }) => {
    if (run.attempt === 1) {
      throw new RetryAfterError("Hit Twilio rate limit", "30s");
    }

    return { ok: true };
  },
);

RetryAfterError accepts a relative millisecond value, a duration string like "30s", or a Date. When it is thrown, its delay overrides retries.delay for that failure.

Cron

defineWorkflow(
  "digest-cron",
  {
    queue: "ops",
    cron: [
      { id: "digest-10s", expression: "*/10 * * * * *" },
      {
        expression: "0 */5 * * * *",
        timezone: "UTC",
        input: { source: "cron" },
      },
    ],
  },
  async ({ input }) => ({ tick: true, input }),
);

Cron respects maxConcurrency: if the limit is reached, that cron tick is skipped.

Event

defineWorkflow(
  "analytics-consumer",
  {
    queue: "analytics",
    event: [{ name: "order.created" }],
  },
  async ({ input }) => ({ handled: true, input }),
);

Trigger all subscribers with:

const runs = await client.emitEvent(
  "order.created",
  {
    orderId: "ord_42",
    totalCents: 1999,
  },
  {
    emitAt: new Date(Date.now() + 60_000),
  },
);

emitAt delays event processing until that time. If you emit into the future, client.emitEvent(...) returns no child run ids until the event becomes due.

onFailure

import { NonRetriableError } from "@redflow/client";

defineWorkflow(
  "invoice-sync",
  {
    queue: "billing",
    retries: { maxAttempts: 4 },
    onFailure: async ({ error, run }) => {
      console.error("workflow failed", run.id, run.workflow, error);
    },
  },
  async () => {
    throw new NonRetriableError("invoice not found in upstream system");
  },
);

Client APIs (advanced)

Use this when you need manual triggering, inspection, registry sync, or custom client setup.

Setup

import { createClient, setDefaultClient } from "@redflow/client";

const client = createClient({
  url: process.env.REDIS_URL,
  prefix: "redflow:prod",
});

setDefaultClient(client);

Trigger by workflow name

const h1 = await client.runByName(
  "checkout",
  { orderId: "ord_2", totalCents: 1999 },
  {
    queueOverride: "critical",
    idempotencyKey: "checkout:ord_2",
  },
);

const h2 = await client.emitWorkflow(
  "send-welcome-email",
  { userId: "user_456" },
  { idempotencyKey: "welcome:user_456" },
);

Inspect and control runs

const run = await client.getRun("run_123");
const steps = await client.getRunSteps("run_123");

const recent = await client.listRuns({ limit: 50 });
const failedCheckout = await client.listRuns({
  workflow: "checkout",
  status: "failed",
  limit: 20,
});

const workflows = await client.listWorkflows();
const checkoutMeta = await client.getWorkflowMeta("checkout");

const canceled = await client.cancelRun("run_123", {
  reason: "requested by user",
});

RunHandle

const handle = await client.emitWorkflow("checkout", {
  orderId: "ord_3",
  totalCents: 2999,
});

const state = await handle.getState();
console.log(state?.status);

const output = await handle.result({ timeoutMs: 30_000 });
console.log(output);

Registry sync app id

import { getDefaultRegistry } from "@redflow/client";

await client.syncRegistry(getDefaultRegistry(), { app: "billing-service" });
