kernelee

A UNIX-pipe-like, message-driven, forward-only control framework for TypeScript. Control is data (messages), not a call hierarchy. A port of swift-kernelee — the Swift implementation's semantics are the source of truth, translated into TS idioms. Zero runtime dependencies, ESM, strict.

See it in action: kernelee-lifegame — Conway's Game of Life driving the generation loop with divert and parallel row chunks with fork.

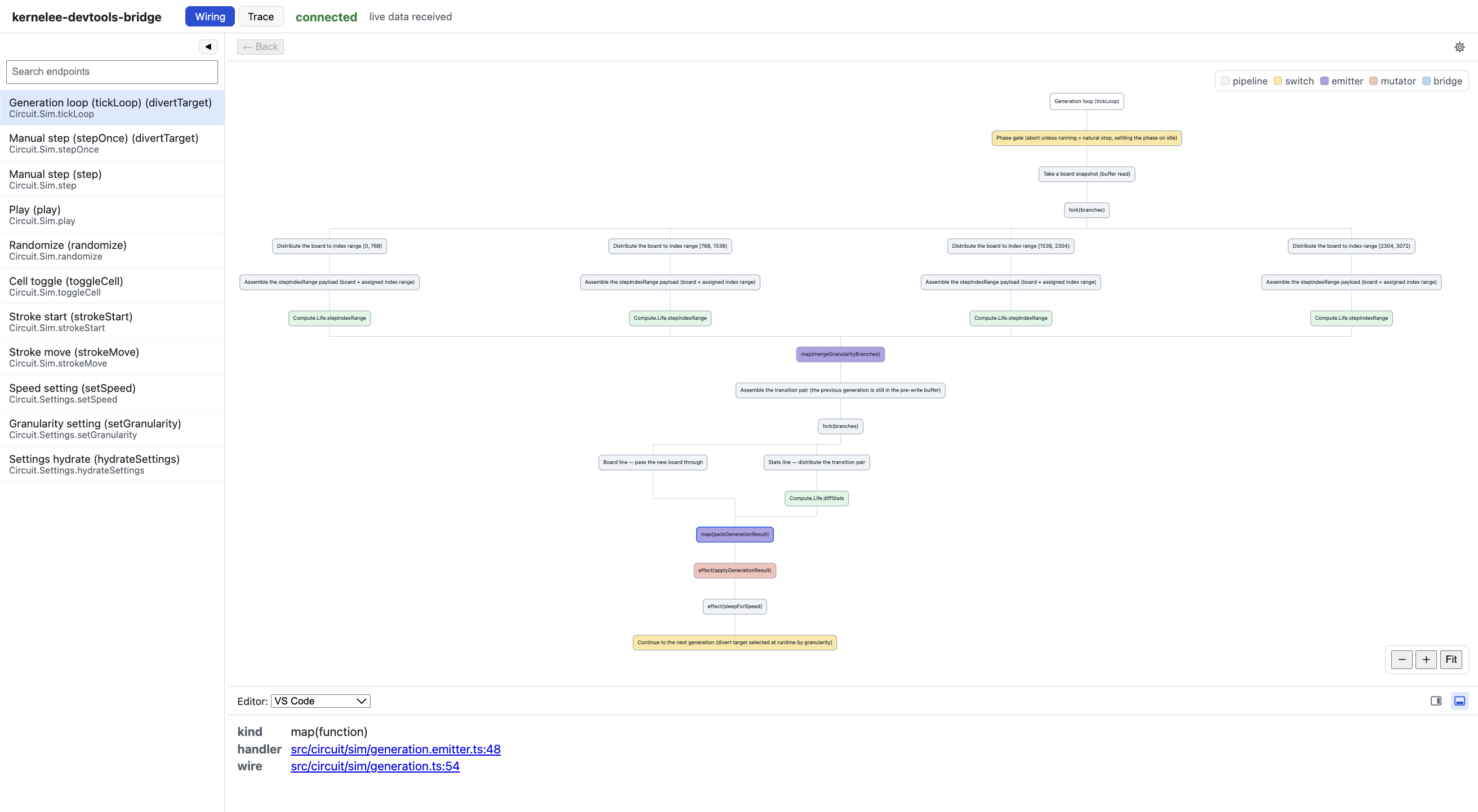

Every flow above is a Pipe value — the devtools panel renders it from Pipe.descriptors without executing anything, alongside live traces from the same connection.

The model

Three ideas, borrowed from the shell:

• Everything is a message. A command is a typed symbol + payload (kernel.call(increment, 41)), not a method on an object graph. One kernel is the single chokepoint every message passes through — which is what makes tracing and a static wiring graph possible.

• Flows are pipes. Multi-step control chains left to right like a UNIX pipe (fetchNote | map | tap | render) and seals into a first-class Pipe<I, O> value whose topology is readable without running it.

• Handlers steer with a Verb — and only forward. Instead of return-value-or-throw, a handler answers with control as data:

  next(value)                       // keep flowing to the next stage
  abort(value)                      // stop here — the value is the result
  divert(diversion(otherPipe, p))   // discard remaining stages, jump into another pipe
  fail(error)                       // reject the whole flow

  Nothing flows backwards: dispatch is fire-and-forget with no return path, and divert swaps the remaining stages rather than calling and returning — a self-diverting loop (an agent loop) runs O(1) stack across any number of hops.

Why not Redux / XState / effect-ts?

They answer different questions. Redux answers "how does state change" (actions → reducer) and leaves multi-step control flow to add-ons (thunks, sagas). XState answers "which states are legal" (statecharts). effect-ts answers "how do I make effects typed and composable" with its own runtime (fibers). kernelee answers "what is the flow, as a value" — and keeps observable state (Buffer) deliberately thin, with transition logic in plain functions. If you want reducer-centric state management and its middleware ecosystem, use Redux; if you want to model legal state machines, use XState. kernelee is for when the flow itself — dispatch, fan-out, divert loops — should be an inspectable piece of data, on plain async/await.

Install

npm install @s-age/kernelee

Quick start

import { symbol, next, fail, pipeline, KernelBuilder, type Kernel } from '@s-age/kernelee';

const increment = symbol<number, number>('math.increment');
const guarded = symbol<number, number>('math.guarded');
const reload = symbol<void, void>('notes.reload');

const builder = new KernelBuilder();
builder.register(increment, (n) => n + 1);                    // leaf: value-returning
builder.registerVerb(guarded, (n) =>                          // leaf: verb-returning
  n < 0 ? fail(new Error('negative')) : next(n * 2));
builder.register(reload, async (kernel: Kernel, _: void) => { // composing: kernel-first
  await kernel.call(increment, 1);
});

const kernel = builder.build({ onError: (symbolId, error) => { /* sink */ } });

await kernel.call(increment, 41); // => 42 (typed)
kernel.dispatch(reload, undefined); // fire-and-forget, serialized in submission order, failures go to onError

Multi-step flows chain like a UNIX pipe and freeze into a typed value:

const toDto = pipeline(fetchNote)               // KernelSymbol<NoteId, Note>
  .map((note) => ({ note, seenAt: Date.now() }))
  .tap(saveAudit)                                // side effect, forwards the original value
  .map((c) => c.note).pipe(renderDto)            // payload assembly is a visible map node
  .seal();                                       // Pipe<NoteId, NoteDto>

const dto = await kernel.compose(toDto, id);     // typed final value
toDto.descriptors;                               // static shape, readable without running

Gotchas:

• Leaf vs composing is discriminated by declared parameter count (fn.length >= 2 means kernel-first). Default and rest parameters break the discrimination.
• A composing handler's lambda needs parameter type annotations ((kernel: Kernel, n: number) => …) — TS settles the overload before contextually typing the lambda. A wrong annotation is a compile error.

Documentation

Design notes and full API semantics live in docs/:

• Pipes & fork — pipeline / divert (O(1) loops) / tap / map / effect, and parallel fan-out with fork (including how cancellation differs from Swift).
• Buffer — observable state cells (defineState / mutate / subscribe), useSyncExternalStore fit, KernelErrorState.
• defineCallable & actionsOf — the typed port factory (the @callable macro's TS counterpart) and redux-style dispatch(action).
• Tracing — span propagation through the Kernel.invoke chokepoint, onTrace, the TraceState buffer cell.
• Wiring graph — describePipe / projectWiringGraph / validateWiringGraph: a static JSON snapshot of the app's wiring.
• Transport adapters — why the core ships no delivery layer, and the two APIs a bridge package builds on.
• Swift ↔ TS correspondence — the full port table, including every deliberate non-correspondence.

Not ported yet: time-travel (trace forest reconstruction, Buffer.capture / restore) — swift-kernelee ships it, and the TS port plans to build it on TraceState. Today, kernelee-devtools-bridge already rides a Buffer snapshot on every traced message, so the state at any past point is inspectable; what's missing is restoring the live app to it. Delivery/UI layers are out of scope by design — the core stays zero-dependency and exposes the seams instead.

Ecosystem

The delivery and tooling layers the core deliberately excludes live in sibling packages:

• react-kernelee — React bindings for the Buffer (useBuffer / useDispatch / useKernelError).
• kernelee-devtools-bridge — dev-only WS bridge + browser panel for the wiring graph and live traces.
• kernelee-mcp-tools — MCP server exposing a static scan of a kernelee app's wiring to coding agents.
• kernelee-lifegame — the showcase app (Conway's Game of Life).

Development

npm test          # vitest run
npm run typecheck # tsc --noEmit
npm run build     # tsc → dist/ (with declarations)

License

MIT © s-age
