ScheduleSpark Time Picker

Framework-free analog and digital time picker for ScheduleSpark forms.

Full documentation: https://docs.schedulespark.com/docs/time-picker

Screenshots

Only the labeled input shows by default; the picker opens as an anchored popover on focus. Screenshots below show the popover open, in each mode.

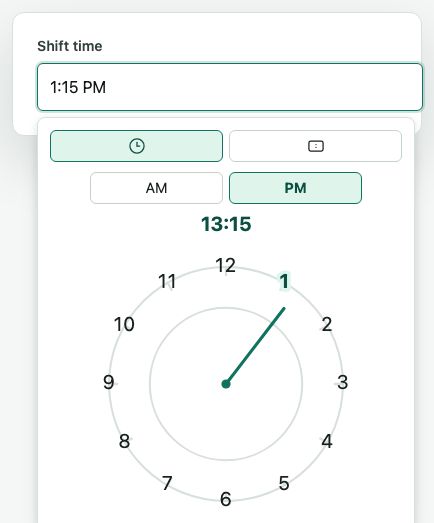

Analog

Click or drag anywhere on the dial — the hand tracks the pointer continuously and snaps the minute to the configured minuteStep.

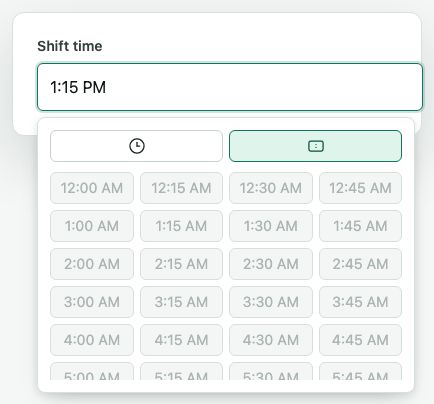

Digital

Usage

import { createTimePicker } from "@schedulespark/time-picker";
import "@schedulespark/time-picker/styles.css";

const picker = createTimePicker({
  label: "Start time",
  value: "09:00",
  minTime: "06:00",
  maxTime: "18:00",
  minuteStep: 15,
  mode: "analog",
  onChange: (value) => {
    console.log(value); // HH:mm
  }
});

picker.mount(document.querySelector("#time-picker"));

Theming

Every visual value is a CSS custom property on .ssp-time-picker, each falling back to the default shown below. Override any subset in your own stylesheet — no JavaScript configuration needed.

| Variable | Default | Affects | |---|---|---| | --ssp-time-picker-text | #18211f | Root text, button text | | --ssp-time-picker-label-text | #33413d | Field label | | --ssp-time-picker-border | #c7d1cc / #d8e0dc | Input, button, popover, and clock-face borders | | --ssp-time-picker-bg | #fff | Button, popover, and clock-face backgrounds | | --ssp-time-picker-accent | #11735f | Focus ring, active/selected border, clock-center dot | | --ssp-time-picker-accent-bg | #dff4eb | Active/selected button background | | --ssp-time-picker-accent-text | #0a4f42 | Active/selected button text | | --ssp-time-picker-disabled-bg | #eef2f0 | Disabled button background | | --ssp-time-picker-disabled-text | #8a9692 | Disabled button text | | --ssp-time-picker-radius | 0.5rem | Popover corner radius | | --ssp-time-picker-popover-shadow | 0 12px 24px -12px rgb(10 30 25 / 25%), 0 2px 8px rgb(10 30 25 / 10%) | Popover drop shadow | | --ssp-time-picker-z-index | 20 | Popover stacking order — raise this if the picker opens inside a modal or drawer with a higher stacking context | | --ssp-time-picker-popover-min-width | 16rem | Popover minimum width | | --ssp-time-picker-popover-max-width | min(94vw, 22rem) | Popover maximum width | | --ssp-time-picker-clock-size | min(17rem, 78vw) | Analog hour clock-face size |

Dark mode example

.my-dark-page .ssp-time-picker {
  --ssp-time-picker-text: #e7f1ee;
  --ssp-time-picker-label-text: #b7c4bf;
  --ssp-time-picker-border: #33413d;
  --ssp-time-picker-bg: #17211e;
  --ssp-time-picker-accent: #4fd1a5;
  --ssp-time-picker-accent-bg: #163a2f;
  --ssp-time-picker-accent-text: #8ff0c7;
  --ssp-time-picker-disabled-bg: #1f2926;
  --ssp-time-picker-disabled-text: #5b6b66;
}

API

createTimePicker(options) returns:

• mount(host) renders the picker inside an element.
• setValue(value) updates the picker value.
• setDisabled(disabled) toggles disabled state.
• destroy() removes the picker DOM.

Options:

• value: current time as HH:mm.
• onChange: receives normalized HH:mm.
• mode: "analog" or "digital".
• timeFormat: "24h" or "12h" display mode, default "24h".
• minuteStep: digital option step and analog drag-rounding step, default 15.
• minTime: lowest selectable value, inclusive.
• maxTime: highest selectable value, inclusive.
• label, id, name, placeholder, required, disabled.

Range Rules

The picker only accepts valid day times from 00:00 to 23:59.

timeFormat only changes display labels. Values, minTime, maxTime, and onChange always use normalized HH:mm; for example, 23:59 displays as 11:59 PM in 12-hour mode. Use maxTime: "11:59" for 11:59 AM, or maxTime: "23:59" for 11:59 PM.

minTime and maxTime restrict a specific picker instance:

• Typed values are normalized to HH:mm and clamped to the allowed range.
• Digital values outside the range stay visible but are disabled.
• Analog hour and minute values outside the range are disabled.
