ODL/OEPL Drawcustom Designer

Visual feature-rich editor for OpenDisplay Language (ODL) and OpenEPaperLink (OEPL) drawcustom YAML. Design layouts in the browser, preview them with realistic tag palettes and dithering, export HA-clean YAML or PNG, and share designs via URL. Simulate Home Assistant entity states for template preview. Add custom fonts and images to your designs.

Client-side only — the app runs entirely in the browser. Designs, fonts, and images stay in local storage (IndexedDB). Share links embed the design in the URL hash (#d=…) — copied to clipboard, not uploaded anywhere.

Open the standalone designer → · Live embed demo →

Use it in your own app

npm install @schlomo/odl-drawcustom-designer

Ships as one self-contained ESM file — React and every other runtime dependency bundled in, no peer dependencies to resolve.

import { mount } from '@schlomo/odl-drawcustom-designer'

const handle = mount(document.getElementById('designer'), {
  payload: yamlString,          // initial drawcustom YAML (list of elements)
  states: { 'sensor.temperature': '21.5' },   // host states, for template preview
  theme: 'dark',                // 'light' | 'dark', scoped to the container
  // The displays you know about. One display is adopted and locked without a
  // pick; several give the user a picker.
  targets: [{
    id: 'display.kitchen',
    label: 'Kitchen tag',
    display: { pixelWidth: 296, pixelHeight: 128, colorScheme: 0x01 },
  }],
  // Your buttons in the designer's toolbar — the only save/send channel there
  // is: the designer never persists or transmits anything itself.
  actions: [{ id: 'save', label: 'Save' }, { id: 'send', label: 'Send to display' }],
  onAction(id, payload, context) {
    // user clicked one of your buttons — do the host-side thing with `payload`
  },
})

handle.setStates(newStates)   // replace the state map
handle.setTargets(newTargets) // replace the displays the picker offers
handle.getPayload()           // read the current payload YAML at any time
handle.destroy()              // unmount and empty the container

The container needs an explicit height; the designer fills it. Styles and DOM are isolated in a shadow root at the mount boundary — host CSS never leaks in, and the designer never touches the host document.

Full mount API (setActions, setPayload, setTheme, onTargetSelected) and every host-data field, plus the release/versioning story: docs/embedding.md. Live demo: see the link above; its full source (a fake host page pushing states, displays and actions) is at demo/.

Home Assistant integrations (drawcustom)

Paste the designer's exported YAML payload list into one of these custom components' (install via HACS) drawcustom service call.

| Integration | Service | Hardware | Install | |-------------|---------|----------|---------| | OpenEPaperLink | open_epaper_link.drawcustom | OpenEPaperLink AP and/or BLE tags (firmware) | HACS: OpenEPaperLink · OEPL drawcustom docs | | OpenDisplay | opendisplay.drawcustom | OpenDisplay boards/displays (compatibility) | HACS: OpenDisplay · OD drawcustom docs |

Example (OpenEPaperLink — target your display device, not entity):

action: open_epaper_link.drawcustom
target:
  device_id: YOUR_DEVICE_ID
data:
  background: white
  payload:
    - type: text
      value: "Hello from the designer"
      x: 10
      y: 10
      size: 24

OpenDisplay uses the same payload shape with action: opendisplay.drawcustom.

Note: The built-in OpenDisplay core integration sends pre-rendered images via upload_image — it does not use drawcustom. Use the custom OpenDisplay integration above for YAML payloads.

Specifications & upstream projects

| Resource | Description | |----------|-------------| | OpenDisplay | Open-source firmware and protocol standard for e-paper tags (website) | | OpenDisplay Language (ODL) | OpenDisplay spec — canonical draw payload YAML format | | OpenDisplay Basic Standard | OpenDisplay spec — BLE/Wi‑Fi wire protocol (display announcement, image encoding); complementary to ODL | | OpenEPaperLink | Open-source firmware and ecosystem for supported e-paper tags | | HA drawcustom — supported types | Vendored element reference (all 16 types) — OpenEPaperLink upstream | | ODL gap report | Parity audit: ODL vs vendored HA spec vs this editor |

Features

YAML engine & validation

• All 16 draw element types — debug_grid, text, multiline, line, rectangle, rectangle_pattern, polygon, circle, ellipse, arc, icon, icon_sequence, dlimg, qrcode, plot, progress_bar
• Zod schema validation with spec-aligned defaults and completions metadata
• Parse / serialize round-trip — templates and designer-only fields handled explicitly

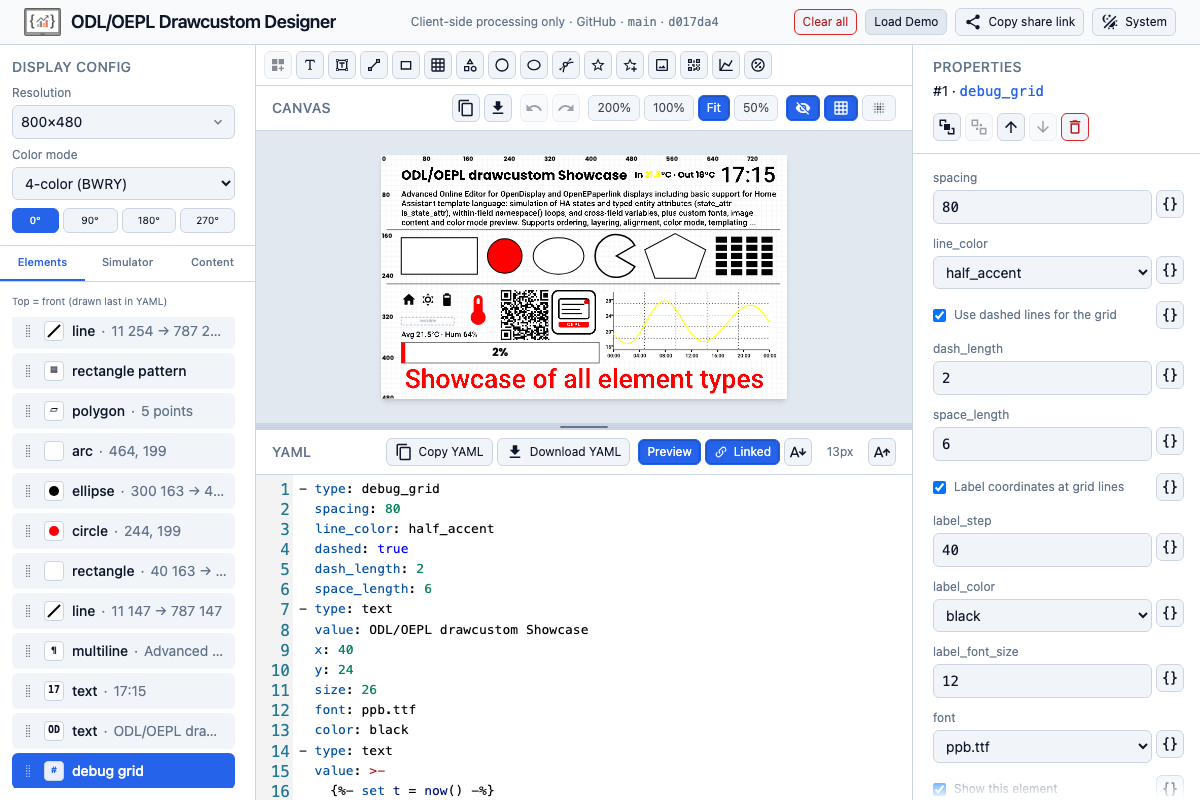

Visual canvas

• Tag-faithful preview — color modes BW, BWR, BWY, 4-color, 6-color scaffold, and RGB preview; palette clamping so named colors match what the tag can show
• Direct manipulation — select, drag, resize handles, keyboard nudge
• Snap — configurable grid snap plus edge snap to canvas bounds
• Multi-select — Shift+click, marquee rectangle, bulk move and nudge
• Alignment — align selection horizontally and vertically
• Layer order — bring to front, send to back, move up/down
• Zoom — 50%, 100%, 200%, and fit-to-panel
• Touch (tablets) — 1 finger is always element intent: select, drag, resize handles, and marquee (also starting from the scroll padding around the canvas, not just the canvas itself); a second finger landing mid-gesture cancels it (the element/selection reverts) rather than committing it. 2 fingers are always navigation: drag to pan, pinch to zoom — pinch steps between the toolbar's 50/100/200% levels and leaves Fit on the first pinch (it never zooms back to Fit). Extra fingers beyond two are ignored. The panel-width/height dividers don't yet respond to touch (#156). Known weakness: 2-finger navigation needs clearly separated fingers: some tablet digitizers (observed: Samsung Galaxy Tab S8+, Chrome/Android) merge close-set fingers into a single touch, which then acts as a 1-finger gesture (select/drag/marquee instead of pan). Spread your fingers if panning selects elements instead.
• Orientation — 0°, 90°, 180°, 270°; a quarter turn swaps the canvas W/H and the design is always edited upright
• Designer overlays — optional hints for hidden-on-tag elements (visible: false, shapes with fill or color set to none)
• Dither preview — toggle ordered dither (d=2) on the flat canvas

YAML editor

• CodeMirror 6 with YAML syntax and embedded Jinja highlighting
• Delimiter scaffolding — {{ }} and {% %} with HA-friendly autocomplete
• Schema-driven completions — element types, fields, icons, and template helpers
• Inline diagnostics — parse and validation errors with source ranges
• Folded block scalars for long single-line strings (e.g. templated multiline values)
• Two-way coupling — canvas edits update YAML; YAML edits update canvas and selection
• Template preview mode — resolve {{ … }} / {% … %} on the canvas using mock entity states you set in the State Simulator (no live Home Assistant connection)

Property panel

• Schema-driven forms for every element type, including nested plot fields
• Universal templating — any property can be a literal or a Jinja template string; JSON fields (points, icons, plot data) accept a whole-field template or structured JSON
• Geometry lock — drag, resize, and nudge disabled when coordinates are templated
• Cross-cutting visible on all 16 types (ODL-aligned)

Home Assistant templates

• State Simulator — add mock entities and edit their state strings so template preview can resolve states('…'), is_state, and similar patterns
• Global mock store — persists in IndexedDB across sessions (not included in share links)
• Nunjucks evaluator — states, is_state, filters, and common HA patterns (see ADR-004)
• Entity scan — discover entity IDs referenced in the payload

Assets & content manager

• Local content map — fonts and images keyed by exact YAML path (/local/…, bundled fonts)
• Upload & verify — decode-check fonts and images before storing
• IndexedDB persistence — global asset store shared across designs
• Bundled fonts — includes ppb.ttf and rbm.ttf as default fonts for correct text rendering

Display configuration

• Resolution — common tag WxH quick-picks plus custom width/height. A quick-pick names a display's two dimensions, not an orientation: it lands the way the panel is currently held, and a turned panel keeps reading as its own pick
• Color mode — drives accent / half_accent preview mapping
• Orientation (0°–270°) — which way round the panel is, and the only control that decides it: it orients the logical drawing surface the payload is authored against (the design stays upright, as imagegen draws it). Absolute, not cumulative, and — like the other display settings — outside undo. Not emitted as drawcustom rotate today: that is per-target send metadata (issue #105)
• Preview dither toggle — flat vs ordered d=2; maps to drawcustom dither in session and share links
• Session persistence — display settings restored with last design

Session, demo & sharing

• Auto-save — last design, undo history, and mocks restored on reload
• Load Demo — one-click showcase bundle in src/assets/showcase/: showcase.yml (payload), showcase.json (canvas + State Simulator seed), showcase.png (bundled dlimg)
• Share link — #d=eJ…<data> URL fragment encodes name, canvas, service options (when set), and elements (pako-deflated, base64url; assets/mocks stay local)
• Undo / redo — 50-step history with drag coalescing

Export

• PNG — copy to clipboard or download; the upright logical canvas in the active color mode (HA applies the panel's own rotate)
• YAML — copy or download HA-ready payload from the toolbar

Home Assistant preview parity

The designer aims for a close match to what OEPL/OpenDisplay HA integrations render via Pillow imagegen, but it is not pixel-identical today.

| Area | Typical match | Known gaps | |------|----------------|------------| | Layout (anchors, positions) | Good for text when using bundled/custom fonts | Small (1–2 px) possible; templated values need mock states | | Tag palette & dither | Color modes and finalizeTagImageData clamp to tag colours | Wrong-accent colours clamp to grey on BWR/BWY | | Text glyphs | Readable; hard-edge filter approximates Pillow fontmode = "1" | Glyph edges differ (opentype.js vs Pillow/FreeType) | | SVG shapes & lines | Rectangles, icons generally usable | Thin lines on coloured backgrounds may export as grey instead of black; SVG antialiasing vs Pillow integer pixels (ADR-007) | | Templates | Mock entity states in the State Simulator | Live HA evaluation can differ | | Assets | Local fonts/images by YAML path | Share links do not include uploaded blobs |

Use preview and PNG export to sanity-check layouts before deploying to a tag; compare against a real HA render when exact appearance matters. Details: ADR-007 · gap report.

Preview rendering fidelity

• OpenType — measured text and multiline layout with ink-bound anchors and font metrics
• MDI icons — @mdi/js paths with autocomplete
• QR codes — live module preview
• Plots — axes, legends, and series from YAML data
• parse_colors — inline color segments in text/multiline
• Images — dlimg with local asset resolution

Not in v1

• Embedded Home Assistant panel (load/save automation block in iframe)
• Binary OpenDisplay wire-format export
• Element copy/paste, free canvas pan, continuous zoom beyond fixed steps
• On-canvas polygon vertex editing
• Using Canvas instead of SVG for rendering for better HA visual matching

See docs/adr/ for rationale (especially ADR-010, ADR-012).

Embedding — building from source

Contributing to or vendoring the library build straight from this repo (rather than npm):

npm run build:lib

Emits one self-contained ESM file — React, styles, and bundled fonts included:

dist-lib/odl-drawcustom-designer.js

Try the demo locally:

npm run build:site && npm run preview
# open the printed URL; the demo is at /embed/ (same path as production)

No dedicated server needed beyond that: the demo is plain static files, so any static file server works too (e.g. python3 -m http.server -d dist-lib).

Full mount API, host data contract, and library build details: docs/embedding.md. Release procedure and semver policy: docs/releasing.md.

Development

Requires Node.js ^26 (see .nvmrc).

AI assistants: read AGENTS.md before changing code (TDD, ADRs, HA parity). Also: CLAUDE.md · .github/copilot-instructions.md.

npm install
npm run lint
npm test
npm run dev
npm run build

Deployment, GitHub Pages, and build-time environment variables (base path, legal header HTML, git metadata): docs/DEPLOYMENT.md.

Bundle composition and wire sizes (what the big JS chunk is, verified compression, why code splitting was rejected): docs/bundle-audit.md.

Touch/pointer debugging: append ?touchdebug=1 to any deployment URL for a live touch/pointer event trace overlay (FREEZE/CLEAR controls) — useful for reproducing and reporting device-specific touch issues.

Architecture

• src/core/ — pure TypeScript (YAML, schema, renderer, templates); no React imports
• src/core/brand.ts — product slug, titles, IndexedDB name, storage key prefix
• src/ui/ — React 19 application shell
• src/ui/data/showcase.ts — loads the built-in demo bundle (src/assets/showcase/)
• src/storage/ — Dexie IndexedDB (assets, mocks, variables, session)
• src/embed/ — embeddable mount() API + host data contract (docs/embedding.md)
• src/assets/showcase/ — demo bundle: showcase.yml (payload), showcase.json (canvas + simulator seed), showcase.png (bundled image)
• docs/adr/ — architecture decision records

Start with ADR-001 (core/UI boundary), ADR-007 (HA preview parity), ADR-015 (file-based demo), and ADR-006 (React shell).

License

ODL/OEPL Drawcustom Designer is licensed under the Apache License 2.0.

Copyright © 2026 Schlomo Schapiro

Third-party and upstream attributions: NOTICE · docs/THIRD_PARTY.md · docs/spec/ATTRIBUTION.md

This project is not affiliated with OpenEPaperLink, OpenDisplay, or Home Assistant. Upstream firmware and integrations may use different licenses (see third-party docs).

💖 Sponsorship & Credits

• Initial Development: Sponsored by Tektit Consulting (via Schlomo).
