About

In-memory column store database with customizable column types, extensible query engine, bitfield indexing for query acceleration, JSON serialization with optional RLE compression.

Column storage

As the name indicates, data is stored in different columns, where each column manages its own schema, value validation, backing storage, indexing, serialization etc.

From a user's POV, columns are not (usually) used directly, but accessed via a table, which provides row-based access to compound data records and acts as facade to the various configured columns. Data records are added as JS objects to a table, which then pulls out related values, validates them and the delegates them to the individual columns for encoding & storage.

An example table definition looks like this (explanation of column types in next section below):

import { Table, FLAG_DICT, FLAG_UNIQUE } from "@thi.ng/column-store";

// schema for a single row item
interface Item {
    id: number;
    name: string;
    aliases?: string[];
    latlon: number[] | Float32Array;
    tags: string[];
}

// define a table with the given columns
const table = new Table<Item>({

    // column of single numeric values
    // (default cardinality makes values required)
    id: { type: "num" },

    // column of required string values
    name: { type: "str" },

    // optional tuples of max. 3 string values
    // (if no value is given, the column stores null)
    aliases: { type: "str", cardinality: [0, 3] },

    // required fixed size tuples (aka vectors) of numbers
    latlon: { type: "f32vec", cardinality: [2, 2] },

    // optional tuples of max. 10 strings, with default
    // the given flags (explained further below) are triggering:
    // - dictionary-based encoding
    // - unique values (per tuple)
    tags: {
        type: "str",
        cardinality: [0, 10],
        default: ["todo"],
        flags: FLAG_DICT | FLAG_UNIQUE
    }
});

// add data
table.addRow({
    id: 1,
    name: "karsten",
    aliases: ["toxi"],
    latlon: [47.421, 10.984],
    tags: ["person", "opensource"],
});

[!IMPORTANT] Columns can be named freely, with the exception that the __ name prefix is reserved for internal use. For example, foo is allowed, but __foo is a reserved name.

Column types

The current built-in column types only support numeric or string values, though support for other JSON-serializable types is planned. For better memory utilization, numeric data can (and should) be stored in typed array columns.

Some column types support storing multiple values per row as tuples. See cardinality section below for further detail.

Note: Booleans and BigInts are still unsupported, but being worked on...

| Column type | Description | Tuples supported | RLE serialization | |-----------------|---------------------|----------------------|-----------------------| | num | JS numbers | ✅ | ✅ (1) | | str | JS strings (UTF-16) | ✅ | ✅ (1) | | u8 | 8bit unsigned int | ❌ | ✅ | | i8 | 8bit signed int | ❌ | ✅ | | u16 | 16bit unsigned int | ❌ | ✅ | | i16 | 16bit signed int | ❌ | ✅ | | u32 | 32bit unsigned int | ❌ | ✅ | | i32 | 32bit signed int | ❌ | ✅ | | f32 | 32bit float | ❌ | ✅ (2) | | f64 | 64bit float | ❌ | ✅ (2) |

(1) only if max. cardinality is 1, further information
(2) simple RLE only, further information

Vector column types

Columns storing fixed size n-dimensional vectors can be created vis the vec suffix for any of the typedarray based column types, i.e. u8vec, i16vec, f32vec etc.

The cardinality column config (in the form [min,max]) is interpreted as follows:

if min is zero, the value is optional, but a default value MUST be defined for the column. Otherwise the min value MUST be the same as max.
max defines the actual vector size

Therefore, using a 3D vector as example, the only two possible cardinality configs are: [0,3] (with default given) or [3,3].

When querying vector columns using the standard (n)or/(n)and operators, always the entire vector is matched (by value).

[!IMPORTANT] For performance reasons, rows retrieved from vector columns contain mutable data views of the underlying column storage. That means when manipulating data in these views, the underlying data in the column would be changed too. To avoid index corruption, always edit only copies of this vector data and then use table.updateRow() to properly update the column storage (incl. any internal indexes).

Serialization options

For f32, f64, f32vec and f64vec column types, the optional prec column option can be provided to specify the number of fractional digits used in the JSON serialization:

import { Table } from "@thi.ng/column-store";

const table = new Table({
    vec: { type: "f32vec", cardinality: [3, 3], opts: { prec: 2 } }
});

table.addRow({ vec: [1.11111, 22.22222, 333.33333]});

console.log(JSON.stringify(table));
// {
//   "schema":{"vec":{"cardinality":[3,3],"flags":0,"type":"f32vec","opts":{"prec":2}}},
//   "columns":{"vec":{"values":[1.11,22.22,333.33]}},
//   "length":1
// }

Custom column types

The system already supports custom column type implementations via the IColumn and ColumnTypeSpec interfaces.

Custom column types and their implementations can be registered via registerColumnType().

Cardinality

Columns can store zero, one or tuples of multiple values per row. Acceptable min/max ranges can be defined via the cardinality key of the column spec. The following presets are provided:

| Preset | Value | Description | |-------------|------------------|---------------------------------------------| | REQUIRED | [1, 1] | Required single value (default) | | OPTIONAL | [0, 1] | Optional single value (present or not) | | ONE_PLUS | [1, (2**32)-1] | One or more values (always expects tuples) | | ZERO_PLUS | [0, (2**32)-1] | Zero or more values (always expects tuples) |

Differences between tuple and vector column types

| Feature | Tuples | Vectors | |----------------------------------|-----------------------|-------------| | Optional (without default value) | ✅ | ❌ | | Flexible size | ✅ | ❌ | | Query ops match... | Individual components | Full vector |

Default values

Default values can be specified for columns with a minimum cardinality of 1 or more (aka required values). When a row is added or updated, any nullish values for such columns in the row record will then be replaced with their default values. If a column with required values has no configured default value, an error will be thrown when attempting to add/update an incomplete record.

// example column spec with default value
{
    type: "str",
    cardinality: [1, 1],
    default: "todo",
}

Note: Typed array backed columns do no support optional values and therefore require either a cardinality of [1,1] or [0,1] with a default.

Flags

Generally applicable to all column types, the following numeric flags can be assigned and combined (into bitmasks) to customize the storage & indexing behavior.

FLAG_BITMAP

(Value: 0x01)

The column will construct & maintain additional bitfields for each unique value stored in the column. These bitfields record which values are stored in which rows and are utilized by the query engine to massively accelerate complex searches.

FLAG_DICT

(Value: 0x02)

Dictionary encoded storage. Recommended for (non-numeric) data with a relatively small (though not necessarily fixed) set of possible values. Instead of storing values directly, only numeric IDs will be stored. The original (de-duplicated) values are stored in a dictionary alongside the column data.

Note: Not supported by typedarray-backed column types.

FLAG_UNIQUE

(Value: 0x04)

Only applicable for tuple-based columns to enforce Set-like semantics (per row), i.e. values of each tuple will be deduplicated (e.g. for tagging).

Note: Not supported by typedarray-backed column types.

FLAG_RLE

(Value: 0x08)

This flag enables Run-length encoding in the JSON serialization of a column, potentially leading to dramatic file size savings, esp. for dictionary-based data.

Two modes of RLE compression are supported, depending on column type:

Simple RLE merely stores arrays in [value1, count1, value2, count2...] form
Binary RLE uses more advanced bitwise encoding, but is only available for typedarray and vector columns

Tuple-based columns do not support RLE and will throw an error at creation time when trying to use this flag.

Custom flags

The lower 16bit of the 32bit flags integer are reserved for built-ins and future extension of this package. However, the upper 16 bits can be freely used for custom flags, i.e. in conjunction with custom column types.

Query engine

The query engine is highly extensible and can be used for executing arbitrarily complex queries via chaining of query operators.

Query execution

The system allows predefining queries, which are then only evaluated and produce up-to-date results via the standard JS iterable mechanism (i.e. queries implement [Symbol.iterator]).

// predefine query
const query = table.query().or("name", ["alice", "bob"]);

// actually (re)execute query
for(let result of query) { ... }

// ..or collect result into an array using slice operator
const results = [...query];

Alternatively, queries can also be eagerly executed via .exec(). This will also include metadata alongside the results, useful for paging results.

// predefine query
const query = table.query().or("name", ["alice", "bob"]).limit(10);

const results = query.exec();
// {
//   results: [{...}, ...],
//   total: 123,
//   offset: 0,
//   limit: 10
// }

Optimized row iteration

The query engine works by applying a number of query terms in series, with each step intersecting (aka logical AND) its results with the results of the previous step(s), thereby narrowing down the result set.

For each query term, only the rows already marked (aka pre-selected by predecessor query terms) are visited. When a query term does not manage to select any rows, the query is terminated. Internally, this selecting and intersecting of partial query results is done via bitfields only. There's no creation of interim result arrays, nor any full decoding/construction of interim row records. The latter only happens for the final result rows and/or when using the matchRow() or matchPartialRow() query operators.

When a column has an associated bitfield index (enabled via FLAG_BITMAP), some query operators (see below) are optimized even further, entirely avoiding the need to visit any individual rows.

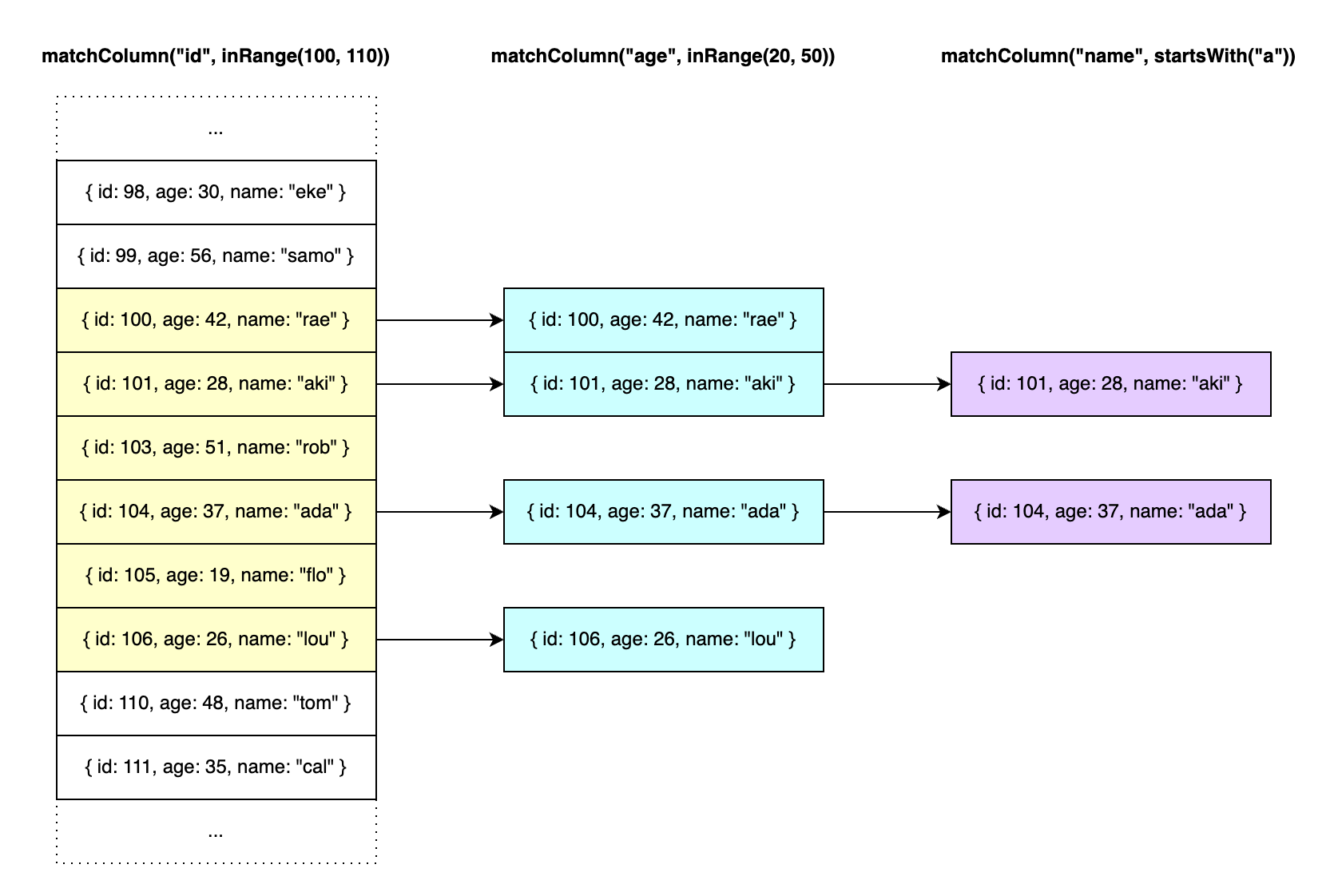

The diagram below illustrates the application of the following 3-operator query and the resulting stepwise narrowing of the result set:

table.query()
    .matchColumn("id", inRange(100, 110))
    .matchColumn("age", inRange(20, 50))
    .matchColumn("name", startsWith("a"))

Diagram showing a list of rows with object values and three columns
illustrating the narrowing effect of query operators with their partial
results

Built-in operators

By default, individual query terms operate on a single column, but can also can also apply to multiple. Terms are supplied either as array given to the Query constructor, via the fluent API of the Query class and/or via .addTerm().

OR

Optionally optimized via FLAG_BITMAP presence on column. One or more values can be provided.

query.or("column-name", "option");

query.or("column-name", ["option1", "option2",...]);

AND

Optionally optimized via FLAG_BITMAP presence on column. One or more values can be provided.

query.and("column-name", "option");

query.and("column-name", ["option1", "option2",...]);

Negation

Optionally optimized via FLAG_BITMAP presence on column. Negation is available via nand & nor. For negation of single values either can be used, otherwise the behavior is:

nand: select rows same as and, then negate results
nor: select rows same as or, then negate results

Predicate-based matchers

[!NOTE] For best performance and to minimize/avoid potential decoding and construction of interim row objects, prefer matchColumn or matchPartialRow over matchRow if at all possible. Oftentimes, query predicates requiring multiple column values can be easily refactored into separate query terms.

matchColumn: apply predicate to column value
matchPartialRow: apply predicate to partial row (only selected columns)
matchRow: apply predicate to full row

Row ranges

The rowRange operator selects the given start (inclusive) .. end (exclusive) range of row indices.

// select first ten rows
query.rowRange(0, 10);

Value ranges

The valueRange operator selects rows based on a given column's start .. end vaulue range (both inclusive) of row indices.

// select rows where ID is in closed [100,109] interval
query.valueRange("id", 100, 109);

Result order and pagination

sortBy() allows query results to be ordered (ascending or descending) via an arbitrary number of sort columns or criteria, applied in the given order.
limit() provides basic pagination of query results by specifying a max. number of results and start offset

Custom operators

Custom query operators can be registered via registerQueryOp().

Result aggregation

TODO

Query ranges

TODO

Status

BETA - possibly breaking changes forthcoming

Search or submit any issues for this package

Installation

yarn add @thi.ng/column-store

ESM import:

import * as cs from "@thi.ng/column-store";

Browser ESM import:

<script type="module" src="https://esm.run/@thi.ng/column-store"></script>

JSDelivr documentation

For Node.js REPL:

const cs = await import("@thi.ng/column-store");

Package sizes (brotli'd, pre-treeshake): ESM: 6.49 KB

Dependencies

Note: @thi.ng/api is in most cases a type-only import (not used at runtime)

API

Generated API docs

Basic usage

import {
    Table,
    FLAG_BITMAP,
    FLAG_DICT,
    FLAG_UNIQUE,
} from "@thi.ng/column-store";

interface Item {
    id: number;
    type: string;
    tags: string[];
}

const table = new Table<Item>({
    // ID column stores 8bit ints (typed array)
    id: { type: "u8" },
    // Type column stores indexed strings
    type: { type: "str", flags: FLAG_DICT },
    // Tags column stores array of strings (max. 10) with set-semantics
    // and bitmap optimized for query acceleration
    tags: {
        type: "str",
        // min/max number of values per row (default is: [1,1])
        cardinality: [0, 10],
        // flag to define column behavior (flags explained above)
        flags: FLAG_DICT | FLAG_UNIQUE | FLAG_BITMAP,
        // default value(s) assigned if missing when row is added
        default: ["unsorted"],
    },
});

// add data/rows
table.addRows([
    { id: 100, type: "img", tags: ["a", "a", "c", "b"] },
    { id: 101, type: "video", tags: ["a", "d", "b"] },
    { id: 102, type: "img" },
    { id: 103, type: "video" },
    { id: 104, type: "img", tags: ["b", "c", "d"] },
]);

// pre-define a query, here to select images which have an `unsorted` tag...
// the fluent API shown is merely syntax sugar for creating/appending query terms.
// queries can have an arbitrary number of terms (which are executed in series)
const unsortedImages = table.query().where("type", "img").and("tags", "unsorted");

// queries are iterables and only execute when the iterator is consumed
// each query result includes a `__row` ID
console.log([...unsortedImages]);
// [ { id: 102, type: "img", tags: [ "unsorted" ], __row: 2 } ]

// select items with `a` OR `b` tags, intersect with those which have `c` AND `d` tags
const complexTagQuery = table.query().or("tags", ["a", "b"]).and("tags", ["c", "d"]);
console.log([...complexTagQuery]);
// [ { id: 104, type: "img", tags: [ "b", "c", "d" ], __row: 4 } ]

// query using custom predicates
console.log([...table.query().matchColumn("id", (id) => id > 102)]);
// [
//    { id: 103, type: "img", tags: [ "unsorted" ], __row: 3 },
//    { id: 104, type: "img", tags: [ "b", "c", "d" ], __row: 4 }
// ]

// serialize table to JSON
console.log(JSON.stringify(table, null, "\t"));

Serialized table (can be loaded again via Table.load()):

{
    "schema": {
        "id": { "cardinality": [1, 1], "flags": 0, "type": "u8" },
        "type": { "cardinality": [1, 1], "flags": 1, "type": "str" },
        "tags": { "cardinality": [0, 10], "flags": 7, "type": "str", "default": ["unsorted"] }
    },
    "columns": {
        "id": {
            "values": [100, 101, 102, 103, 104]
        },
        "type": {
            "dict": {
                "index": ["img", "video"],
                "next": 2
            },
            "values": [0, 1, 0, 1, 0]
        },
        "tags": {
            "dict": {
                "index": ["a", "c", "b", "d", "unsorted"],
                "next": 5
            },
            "values": [[0, 1, 2], [0, 3, 2], [4], [4], [2, 1, 3]]
        }
    },
    "length": 5
}

Authors

Karsten Schmidt

If this project contributes to an academic publication, please cite it as:

@misc{thing-column-store,
  title = "@thi.ng/column-store",
  author = "Karsten Schmidt",
  note = "https://thi.ng/column-store",
  year = 2025
}
