Directus Boxicons Bundle

A Directus extension bundle that adds:

• Interface: pick icons from the free Boxicons set
• Display: render the selected icon in Directus layouts and display templates

Includes icon search, pagination, and style toggle between basic (regular) and filled variants.

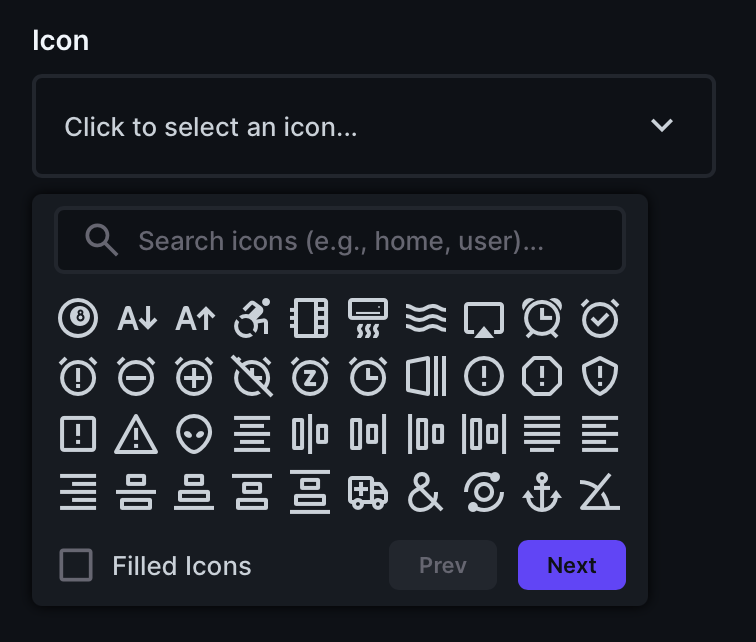

Interface Preview

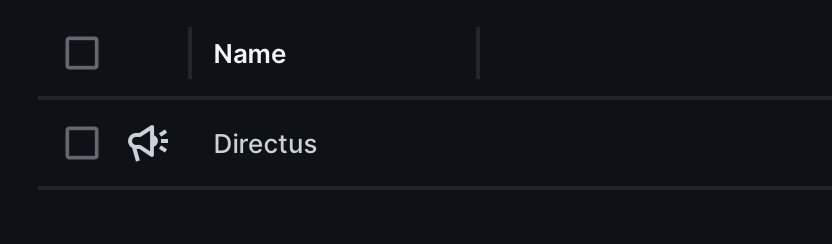

Display Preview

Features

• Browse free Boxicons in Directus
• Search icons by name
• Paginated icon list for faster navigation
• Toggle icon style:
  • Basic
  • Filled
• Render selected icon with a matching Directus display extension
• Bundle-friendly structure for Directus extension ecosystems

Installation

Install this extension from the Directus Marketplace for via NPM.

npm install @timio23/directus-boxicons-bundle

Once installed, create the field in your collection:

1. Choose the Boxicons interface from the list of options (usually near the bottom).
2. Click on Advanced and go to the Display section.
3. Choose the Boxicons display from the list.

Usage

1. Create or edit a record in the collection that contains a boxicons field.
2. Click on the field to open the icon list.
3. Choose an icon from the list or browse the iconset using the Next button.
4. (Optional) Search for icons using the search field
5. (Optional) Toggle the icon style at the bottom
6. Click on an icon to add it to the field.
7. Save changes

Storage

The selected icon is stored in a JSON string with the following structure:

{
  "name": "8-ball",
  "type": "bxf",
  "content": "\f123",
}

An example of a frontend implementation:

`<i class="${icon.type} bx-${icon.name}"></i>`;

Or you can use the unicode character if needed.

Notes

• This package uses the free Boxicons library assets bundled in the extension.
• Brands CSS is included in the source tree; availability in the picker.
• Field storage type is a JSON.
• Frontend implementations will need to use the Boxicons library.

License

MIT (see LICENSE)
