angular-material-image-uploader

Angular Material image uploader with a built-in batch cropper.

• Drag & drop, file picker, clipboard paste (Ctrl/Cmd+V)
• Single or multiple upload, max files, max size, allowed types, duplicate check
• Batch cropper: "2 of 5" progress, thumbnail strip, Crop & next / Use original / Remove
• Free-form or fixed aspect ratios (1:1, 4:3, 3:2, 16:9, 9:16), round crop, rotate, flip, zoom
• Output as PNG / JPEG / WebP with quality and optional downscale, live preview with size estimate
• Item list with thumbnails and metadata, preview lightbox, re-crop, download, drag to reorder
• Upload with per-item progress, cancel, retry, "Upload all", optional auto upload
• Every setting is set from the parent; an optional in-page settings panel lets users change them at runtime
• Angular 22, standalone components, signals, zoneless-ready

v2 is a rewrite for Angular 22. v1.x targets Angular 9. See Upgrading from v1.

Screenshots

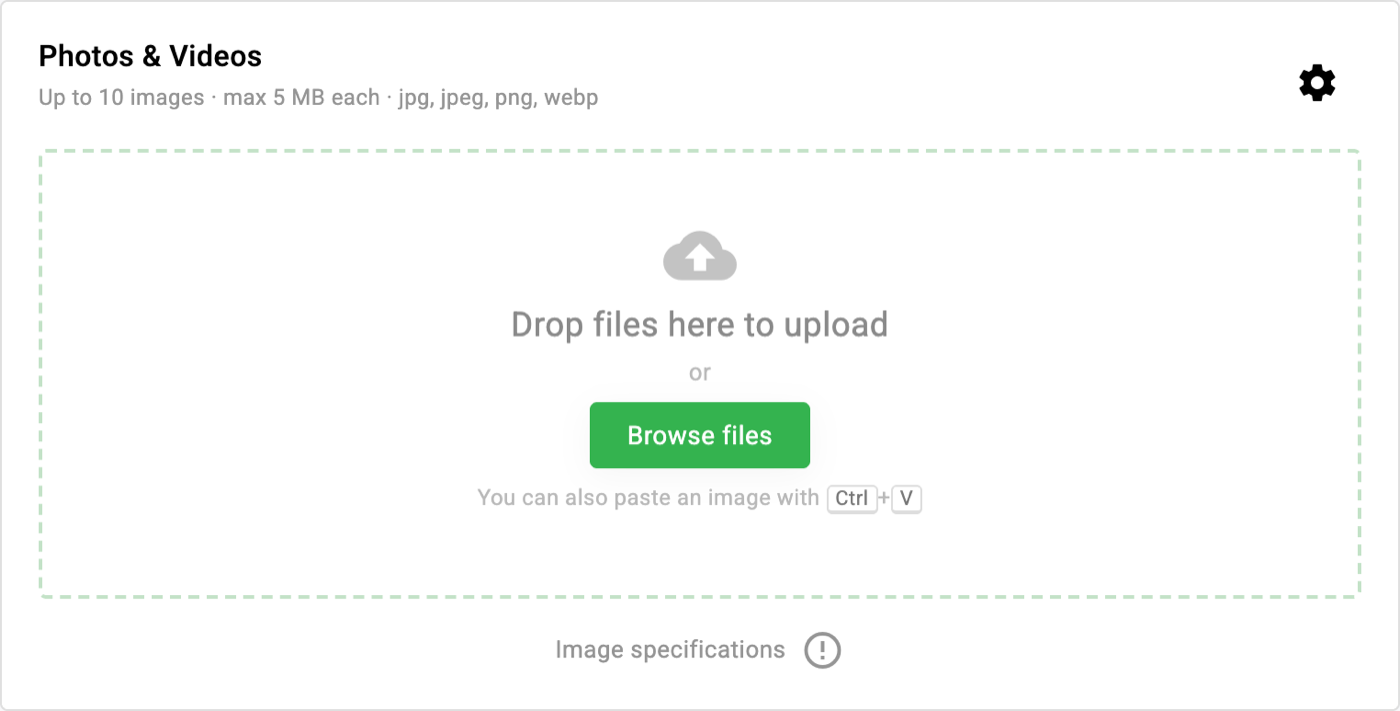

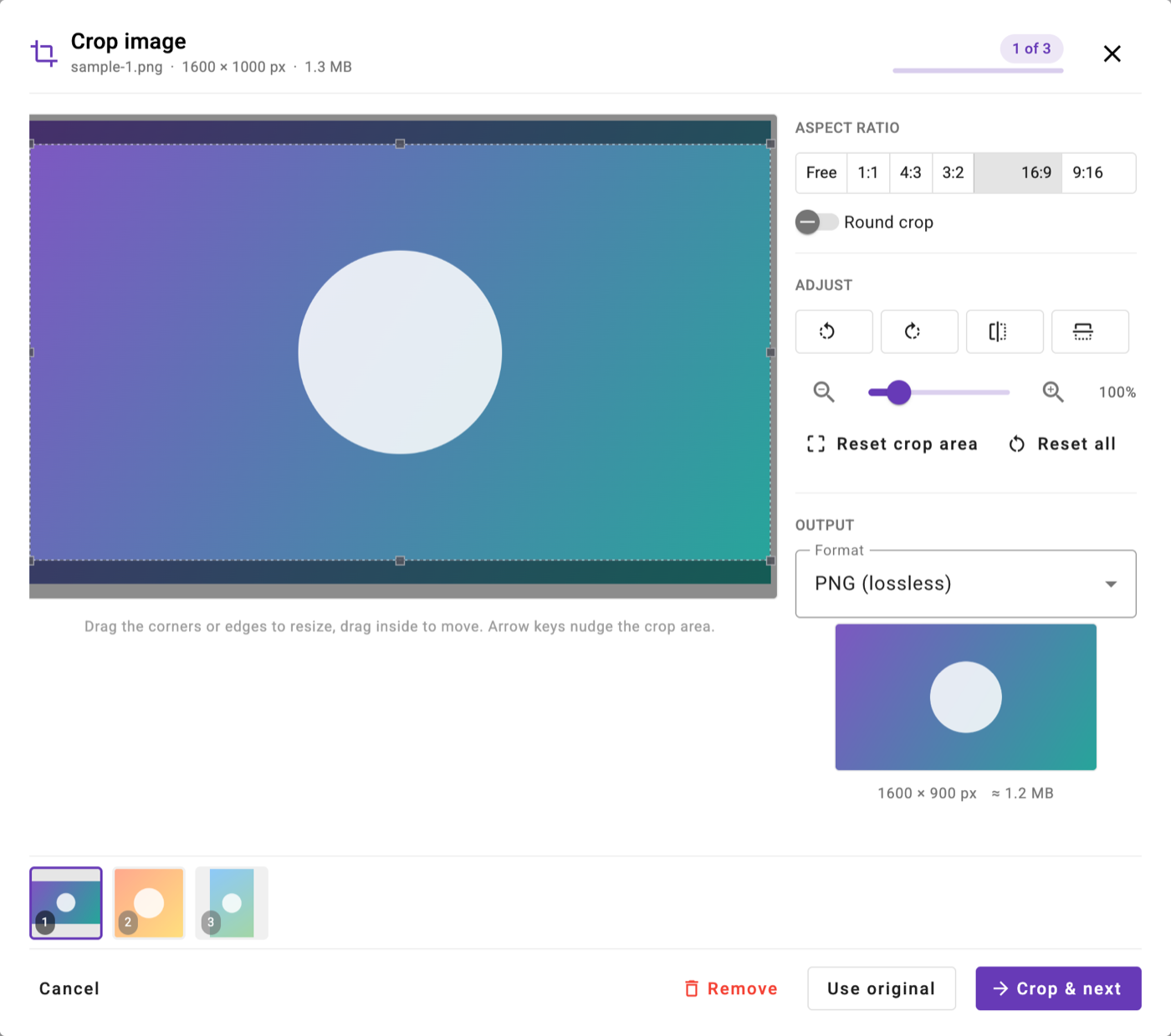

| Drop zone | Batch cropper | | --- | --- | | | |

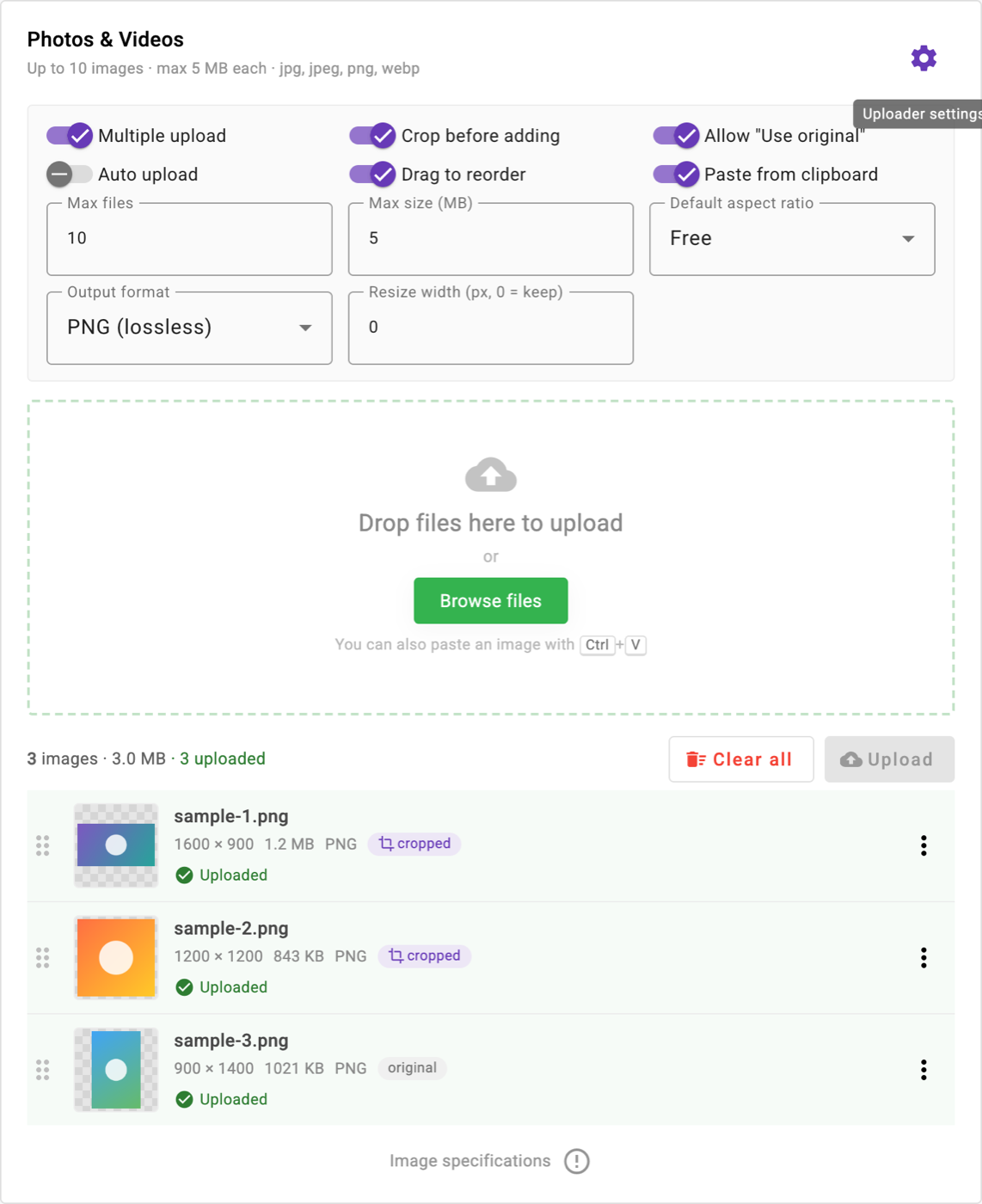

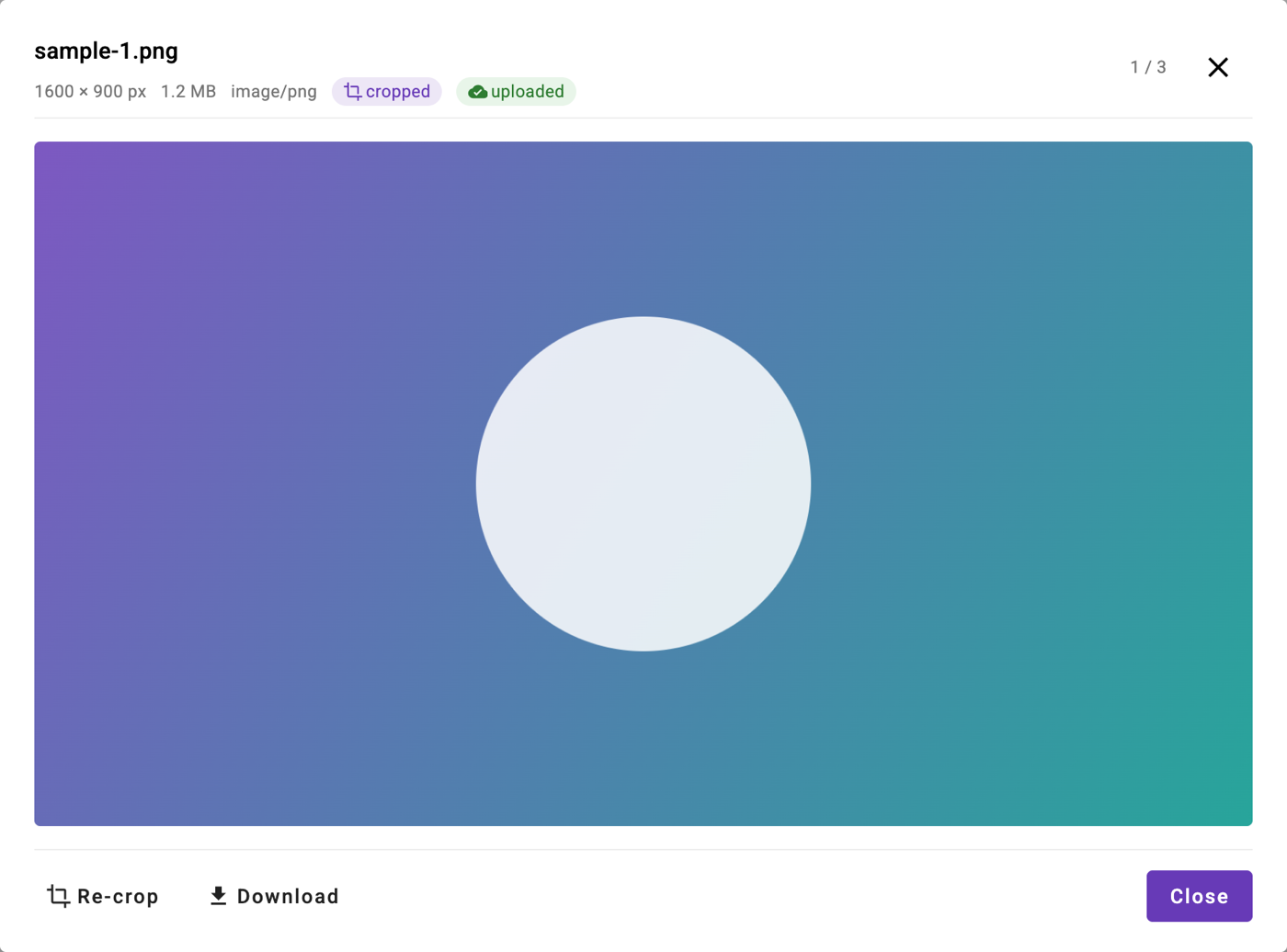

| Settings panel | Preview | | --- | --- | | | |

Installation

npm install angular-material-image-uploader @angular/material @angular/cdk ngx-image-cropper ngx-toastr

Peer dependencies: Angular 22 (core, common, forms, animations, platform-browser), Angular Material and CDK 22, ngx-image-cropper 9, ngx-toastr 20+, rxjs 7.8. ngx-toastr declares an Angular 21 peer range, so install with --legacy-peer-deps if npm complains.

1. Providers

// main.ts / app.config.ts
import { provideAngularMaterialImageUploader } from 'angular-material-image-uploader';

bootstrapApplication(App, {
  providers: [provideAngularMaterialImageUploader()]
});

provideAngularMaterialImageUploader() registers Material animations, HttpClient and ngx-toastr. Pass a partial toastr GlobalConfig to change the toast position or behaviour. If your app already provides those three, you can skip this helper.

2. Styles

In angular.json:

"styles": [
  "@angular/material/prebuilt-themes/deeppurple-amber.css",
  "node_modules/ngx-toastr/toastr.css",
  "src/styles.scss"
]

In index.html (Material Icons and the Roboto font):

<link href="https://fonts.googleapis.com/css2?family=Roboto:wght@300;400;500&display=swap" rel="stylesheet">
<link href="https://fonts.googleapis.com/icon?family=Material+Icons" rel="stylesheet">

3. Component

import { Component } from '@angular/core';
import { ImageUploaderComponent, UploadItem, UploaderConfig } from 'angular-material-image-uploader';

@Component({
  selector: 'app-root',
  imports: [ImageUploaderComponent],
  template: `
    <app-angular-material-uploader
      [config]="config"
      [showSettingsButton]="showSettingsButton"
      (imageDetails)="getImageDetails($event)"
      (uploadComplete)="onUploaded($event)">
    </app-angular-material-uploader>
  `
})
export class App {
  /** Configuration **/
  showSettingsButton = true;      // false hides the gear icon and the in-page settings panel

  config: Partial<UploaderConfig> = {
    multiple: true,
    maxFiles: 10,
    maxFileSizeMB: 5,
    allowedTypes: ['jpg', 'jpeg', 'png', 'webp'],
    cropBeforeAdd: true,
    allowSkipCrop: true,
    defaultAspectRatio: 'free',
    outputFormat: 'png',
    outputQuality: 90,
    resizeToWidth: 0,
    autoUpload: false,
    allowReorder: true,
    allowPaste: true,
    uploadUrl: ''
  };

  imageDetails: UploadItem[] = [];

  getImageDetails(items: UploadItem[]) { this.imageDetails = items; }
  onUploaded(item: UploadItem) { console.log('uploaded', item.name, item.file); }
}

API

Inputs

| Input | Type | Default | Description | | --- | --- | --- | --- | | config | Partial<UploaderConfig> | DEFAULT_UPLOADER_CONFIG | Any subset of the options below. Missing keys use the defaults. | | showSettingsButton | boolean | true | Show the gear icon that opens the in-page settings panel. Set false to lock the settings to what you pass in config. |

UploaderConfig

| Option | Type | Default | Description | | --- | --- | --- | --- | | multiple | boolean | true | Allow several images. false keeps one image and replaces it on the next pick. | | maxFiles | number | 10 | Maximum number of images in the list (multiple mode only). | | maxFileSizeMB | number | 5 | Per-file size limit in MB. | | allowedTypes | string[] | ['jpg','jpeg','png','webp'] | Accepted image subtypes. | | cropBeforeAdd | boolean | true | Open the cropper for every picked image before it is added. | | allowSkipCrop | boolean | true | Show a "Use original" button in the cropper. | | defaultAspectRatio | 'free' \| '1:1' \| '4:3' \| '3:2' \| '16:9' \| '9:16' | 'free' | Aspect ratio the cropper starts with. Users can switch in the dialog. | | outputFormat | 'png' \| 'jpeg' \| 'webp' | 'png' | Format of the cropped file. | | outputQuality | number | 90 | Quality (1-100) for JPEG / WebP. | | resizeToWidth | number | 0 | Downscale cropped output to this width in px. 0 keeps the original scale. | | autoUpload | boolean | false | Start uploading as soon as an image is added. | | allowReorder | boolean | true | Drag-and-drop reordering of the list. | | allowPaste | boolean | true | Accept images pasted from the clipboard anywhere on the page. | | uploadUrl | string | '' | POST endpoint for uploads. Empty simulates the upload in the UI. |

Outputs

| Output | Payload | Description | | --- | --- | --- | | imageDetails | UploadItem[] | Emits the whole list whenever an image is added, edited, reordered, uploaded, or removed. | | uploadComplete | UploadItem | Emits when an item's upload finishes. |

UploadItem

| Field | Type | Description | | --- | --- | --- | | id | string | Stable id for the list entry | | name, type, size | string, string, number | Of the file that will be uploaded | | width, height | number | Pixel dimensions | | originalFile | File | The file as picked, kept for re-cropping | | file | File | Cropped output, or the original if cropping was skipped | | previewUrl | string | Data URL for thumbnails / previews | | cropped | boolean | Whether file is a crop | | status | 'ready' \| 'uploading' \| 'done' \| 'error' | Upload state | | progress | number | 0-100 | | error | string? | Message when status is 'error' |

Uploading

When uploadUrl is set, each item is POSTed as multipart/form-data with fields file, originalName and cropped, and the progress bar reflects real upload progress. When it is empty, uploads are simulated so the UI works without a backend. Use (uploadComplete) or (imageDetails) to send files yourself if you prefer.

Upgrading from v1

| v1 (Angular 9) | v2 (Angular 22) | | --- | --- | | AngularMaterialUploaderModule in imports | Import the standalone ImageUploaderComponent; add provideAngularMaterialImageUploader() to providers | | [allowImageType], [sizeLimit], [Iscrop] | Still accepted, but prefer [config]="{ allowedTypes, maxFileSizeMB, cropBeforeAdd }" | | (imageDetails) emitted { Url, DisplayName }[] | Emits UploadItem[] (see above) | | @angular/flex-layout required | No longer needed |

The selector app-angular-material-uploader is unchanged.

License

MIT
