Architecture Diagram Generator (v0.4.16)

Automated architecture overview

Understand your TypeScript architecture in seconds. Automated dependency analysis and architectural visualization for modern web projects.

Overview

Architecture Diagram Generator is a zero-config tool that transforms your codebase into high-fidelity architectural documentation. It performs deep semantic analysis using ts-morph to map connections, external integrations, and layers.

Key Features

• Automated Layer Classification: Intelligently categorizes modules into UI, API, and Core layers based on project structure.
• Deep Semantic Analysis: Detects real imports, dynamic calls, and external service integrations (fetch, axios, databases).
• Mermaid.js Integration: Generates deterministic Mermaid syntax for Git documentation and READMEs.
• Zero Configuration: Works out of the box for most Next.js and TypeScript projects.

Installation

npm install -g architecture-diagram-generator

Usage

Run the generator in your project root:

architecture-generator .

Output Files

• architecture.md: Static Mermaid diagram for GitHub/GitLab.
• architecture.json: Raw dependency graph data for programmatic use.

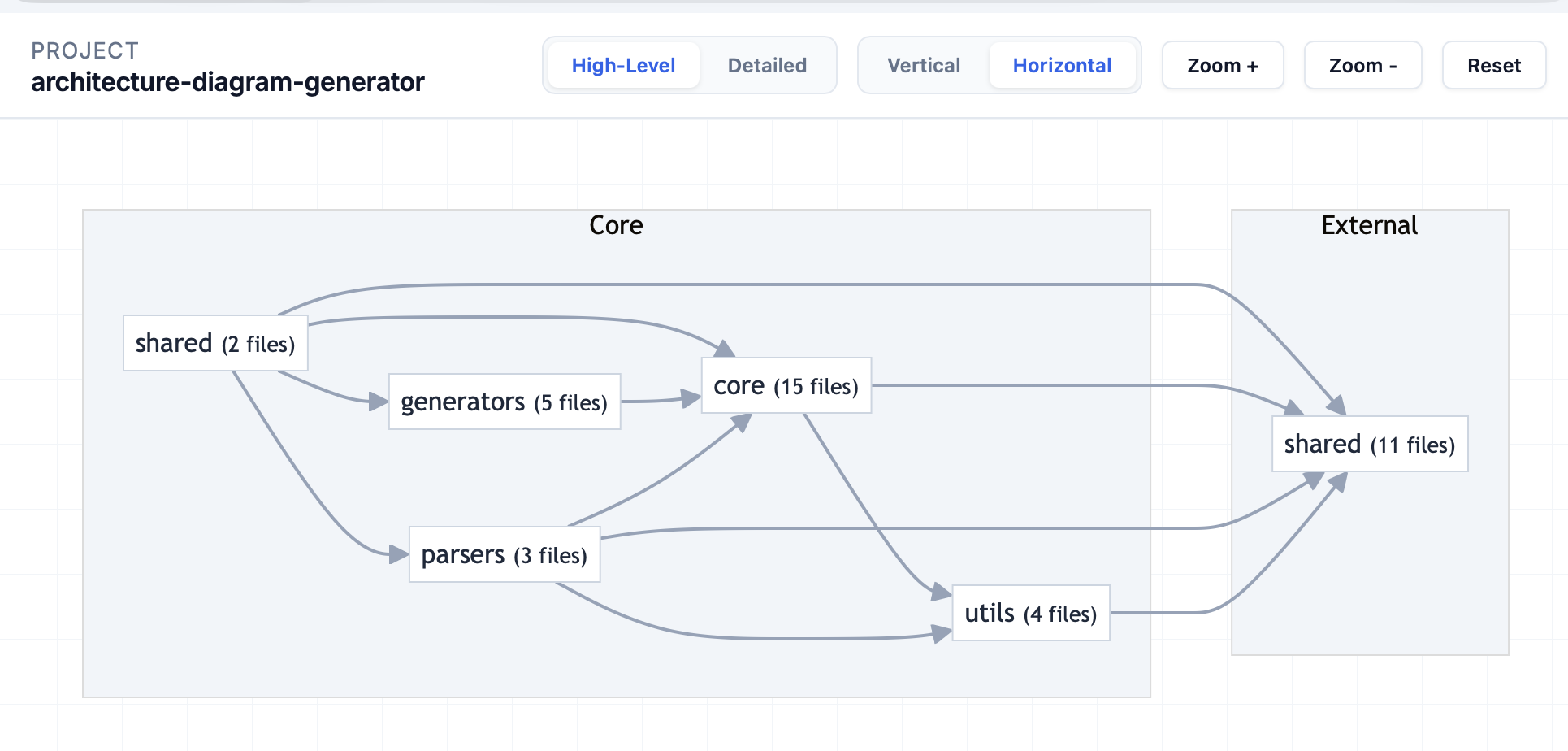

• architecture.html: Local interactive visualization.

Configuration

Custom rules can be defined in an optional architecture-config.json file in your project root:

{
  "rootDir": "./src",
  "exclude": ["**/*.test.ts", "**/node_modules/**"],
  "layers": {
    "UI": ["**/components/**"],
    "API": ["**/api/**"],
    "Core": ["**/services/**", "**/utils/**"]
  }
}

Development

npm install
npm run build
npm run diagram # Test in current directory

License

MIT
