A Firefly Tech Labs product.

ARGUS Vision

ARGUS Vision is the free npm package for browser-based UI inspection.

It lets you click elements in your running app and view the mapped frontend source context (file, line, handler/function) from argus-mappings.json. And "jump" to that code in your IDE.

The Goal of Argus is to make code changes visually intuitive

You should be able to see something on screen, click it with argus inspector and then jump to your code to make the fixes. No more wasting time tracking down copy paste sections of code in search to find out where that code actually is.

To this point we have support for React (regular and typescript versions), Svelte, Vue 2 and 3, and even Vanilla JS projects. We haven't been through all the tooling in all the front end frameworks but the goal is to get there and eventually provide full front end support. So please email us to see if we can support your setup.

note - Argus doesn't currently support cross platform native mobile projects

Like react native, flutter, nativescript, ios, android, others. It is the express goal of a future AST driven pro version of Argus. But for now only web projects are supported.

Features included with this download

Free/browser inspector only

Premium preview + bridge = IDE jump

Install

npm install argus-vision

Quick Usage

1. Generate mappings:

npx argus scan

If you want package scripts like npm run argus:dev, run npx argus init once in your project root first.

2. Initialize in your app:

import { ArgusVision } from 'argus-vision'

const argus = new ArgusVision({
  mappingsPath: '/argus-mappings.json'
})

argus.start()

3. Inspect:

• Click the floating eye button or press Ctrl+Shift+C
• Click any element on the page to inspect
• Press Escape to clear current selection

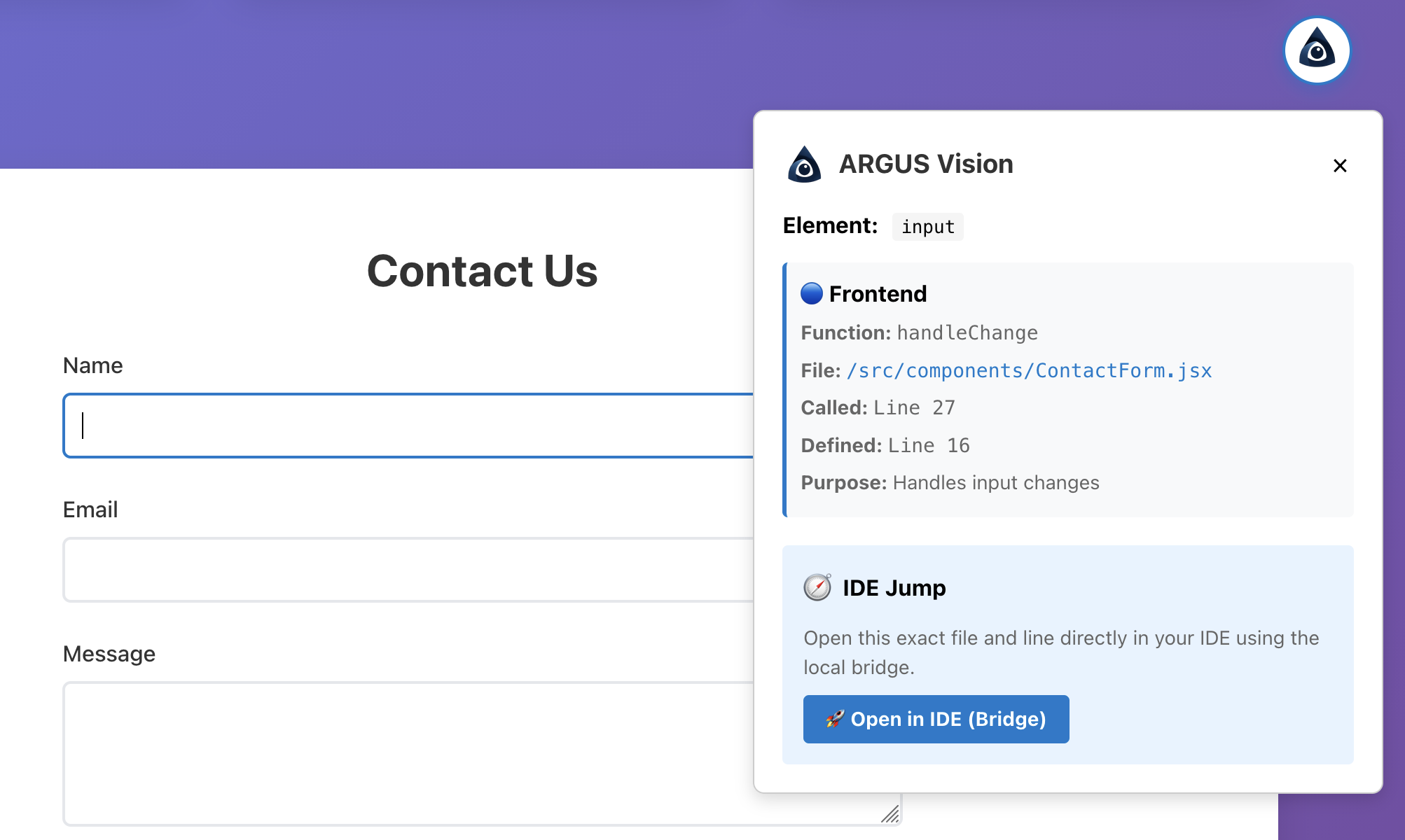

Inspector in action:

IDE Jump in action:

Full workflow after argus init:

npm run argus:dev
# or
npm run argus:web

argus:dev now starts the bridge, regenerates mappings, and launches your app dev server in one command.

API

new ArgusVision(options?)

Options:

• mappingsPath?: string (default: /argus-mappings.json)
• mappingsCandidates?: string[] optional fallback mapping URLs
• buttonPosition?: 'top-right' | 'top-left' | 'bottom-right' | 'bottom-left' initial toggle corner
• buttonOffset?: { x?: number; y?: number } initial offset in pixels from the chosen corner (default { x: 20, y: 20 })
• draggableToggle?: boolean allow dragging the inspector button (default: true)
• draggableOverlay?: boolean allow dragging the data panel by its header (default: true)
• persistTogglePosition?: boolean remember dragged position in localStorage (default: true)
• toggleStorageKey?: string custom storage key prefix (default: argus.togglePosition)
• Shortcut: Shift + DoubleClick on the inspector button resets it to the configured default position and clears saved drag position

Methods:

• start() enables inspection mode
• stop() disables inspection mode
• toggle() toggles inspection mode
• clearSelection() clears the selected element

Premium preview options (for internal testing):

• premiumPreview?: boolean enables premium preview UI in the inspector
• bridgeUrl?: string bridge server URL for IDE open requests (default http://localhost:8765)
• preferredIDE?: string optional IDE command hint (cursor, code, etc.)

Switching IDE targets (premium preview)

By default, ARGUS chooses the best detected IDE (Cursor first when available).

If you want to force a specific editor for IDE Jump, set preferredIDE:

const argus = new ArgusVision({
  mappingsPath: '/argus-mappings.json',
  premiumPreview: true,
  bridgeUrl: 'http://localhost:8765',
  preferredIDE: 'code' // 'cursor' | 'code' | 'subl' | 'webstorm'
})

Notes:

• preferredIDE is optional. If omitted, bridge auto-detects.
• IDEs must be installed and callable by bridge on your machine.
• argus:dev auto-starts the bridge in the current project root.

IDE jump error reporting (premium preview)

When IDE Jump fails, ARGUS may show a requestId (for example: argus-1779602009826-2578).

That ID is a trace key for local bridge logs. If you report a bug, include:

• requestId
• visible error code/message from the inspector
• OS + IDE name/version
• target file:line you tried to open
• bridge terminal log lines containing that requestId

Recommended bug template:

ARGUS IDE Jump Bug
Request ID: <argus-...>
Error code/message: <...>
OS: <...>
IDE + version: <...>
Target file/line: <...>

Bridge log snippet:
[paste lines containing that requestId]

Example (custom placement + draggable):

const argus = new ArgusVision({
  mappingsPath: '/argus-mappings.json',
  buttonPosition: 'bottom-left',
  buttonOffset: { x: 16, y: 24 },
  draggableToggle: true,
  draggableOverlay: true,
  persistTogglePosition: true
})

CLI

argus init

Auto-detects your frontend project profile (Vue/React/Svelte/vanilla), updates your app entry file with a basic ArgusVision import/start block, and adds helper scripts:

• argus:init -> re-runs setup
• argus:scan -> generates mappings at a profile-aware default output path
• argus:dev -> starts bridge, runs a pre-dev scan, then starts your app dev script
• argus:web -> alias of argus:dev for teams using older docs/workflows
• argus:bridge -> starts bridge only for this project root

If your entry file is already wired manually with ArgusVision, argus init now preserves that setup instead of injecting a second startup block.

For pure static vanilla projects (no package.json), use:

npx argus init --static

This injects a browser bootstrap block into index.html (no npm dependency required).

argus scan

Scans your project source and writes mappings JSON for ArgusVision.

Useful flags:

• --dir <directory> project root to scan (default: current directory)
• --src-dir <path> source directory relative to project root
• --output <file> output path (default: public/argus-mappings.json)

argus dev

Runs a mappings scan and then starts your existing app script in one terminal.

Useful flags:

• --script <name> use a specific package script instead of auto-detecting dev/start
• --skip-scan skip the pre-dev scan
• --scan-output <file> override mappings output path for the pre-dev scan

argus doctor

Runs setup diagnostics for the current project and reports missing pieces with concrete fix commands.

For pure static projects:

npx argus doctor --static

argus uninstall

Removes ArgusVision setup traces:

• Removes argus-vision dependency
• Removes argus:init, argus:scan, argus:dev, argus:web, and argus:bridge scripts
• Removes init block from known entry files
• Deletes generated mappings files from common output paths

For pure static projects:

npx argus uninstall --static

argus start

Reserved for premium ARGUS server features. It does not start a local bridge server in this package.

Framework & IDE Support

• React
• Vue
• Svelte
• Vanilla JavaScript
• TypeScript source scanning

========================================================

• Cursor

• VS Code

• Sublime Text

• Webstorm

  • We had to make decisions to pick and choose what to include out of the box support for. With both language and IDE support systems, if you find your setup isn't supported. Please email [email protected] with the subject line Support and we'll do everything we can to get you a solution.

Notes

• Re-run npx argus scan after major UI/source changes.
• Ensure your app serves the mappings file at the configured mappingsPath.
• If the exact mapping path varies by framework, ArgusVision automatically tries common fallbacks (/argus-mappings.json, /static/argus-mappings.json, /public/argus-mappings.json).
• Premium preview can also be toggled with ?argusPremium=1 or localStorage.setItem('argus.premiumPreview', 'true').
• Static mode (--static) writes mappings to argus-mappings.json in project root by default.

Troubleshooting and support

• See docs/TROUBLESHOOTING.md for common failures and reporting format.
• If IDE Jump shows a requestId, include it with related bridge logs in your bug report.
• See SECURITY.md for private vulnerability reporting guidance.
• See docs/PRIVACY.md for local data-handling notes.
• Support contact: [email protected]

License

MIT
