Beads Performance Dashboard

BETA SOFTWARE: This tool is under active development and provided "as is," without warranty. Use at your own risk.

A local, real-time lean metrics dashboard for Beads. This tool visualizes your Beads issue database to help you understand your flow, identify bottlenecks, and track continuous improvement metrics.

Built with TypeScript, Vite, React 18, and Vitest for type-safe code, fast development, and comprehensive testing.

Features

Views & Visualization

• Kanban Board: Drag-and-drop interface with collapsible columns for visual workflow management
• Epics Management: Dedicated view for tracking epics and their progress

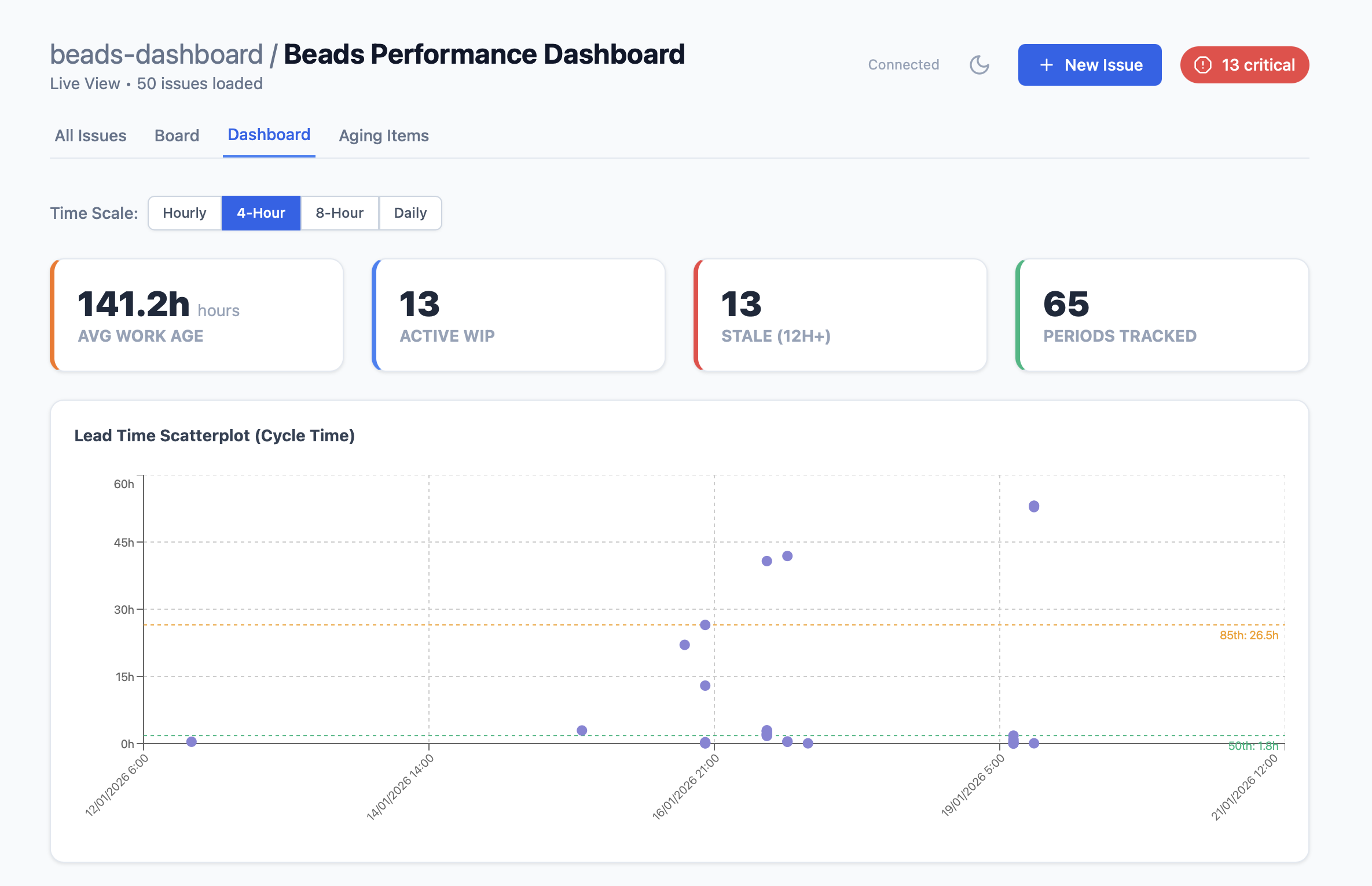

• Dashboard View: Comprehensive metrics visualization with:
  • Lead Time Scatterplot: Cycle time with P50 and P85 percentile lines
  • Aging Work in Progress: Scatterplot color-coded by age (Green < 7d, Orange < 30d, Red > 30d)
  • Cumulative Flow Diagram (CFD): Track flow stability over time
  • Throughput: Daily closed item counts
  • Age Distribution: Histogram of current work item age
• Table View: Detailed, filterable list of all issues with sortable attributes

Issue Management

• Create Issues: Rich markdown editor with live preview for creating new issues
• Batch Creation: Create multiple issues at once
• Edit Issues: Update descriptions and status directly from the dashboard
• Quick Actions: One-click status changes (Start Progress, Close)

Productivity Features

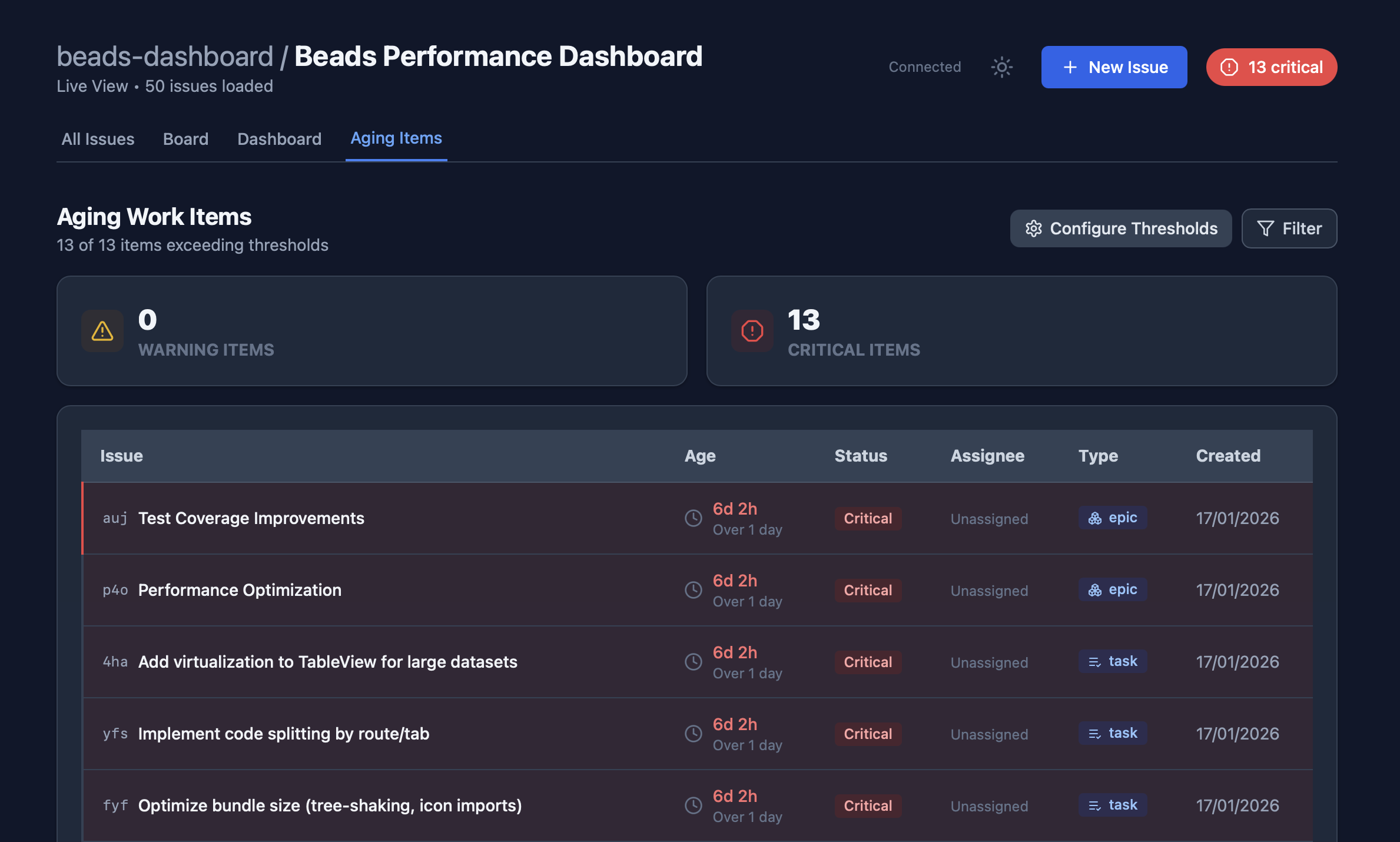

• Aging Alerts: Configurable threshold-based alerts for work items exceeding age limits
• Column Customization: Resize, hide, and reorder table columns (persisted in localStorage)
• Real-time Updates: Automatically refreshes when your Beads database changes
• Search & Filter: Powerful filtering by status, type, priority, and text search

Technical Features

• Type Safety: Full TypeScript coverage across client and server
• Comprehensive Testing: Unit tests with Vitest achieving 100% coverage on business logic
• Security: XSS prevention, input sanitization, and CORS restrictions
• Community Ready: Works with any Beads repository

Quick Start (Global Install)

Install globally via npm:

npm install -g beads-dashboard

Then run from any directory containing a .beads folder:

# Run in current directory
beads-dashboard

# Run against a specific project
beads-dashboard /path/to/project

# Use custom port (default: 3001)
beads-dashboard --port=8080

Then open your browser to http://localhost:3001 (or your custom port).

Installation (Development)

You can also install and run this tool directly from the source.

# Clone the repository
git clone https://github.com/rhydlewis/beads-dashboard.git
cd beads-dashboard

# Install dependencies
npm install

# Build the project
npm run build

Usage

Development Mode (with Hot Module Replacement)

Run the development server with automatic reloading:

npm run dev

This starts:

• Frontend dev server: http://localhost:5173 (Vite with HMR)
• Backend API server: http://localhost:3001

Production Mode

Run the built production version:

# Build first (if not already built)
npm run build

# Run production server
npm start

Opens at: http://localhost:3001

Run against a different project

Point the dashboard to any directory containing a .beads folder:

# Production mode (recommended for viewing other projects)
npm run build
npm start -- /path/to/your/project

# Development mode (requires two terminals for HMR)
# Terminal 1: Frontend
npm run vite

# Terminal 2: Backend
npm run dev:server -- /path/to/your/project
# Then visit http://localhost:3000

Development

Project Structure

beads-dashboard/
├── src/
│   ├── client/              # Frontend React application
│   │   ├── main.tsx         # Entry point
│   │   ├── App.tsx          # Main app component
│   │   ├── components/      # React components
│   │   │   ├── KanbanBoard.tsx
│   │   │   ├── EpicsTable.tsx
│   │   │   ├── DashboardView.tsx
│   │   │   ├── TableView.tsx
│   │   │   └── ...
│   │   ├── hooks/           # Custom React hooks
│   │   └── utils/           # Business logic (pure functions)
│   ├── server/              # Backend Node.js server
│   │   ├── index.ts         # Express server entry
│   │   ├── routes/          # API route handlers
│   │   └── utils/           # Server utilities
│   └── shared/              # Shared types between client/server
│       └── types.ts
├── tests/
│   ├── unit/                # Unit tests
│   └── fixtures/            # Test data
├── dist/                    # Build output (gitignored)
│   ├── client/              # Vite-built frontend
│   └── server/              # Compiled TypeScript server
├── index.html               # HTML entry point (Vite)
├── vite.config.ts           # Vite configuration
├── vitest.config.ts         # Vitest configuration
└── tsconfig.json            # TypeScript configuration

Technology Stack

Frontend:

• React 18 with TypeScript
• Vite (build tool + dev server with HMR)
• Recharts 2 (charts)
• @dnd-kit (drag-and-drop)
• @uiw/react-md-editor (markdown editing)
• Lucide React (icons)
• Marked (markdown rendering)
• DOMPurify (XSS prevention)
• Socket.IO Client (real-time updates)
• Tailwind CSS (styling, via CDN)

Backend:

• Node.js + TypeScript
• Express 5 (web server)
• Socket.IO (WebSocket server)
• Chokidar (file watching)
• Zod (validation)

Testing & Build:

• Vitest (test runner)
• React Testing Library (component testing)
• Supertest (API testing)
• JSDOM (DOM implementation)
• TypeScript Compiler + Vite

Common Commands

# Development with HMR
npm run dev

# Build for production
npm run build

# Run production server
npm start

# Run tests
npm test

# Run tests with UI
npm test:ui

# Run tests with coverage
npm test:coverage

# Type check
npm run typecheck

Testing

The project includes comprehensive unit tests:

# Run all tests
npm test

# Run with UI (watch mode with browser interface)
npm test:ui

# Generate coverage report
npm test:coverage

Test Coverage:

• ✅ Business logic (metricsCalculations): 100%
• ✅ Data reading (beadsReader): 100%
• ✅ API endpoints: 100%
• ✅ React components (App, DashboardView, TableView)

Adding New Features

1. Define Types in src/shared/types.ts
2. Write Business Logic as pure functions in src/client/utils/ or src/server/utils/
3. Add Unit Tests immediately (TDD approach)
4. Create Components in src/client/components/
5. Add API Routes if needed in src/server/routes/
6. Test with npm test and npm run dev

See CLAUDE.md for detailed development workflow guidance.

Beads Integration

Data Access

The dashboard reads from the Beads SQLite database (.beads/beads.db) via the bd CLI tool. It provides:

• Read access: All metrics, issues, and visualization data
• Write access: Issue creation, description updates, and status changes

All mutations execute through bd commands and automatically sync with the database.

Requirements

• Valid .beads/ directory with SQLite database in the project directory
• bd command available in PATH
• Beads project properly initialized with bd init

Global Installation

For end users, install globally:

npm install -g beads-dashboard

# Run from any Beads project directory
cd /path/to/your/beads/project
beads-dashboard

The CLI wrapper (bin/beads-dashboard.js) automatically:

• Detects production mode
• Serves pre-built files from dist/
• Handles custom port configuration
• Works from any directory

License

This software is licensed under the MIT License.
