ZenBridge Bitcoin Lib

A production-ready Bitcoin-to-Ethereum bridge system with enterprise-grade security, multi-signature wallet management, and cross-chain interoperability.

Bitcoin Lab implements a sophisticated bridge protocol using PSBT (Partially Signed Bitcoin Transactions), 3-of-5 multi-signature wallets, and CCIM (Cross-Chain Interoperability Message) for secure Bitcoin-Ethereum transfers.

Overview

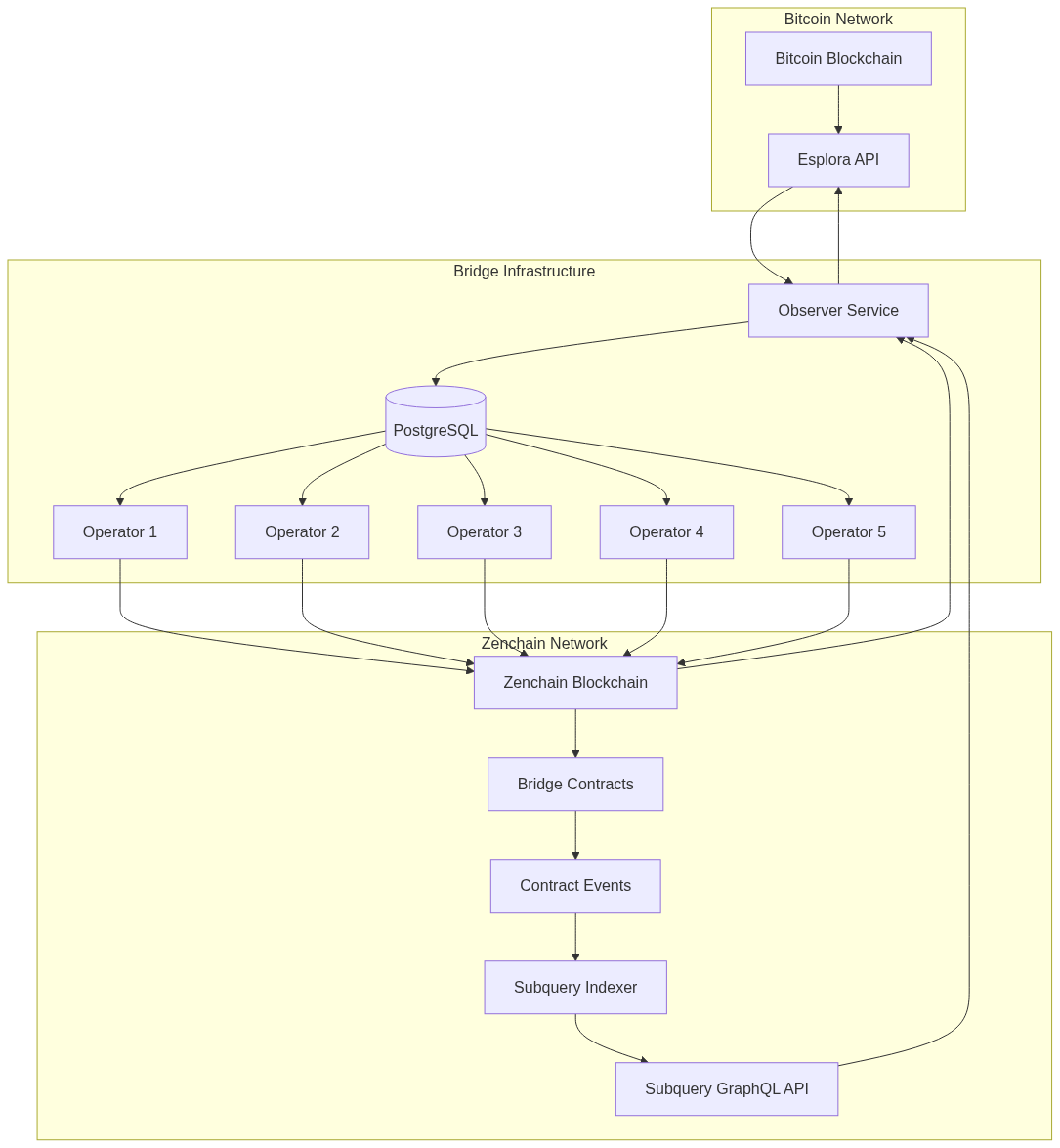

Key Components

• Observer Service: Central coordinator that monitors Bitcoin via Esplora and Zenchain via Subquery, indexes data to PostgreSQL, broadcasts transactions to Bitcoin network
• Operator Nodes: Independent PSBT signers that connect directly to PostgreSQL, read unsigned PSBTs, write signatures, broadcast to Zenchain network via bridge operator nodes
• PostgreSQL Database: Central state management where operators read unsigned PSBTs and write signatures, Observer reads/writes transaction state data
• Multi-Signature Wallets: 3-of-5 threshold signatures using PSBT coordination
• Subquery Indexer: Indexes Zenchain bridge contract events for withdrawal processing
• Bridge Contracts: Zenchain smart contracts that emit events for cross-chain transfers
• No Inter-Service Communication: Services only communicate through the shared PostgreSQL database

Quick Start

Prerequisites

• Docker and Docker Compose
• Node.js 18+ (for development)

Development Setup

1. Clone the repository

   git clone https://github.com/your-org/bitcoin-lab.git
   cd bitcoin-lab

2. Start the development environment

   # Start all services (PostgreSQL, Esplora, Observer, 5 Operators)
   docker-compose -f docker-compose.dev.yaml up -d

   # Check service health
   docker-compose -f docker-compose.dev.yaml ps

3. Set up environment variables

   # Copy environment template
   cp .env.example .env

   # Edit with your configuration
   DATABASE_URL=postgresql://postgres:postgres@localhost:5432/postgres
   ESPLORA_URL=http://localhost/regtest/api
   NETWORK=regtest

4. Verify setup

   # Check observer status
   docker logs btc_observer_dev

   # Check operator status
   docker logs btc_operator_1_dev

Build from Source

Prerequisites

• Node.js 20+
• npm or yarn package manager
• PostgreSQL database
• Docker (for development environment)

Installation

# Clone the repository
git clone https://github.com/zenchain-protocol/zenbridge-btc-lib.git
cd zenbridge-btc-lib

# Install dependencies
npm install

Build Process

# Build TypeScript to JavaScript
npm run build

# Run tests
npm test

# Run CLI
npm run cli

# Development mode (with hot reload)
npm run dev

Build Outputs

• dist/ - Compiled JavaScript and type definitions
• dist/cli/run.js - CLI executable
• dist/index.js - Main library entry point

CLI Reference

The btc-bridge-cli provides comprehensive management capabilities for the Bitcoin bridge system:

Global Options

-V, --version                    # Show version number
-v, --verbose                    # Enable verbose logging (debug level)
-q, --quiet                      # Enable quiet logging (error level only)
--log-level <level>              # Set log level (trace, debug, info, warn, error, fatal)
--database-url <url>             # PostgreSQL connection string (overrides env vars)
-h, --help                       # Show command help

Database Management

# Migration commands
btc-bridge-cli migrate up            # Run pending migrations
btc-bridge-cli migrate down <version> # Rollback to specific migration version
btc-bridge-cli migrate version        # Show current migration version

# Configuration
btc-bridge-cli init [options]         # Initialize operator configurations
btc-bridge-cli populate <configPath>  # Populate database with public config

Migration Options

btc-bridge-cli migrate up              # Apply all pending migrations
btc-bridge-cli migrate down 003       # Rollback to migration version 003
btc-bridge-cli migrate version        # Check current database migration status

Initialization Options

btc-bridge-cli init \
  --network <network>                  # Bitcoin network (mainnet, testnet, regtest)
  --operators <count>                  # Number of operators (default: 5)
  --threshold <threshold>              # Signature threshold (default: 3)
  --refund-lock-time <seconds>         # Refund locktime in seconds (default: 172800)
  --block-confirmations <blocks>       # Confirmation requirement (default: 6)
  --output-dir <dir>                   # Config output directory (default: ./configs)

Service Operations

# Observer Service (monitors both networks)
btc-bridge-cli observe [subcommand]     # Run observer services
btc-bridge-cli observe all              # Run all observer services
btc-bridge-cli observe wallet           # Wallet monitoring only
btc-bridge-cli observe psbt             # PSBT processing only
btc-bridge-cli observe ccim             # CCIM message processing only

# Operator Service (PSBT signers)
btc-bridge-cli operate <operatorId>     # Run operator service (ID 1-5)

Observer Options

btc-bridge-cli observe all \
  --delay <ms>                         # Cycle delay in milliseconds (default: 5000)
  --esplora <url>                      # Esplora API URL override
  --network <network>                  # Bitcoin network (default: regtest)
  --cycles <number>                    # Limited cycle count (default: infinite)
  --subquery-url <url>                 # SubQuery GraphQL endpoint URL

Operator Options

btc-bridge-cli operate 1 \
  --delay <ms>                         # Cycle delay in milliseconds (default: 3000)
  --network <network>                  # Bitcoin network (default: regtest)
  --mnemonic <phrase>                  # BIP39 seed phrase (or OPERATOR_MNEMONIC env var)
  --cycles <number>                    # Limited cycle count (default: infinite)

Wallet Management

# Create wallets
btc-bridge-cli create deposit <count>    # Create deposit wallets
btc-bridge-cli create hodl <count>       # Create HODL wallets

Withdrawal Processing

# Mock withdrawal for testing
btc-bridge-cli withdraw <ethAddress> <btcAddress> <amountBTC> \
  --esplora <url>                      # Esplora API URL
  --network <network>                  # Bitcoin network
  --config <path>                      # Public config file path
  --fee <btc>                          # Transaction fee in BTC (default: 0.0001)

Complete Setup Examples

# 1. Database setup and configuration
btc-bridge-cli migrate up
btc-bridge-cli init --network regtest --operators 5 --threshold 3
btc-bridge-cli populate ./configs/public-config.json

# 2. Create wallet infrastructure
btc-bridge-cli create deposit 10
btc-bridge-cli create hodl 5

# 3. Start observer service (single process)
btc-bridge-cli observe all --verbose --delay 5000 &

# 4. Start multiple operators (separate processes)
btc-bridge-cli operate 1 --verbose &
btc-bridge-cli operate 2 --verbose &
btc-bridge-cli operate 3 --verbose &

# 5. Test withdrawal
btc-bridge-cli withdraw \
  0x742d35Cc6610C7532C8B77D566D77Bd0e5BfD726 \
  tb1qxy2kgdygjrsqtzq2n0yrf2493p83kkfjhx0wlh \
  0.001

# 6. Check system status with custom database
btc-bridge-cli --database-url postgresql://user:pass@host:5432/btc_bridge \
  migrate version

Development Workflow

# Start with clean database
btc-bridge-cli --database-url $DEV_DATABASE_URL migrate up

# Generate development configuration
btc-bridge-cli init \
  --network regtest \
  --output-dir ./dev-configs \
  --refund-lock-time 3600

# Set up development environment
btc-bridge-cli populate ./dev-configs/public-config.json
btc-bridge-cli create deposit 20
btc-bridge-cli create hodl 10

# Run services in development mode
btc-bridge-cli observe all --cycles 100 --delay 1000 &
for i in {1..3}; do
  btc-bridge-cli operate $i --cycles 100 --delay 1000 &
done

API References

The Bitcoin Bridge Library exposes several service classes for programmatic integration. Each service follows consistent initialization patterns and provides specific functionality for bridge operations.

BridgeService

Purpose: Main user-facing API for deposit/withdrawal operations and status queries.

Initialization:

import { BridgeService } from 'btc-bridge-lib';
import { Pool } from 'pg';

// Using factory method (recommended)
const pool = new Pool({ connectionString: process.env.DATABASE_URL });
const configManager = new ConfigManager('./configs/public-config.json');
const logger = pino({ level: 'info' });

const bridgeService = await BridgeService.init(pool, configManager, logger);

// Direct constructor
const bridgeService = new BridgeService(
  pool,
  operatorPublicKeyManagers,
  configManager,
  logger
);

Core Methods:

// Create new deposit address
const deposit = await bridgeService.createDeposit(
  '0x742d35Cc6610C7532C8B77D566D77Bd0e5BfD726',  // Ethereum receiver
  'tb1qxy2kgdygjrsqtzq2n0yrf2493p83kkfjhx0wlh'   // Bitcoin refund address
);

// Query deposit status
const status = await bridgeService.getDepositStatus('deposit-123');

// Query withdrawal status
const withdrawal = await bridgeService.getWithdrawalStatus('0xabc...');

// Get user transaction history
const deposits = await bridgeService.getDepositHistory(
  '0x742d35Cc6610C7532C8B77D566D77Bd0e5BfD726',
  10,  // limit
  0    // offset
);

// Rate limiting checks
const canProceed = await bridgeService.canProceed(ethereumAddress);
const rateLimit = await bridgeService.checkRateLimit(ethereumAddress);

Constants:

BridgeService.SCHEME  // 'p2sh' - default wallet scheme

ObserverService

Purpose: Central monitoring service that coordinates bridge operations and handles automated workflows.

Initialization:

import { ObserverService } from 'btc-bridge-lib';

const observerService = new ObserverService(
  pool,                          // PostgreSQL connection
  esploraClient,                 // Bitcoin API client
  operatorPublicKeyManagers,     // Array of operator key managers
  zenchainService,               // Zenchain blockchain service
  subqueryService,               // Cross-chain message service
  configManager,                 // Network configuration
  logger,                        // Structured logger
  { batchSize: 10 }             // Optional batch processing config
);

Workflow Methods:

// Wallet lifecycle management
await observerService.handleDepositWalletsToCreate();    // Generate new deposit addresses
await observerService.handleHodlWalletsToGenerate();     // Create HODL storage wallets
await observerService.handleWalletsToCredit();           // Credit wallets with UTXOs
await observerService.handleWalletsToSweep();            // Sweep deposits to HODL

// Transaction processing
await observerService.handlePsbtSessionsToFinalise();    // Finalize signed PSBTs
await observerService.handlePsbtSessionsToBroadcast();   // Broadcast to Bitcoin network
await observerService.handlePsbtSessionsToConfirm();     // Confirm transaction inclusion

// Cross-chain operations
await observerService.handleCCIMMessagesForWithdrawals(); // Process withdrawal requests

Return Type: All methods return Promise<ObserverProcessResult>:

interface ObserverProcessResult {
  success: boolean;
  processed: number;
  errors: string[];
}

OperatorService

Purpose: Individual operator node for PSBT signing in the multi-signature scheme.

Initialization:

import { OperatorService } from 'btc-bridge-lib';

const operatorService = new OperatorService(
  pool,                    // PostgreSQL connection
  operatorKeyManager,      // Single operator's private keys
  logger,                  // Structured logger
  { batchSize: 5 }        // Optional batch processing config
);

Core Methods:

// Main signing workflow
const result = await operatorService.handleSessionsToSign();

// Query operations
const deposits = await operatorService.getConfirmedDeposits(
  sweepId,  // Specific sweep ID
  20,       // limit
  0         // offset
);

// Operator identification
const id = operatorService.operatorId;  // Returns number (1-5)

Return Type: Promise<OperatorProcessResult>:

interface OperatorProcessResult {
  success: boolean;
  signedSessions: number;
  skippedSessions: number;
  errors: string[];
}

ZenchainService

Purpose: Zenchain blockchain integration for cross-chain messaging and contract interactions.

Initialization:

import { ZenchainService, NetworkType } from 'btc-bridge-lib';

// Auto-configuration based on network
const zenchainService = new ZenchainService(
  NetworkType.REGTEST,                    // Network type
  'http://localhost:8545'                 // Optional RPC URL override
);

Blockchain Methods:

// Contract information
const operatorVersion = await zenchainService.getCurrentOperatorVersion();
const networkConfig = zenchainService.getNetworkConfig();
const publicClient = zenchainService.getPublicClient();

// Contract addresses
const zbtcAddress = zenchainService.getZBTCAddress();
const bridgeAddress = zenchainService.getBridgeAddress();
const directoryAddress = zenchainService.getBridgeDirectoryAddress();

// Network information
const chainId = zenchainService.getChainId();
const networkType = zenchainService.getNetworkType();
const bitcoinNetwork = zenchainService.getBitcoinNetwork();

// Fee information
const feePerbill = await zenchainService.getBridgeFeePerbill();

// CCIM message creation
const ccimMessage = await zenchainService.getCCIMMessageFromDeposit(
  depositAddress,
  amount,
  ethereumReceiver
);

CAIP Utilities:

// Static helper methods for Cross-Chain Asset Identification Protocol
const chainId = ZenchainService.createBitcoinChainId('mainnet');
const accountId = ZenchainService.createBitcoinAccountId('bc1qxy...', 'mainnet');
const assetId = ZenchainService.createBitcoinAssetId('mainnet');

Constants:

ZenchainService.PERBILL  // BigInt("1000000000") - fee calculation base

SubqueryService

Purpose: GraphQL client for querying indexed blockchain data and CCIM messages.

Initialization:

import { SubqueryService } from 'btc-bridge-lib';

const subqueryService = new SubqueryService(
  'https://api.subquery.network/sq/project/ccim-messages',  // GraphQL endpoint
  logger,                                                   // Structured logger
  30000                                                     // Request timeout (ms)
);

Query Methods:

// Fetch new CCIM transfer messages
const result = await subqueryService.fetchNewCCIMMessages({
  first: 10,                    // Pagination limit
  offset: 0,                    // Pagination offset
  orderBy: 'BLOCK_HEIGHT_DESC', // Sort order
  filter: {                     // Optional filters
    blockHeight: { greaterThan: 1000000 },
    messageType: { equalTo: 'TRANSFER' }
  }
});

// Get configured endpoint
const url = subqueryService.getQueryUrl();

Return Type: Promise<FetchCCIMMessagesResult>:

interface FetchCCIMMessagesResult {
  messages: CCIMMessage[];
  totalCount: number;
  hasNextPage: boolean;
}

Service Integration Example

Complete Bridge Setup:

import {
  BridgeService,
  ObserverService,
  OperatorService,
  ZenchainService,
  SubqueryService,
  ConfigManager
} from 'btc-bridge-lib';
import { Pool } from 'pg';
import pino from 'pino';

// Database connection
const pool = new Pool({ connectionString: process.env.DATABASE_URL });
const logger = pino({ level: 'info' });

// Configuration
const configManager = new ConfigManager('./configs/public-config.json');

// External services
const zenchainService = new ZenchainService(NetworkType.REGTEST);
const subqueryService = new SubqueryService(process.env.SUBQUERY_URL!, logger);

// Bridge service for user API
const bridgeService = await BridgeService.init(pool, configManager, logger);

// Observer service for automated workflows
const observerService = new ObserverService(
  pool,
  esploraClient,
  operatorPublicKeyManagers,
  zenchainService,
  subqueryService,
  configManager,
  logger.child({ service: 'observer' })
);

// Operator services (one per operator)
const operatorServices = await Promise.all(
  Array.from({ length: 5 }, async (_, i) => {
    const operatorId = i + 1;
    const keyManager = await OperatorKeyManager.load(operatorId, mnemonic);
    return new OperatorService(
      pool,
      keyManager,
      logger.child({ service: 'operator', operatorId })
    );
  })
);

// Service lifecycle
await observerService.handleDepositWalletsToCreate();
await Promise.all(operatorServices.map(service => service.handleSessionsToSign()));

Error Handling Pattern:

try {
  const result = await observerService.handleWalletsToSweep();
  if (!result.success) {
    logger.error({ errors: result.errors }, 'Observer processing failed');
  }
} catch (error) {
  logger.error({ error }, 'Observer service error');
}

Contributing

We welcome contributions to the Bitcoin Bridge Library! Please see CONTRIBUTING.md for detailed development workflow, coding standards, and guidelines for:

• Setting up the development environment
• Code style and linting requirements
• Testing procedures
• Pull request guidelines
• Release process

Acknowledgments

• BitcoinJS for Bitcoin transaction handling
• Viem for Ethereum integration
• PostgreSQL for robust data persistence
• Blockstream Esplora for Bitcoin blockchain data
