cmux-browser-element-pick

Click an element in the cmux in-app browser and send its **DOM + computed CSS

• design tokens** straight into your coding agent's pane (Claude Code, Codex, etc.). It's the "annotate the UI, feed it to the agent" loop, built entirely on cmux's existing CLI primitives - no Chrome extension, no MCP server, no daemon.

Why

A coding agent in a terminal can't see what you're looking at in the browser. cmux-browser-element-pick closes that gap: hover an element, click it, and a clean HTML context file lands where your agent can read it.

Requirements

• macOS with cmux installed (the cmux CLI on PATH).
• Node 18+.
• A cmux workspace with the in-app browser open (Cmd+Shift+L) and a coding agent running in another pane.

Install

npm i -g cmux-browser-element-pick   # provides the `cmux-browser-element-pick` command
cmux-browser-element-pick init                       # adds a Dock control to ~/.config/cmux/dock.json
cmux reload-config                   # pick it up without restarting cmux

cmux-browser-element-pick init writes (and backs up) ~/.config/cmux/dock.json so a Pick element → agent control appears in the cmux Dock. Open that control, open the in-app browser, and Option+Click elements - they land in your agent pane. Prefer manual setup? See Launch from the cmux Dock.

From source

git clone https://github.com/theevilhead/cmux-browser-element-pick
cd cmux-browser-element-pick
npm link            # exposes `cmux-browser-element-pick` globally
cmux-browser-element-pick init

How it works

cmux-browser-element-pick (driver)
  1. cmux identify / tree   -> find the browser surface + the agent terminal
  2. cmux browser <b> eval  -> inject a hover/click picker into the WKWebView
  3. browser eval (poll ~400ms) -> drain window.__cmuxPicks, re-arm if navigated
  4. write context to a file -> /tmp/cmux-browser-element-pick/pick-*.html (DOM + CSS + tokens)
  5. send <agent>          -> send a single reference line pointing at the HTML
                              file, then one Enter to submit it

Transport: it talks to cmux over the Unix socket ($CMUX_SOCKET_PATH, newline-delimited JSON - system.tree, browser.eval, surface.send_text, surface.send_key) using one persistent connection. If the socket is unavailable it transparently falls back to the cmux CLI. Surface targeting differs per backend (socket = UUID, CLI = surface:N ref); that's normalized internally so the picker is identical.

Polling, not long-poll: there's no push channel from the page to the driver. cmux does have a browser.wait long-poll, but it holds the WKWebView's JS main thread for the whole timeout - which freezes the page (macOS beachball, dead clicks). So the driver instead runs a short, non-blocking browser.eval every --poll ms (default 400) that drains queued picks and re-arms the picker if a navigation cleared it. Each eval is ~30ms and yields the page thread between checks, so browsing stays smooth. The driver exits on its own if the browser surface goes away.

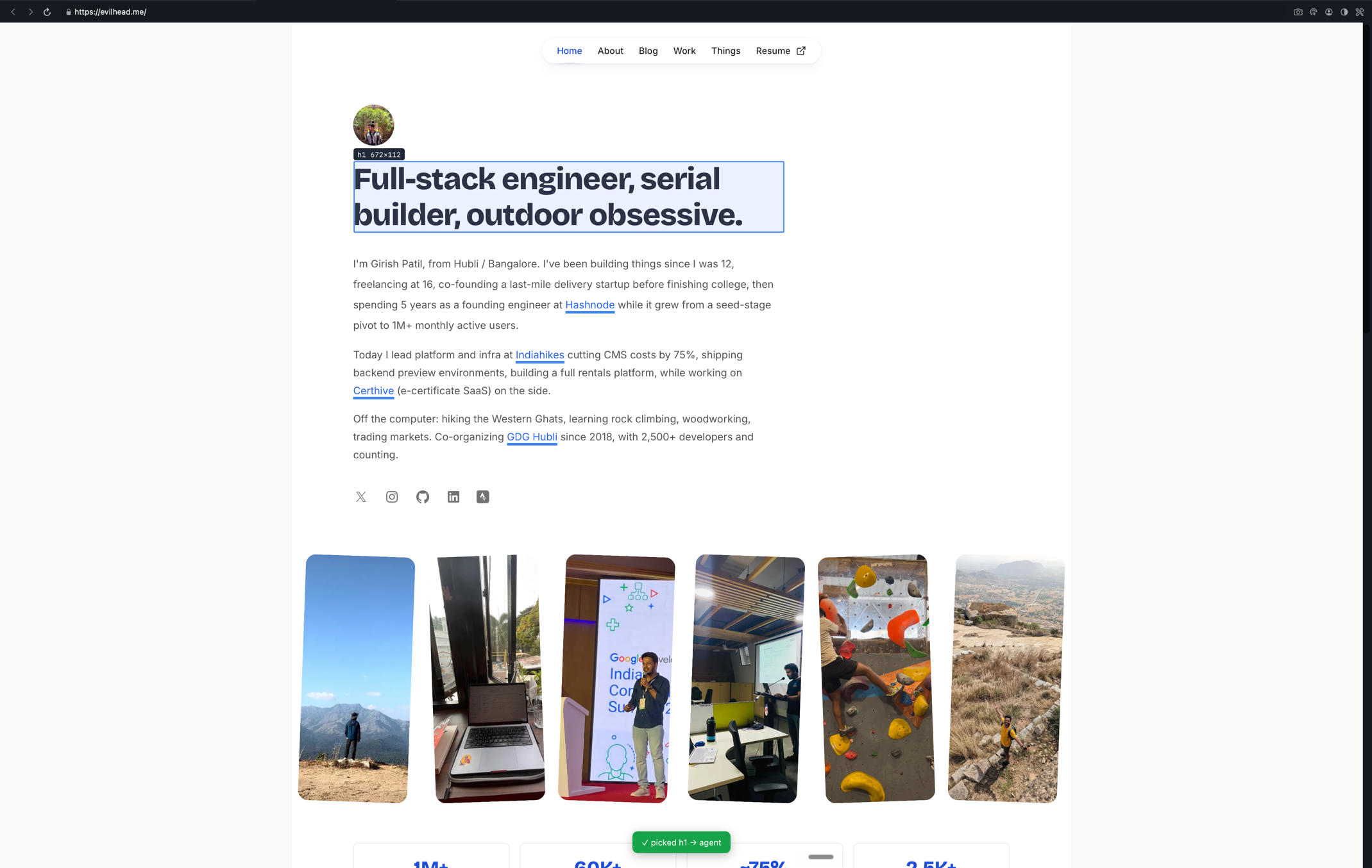

The picker (src/picker.js) runs in the page and is armed by the Option/Alt modifier: hold Option to highlight elements, then Option+Click to capture. Plain clicks pass straight through, so normal browsing keeps working while the picker stays running. On Option+Click a small comment box opens so you can attach a note (Enter to send, Esc to cancel that pick).

Each capture collects: pageUrl, selector, selectedElementHtml (trimmed outerHTML), computedStyles (a UI-dev allowlist), the CSS custom properties (--*) the element actually references, boundingBox, visibleText, xpath, parentHierarchy (ancestors up to body), and your userComment. The full bundle is written as a standalone .html file the agent can open. Esc with no comment box open turns the picker off. The driver re-injects the picker automatically after you navigate.

Each pick writes the full element context - identity (tag, text, note), location (page, selector, xpath, box), class/role, the ancestor chain, computed styles, design tokens, and the element's DOM - to a standalone .html file under the temp dir, then sends the agent a single reference line pointing at that file and submits it. Nothing else is typed into the prompt, so there's no multi-line paste, no "pasted text" chip, and no line-by-line submission.

Use --no-enter to leave the reference line in the prompt without submitting.

Usage

node bin/cmux-browser-element-pick.mjs            # auto-detect browser + agent surfaces
node bin/cmux-browser-element-pick.mjs --no-enter  # leave the reference line unsubmitted
node bin/cmux-browser-element-pick.mjs --once     # capture one element then exit
node bin/cmux-browser-element-pick.mjs --browser surface:12 --agent surface:11

Flags:

| flag | meaning | |------|---------| | --browser surface:N | browser surface to pick from (default: active/first browser) | | --agent surface:M | terminal surface to send to (default: caller / sibling terminal) | | --no-enter | do not auto-submit; leave the reference line in the prompt | | --once | capture a single element then exit | | --poll <ms> | poll interval between non-blocking checks (default 400) |

Run it, then Option+Click elements in the cmux browser. Each pick drops a context file and a reference into your agent's prompt. Ctrl+C in the terminal stops the driver; Esc in the browser stops the picker overlay.

Launch from the cmux Dock (stays running)

.cmux/dock.json adds a sidebar control that runs the picker in its own section. A Dock control runs its command when the section opens and the driver loops, so cmux-browser-element-pick stays armed continuously - and because capture is gated on Option+Click, normal browsing is unaffected while it runs.

{
  "controls": [
    { "id": "cmux-browser-element-pick", "title": "Pick element → agent",
      "command": "node ./bin/cmux-browser-element-pick.mjs", "cwd": ".", "height": 200 }
  ]
}

cmux shows a trust gate the first time it sees a project Dock config. See cmux docs dock.

When launched from the Dock, cmux-browser-element-pick runs in its own terminal section. It excludes that section when choosing where to send picks, and targets another terminal - preferring one whose title looks like a coding agent (claude, codex, opencode, aider, gemini, …). If it guesses wrong, pin the target explicitly:

{ "id": "cmux-browser-element-pick", "title": "Pick element → agent",
  "command": "node ./bin/cmux-browser-element-pick.mjs --agent surface:3", "cwd": "." }

Global install (optional)

npm link        # or: pnpm -g add file:$(pwd)
cmux-browser-element-pick --help

Then point a Dock control or global ~/.config/cmux/dock.json at cmux-browser-element-pick.

Limitations / roadmap

• macOS + cmux only (by design - uses the cmux browser + socket).
• No source file:line mapping yet (Phase 2: React DevTools hook in dev builds).
• Design tokens are resolved from same-origin stylesheets; cross-origin sheets are skipped.
• If cmux ships the native element picker (issue #1975), the eval-poll loop can be swapped for native browser.picked events.
