CollabMD

Realtime collaboration for Markdown folders, diagrams, and git-backed docs, without migrating your files.

CollabMD turns a local Markdown folder, Obsidian-style vault, or docs repo into a collaborative workspace you can open in the browser.

Throughout this guide, vault simply means a regular folder on your computer that contains Markdown files.

• No migration: your files stay on disk
• Your filesystem stays the source of truth: CollabMD does not move, rename, or delete files unless you explicitly do that in the app
• Realtime editing with Yjs
• External filesystem edits sync back into the app and connected browsers
• Mermaid, PlantUML, and Excalidraw support
• Source-anchored comments, chat, and presence
• Works with plain folders, Obsidian-style vaults, and git-backed docs

Requirements for the fastest first run:

• Node.js 24 for npx and source installs
• Homebrew only if you want the brew install path

Quick start

# Run locally first, no Cloudflare tunnel required
npx collabmd@latest ~/my-vault --no-tunnel

Open http://localhost:1234.

Expected startup output:

CollabMD v0.x.y
Vault:  /path/to/your-vault
Local:  http://localhost:1234
Tunnel: disabled
Ready for collaboration. Press Ctrl+C to stop.

Prefer Homebrew or source install? Jump to Installation options.

See it in action

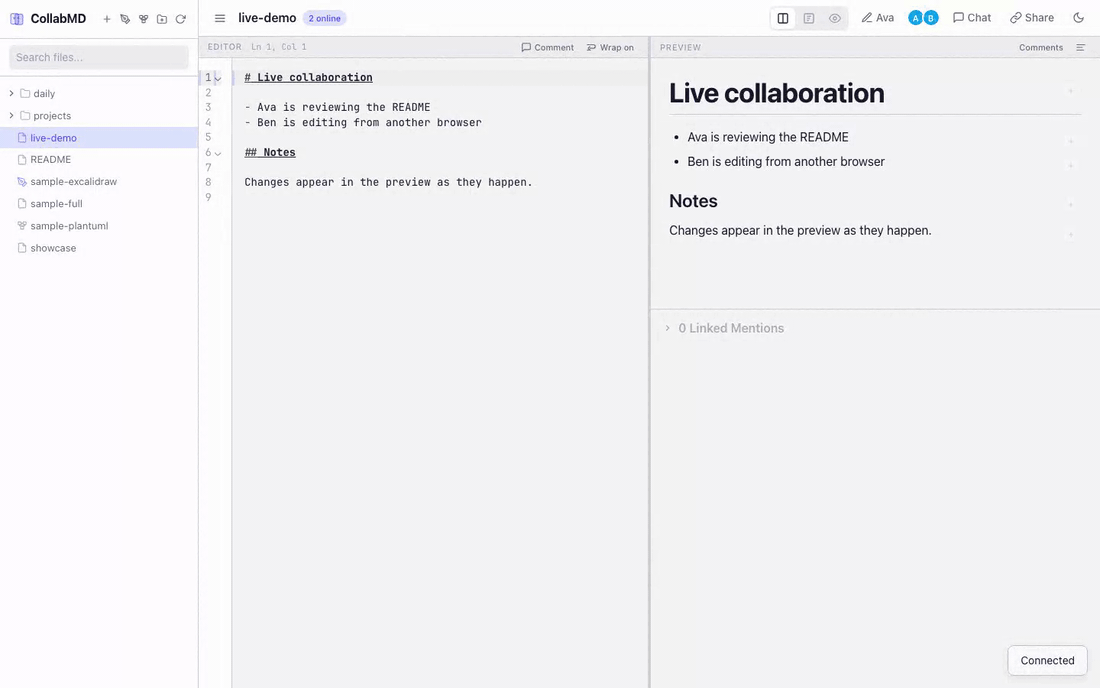

See CollabMD editing the same workspace from two browsers in realtime:

Prefer video? Open the WebM demo.

Features

• No migration — point CollabMD at an existing markdown folder, diagram workspace, Obsidian-style vault, or git-backed docs repo
• Local-files-first — your filesystem remains the source of truth
• Realtime collaboration — multiple people can edit the same file at the same time via Yjs
• External edit sync — changes made from tools like Obsidian or direct file writes are reflected back into open documents and the file explorer
• Markdown with context — live preview, wiki-links, backlinks, outline, quick switcher, and scroll sync
• Source-anchored comments — comment on lines or selected text with inline markers, preview bubbles, and thread cards
• Collaboration built in — collaborator presence, follow mode, and team chat
• Diagram-friendly — Mermaid fences and standalone .mmd / .mermaid, PlantUML .puml / .plantuml, .excalidraw, and public video embeds in Markdown
• Easy browser access — optional Cloudflare Tunnel support makes a running session easy to share

Best fit for

• Collaborating on an existing Obsidian-style vault without migrating files
• Reviewing RFCs, product docs, architecture notes, and runbooks in real time
• Reviewing drafts and diagrams with anchored comment threads instead of side-channel feedback
• Sharing markdown-heavy knowledge bases with remote teammates
• Editing notes and diagrams together while keeping everything as plain files on disk
• Giving browser access to collaborators who do not use your local markdown setup

Installation options

Requirements

• macOS, Linux, or Windows (via WSL2)
• Node.js 24 for npx and source installs

Run via npx (Node.js)

If you have Node.js installed, you can run CollabMD directly without installing it globally:

npx collabmd@latest ~/my-vault --no-tunnel

Open http://localhost:1234.

Install with Homebrew

brew tap andes90/tap
brew install collabmd
collabmd ~/my-vault --no-tunnel

Or in a single command:

brew install andes90/tap/collabmd
collabmd ~/my-vault --no-tunnel

Open http://localhost:1234.

Install from source

git clone https://github.com/andes90/collabmd.git
cd collabmd
npm install
npm run build
npm link       # optional: makes `collabmd` available globally
collabmd ~/my-vault --no-tunnel

Open http://localhost:1234.

For a safer first run, start local-only:

collabmd ~/my-vault --no-tunnel

If you want to share the session over the internet, protect it first:

collabmd ~/my-vault --auth password

If cloudflared is installed, CollabMD starts a quick tunnel by default unless you pass --no-tunnel.

Share with a collaborator

If you want to share the workspace over the internet, start with password auth:

collabmd ~/my-vault --auth password

Then share the printed URL and password with your collaborator. If cloudflared is installed, CollabMD will start a quick tunnel automatically unless you pass --no-tunnel.

Safety first

• Treat the URL as write access to the vault unless you enable auth
• --auth password protects /api/* and /ws/* with a host password and signed session cookie
• --auth oidc signs users in with Google and uses the verified Google name/email as the in-app identity and git commit author
• If cloudflared is installed, CollabMD may expose the app through a Cloudflare Quick Tunnel unless you pass --no-tunnel
• --auth oidc requires a stable PUBLIC_BASE_URL; Quick Tunnel URLs are not supported for OIDC

Current limitations

• Single-instance deployment only: collaboration room state is kept in-process and is not shared across replicas
• oidc currently supports Google only
• Source-anchored comments currently support markdown, Mermaid, and PlantUML text files, but not .excalidraw
• Windows use is supported via WSL2 rather than native Windows execution

How it works

collabmd ~/my-vault --no-tunnel

CollabMD starts a local server, scans the vault, and opens a browser-based editor with:

• File explorer sidebar — browse, create, rename, and delete .md, .mmd, .mermaid, .puml, .plantuml, and .excalidraw files plus folders
• Live preview — rendered as you type, with syntax-highlighted code blocks, public video embeds, plus Mermaid and PlantUML diagrams
• Anchored comments — add comments from the editor, open threads from inline markers or preview bubbles, and review them from the comments drawer
• [[wiki-links]] + backlinks — jump between notes and inspect linked mentions
• Room chat — discuss changes without leaving the workspace
• Presence + follow mode — see who is online and follow another collaborator's active cursor
• Quick switcher + outline — move around large vaults and long documents faster
• Standalone diagram files — open .mmd / .mermaid or .puml / .plantuml files in side-by-side editor + preview, or .excalidraw files in direct preview mode

Comment threads are source-anchored and currently supported for markdown, Mermaid, and PlantUML text files. You can comment on a whole line or a text selection, then reopen the thread from either the editor marker or the preview bubble. Excalidraw files are currently excluded from comments.

Markdown video embeds are opt-in and use standard image syntax such as ![Video](https://www.youtube.com/watch?v=...) or ![Video](https://cdn.example.com/demo.webm). The preview currently supports public YouTube URLs plus direct public https video files ending in .mp4, .webm, or .ogg. The editor toolbar also includes a Video action that inserts the same Markdown syntax for you.

Your filesystem is the source of truth. CollabMD reads files from disk, uses Yjs for realtime collaboration, and continuously writes plain text back to disk as you type. External changes from tools like Obsidian, direct file writes, or git-driven file updates are watched and reconciled back into live rooms and the explorer.

Usage

collabmd [directory] [options]

Arguments

| Argument | Description | |----------|-------------| | directory | Path to the vault directory (default: current directory) |

Options

| Option | Description | Default | |--------|-------------|---------| | -p, --port | Port to listen on | 1234 | | --host | Host to bind to | 127.0.0.1 | | --auth | Auth strategy: none, password, oidc | none | | --auth-password | Password for --auth password | generated per run | | --local-plantuml | Start the bundled local docker-compose PlantUML service | off | | --no-tunnel | Don't start Cloudflare Tunnel | tunnel on | | -v, --version | Show version | | | -h, --help | Show help | |

Examples

# Serve the current directory locally
collabmd --no-tunnel

# Serve a specific vault locally
collabmd ~/my-vault --no-tunnel

# Use a custom port, no tunnel
collabmd --port 3000 --no-tunnel

# Share with collaborators using a generated password
collabmd --auth password

# Require an explicit password
collabmd --auth password --auth-password "shared-secret"

# Use Google OIDC on a stable public domain
PUBLIC_BASE_URL=https://notes.example.com \
AUTH_OIDC_CLIENT_ID=your-google-client-id \
AUTH_OIDC_CLIENT_SECRET=your-google-client-secret \
collabmd --auth oidc --no-tunnel

# Use the local docker-compose PlantUML service
collabmd --local-plantuml

# Serve an Obsidian vault
collabmd ~/Documents/Obsidian/MyVault

Public access

CollabMD can optionally expose the session using a Cloudflare Quick Tunnel. Since the editor uses same-origin WebSocket routing (/ws/:file), the tunnel works for both HTTP and collaboration traffic.

If you are exposing the session publicly, collabmd --auth password is the intended first-line protection. When you do not pass --auth-password, CollabMD generates a password for that host run and prints it in the terminal. Restarting the app rotates that password and the signed session secret.

To share safely:

collabmd ~/my-vault --auth password

cloudflared is optional. Install it only if you want public tunnel access:

• macOS: brew install cloudflared
• Linux/Windows: official installer

To disable the tunnel:

collabmd --no-tunnel

Google OIDC setup

--auth oidc uses Google OpenID Connect with the authorization code + PKCE flow.

For the full Google Cloud Console walkthrough, including where to create the OAuth client and copy the client ID/client secret, see docs/google-oidc-setup.md.

Required environment variables:

PUBLIC_BASE_URL=https://notes.example.com
AUTH_OIDC_CLIENT_ID=your-google-client-id
AUTH_OIDC_CLIENT_SECRET=your-google-client-secret

In Google Cloud Console, create a Web application OAuth client and register this redirect URI:

https://notes.example.com/api/auth/oidc/callback

If you mount the app under a subpath with BASE_PATH=/collabmd, the redirect URI becomes:

https://notes.example.com/collabmd/api/auth/oidc/callback

Notes:

• OIDC requires a stable public URL and is not compatible with ephemeral Cloudflare Quick Tunnel URLs
• After sign-in, the verified Google name/email become the displayed app identity and the default in-app git commit author
• You can restrict sign-in to exact users with AUTH_OIDC_ALLOWED_EMAILS or entire domains with AUTH_OIDC_ALLOWED_DOMAINS
• The CLI disables the tunnel automatically when --auth oidc is active

You can also configure the tunnel via environment variables:

TUNNEL_TARGET_PORT=4000 collabmd
TUNNEL_TARGET_URL=http://127.0.0.1:4000 collabmd
CLOUDFLARED_EXTRA_ARGS="--loglevel info" collabmd

For the full runtime env var reference, see the Environment variables details block in the Development section below.

Docker / Coolify deployment

Published image: ghcr.io/andes90/collabmd:latest

docker run -p 1234:1234 -v /path/to/vault:/data ghcr.io/andes90/collabmd:latest

The container listens on 0.0.0.0:1234 and stores vault files at /data.

Kubernetes / Helm

CollabMD now includes a Helm chart at packaging/helm/collabmd.

Use it when you want a Kubernetes-native deployment with:

• one supported application replica
• a persistent volume mounted at /data
• optional ingress
• optional bundled PlantUML
• secret-backed auth and private git bootstrap settings

Quick start:

helm install collabmd ./packaging/helm/collabmd

For examples covering ingress, OIDC, PlantUML, and private git bootstrap, see packaging/helm/collabmd/README.md.

To bootstrap /data from a private git repository instead, pass the repo URL plus SSH credentials:

docker run \
  -p 1234:1234 \
  -v /path/to/persistent/vault:/data \
  -e [email protected]:your-org/your-private-vault.git \
  -e COLLABMD_GIT_SSH_PRIVATE_KEY_B64="$(base64 < ~/.ssh/id_ed25519 | tr -d '\n')" \
  -e COLLABMD_GIT_USER_NAME="CollabMD Bot" \
  -e COLLABMD_GIT_USER_EMAIL="[email protected]" \
  ghcr.io/andes90/collabmd:latest

For a full local and Docker test walkthrough, including key generation and deploy-key setup, see docs/private-git-deployment.md.

When COLLABMD_GIT_REPO_URL is set, CollabMD clones into COLLABMD_VAULT_DIR on first boot, then reuses that checkout on later starts. If the checkout already exists, startup validates that origin matches. Clean checkouts are fast-forwarded to the remote default branch; dirty checkouts are reused as-is and startup skips the sync.

After bootstrap, CollabMD adds .collabmd/ to the checkout's local git exclude file at .git/info/exclude so runtime metadata stays out of git status without modifying the repo's tracked .gitignore.

File-based secrets are also supported and take precedence over base64 input:

docker run \
  -p 1234:1234 \
  -v /path/to/persistent/vault:/data \
  -v ~/.ssh/id_ed25519:/run/secrets/collabmd_git_key:ro \
  -v ~/.ssh/known_hosts:/run/secrets/collabmd_known_hosts:ro \
  -e [email protected]:your-org/your-private-vault.git \
  -e COLLABMD_GIT_SSH_PRIVATE_KEY_FILE=/run/secrets/collabmd_git_key \
  -e COLLABMD_GIT_SSH_KNOWN_HOSTS_FILE=/run/secrets/collabmd_known_hosts \
  -e COLLABMD_GIT_USER_NAME="CollabMD Bot" \
  -e COLLABMD_GIT_USER_EMAIL="[email protected]" \
  ghcr.io/andes90/collabmd:latest

Local docker-compose with a private PlantUML server

The included docker-compose.yml runs a prebuilt CollabMD image together with a local plantuml/plantuml-server:jetty container and points PLANTUML_SERVER_URL at the private service automatically.

mkdir -p data/vault
docker compose up

Open http://localhost:1234.

To test Google OIDC locally with the included compose setup, register this redirect URI in Google Cloud Console:

http://localhost:1234/api/auth/oidc/callback

Then start compose with the OIDC env vars:

AUTH_STRATEGY=oidc \
PUBLIC_BASE_URL=http://localhost:1234 \
AUTH_OIDC_CLIENT_ID=your-google-client-id \
AUTH_OIDC_CLIENT_SECRET=your-google-client-secret \
docker compose up

If you change COLLABMD_HOST_PORT, update PUBLIC_BASE_URL and the Google redirect URI to match that host port.

By default, compose uses COLLABMD_IMAGE=ghcr.io/andes90/collabmd:latest. If you want to test a local image while developing instead:

docker build -t collabmd:local .
COLLABMD_IMAGE=collabmd:local docker compose up

The PlantUML container is also published on loopback by default at http://127.0.0.1:18080, so the host-based CLI can reuse it with:

npm run start:local-plantuml

To use an existing vault on your machine instead of ./data/vault:

HOST_VAULT_DIR=/absolute/path/to/vault docker compose up

HOST_VAULT_DIR controls the host-side bind mount source. The app uses COLLABMD_VAULT_DIR for the in-container vault path and defaults that to /data in Docker.

To bootstrap the compose-managed vault from a private repo, set the git env vars in .env and keep HOST_VAULT_DIR on a persistent host path. For file-based SSH auth, point COLLABMD_GIT_SSH_PRIVATE_KEY_FILE and COLLABMD_GIT_SSH_KNOWN_HOSTS_FILE at mounted secret paths; for simpler setups, set COLLABMD_GIT_SSH_PRIVATE_KEY_B64 instead.

If you want the in-app Git commit action to work inside the container without OIDC, also set COLLABMD_GIT_USER_NAME and COLLABMD_GIT_USER_EMAIL so CollabMD can configure the checkout identity automatically. With AUTH_STRATEGY=oidc, CollabMD uses the signed-in Google identity for each commit instead.

To change the host port:

COLLABMD_HOST_PORT=3000 docker compose up

To change the local PlantUML host port used by both docker compose and --local-plantuml:

PLANTUML_HOST_PORT=18081 npm run start:local-plantuml

Recommended Coolify setup:

1. Use the included Dockerfile.
2. Expose port 1234.
3. Mount a persistent volume to /data for the vault checkout and runtime files. It can be pre-populated with markdown files or start empty when COLLABMD_GIT_REPO_URL is enabled.
4. Add COLLABMD_GIT_REPO_URL plus either COLLABMD_GIT_SSH_PRIVATE_KEY_FILE or COLLABMD_GIT_SSH_PRIVATE_KEY_B64 if the vault should be cloned from a private repo.
5. Mount known_hosts and set COLLABMD_GIT_SSH_KNOWN_HOSTS_FILE if you want strict host verification.
6. Add a health check for GET /health with enough startup grace for the initial clone.
7. Run a single replica only because room state is in-process and not shared across instances.
8. Set BASE_PATH if the app is mounted under a subpath such as /collabmd.
9. Set PUBLIC_WS_BASE_URL only if your WebSocket endpoint differs from the app origin.

For a standard Coolify reverse-proxy setup, the default same-origin WebSocket routing works as-is and you should not need PUBLIC_WS_BASE_URL.

Health check: GET /health

Troubleshooting

• npx collabmd@latest fails immediately: confirm you are running Node.js 24, which is the supported runtime for source and npm usage
• The app is reachable only from localhost: pass --host 0.0.0.0 or set HOST=0.0.0.0 when you intend to expose it on your network
• Port 1234 is already in use: pass --port 3000 or set PORT to another free port
• Tunnel did not start: install cloudflared, or pass --no-tunnel to stay local-only
• --auth oidc fails on startup: set PUBLIC_BASE_URL, AUTH_OIDC_CLIENT_ID, and AUTH_OIDC_CLIENT_SECRET, and make sure the Google redirect URI matches /api/auth/oidc/callback
• Google login loops back to the auth screen: verify the configured PUBLIC_BASE_URL matches the browser URL and that your reverse proxy forwards HTTPS correctly
• --local-plantuml fails: make sure Docker is installed and running, or point PLANTUML_SERVER_URL at another PlantUML server
• Private git bootstrap fails on startup: verify COLLABMD_GIT_REPO_URL plus either COLLABMD_GIT_SSH_PRIVATE_KEY_FILE or COLLABMD_GIT_SSH_PRIVATE_KEY_B64
• WSL2 path issues: run CollabMD against a directory inside your Linux filesystem when possible rather than a mounted Windows path

Development

Install dependencies:

npm install

Build and run:

npm start

Open http://localhost:1234.

Useful commands:

npm run build                 # Build the Vite client into dist/client
npm run check                 # Syntax check all entry points
npm run dev:client            # Start the Vite dev server with API/WebSocket proxying
npm run dev:server            # Start only the backend server for local frontend development
npm run start                 # Build + start server
npm run start:local-plantuml  # Build + start server with local docker-compose PlantUML
npm run start:prod            # Start server (expects previous build)
npm run test                  # Run unit + e2e tests
npm run test:unit             # Fast Node-based unit tests
npm run test:e2e              # Playwright browser tests
npm run tunnel                # Start only the Cloudflare tunnel
npm run plantuml:up           # Start only the local docker-compose PlantUML service
npm run plantuml:down         # Stop only the local docker-compose PlantUML service
npm run capture:readme-assets # Regenerate the README screenshot and demo assets

Testing

Unit tests

npm run test:unit

Covers the vault file store, HTTP endpoints, collaboration room behavior, WebSocket integration, and supporting domain logic.

End-to-end tests

npx playwright install chromium    # first time only
npm run test:e2e

Playwright boots the full app against the test-vault/ directory and verifies the file explorer, editor, preview, collaboration, chat, outline, and scroll sync flows.

All tests

npm run test

bin/
  collabmd.js              CLI entry point
src/
  client/
    app/                     Vite-owned HTML entries and browser entry modules
    application/           app orchestration, preview rendering, workspace coordination
    bootstrap/             app-shell composition and startup wiring
    domain/                markdown editing, wiki-link, room, and vault helpers
    infrastructure/        runtime config, auth bootstrap, browser ports, collaborative editor session
    presentation/          file explorer, backlinks, quick switcher, outline, scroll sync, theme, layout
    static/                Vite passthrough assets copied into the built client
    styles/                app CSS
  domain/                  shared wiki-link helpers
  server/
    auth/                  strategy selection and cookie-backed auth sessions
    config/                environment loading
    domain/                collaboration room model, registry, backlink index, server-side abstractions
    infrastructure/        HTTP handlers, git service, vault file store, PlantUML, WebSocket gateway
    startup/               preflight vault bootstrap, including remote git checkout setup
dist/
  client/                  built client served by the backend and packaged for release
scripts/
  cloudflare-tunnel.mjs    Cloudflare quick tunnel helper
  local-plantuml-compose.mjs
  capture-readme-assets.mjs
vite.config.mjs            Vite multi-page build and dev-server proxy config

| Variable | Description | Default | |----------|-------------|---------| | HOST | Bind host | 127.0.0.1 (dev), 0.0.0.0 (prod) | | PORT | HTTP + WebSocket port | 1234 | | AUTH_STRATEGY | Auth strategy: none, password, oidc | none | | AUTH_PASSWORD | Shared password for AUTH_STRATEGY=password | generated per run | | AUTH_SESSION_COOKIE_NAME | Session cookie name | collabmd_auth | | AUTH_SESSION_SECRET | Cookie signing secret | generated per run | | PUBLIC_BASE_URL | Stable public app origin required for AUTH_STRATEGY=oidc | | | AUTH_OIDC_CLIENT_ID | Google OAuth client ID used for AUTH_STRATEGY=oidc | | | AUTH_OIDC_CLIENT_SECRET | Google OAuth client secret used for AUTH_STRATEGY=oidc | | | AUTH_OIDC_ALLOWED_EMAILS | Comma-separated exact email allowlist for AUTH_STRATEGY=oidc | | | AUTH_OIDC_ALLOWED_DOMAINS | Comma-separated email domain allowlist for AUTH_STRATEGY=oidc | | | BASE_PATH | URL path prefix for subpath deployments | | | PLANTUML_SERVER_URL | Upstream PlantUML server base URL used for server-side SVG rendering | https://www.plantuml.com/plantuml | | COLLABMD_VAULT_DIR | Vault directory path | CLI: current directory, server entrypoint: data/vault, Docker: /data | | COLLABMD_GIT_ENABLED | Enable or disable git integration in the UI and API | true | | COLLABMD_GIT_REPO_URL | Remote git repository used to bootstrap the vault checkout | | | COLLABMD_GIT_SSH_PRIVATE_KEY_FILE | SSH private key file path for remote git auth; preferred over base64 input | | | COLLABMD_GIT_SSH_PRIVATE_KEY_B64 | Base64-encoded SSH private key used when no key file path is provided | | | COLLABMD_GIT_SSH_KNOWN_HOSTS_FILE | Optional known_hosts file path for strict SSH host verification | | | COLLABMD_GIT_USER_NAME | Fallback git author/committer name for in-app commits when OIDC is not active | | | COLLABMD_GIT_USER_EMAIL | Fallback git author/committer email for in-app commits when OIDC is not active | | | WS_BASE_PATH | WebSocket base path | /ws | | PUBLIC_WS_BASE_URL | Public WebSocket URL override for reverse proxies | | | HTTP_KEEP_ALIVE_TIMEOUT_MS | Keep-alive timeout | 5000 | | HTTP_HEADERS_TIMEOUT_MS | Header read timeout | 60000 | | HTTP_REQUEST_TIMEOUT_MS | Request timeout | 30000 | | WS_HEARTBEAT_INTERVAL_MS | Heartbeat interval for evicting dead clients | 30000 | | WS_ROOM_IDLE_GRACE_MS | Delay before closing empty collaboration rooms to disk | 15000 | | WS_MAX_BUFFERED_AMOUNT_BYTES | Max outbound buffer per WebSocket | 16777216 | | WS_MAX_PAYLOAD_BYTES | Max inbound WebSocket frame | 16777216 | | CLOUDFLARED_BIN | cloudflared binary path | cloudflared | | TUNNEL_TARGET_HOST | Tunnel target host | 127.0.0.1 | | TUNNEL_TARGET_PORT | Tunnel target port | 1234 | | TUNNEL_TARGET_URL | Full tunnel target URL override | | | CLOUDFLARED_EXTRA_ARGS | Extra cloudflared flags | |

Copy the example file:

cp .env.example .env

Notes

• The filesystem is the source of truth; Yjs provides the collaboration layer.
• When COLLABMD_GIT_REPO_URL is set, startup clones the configured repo into COLLABMD_VAULT_DIR on first boot and reuses an existing same-origin checkout on later starts.
• If COLLABMD_GIT_SSH_KNOWN_HOSTS_FILE is not set, SSH falls back to StrictHostKeyChecking=accept-new.
• External filesystem edits are reconciled back into active rooms and the explorer. Ambiguous watcher bursts still fall back to batched workspace reconciliation.
• .obsidian, .git, .trash, and node_modules directories are ignored.
• Only .md, .markdown, and .mdx files are indexed.
• PlantUML preview rendering is server-side and uses PLANTUML_SERVER_URL; point it at a self-hosted renderer if you do not want to use the public PlantUML service.
• docker compose up uses the included local PlantUML service and avoids the public renderer by default. The initial git clone may also require a longer health-check grace period than a purely local vault.
• collabmd --local-plantuml and npm run start:local-plantuml will start the local PlantUML compose service first, then run CollabMD against http://127.0.0.1:${PLANTUML_HOST_PORT:-18080}.

License

MIT
