ReactiveProperty

• Introduction
• Examples
  • View
  • Custom Views
  • Inspector Drawer
  • Video Example
• Reactive Collection
  • List Example
• Views Inspector
• Generated Code

Introduction

Custom realization of Reactive Property to implement MVVM patterns Using zero reflection in runtime, use prebaked generation code for get properties

Examples

ViewModel

Monobehaviour ViewModel with Reactive Propertoes.

• ReactiveProperty will be updated when value are changed
• ReactiveEvent updated every time, even values are equals

public ReactiveEvent dummyEvent;
public ReactiveEvent<bool> boolEvent;

public ReactiveProperty<bool> boolProperty;
public ReactiveProperty<int> intProperty { get; } = new();

public readonly ReactiveProperty<string> stringProperty;

public ReactiveProperty<CurrencyEnumNew> enumProperty;

View

Default View, will be subscribed when OnEnable

public class TestView : View<int>
{
    protected override void UpdateView(int value)
    {
        Debug.Log(value);
    }
}

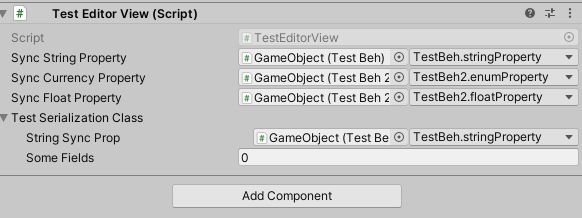

Custom Views

Custom Views with many sync properties, need manual subscribe to properties

public class TestEditorView : MonoBehaviour
{
    [Serializable]
    public class SubSerializeClass
    {
        public SyncReactiveProperty<string> stringSyncProp;
        public int someFields;
    }

    [SerializeField] private SyncReactiveProperty<string> syncStringProperty;

    [SerializeField] private SyncReactiveProperty<CurrencyEnumNew> syncCurrencyProperty;
    [SerializeField] private SyncReactiveProperty<float> syncFloatProperty;

    [SerializeField] private SubSerializeClass testSerializationClass;
}

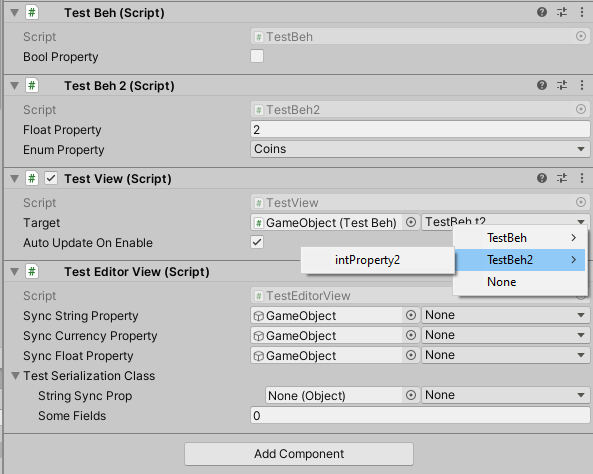

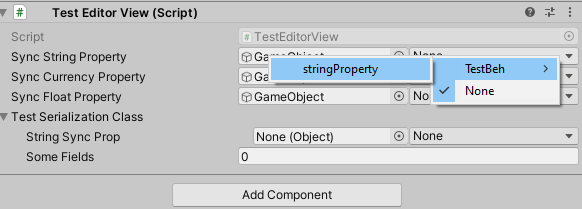

Inspector Drawer

In inspector use dropdown list for select property

Video Example

https://user-images.githubusercontent.com/17832838/185593616-2fe9a97f-a6e2-4ffb-84ab-c753d45cb417.mp4

Reactive Collection

For list in view models use ReactiveList this will enable create views for all items in list

public ReactiveList<T> _models { get; } = new();

For view create a nested class ListView, own Model class and own View(nested ModelView). ListView and View is a monobehaviour;

//example
public class DaysView : ListView<DayView, DayModel>
{
}

[Serializable]
public class DayModel
{
    public int index;
    public bool received;
    public object rewards;
}

public class DayView : ModelView<DayModel>
{
    public ReactiveProperty<int> index;
    public ReactiveProperty<bool> received;
    [NonSerialized] public ReactiveProperty<object> rewards = new();

    public override void SetModel(DayModel model)
    {
        index.Value = model.index;
        received.Value = model.received;
        rewards.Value = model.rewards;
    }
}

You can override all events from reactive list

public abstract void OnAdd(T item);
public abstract void OnClear();
public abstract void OnInsert(int index, T item);
public abstract void OnRemoveAt(int index);
public abstract void OnReplace(int index, T item);
public abstract void OnValueChanged(int index, T item);
public abstract void OnInitialize(IReadOnlyList<T> values);

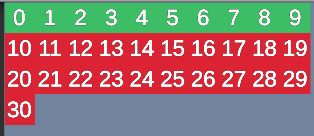

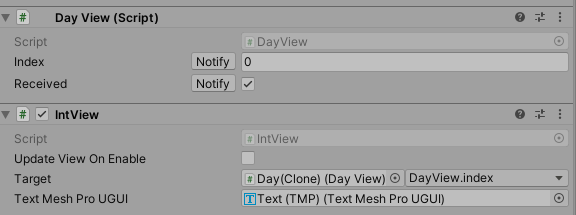

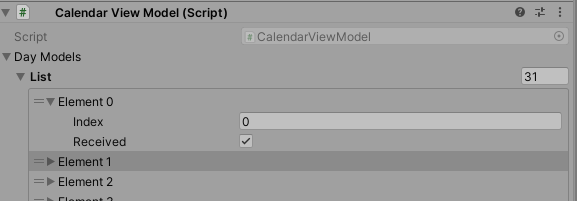

List Example

Screens from Unity to show how its look in editor

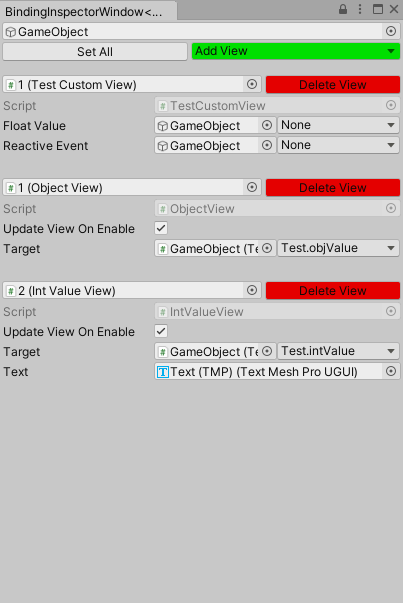

Views Inspector

Custom window to manage all views on GameObject(include childs). Add new View Component, remove exists, change values

Generated Code

For all classes contained ReactiveProperty will be generated Dictionary map with string key and property value

public class Resolver_SettingsWindow : IResolver
{
    public IReactiveProperty Map(UnityEngine.Object target, string name)
    {
        var t = (SettingsWindow)target;
        return name switch
        {
            "UserID" => t.UserID,
            "Version" => t.Version,
            _ => throw new ArgumentOutOfRangeException(nameof(name), name, $"Not Found Reactive {name}")
        };
    }
}

public static class BindersLoader
{
    [RuntimeInitializeOnLoadMethod(RuntimeInitializeLoadType.SubsystemRegistration)]
    private static void InitResolvers()
    {
        Binders.AddResolvers(new()
        {
            { typeof(SettingsWindow), new Resolver_SettingsWindow() },
        });
    }
}
