debug-css-overflow

Zero-dependency dev utility that detects horizontal overflow (overflow-x), highlights the offending elements, and shows a small floating widget — fully isolated inside Shadow DOM.

• 🎯 Detects whole-page overflow (scrollWidth > innerWidth) and individual offenders (offsetWidth / getBoundingClientRect().right beyond the viewport, with a 1px subpixel tolerance).
• 🧬 Parent deduplication: nested overflowing structures (table > tbody > tr > td, nested grid/flex layouts) are collapsed to their top-most ancestors — duplicate counts and stacked outlines are eliminated, so counts, outlines, and tooltips report root-level offenders only (e.g. 1 el. instead of 11 el. for one wide table).
• 🔍 Expanded tooltip metrics: on hover the widget reports the total top-level offender count (Offending elements: {count}) and detailed geometry for the top offender — Element width: {width}px (right edge: {rightEdge}px) plus the viewport excess (+{excess}px). The right edge is surfaced only when it differs from the width (shifted elements), so the overflow math is always transparent.
• 🔦 Hotkey toggles outline highlights on offending elements and layout containers — works even when the auto-status is "OK".
• 📦 Zero runtime dependencies; framework-agnostic; tree-shaken out of production bundles (no DOM access until initDebugCssOverflow() is called).
• 🧩 Widget, tooltip, and modal live in a Shadow Root — host CSS cannot leak in, widget CSS cannot leak out.
• 📡 Event-driven scanning: resize + MutationObserver + ResizeObserver (debounced), no setInterval polling.
• 🎛️ UI preferences (position, accent color, minimized state, badge visibility) persist in localStorage.

Install

Add it as a dev dependency — it's meant for development, and it's tree-shaken out of production builds.

# npm
npm install -D debug-css-overflow

# pnpm
pnpm add -D debug-css-overflow

# yarn
yarn add -D debug-css-overflow

# bun
bun add -d debug-css-overflow

Quick Start

With a bundler (Vite, webpack, etc.)

import { initDebugCssOverflow } from "debug-css-overflow";

// Dev-only, e.g.:
if (import.meta.env.DEV) {
  initDebugCssOverflow();
}

Plain HTML (no build step)

Drop the pre-built bundle in with a <script> tag — either from a CDN or your own node_modules copy:

<script src="https://unpkg.com/debug-css-overflow/dist/index.global.js"></script>
<!-- or: https://cdn.jsdelivr.net/npm/debug-css-overflow/dist/index.global.js -->
<script>
  DebugCssOverflow.initDebugCssOverflow();
</script>

With options

import { initDebugCssOverflow } from "debug-css-overflow";

const detector = initDebugCssOverflow({
  position: "top-right",
  offset: { top: 64 }, // clear a fixed top navbar (52px + 12px gutter)
  accentColor: "#ff0055",
  onChange: (state) => console.log("overflow state:", state),
});

initDebugCssOverflow() returns a controller (or null when enabled: false) and dispatches a debug-css-overflow:change CustomEvent on document whenever the overflow state changes.

// From the controller:
detector?.toggleHighlight(); // toggle container outlines
detector?.setMinimized(true); // collapse the widget to a dot
detector?.setOffset({ top: 96 }); // follow a (re-)wrapped fixed header in place
detector?.destroyed; // true once destroyed — every method is then a safe no-op
detector?.destroy(); // remove the widget and stop scanning

Astro View Transitions (ClientRouter)

On the first successful initDebugCssOverflow() the library wires its own listeners for the Astro ClientRouter lifecycle events on document — no extra API calls needed:

• astro:after-swap — the swapped-out DOM discarded the widget host, so the stale instance is torn down (observers, listeners, detached nodes).
• astro:page-load — a fresh detector is created for the "new" page from the last options — but only when there is none. Apps that re-initialize the detector themselves inside their own astro:page-load handler (e.g. recomputing offset.top from the current rendered header height) register that handler first, so their instance is already live when the library's runs; the library adopts it instead of replacing it. This keeps the behavior order-independent: a dynamically recomputed offset is never silently swapped for the stale boot-time one, and controller references the app holds (for setOffset() calls from header-following observers) never end up pointing at a destroyed instance.

A deliberate teardown — the widget's "disable for this session" button, destroyDebugCssOverflow(), or initDebugCssOverflow({ enabled: false }) — is honored across navigations: nothing is resurrected by later lifecycle events.

Options

| Option | Type | Default | Description | | ----------------- | --------------------------------- | ------------- | -------------------------------------------------------- | | enabled | boolean | true | false → nothing is created at all. | | minimized | boolean | false | Start collapsed into a dot. | | position | "top-right" \| "top-left" \| "bottom-left" \| "bottom-right" | "top-right" | Widget corner. | | offset | { top?, right?, bottom?, left? } (px) | {} | Displace the widget from the viewport edge, overriding the default 12px gutter for the edges given — e.g. { top: 64 } clears a fixed top navbar. Only edges matching the current position are applied. | | accentColor | string | "#ff0055" | Highlight + widget accent color. | | showMetricsBadge| boolean | true | Show the compact metrics badge when minimized. | | hotkeys | { toggleHighlight?, toggleMinimize? } | { toggleHighlight: "Alt+O", toggleMinimize: "Ctrl+Alt+O" } | Keyboard shortcuts. | | storagePrefix | string | "dcso:" | Prefix for localStorage keys. | | onChange | (state: OverflowState) => void | — | Called whenever the overflow state changes. |

Hotkeys

• Alt+O — toggle container outline highlights.
• Ctrl+Alt+O — collapse / expand the widget to a dot.

Development

pnpm install
pnpm typecheck   # strict TypeScript check
pnpm test        # vitest (unit geometry + E2E widget tests)
pnpm build       # tsup → dist/index.mjs, dist/index.cjs, dist/index.global.js (+ .d.ts)

prepublishOnly runs pnpm build && pnpm test so unbuilt or failing code can never be published. The screenshot suite additionally needs a Chromium binary: either the Playwright-managed one (npx playwright install chromium) or any system Chrome/Chromium.

Playground & screenshots

tests_plugin/ is a Vite multi-page playground that showcases and visually tests the widget across six routes. Every route features the same sticky, dark-themed DevTools header — the fixed top navbar — whose Toggle Overflow button flips body.layout-broken to dynamically trigger or clear the intentional overflow breakages across the shared test cases (width: 120vw, an un-scrolled wide <table>, white-space: nowrap, left: 110%):

| Route | Stack | | ----- | ----- | | /vanilla/ | Plain HTML + TypeScript | | /nunjucks/ | Nunjucks + HTMX (dynamic DOM insertion) | | /svelte/ | Svelte 5 (scoped CSS) | | /vue/ | Vue 3 (scoped CSS) | | /react/ | React 19 | | /astro/ | Astro View Transitions emulation (pure client-side — no astro package) |

cd tests_plugin && pnpm dev   # http://localhost:5173

The /astro/ route extends the DevTools toolbar with an interactive ClientRouter control panel: simulation buttons (Simulate Navigation, Simulate After Swap, Simulate Page Load), a ⓘ tooltip explaining the emulation, and live metrics (hosts, styles, overflow, last event) that update in real time as each simulation runs — confirming a clean teardown (hosts: 0) and a fresh mount (hosts: 1) on every simulated navigation, without memory leaks or duplicate instances. On every astro:page-load the widget's offset.top is recomputed from the current rendered geometry of the (possibly wrapped) navbar and toolbar, so after resizing until the toolbar buttons stack into multiple rows, the badge remounts strictly below them with a 12px gutter — never overlapping the action buttons. The route is a lightweight emulation, not a real Astro app — Astro is a standalone meta-framework and is not layered into the Vite dev server — dispatching the same native astro:after-swap / astro:page-load DOM events the Astro ClientRouter emits. The control panel is fully responsive: on narrow viewports the title, metrics, and buttons wrap into stacked rows, and the tooltip never exceeds the viewport edge.

The playground's sticky DevTools header is fully responsive on mobile: at viewports <= 640px the six framework tabs collapse from text labels to compact framework SVG icons (Vanilla, Nunjucks, Svelte, Vue, React, Astro) so brand, tabs, and the Toggle Overflow button fit on one line — every tab keeps its full accessible name via title/aria-label.

pnpm test:screenshot (alias pnpm capture) drives the whole playground headlessly with Playwright: it boots the Vite dev server, visits every route at 1440x900 (plus a 375x812 mobile overflow pass), and captures four states — overflown, highlighted, minimized, and clean — into .github/assets/:

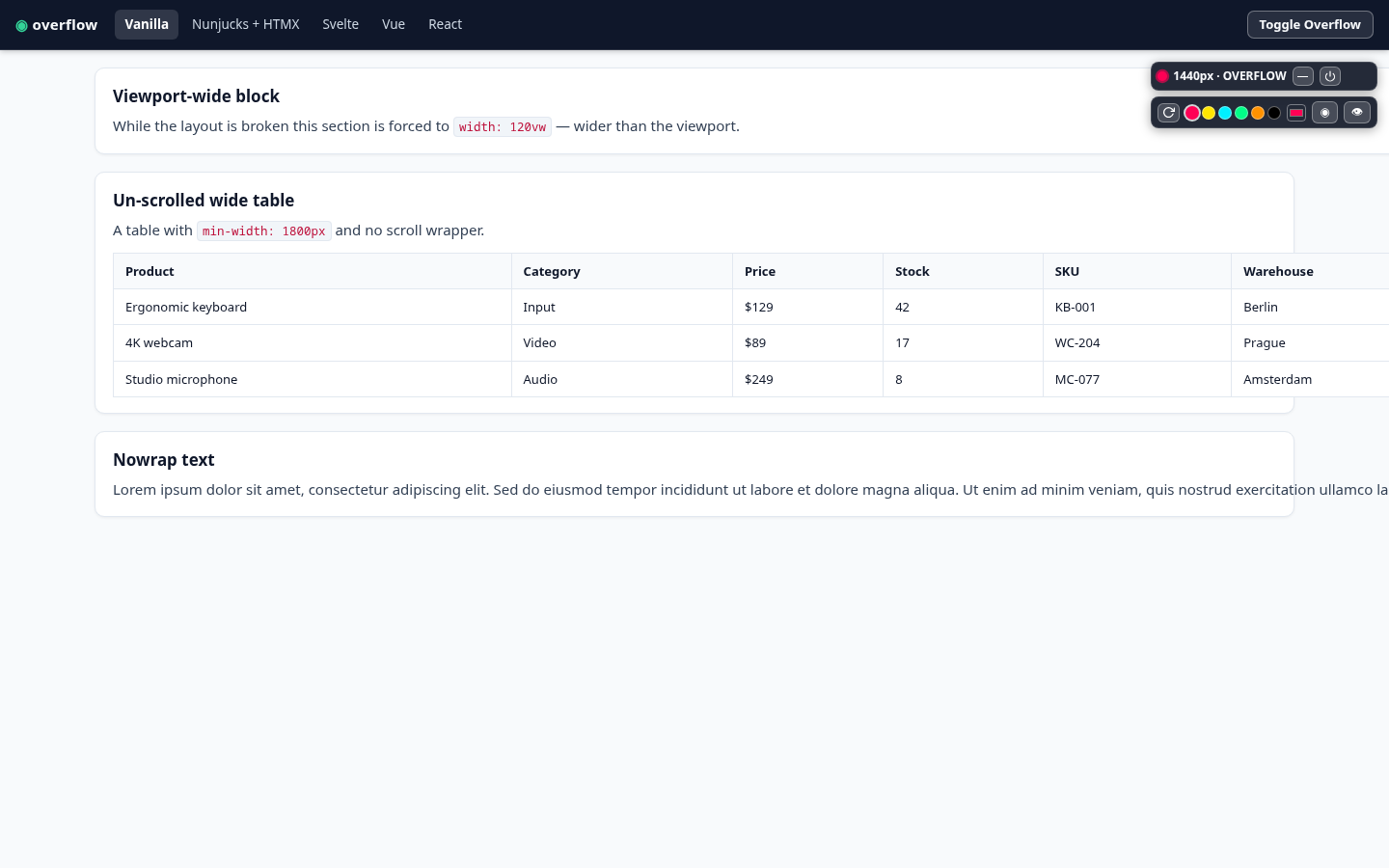

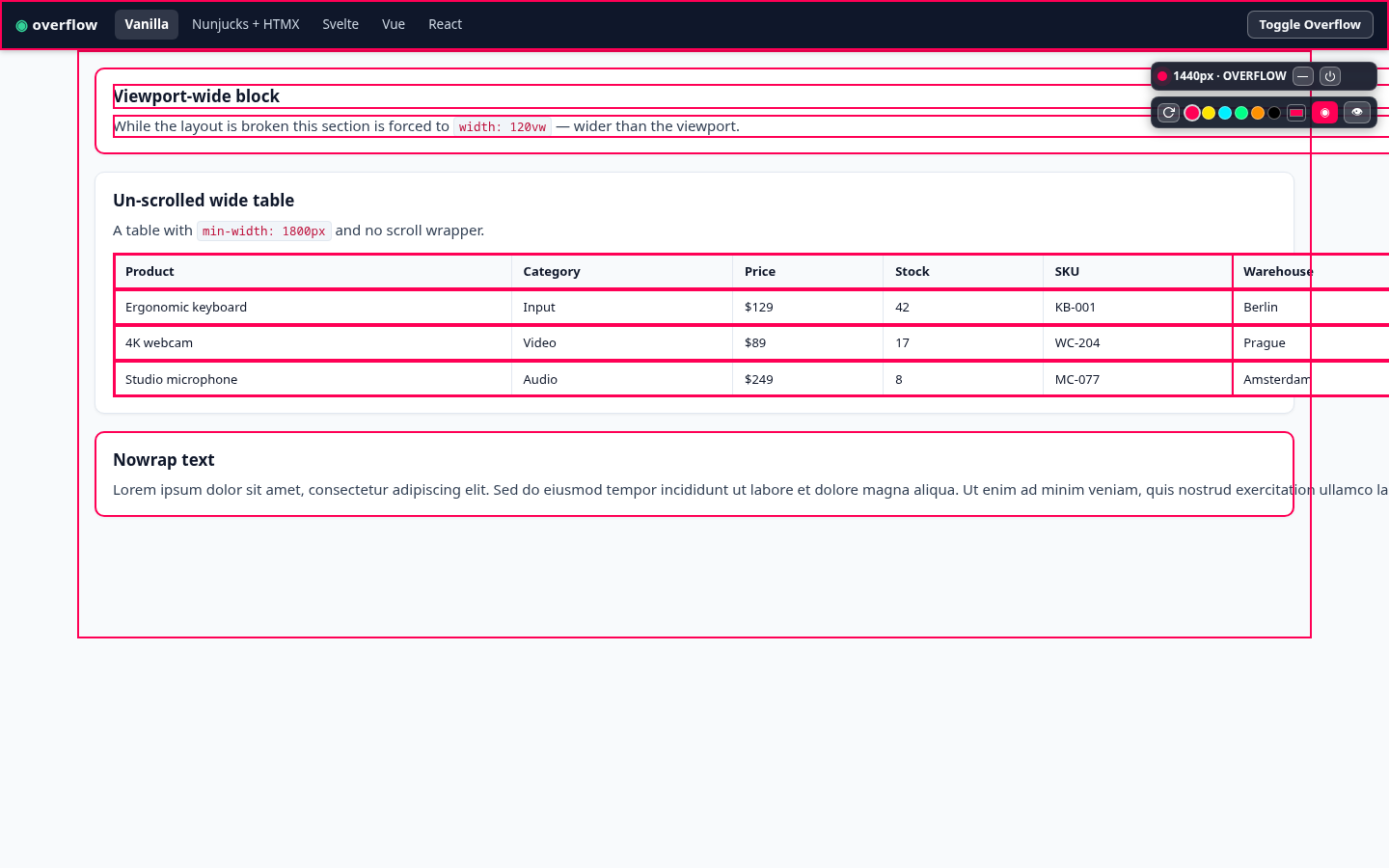

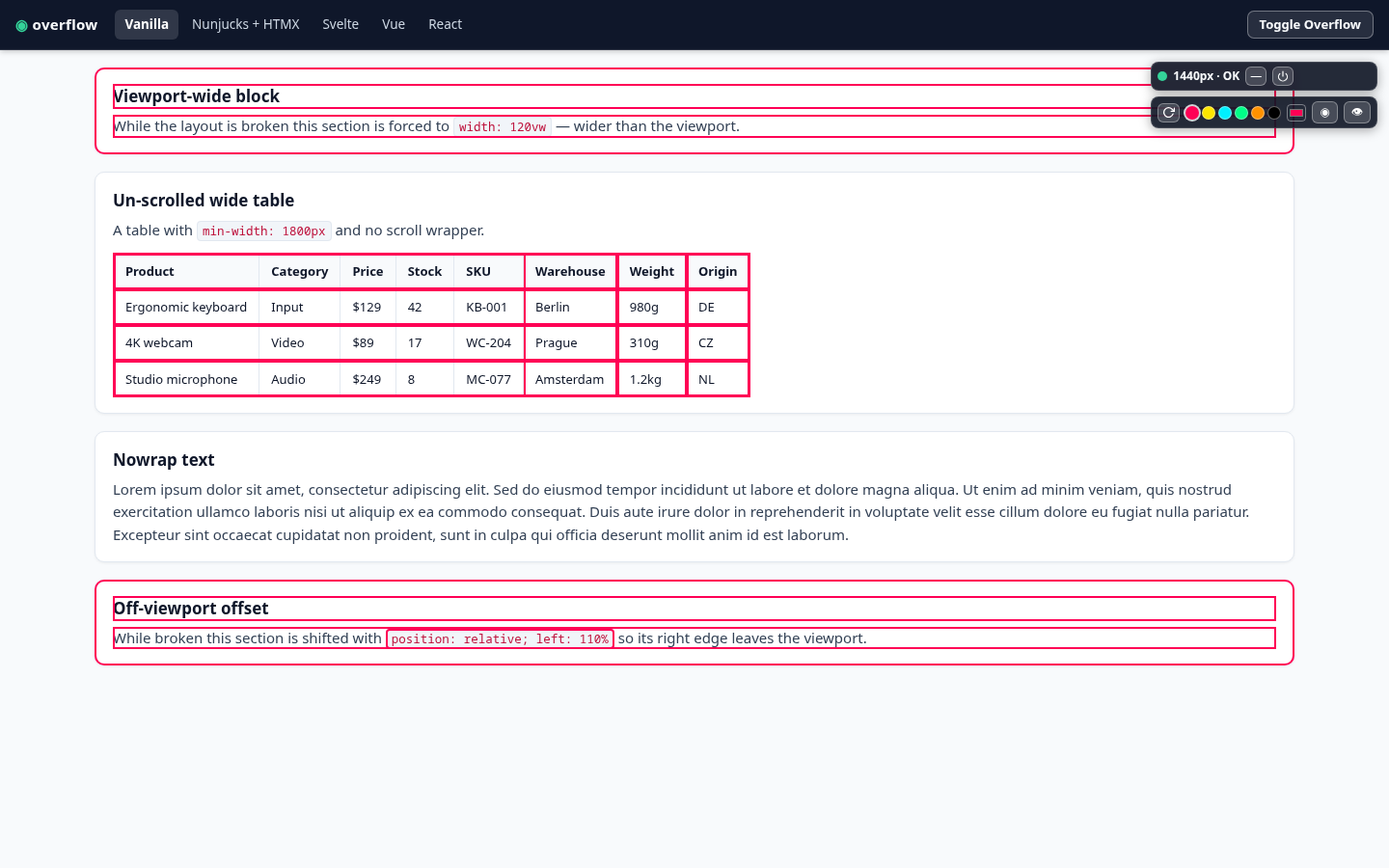

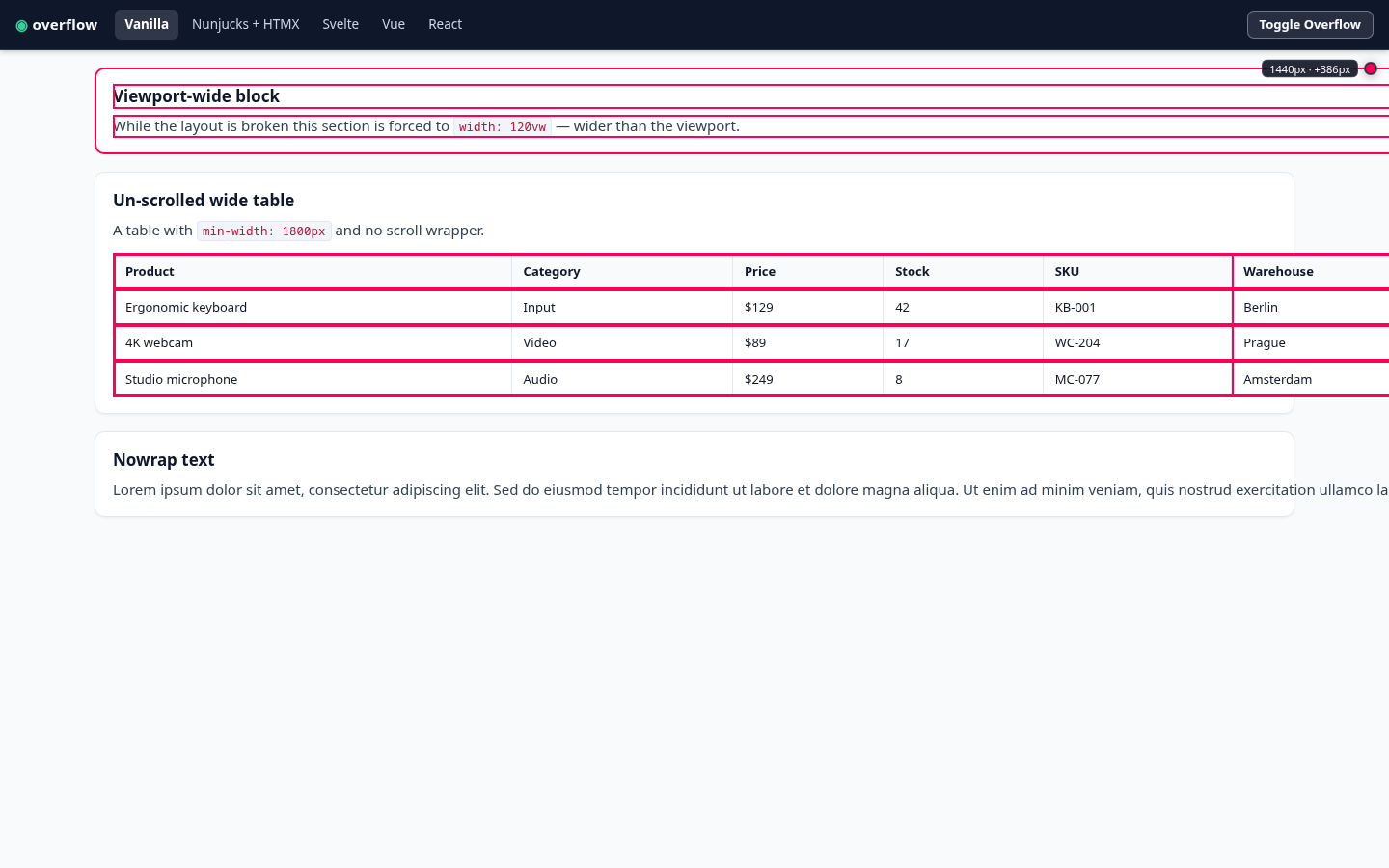

| State | Preview | | ----- | ------- | | demo-danger.png — widget reports offenders (OVERFLOW) | | | demo-highlight.png — container outlines on | | | demo-minimized.png — collapsed dot + metrics badge | | | demo-clean.png — no overflow, status OK | |

Per-route copies live in .github/assets/<route>/, and mobile danger shots in .github/assets/mobile/.

The suite runs headless Chromium through Playwright and resolves the browser gracefully — first the Playwright-managed build, then the system Chrome/Chromium. Install the managed browser once:

npx playwright install chromium

or point the suite at a specific system binary when needed:

PLAYWRIGHT_CHROMIUM_EXECUTABLE_PATH=/usr/bin/google-chrome-stable pnpm test:screenshot
# also honored: CHROME_PATH, CHROMIUM_PATH

The playground, screenshot scripts, and generated assets are dev-only and excluded from the published package via the files: ["dist"] allowlist.

License

MIT © vinyardrip
