DESIGN:OS Code2Flow (design-os-code2flow)

Local-first AST codebase-to-user-flow mapper and 11-heuristic UX gap auditor across 7 frontend and mobile frameworks.

Statically analyze Next.js, React Router, TanStack Router, Expo Router, SwiftUI, Flutter, and Jetpack Compose repositories to generate Mermaid user-flow graphs and catch dead-end screens, missing error boundaries, and unguarded auth routes.

Why this exists

Product teams rarely keep user-flow diagrams in sync with production code, and AI agents frequently ship screens with missing loading states, dead-end routes, or unauthenticated pages. design-os-code2flow parses your actual source files locally to extract the real route graph and audit it against 11 structural UX heuristics.

| Dimension | Generic AI / Manual Workflow | DESIGN:OS Code2Flow (DESIGN:OS) | | :--- | :--- | :--- | | Source of Truth | Outdated Figma flowcharts that drifted from code months ago | Directly extracted from live route files, AST navigation calls, and layouts | | Framework Coverage | Single-framework scripts that break on mobile or monorepos | Unified analyzer for Next.js, React Router, TanStack, Expo, SwiftUI, Flutter & Compose | | UX Defect Detection | Manual QA clicking through every screen after deployment | Automated 11-heuristic static audit (dead ends, missing error/loading states, auth leaks) | | Privacy & Speed | Uploading proprietary source code to third-party SaaS scanners | 100% local execution in milliseconds with zero network calls | | Privacy & Telemetry | Opaque cloud telemetry or unverified third-party APIs | Zero telemetry — 100% local execution (PRIVACY.md audited) |

Quickstart

1. Install the plugin or CLI

In Claude Code:

/plugin marketplace add jangtrinh/design-os-code2flow
/plugin install design-os-code2flow@design-os-code2flow

Or from your terminal (Codex, Gemini CLI, Antigravity, OpenCode, or standalone CLI):

git clone https://github.com/jangtrinh/design-os-code2flow.git
cd design-os-code2flow
npm test

2. Ask in plain English

Open your project in your AI coding agent and describe what you need:

"Scan this Next.js App Router repository with code2flow, generate the Mermaid user-flow diagram, and list all high-severity UX gaps."

"Audit our SwiftUI navigation stack for dead-end screens, missing loading/error states, and unguarded destructive actions."

"Export a JSON + Markdown user-flow topology report for our PR review gate."

3. Verify your setup

python3 scripts/self_check.py

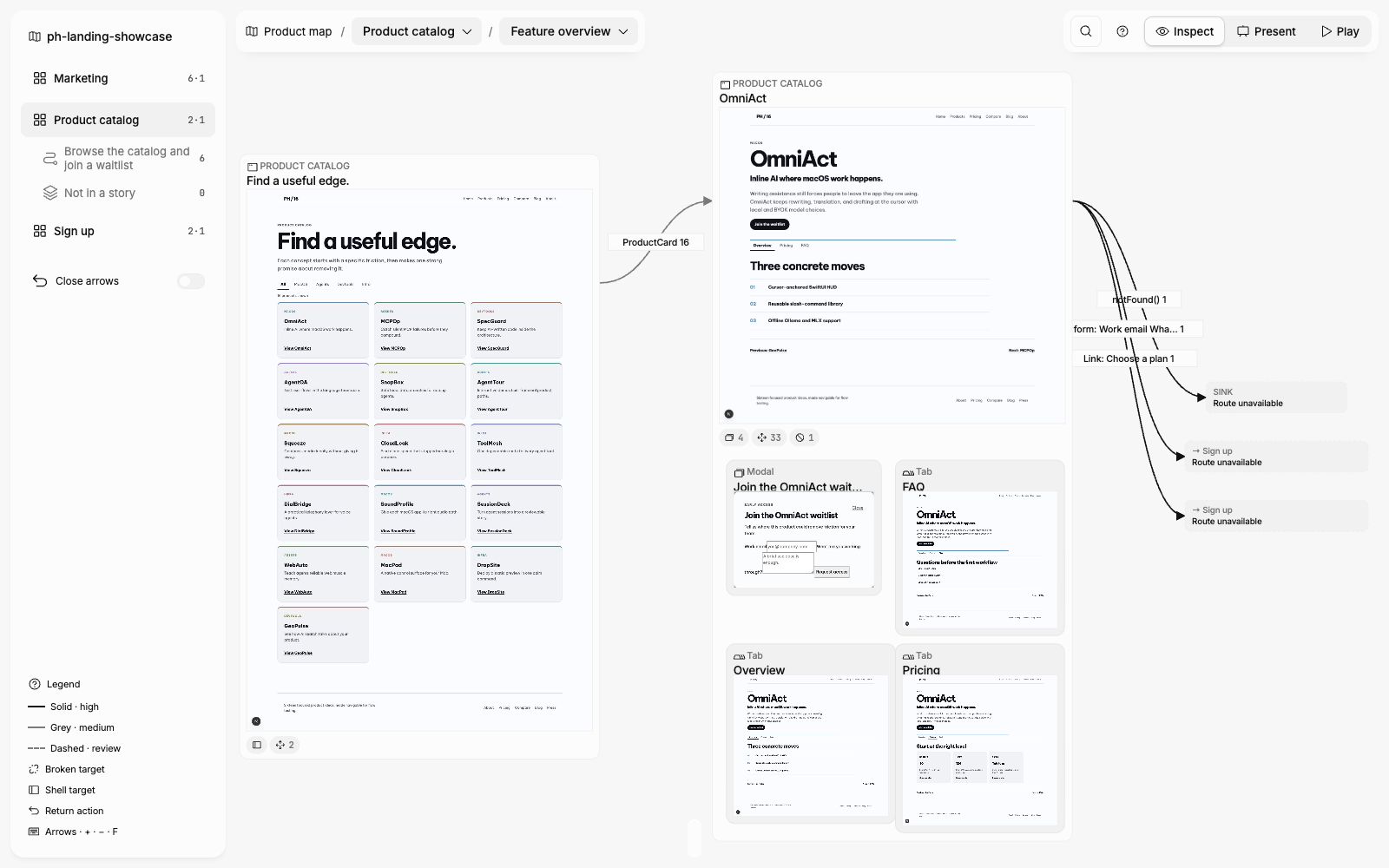

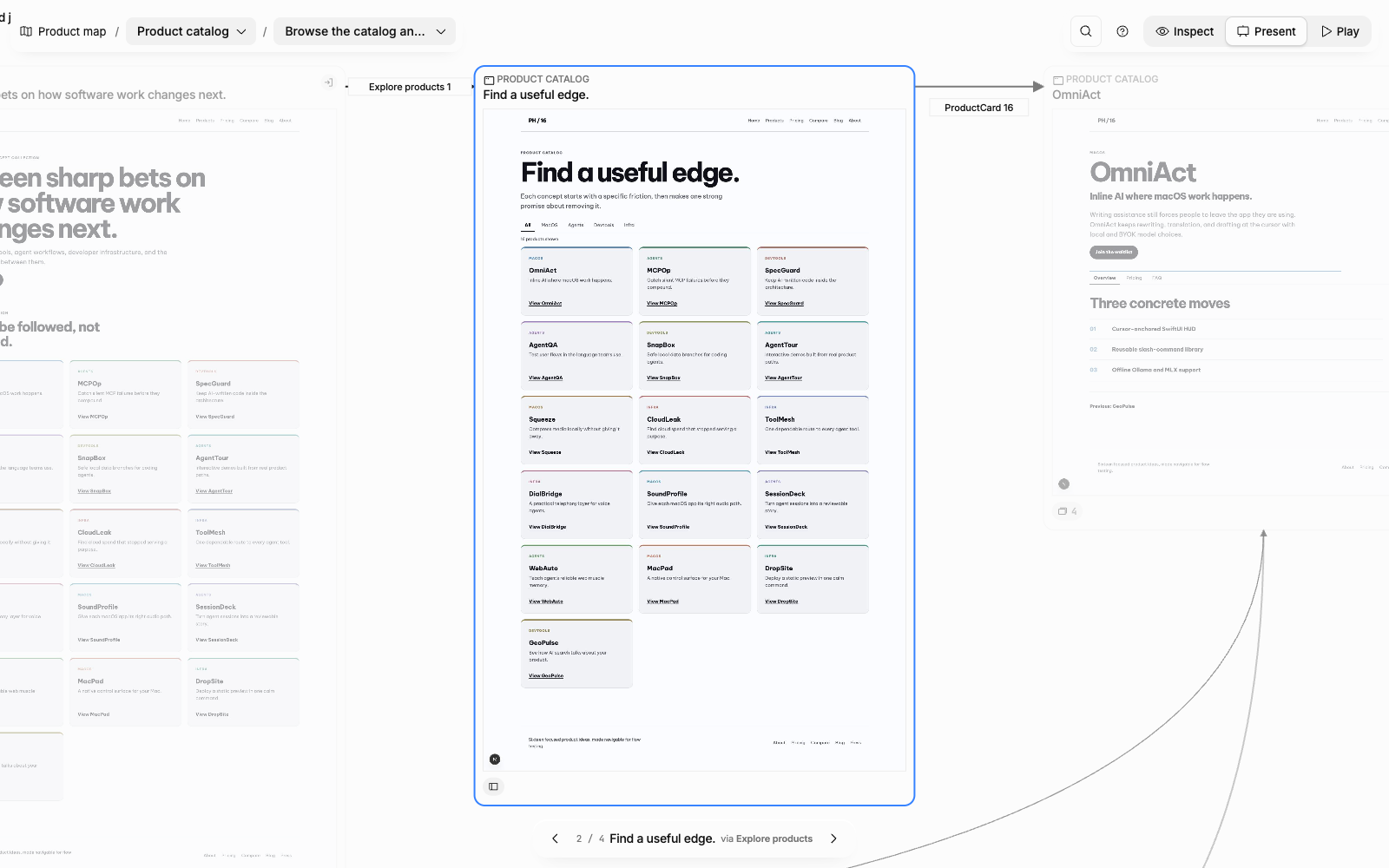

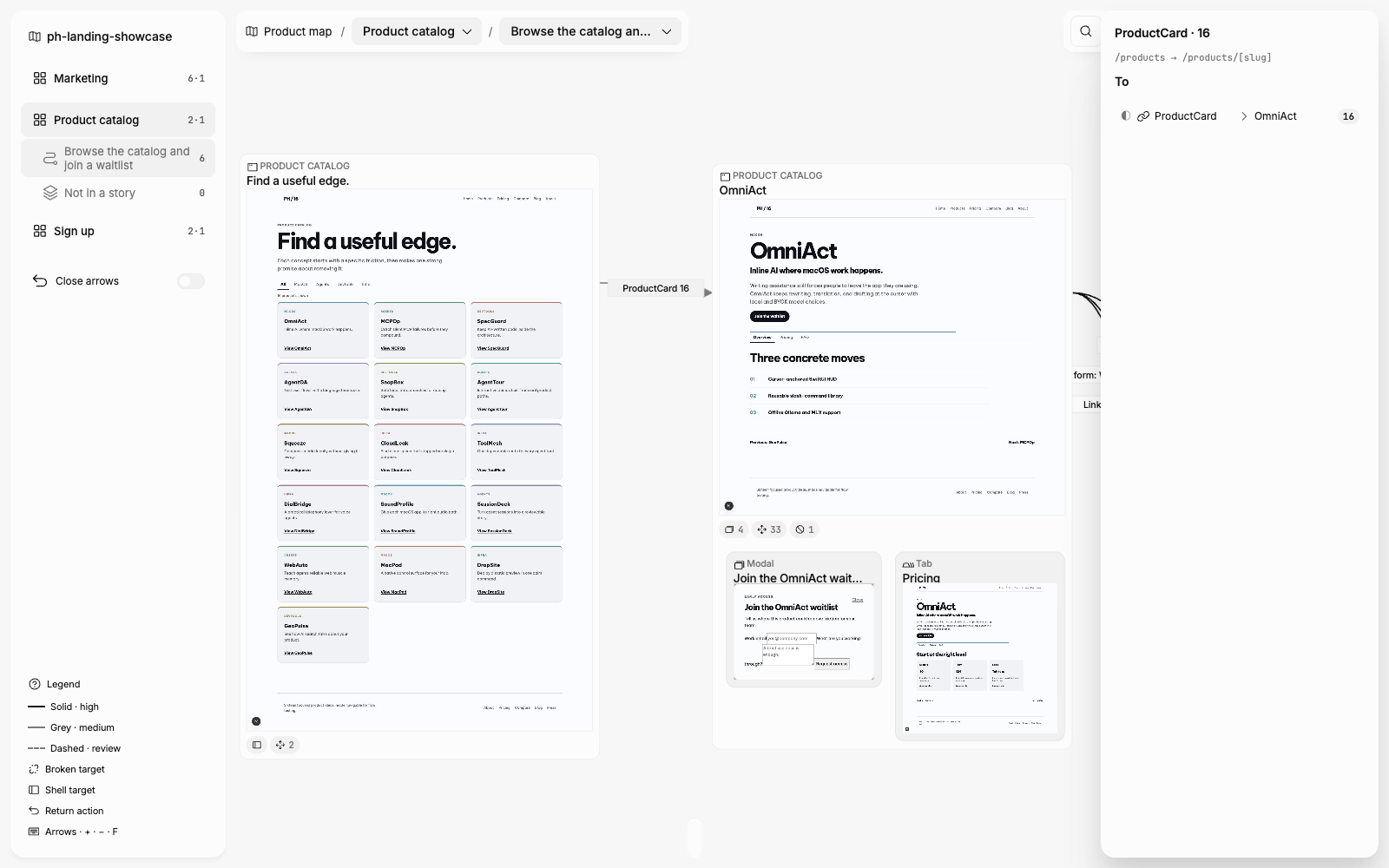

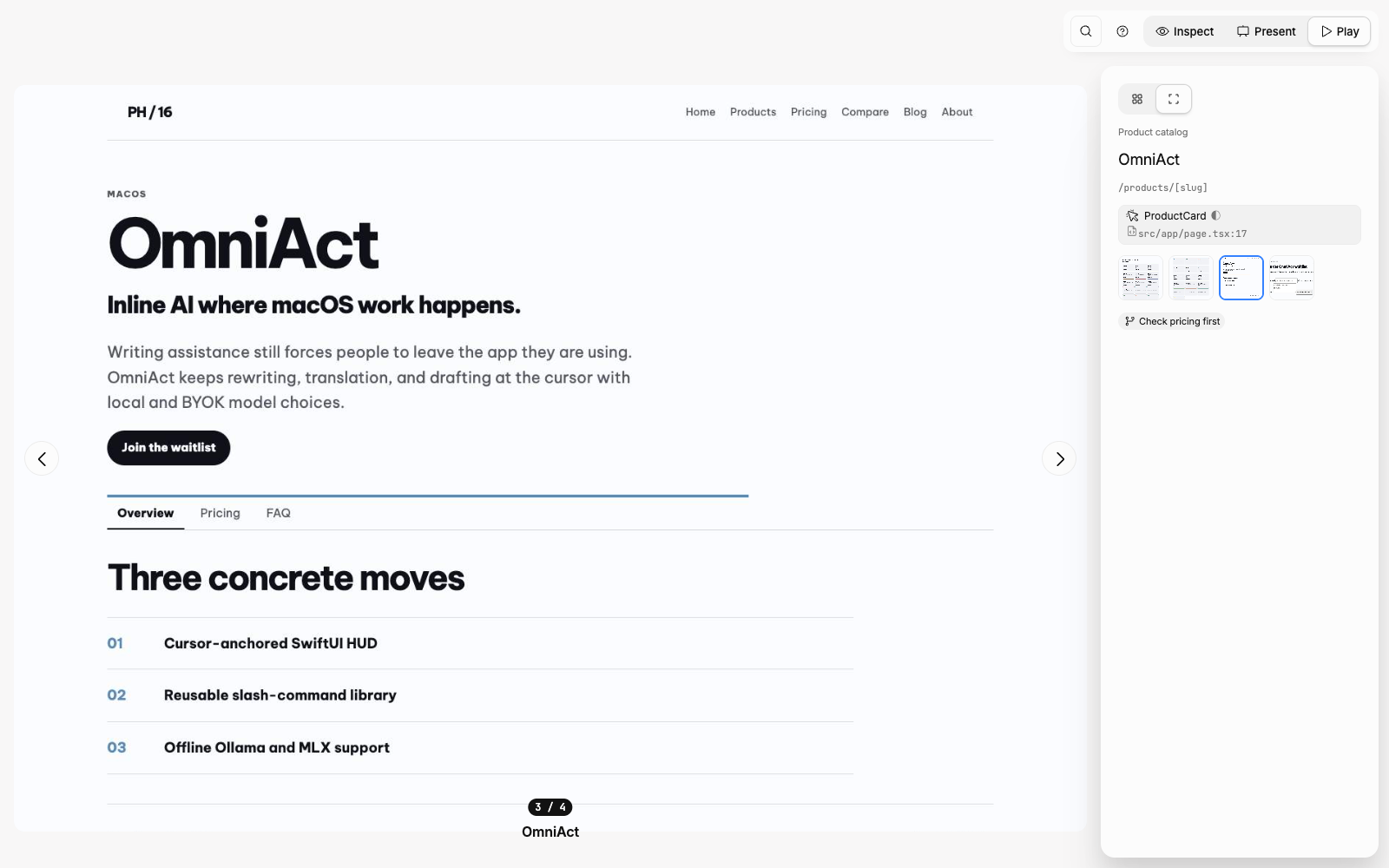

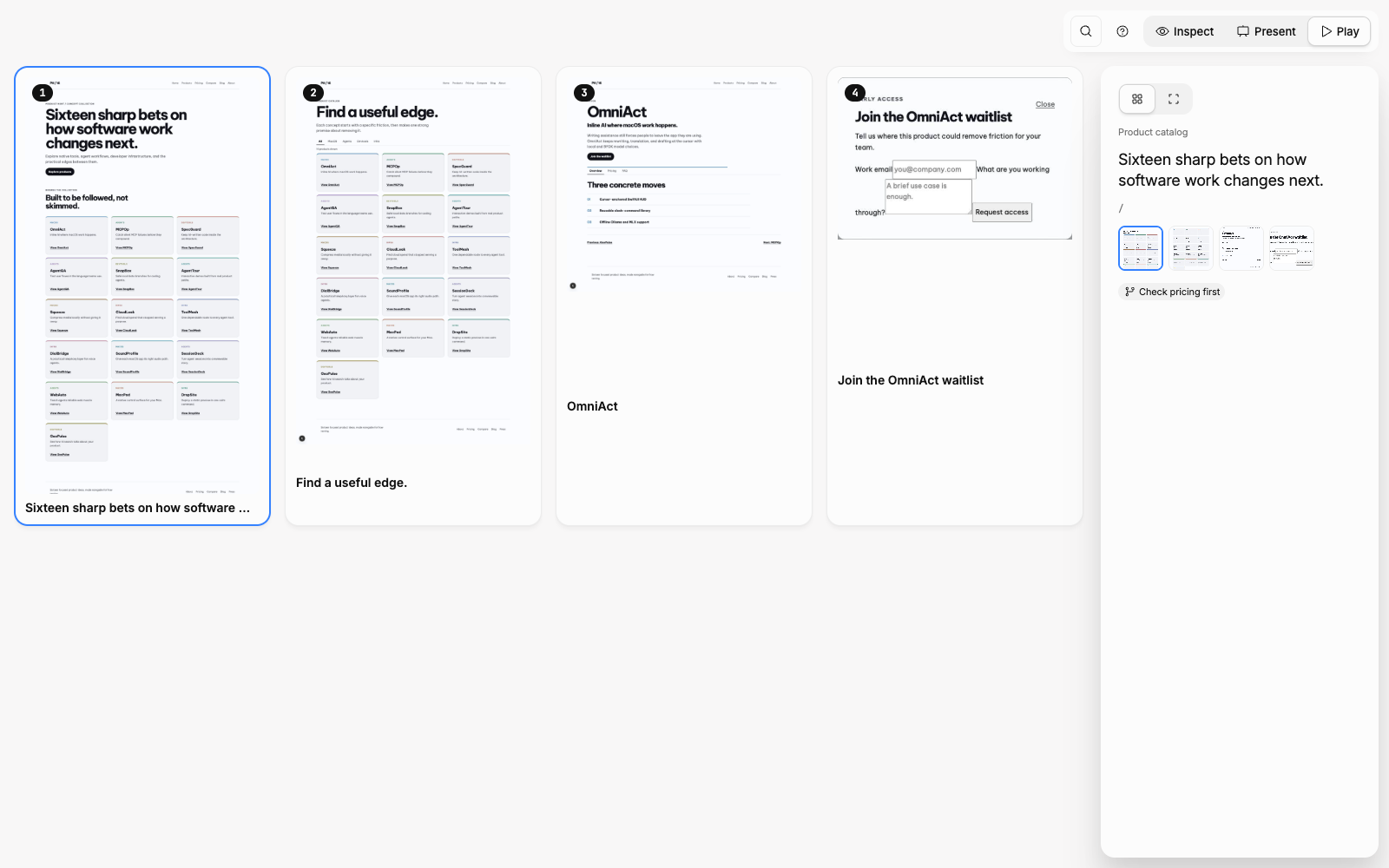

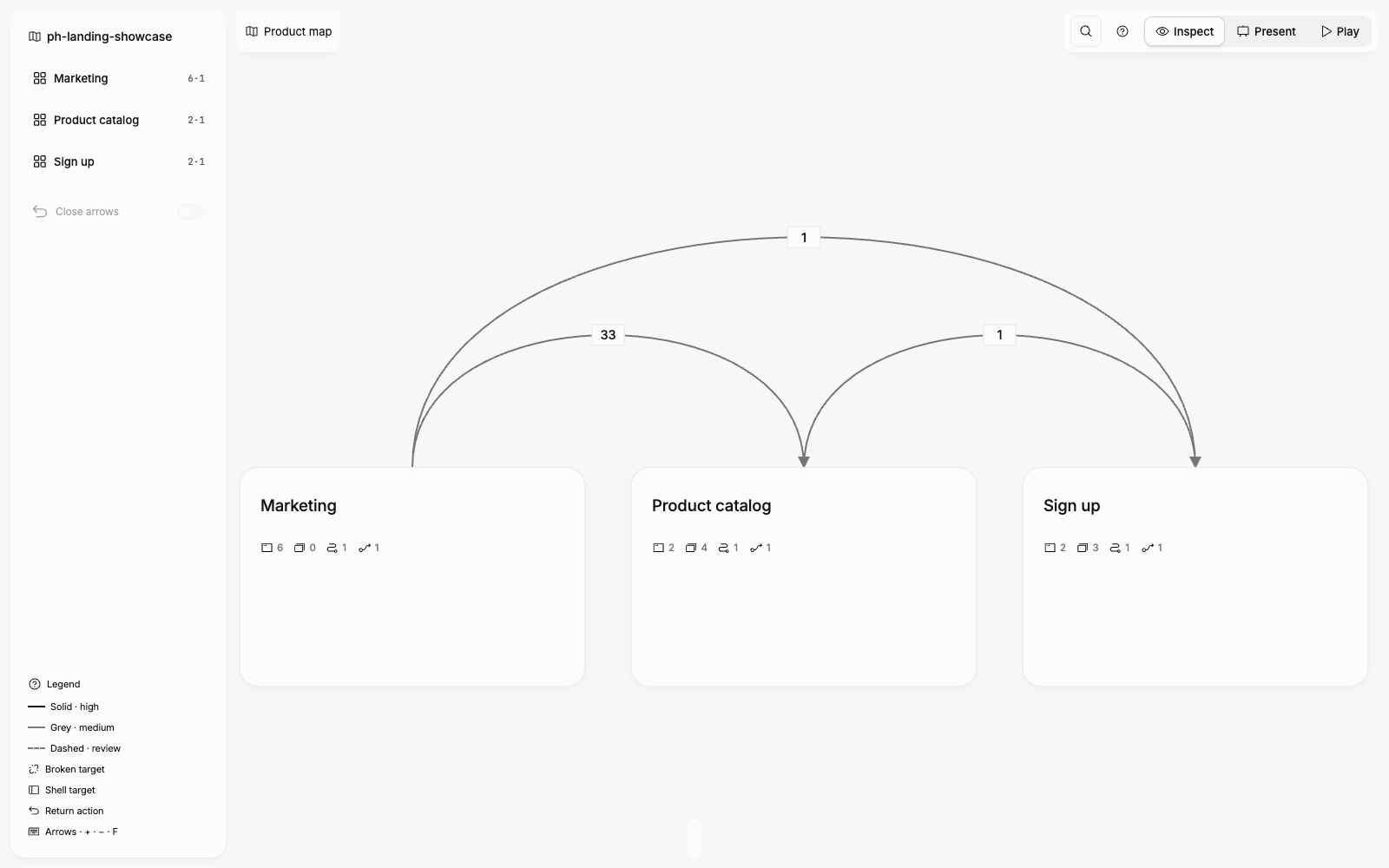

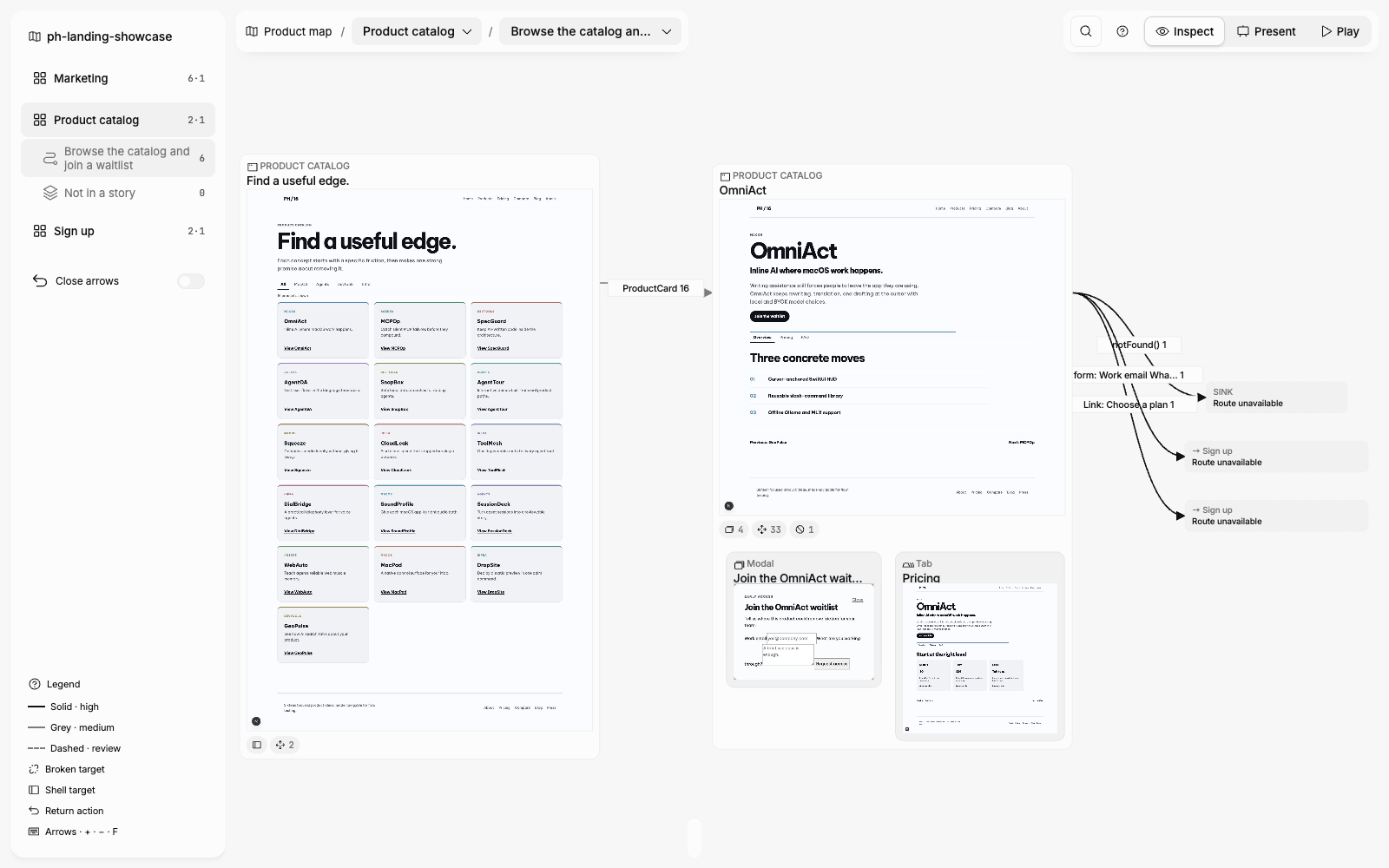

What it makes

Every deliverable produced by design-os-code2flow is backed by a deterministic verification gate rather than freehand AI guesswork.

| Deliverable / Mode | Best for | Output Format | Verification Gate | | :--- | :--- | :--- | :--- | | Mermaid User-Flow Graph | Visualizing every route, modal, redirect, and navigation edge in the codebase | Mermaid (.mmd / Markdown) | 100% route discovery parity | | 11-Heuristic UX Audit Report | Flagging dead ends, orphan screens, missing error boundaries, and auth gaps | Markdown + JSON Diagnostics | Exit code gate for CI/CD | | Programmatic AST SDK | Embedding route-graph extraction and UX auditing inside custom agent workflows | TypeScript / ESM SDK | npm test suite PASS |

Installation

Choose the setup that matches your AI coding agent. Every option installs the same canonical skill (skills/design-os-code2flow/SKILL.md) and /doctor diagnostic suite.

Claude Code

Run these two commands inside Claude Code:

/plugin marketplace add jangtrinh/design-os-code2flow
/plugin install design-os-code2flow@design-os-code2flow

OpenAI Codex

Install to your personal Codex skills directory:

git clone https://github.com/jangtrinh/design-os-code2flow.git /tmp/design-os-code2flow
mkdir -p ~/.codex/skills/design-os-code2flow ~/.codex/prompts
cp -R /tmp/design-os-code2flow/skills/design-os-code2flow/* ~/.codex/skills/design-os-code2flow/
cp /tmp/design-os-code2flow/prompts/doctor.md ~/.codex/prompts/design-os-code2flow-doctor.md
rm -rf /tmp/design-os-code2flow

Gemini CLI & Google Antigravity

git clone https://github.com/jangtrinh/design-os-code2flow.git /tmp/design-os-code2flow
mkdir -p ~/.gemini/skills/design-os-code2flow
cp -R /tmp/design-os-code2flow/skills/design-os-code2flow/* ~/.gemini/skills/design-os-code2flow/
rm -rf /tmp/design-os-code2flow

OpenCode, Cursor, Windsurf & Other Agent Harnesses

git clone https://github.com/jangtrinh/design-os-code2flow.git /tmp/design-os-code2flow
mkdir -p ~/.agents/skills/design-os-code2flow
cp -R /tmp/design-os-code2flow/skills/design-os-code2flow/* ~/.agents/skills/design-os-code2flow/
rm -rf /tmp/design-os-code2flow

Verify installation:

python3 scripts/self_check.py

Or run /doctor inside Claude Code / Codex to inspect installed skill paths, plugin manifests, and gate health.

Uninstall:

rm -rf ~/.claude/skills/design-os-code2flow ~/.codex/skills/design-os-code2flow ~/.gemini/skills/design-os-code2flow ~/.agents/skills/design-os-code2flow

Usage & Prompt Cookbook

Once installed, skills/design-os-code2flow/SKILL.md activates automatically when your prompt matches its domain triggers. Browse docs/cookbook.md for copy-paste prompt recipes.

Generate & Scaffold

"Scan this Next.js App Router repository with code2flow, generate the Mermaid user-flow diagram, and list all high-severity UX gaps."

Audit & Verify

"Audit our SwiftUI navigation stack for dead-end screens, missing loading/error states, and unguarded destructive actions."

Export & Automate

"Export a JSON + Markdown user-flow topology report for our PR review gate."

Commands & Diagnostics

| Command | Environment | What it does | | :--- | :--- | :--- | | /doctor | Claude Code / Codex | Read-only diagnostic check of installed skill paths, plugin manifests, and runtime prerequisites | | python3 scripts/self_check.py | Terminal / CI | Deterministic offline verification of manifests, skill contracts, and governance files | | node bin/code2flow.mjs audit . | Terminal / CI | Scan a frontend or mobile repository, emit Mermaid user-flow diagrams, and run the 11-heuristic UX gap audit |

How it works

1. Intent Routing — Your AI agent matches your request against skills/design-os-code2flow/SKILL.md frontmatter triggers.
2. Progressive Context Loading — Only the entry-point SKILL.md router loads initially; detailed recipes and scripts load on demand.
3. Deterministic Execution — Domain scripts and contracts execute locally with reproducible inputs and outputs.
4. Gate Verification — scripts/self_check.py and domain verifiers (npm test) validate the artifact before completion.
5. Zero-Telemetry Delivery — Verified files are written directly to your workspace with zero external network calls.

User Prompt / CLI Invocation
            │
            ▼
┌───────────────────────────────────────────────┐
│ skills/design-os-code2flow/SKILL.md
│ Progressive disclosure router & hard rules    │
└───────────┬───────────────────────────────────┘
            │ loads on demand
            ▼
┌───────────────────────────────────────────────┐
│ node bin/code2flow.mjs audit .
│ Deterministic build & contract enforcement    │
└───────────┬───────────────────────────────────┘
            │ verifies
            ▼
┌───────────────────────────────────────────────┐
│ python3 scripts/self_check.py + /doctor       │
│ Zero-telemetry local verification gate        │
└───────────────────────────────────────────────┘

What loads when

design-os-code2flow uses progressive context disclosure so your agent's context window stays fast and focused:

| File | Loaded when | | :--- | :--- | | skills/design-os-code2flow/SKILL.md | Always (~100–150 lines) — routing rules, triggers, and execution workflow | | docs/cookbook.md | When selecting multi-step prompt recipes or domain patterns | | commands/doctor.md / prompts/doctor.md | Only when running /doctor diagnostics | | llms.txt | When indexed by AI answer engines, RAG pipelines, or repo crawlers |

File structure

design-os-code2flow/
├── .claude-plugin/
│   ├── plugin.json                 # Claude Code plugin manifest
│   └── marketplace.json            # Claude Code marketplace catalog
├── .codex-plugin/
│   └── plugin.json                 # OpenAI Codex plugin & interface manifest
├── .agents/
│   └── plugins/marketplace.json    # Cross-agent local plugin registry
├── .factory-plugin/
│   ├── plugin.json                 # Factory / Droid plugin manifest
│   └── marketplace.json            # Factory marketplace metadata
├── skills/
│   └── design-os-code2flow/
│       └── SKILL.md                # Canonical agent skill entrypoint
├── commands/
│   └── doctor.md                   # /doctor diagnostic slash command
├── prompts/
│   └── doctor.md                   # Codex diagnostic prompt mirror
├── scripts/
│   └── self_check.py               # Deterministic repository & skill self-check
├── docs/
│   ├── cookbook.md                 # Copy-paste prompt recipes by job
│   └── llms.txt                    # GEO / LLM discovery index
├── PRIVACY.md                      # Zero-telemetry & local-first privacy commitment
├── SECURITY.md                     # Vulnerability disclosure & security policy
├── CONTRIBUTING.md                 # Contribution workflow & verification rules
├── CODE_OF_CONDUCT.md              # Contributor Covenant code of conduct
├── CHANGELOG.md                    # Release history
├── llms.txt                        # Root LLM indexing manifest
├── LICENSE                         # PolyForm Shield 1.0.0
└── README.md

Quality bar & Limitations

It's working if...

• python3 scripts/self_check.py prints ok: design-os-code2flow self-check passed (design-os-code2flow) and exits 0.
• npm test passes with zero contract or test regressions.
• Your AI coding agent loads skills/design-os-code2flow/SKILL.md automatically when given any prompt from docs/cookbook.md.
• Network traffic during execution remains zero (guaranteed by PRIVACY.md).

When not to use

• Pure backend microservices or CLI tools with no screen/route navigation graph.
• Visual pixel-level contrast or typography inspection (pair with design-os or design-os-figma-plugin).
• Runtime profiling of database query latency.

DESIGN:OS Ecosystem

design-os-code2flow is one of the 13 source-available engines in the DESIGN:OS ecosystem:

| Engine | Live Docs | Repository | Layer | | :--- | :--- | :--- | :--- | | DESIGN:OS CLI | jangtrinh.github.io/design-os | jangtrinh/design-os | cli | | Knowledge Builder | jangtrinh.github.io/design-os-knowledge-builder | jangtrinh/design-os-knowledge-builder | compiler | | Figma Plugin & CLI | jangtrinh.github.io/design-os-figma-plugin | jangtrinh/design-os-figma-plugin | plugin | | SVG Animation Engine | jangtrinh.github.io/design-os-svg-animation | jangtrinh/design-os-svg-animation | engine | | 3D Blender Agent | jangtrinh.github.io/design-os-3d-blender | jangtrinh/design-os-3d-blender | 3d / cad | | OPAH ONE Drone | jangtrinh.github.io/design-os-drone-showcase | jangtrinh/design-os-drone-showcase | hardware | | GitHub Pages Engine | jangtrinh.github.io/design-os-github-page | jangtrinh/design-os-github-page | pages | | Apple Design OS | jangtrinh.github.io/design-os-apple | jangtrinh/design-os-apple | swiftui | | Agent Teacher | jangtrinh.github.io/design-os-pedagogy | jangtrinh/design-os-pedagogy | pedagogy | | Origami CAD | jangtrinh.github.io/design-os-origami | jangtrinh/design-os-origami | packaging | | Voice UX Architecture | jangtrinh.github.io/design-os-voice-ux | jangtrinh/design-os-voice-ux | voice-ai | | Code2Flow | jangtrinh.github.io/design-os-code2flow | jangtrinh/design-os-code2flow | ast / audit | | Generative UI | jangtrinh.github.io/design-os-generative-ui | jangtrinh/design-os-generative-ui | runtime |

Contributing, Governance & License

• Contributing: See CONTRIBUTING.md for pull request guidelines and verification gates (python3 scripts/self_check.py).
• Code of Conduct: Governed by CODE_OF_CONDUCT.md.
• Security & Privacy: Zero telemetry — see SECURITY.md and PRIVACY.md.
• Changelog & LLM Index: Track releases in CHANGELOG.md and machine-readable index in llms.txt.
• License: PolyForm Shield 1.0.0 © Jang Trinh. Free to use and modify, including for paid client work; you may not resell it or build a competing product from it.

If design-os-code2flow saves you time, a star on GitHub helps other engineers and AI agents find it.
