DocTreen

One Zod schema per route. Get docs, integration tests, and runtime validation. No OpenAPI YAML.

Docs →  ·  Live demo →  ·  npm  ·  Changelog  ·  Roadmap  ·  License: MIT

What's new in v1.18.0  —  RouteInventoryEntry.schema — each announced route now carries its contract as data, in the same canonical projection contractHash is computed over. Read the release notes →

DocTreen is a code-first API documentation library for Node.js. Define your route shape once with Zod (or DocTreen's own schema builder) and you get an interactive docs UI, OpenAPI 3.1 export, runnable integration flows, and 422-on-invalid-request validation — for Express, Fastify, Hono, Koa, and NestJS. No router rewrite, no separate spec file, no decorator boilerplate on every DTO field.

What you get

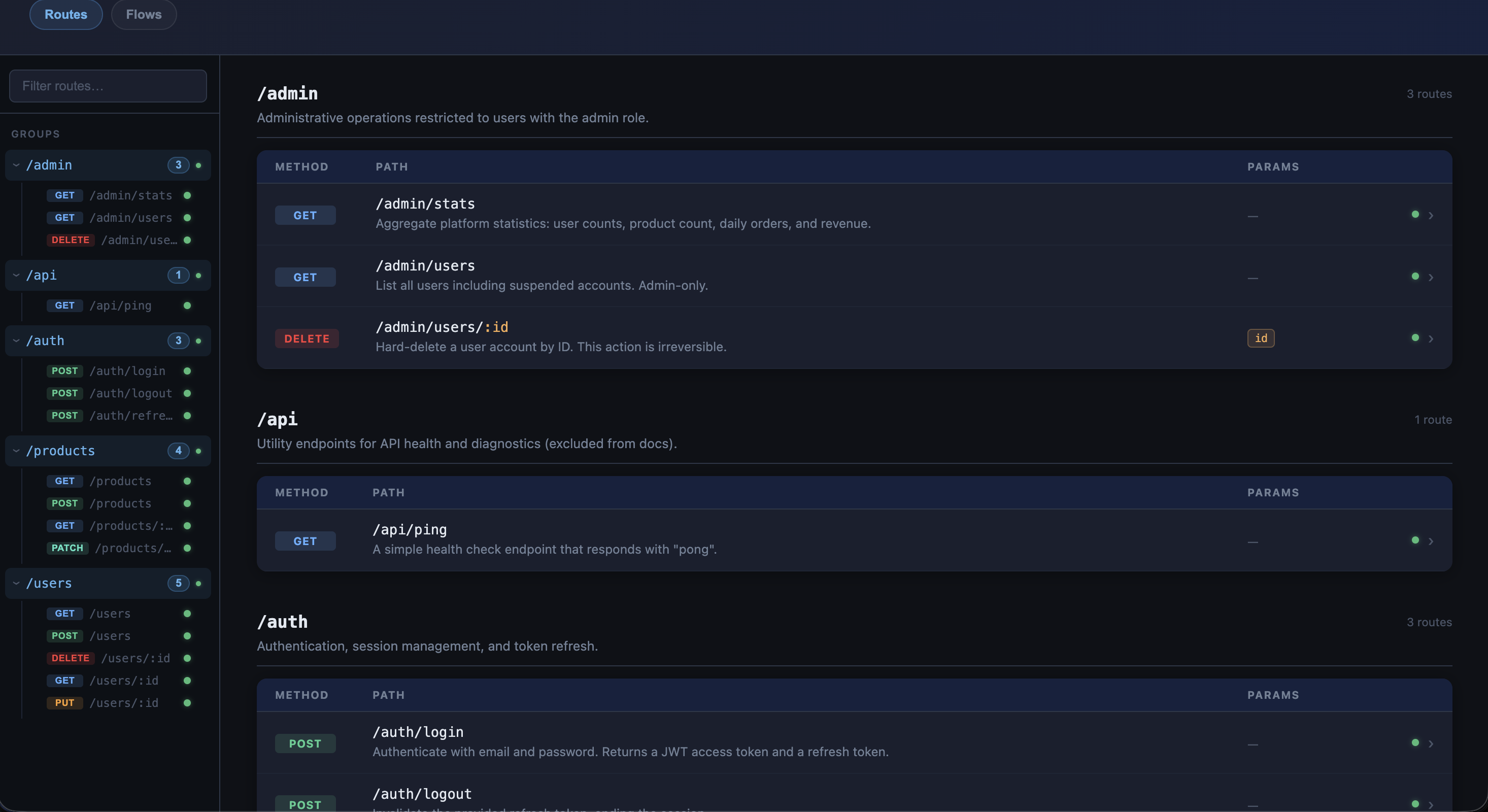

• Interactive docs UI at /docs — zero-dependency HTML, served by the same Node process
• OpenAPI 3.1 export at /docs/openapi.json — drop into Scalar, Redoc, Swagger UI, or any spec-driven tool
• Runtime validation — opt in with validate: true; invalid requests are rejected with a structured 422 before they reach your handler
• Schema drift detection — sample real traffic, compare against declared schemas, surface mismatches in a UI tab, /drift.json, and a CI-ready CLI
• Mock server — npx doctreen mock --from <url|file> synthesises a spec-driven fake API with CRUD short-circuits, latency / error injection, and optional Faker
• Typed codegen — npx doctreen codegen types|client --from <url|file> emits strict TypeScript declarations and a zero-dependency typed fetch client from your OpenAPI doc

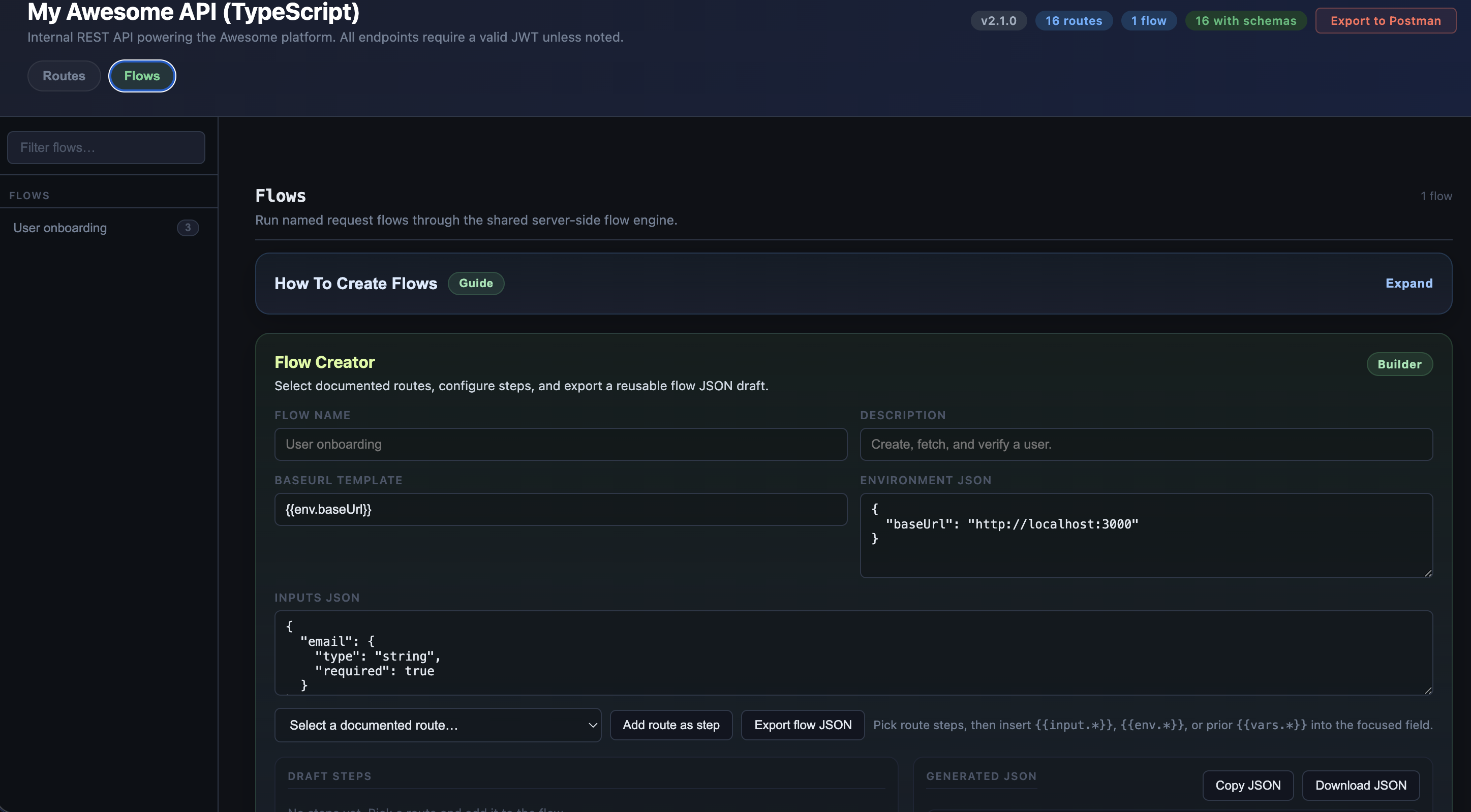

• Runnable integration flows + Postman Collection v2.1 export
• 5 adapters sharing one config object: Express · Fastify · Hono · Koa · NestJS

Full feature matrix and comparison with @nestjs/swagger, ts-rest, and Scalar / Redoc: doctreen.dev →

Install

npm install doctreen

Optional peers:

npm install zod                       # Zod schema support
npm install reflect-metadata rxjs     # NestJS
npm install --save-dev @faker-js/faker # realistic mock-server values

Quick example (Express)

const express = require('express');
const { z } = require('zod');
const { expressAdapter, defineRoute } = require('doctreen/express');

const app = express();
app.use(express.json());

app.post('/users', defineRoute(
  (req, res) => res.status(201).json({ id: 1, ...req.body }),
  {
    description: 'Create a user',
    request:  { body: z.object({ name: z.string(), email: z.string().email() }) },
    response: z.object({ id: z.number(), name: z.string(), email: z.string() }),
    errors:   { 409: 'Email already in use' },
  }
));

// Mount after your routes; turn on runtime validation in one place.
app.use(expressAdapter(app, {
  meta: { title: 'My API', version: '1.0.0' },
  validate: true,
}));

app.listen(3000, () => console.log('Docs at http://localhost:3000/docs'));

That single declaration drives:

• GET /docs — interactive UI
• GET /docs/openapi.json — OpenAPI 3.1 spec
• POST /users with { "email": "nope" } — 422 with structured issues
• Postman collection download + LLM-friendly markdown for the route

Fastify, Hono, Koa, and NestJS examples → doctreen.dev/docs/quick-start

Response validation (dev-mode)

Opt in with validate: { response: 'warn' } (log a mismatch and pass through) or 'throw' (surface a 500 in development). It never coerces or rewrites the body or status — it only checks. Like request validation, it is a no-op when NODE_ENV === 'production'.

Since v1.16 the assertion is status-aware: the schema it checks against depends on the response's actual status code, not just the success schema.

| Response status | Schema asserted | |---|---| | 2xx with a declared response schema (single, or the matching entry in a status-keyed response map) | the response schema | | 4xx/5xx with a declared error schema (errors[status], else defaultErrors[status]) | that error schema | | 4xx/5xx declared with only a description (errors: { 422: 'Validation' }, no schema) | none — skipped, no warning | | any status declared nowhere | none — skipped (opt into a signal with warnUndeclaredStatus: true) |

Route-wins merge. When both a route's own errors[status] and the adapter's defaultErrors[status] declare the same status, the route-local schema wins — the same precedence used for descriptions and the OpenAPI export.

Statuses with no declared schema are not validated: there is no contract to check against, so nothing is asserted and (by default) nothing is logged. This is why declaring an error with only a description silences it rather than warning — the description documents the status without pinning its body shape.

A real mismatch names the status and where the schema came from:

[doctreen] response for POST /staff (422) does not match the schema declared for status 422 (route errors):
  - response.error: Required

Need the pre-v1.16 behaviour (assert the single success schema against every response)? Set validate: { response: 'warn', statusAware: false }.

Docs

Everything lives at doctreen.dev:

| | | |---|---| | Quick start | Mount the docs UI on your existing app in under five minutes | | Adapters | Per-framework guides for Express, Fastify, Hono, Koa, NestJS | | Zod integration | First-class Zod support on every adapter | | Runtime validation | Reject invalid requests with a structured 422 | | OpenAPI 3.1 export | $ref dedup, tags, callbacks, webhooks, multi-example, lint openapi CLI | | Mock server | npx doctreen mock --from <url|file> | | Typed codegen | npx doctreen codegen types\|client --from <url|file> | | Schema drift detection | Sampling, buckets, CI integration, pluggable Redis store | | Request flows | Named integration flows, doctreen-flow CLI | | Configuration | All adapters accept the same config object | | TypeScript | .d.ts shipped — no @types/doctreen needed |

Example apps

The example/ folder ships runnable apps — one per adapter:

npm run example             # Express JS     → http://localhost:3000/api/docs
npm run example:fastify     # Fastify JS     → http://localhost:3001/api/docs
npm run example:hono        # Hono JS        → http://localhost:3002/api/docs
npm run example:koa         # Koa JS         → http://localhost:3003/api/docs
npm run example:nest        # NestJS TS      → http://localhost:3001/docs

Each adapter also has a fully-typed TS variant (npm run example:ts, :fastify:ts, :hono:ts, :koa:ts).

Roadmap

Shipped: runtime validation (v1.6) · OpenAPI 3.1 export (v1.7) · security schemes + hidden routes (v1.8) · headHtml (v1.9) · schema drift detection (v1.10) · $ref dedup, tags, callbacks/webhooks, examples, lint openapi (v1.11) · spec-driven mock server (v1.12) · typed TS codegen + fetch client (v1.13) · schema enums/nullable/defaults (v1.14) · validation completeness — path-param schemas, coerce/default write-back, response assertions, status-keyed responses, defaultErrors, Zod $ref codegen, offline emit-openapi (v1.15) · status-aware response validation (v1.16) · drift observability — heartbeat counters, startup route inventory, response drift, spec hashes, release auto-detect (v1.17) · contract-carrying route inventory (v1.18)

Next up: AI-native endpoints (/llm.txt, MCP server) · contract testing & spec diff · doctreen init CLI

Full roadmap with rationale: doctreen.dev/docs/roadmap

Have a feature request? Open an issue →

License

MIT
