dsh-mcp-panel

• 1024 store channel: npm i -g dsh1024 once, then dsh1024 plugin --profile web add dsh-mcp-panel (counts toward the deepseek1024.com install ranking).

The MCP management console for the official DeepSeek Harness MCP client — add, edit, remove, and trial-call MCP servers from a settings page, with honest status, health diagnostics, and safe, reversible profile writes.

Official client = bridge, this plugin = console: read status through the mcp/status seam, write only append-only, approval-gated profile patches.

Official repository. This is the only official repository of dsh-mcp-panel, maintained by PerryLink. Same-name repositories under other accounts are not affiliated.

English · 简体中文 · Español · Português · हिन्दी

📖 Ecosystem knowledge base — measured data, not marketing: plugin development guide · plugin-selection data · maintenance criteria.

⭐ 如果它帮到了你

这个插件是 DSH 插件家族的一员（40+ 个，全部 Apache-2.0）。如果你在用，给个 star —— 它不会解锁任何功能，但会让下一个人在搜索里更容易找到它。

English: part of a 40+ plugin family for DeepSeek Harness. If it is useful, a star helps the next person find it — nothing is gated behind it.

What is dsh-mcp-panel?

The MCP management console for the official DeepSeek Harness MCP client — add, edit, remove, and trial-call MCP servers from a settings page, with honest status, health diagnostics, and safe, reversible profile writes.

Official client = bridge, this plugin = console: read status through the mcp/status seam, write only append-only, approval-gated profile patches.

The same run, animated.

Compatibility

| Surface | Status | |---|---| | Harness | DeepSeek Harness dsh-v0.2.1-alpha.1 (verified 2026-09-25): dual typecheck rulers green on the 0.1.6-alpha.2 dev/test face (this repo is the family's canary — no new errors surfaced), 174 tests, and the full gate chain (typecheck / typecheck:ci / test / build / verify / package). The writePatch re-verification assertion stands on this line. Previous baseline: dsh-v0.1.7-alpha.1 (verified 2026-09-16). | | Node | ^22.19.0 \|\| >=24.0.0 | | Platforms | Web GUI (dual-face: host + browser) | | Model | Any (the panel is read-only; only /mcp output is model-readable) |

What you get

dsh-mcp-panel is the experience layer on top of the official MCP client: a read-only runtime view plus safe, reversible profile writes.

• /mcp command — one row per server: transport, target, tool count, connection status (from the upstream seam; unknown when unobserved), last error, reconnect count — model-readable, session-log reconstructable, five output languages.
• /mcp <server> tools — model-visible mcp__* tool names and descriptions.
• /mcp <server> health — derived self-heal suggestions (ENOENT → missing dependency, ECONNREFUSED, timeouts, 401/403/404, DNS, rate limit, reconnect exhaustion…); exit code / stderr tail honestly labeled pending upstream support until the client exposes them.
• /mcp <server> disable / enable — turn one server row off or back on without editing the profile patch by hand.
• /mcp <server> probe — one Streamable HTTP connectivity probe for that server (background job).
• /mcp <server> call <tool> [json] — trial-call through the official tool pipeline (ctx.tools.execute()); pre-execute permission policy, approval, guards, and post-execute all apply.
• Settings → Plugins → MCP tab — status cards with badges, diagnostics, and probes, plus the server CRUD and the tool trial console.
• Server CRUD — add/edit/remove forms → insert for add and id-targeted overrides (- id: + name: + disabled:/config:) for edit/remove → clipboard copy or approval-gated write with automatic backups and loader re-verification.
• Resources browse — read-only resource listing, template listing, and URI reads through the official list_mcp_resources / list_mcp_resource_templates / read_mcp_resource tools (bridged by the shipped @deepseek-ai/dsh-mcp-resources service); results are shown in the tab only, never in model context.
• Recommended directory — a built-in community MCP server catalog (filesystem, git, github, fetch, playwright, …) served in the snapshot; catalogEntries appends/overrides entries, and catalogToConfigInput turns one into a one-click add.
• Config import/export — exportConfigs() serializes the server rows to a versioned JSON document (a !!js row exports as null with a reason), and importPreview() parses an export back into per-server add patch fragments for review.
• Tool trial console — server → mcp__* tool → JSON args → canonical JSON result + rendered content; capped by trialMaxResultChars; panel-only, never model context.

Architecture: official client = bridge, this plugin = console

@deepseek-ai/dsh-mcp-client is the only bridge: one plugin instance per MCP server, configured as a hand-written cordis.yml row, connecting the transport, syncing tools, and registering mcp__<server>__<tool> names. This plugin never replaces it — it is the experience layer on top:

                    ┌────────────────────────────────────────────┐
 profile            │  cordis.yml / cordis.patch.yml             │
 composition        │   - id: mcp-github                          │
 (one row per       │     name: '@deepseek-ai/dsh-mcp-client'     │
  server, hand-     │     config: { serverName, transport, … }    │
  written)          │   - id: mcp-panel                           │
                    │     name: dsh-mcp-panel   ◄── this plugin   │
                    └───────────────┬────────────────────────────┘
                                    │
        ┌───────────────────────────┴───────────────────────────┐
        │                                                        │
   ┌────▼──────────────┐        ┌───────────────────────────┐    │
   │ @deepseek-ai/dsh- │        │ dsh-mcp-panel (console)   │    │
   │ mcp-client        │        │                           │    │
   │ • transport       │        │ • /mcp command            │    │
   │ • tool sync       │        │ • Settings → Plugins →    │    │
   │ • mcp__* tools    │◄──────►│   MCP tab: CRUD, trial    │    │
   │ • mcp/status seam │ status │ • health diagnostics      │    │
   └───────────────────┘        │ • probes, capabilities    │    │
                                └───────────────────────────┘    │

The console reads the client through its proposed mcp/status observability seam (not yet shipped upstream; feature-detected) (event + mcpStatus query service), the tool registry, and the loader; it writes only the profile's patch layer — append-only, approval-gated, always backed up. Transport, OAuth, and protocol stay untouched.

Console vs. hand-written cordis.yml

| | Hand-written cordis.yml | dsh-mcp-panel console | |---|---|---| | Add a server | Edit YAML, mind indent/quoting | Form → patch fragment → copy or write (approval + auto backup) | | Edit a server | Edit YAML, restart/hot-reload | Form pre-filled from the live row; unchanged secrets keep their raw values host-side | | Remove a server | Delete the row | - id: + disabled: true override (the patch vocabulary has no remove) — re-enableable anytime | | See status | Read logs | Badges + reconnects + last error, live from the mcp/status seam | | Try a tool | Ask the model to call it | Trial console → official ctx.tools.execute() pipeline (permission & approval stay in force) | | Diagnose failures | Grep logs | /mcp <server> health with derived self-heal suggestions | | Mistakes | Manual revert | Every write is append-only and leaves a timestamped backup |

The console's output IS cordis.patch.yml vocabulary — the same lines you would write by hand, generated, previewed, and applied safely.

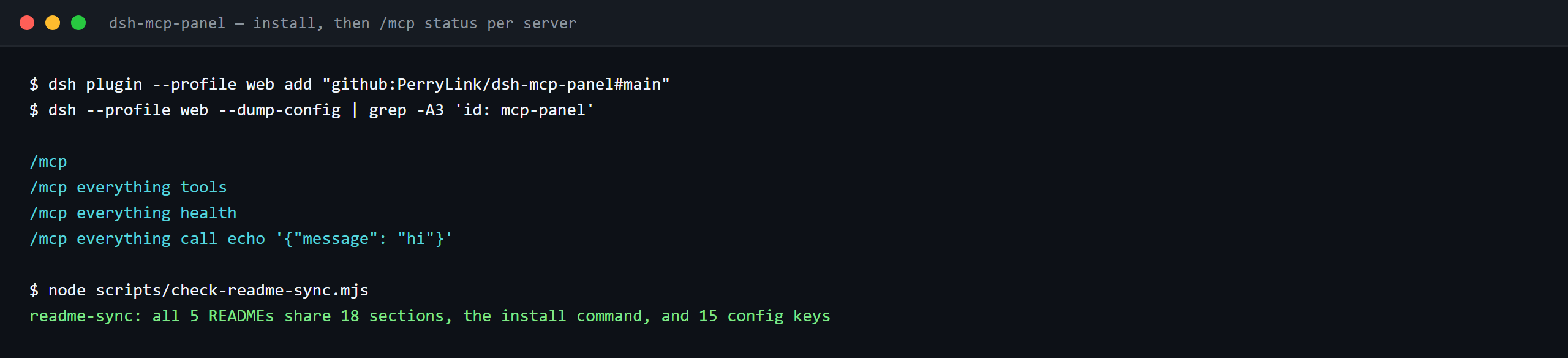

Quick start

dsh plugin --profile web add github:PerryLink/dsh-mcp-panel

# 1. install the bundle into your profile
dsh plugin --profile web add github:PerryLink/dsh-mcp-panel

# or from npm (published releases)
dsh plugin --profile web add dsh-mcp-panel

# 2. restart and verify the row
dsh --profile web --dump-config | grep -A3 'id: mcp-panel'

Then open Settings → Plugins → MCP, or run:

/mcp
/mcp everything tools
/mcp everything health
/mcp everything call echo '{"message": "hi"}'

Install & uninstall

• git channel (latest main): dsh plugin --profile web add github:PerryLink/dsh-mcp-panel — the prepare script builds with production dependencies only.
• npm channel (published releases): dsh plugin --profile web add dsh-mcp-panel.
• tarball channel: pnpm pack in this repo, then dsh plugin --profile web add ./dsh-mcp-panel-<version>.tgz.
• uninstall: remove the mcp-panel row from cordis.patch.yml (the web surface hot-reloads it), delete the package from the profile's node_modules, and verify with dsh web --dump-config that no mcp-panel row remains.

Configuration

All tunables are Schemastery Config fields (changeable from cordis.yml). cordis.patch.yml documents the common keys inline; the full key list lives in the table below.

| Key | Default | Meaning | |---|---|---| | probeEnabled | true | Register the mcp_probe background-job tool (panel-only results) | | probeTimeoutMs | 10000 | Per-probe timeout in ms | | maxProbes | 10 | Probe records shown in the panel | | refreshIntervalMs | 0 | Suggested panel refresh in ms; 0 = on demand | | outputLanguage | en | /mcp output language: en \| zh \| es \| pt \| hi | | passiveProbeEnabled | false | Periodically probe streamable-http servers | | passiveProbeIntervalMs | 60000 | Passive probe interval in ms | | trialEnabled | true | Tool trial console (settings tab + /mcp call) | | trialTimeoutMs | 120000 | Panel-side deadline per trial call in ms | | trialMaxResultChars | 60000 | Cap on the trial result payload in chars | | writeEnabled | true | Kill switch: false rejects every profile write (copy still works) | | writeVerifyEnabled | true | Re-verify each write against the loader's re-applied state before reporting success | | writeVerifyTimeoutMs | 3000 | Polling budget for write verification in ms | | backupCount | 5 | cordis.patch.yml backups retained per write | | catalogEntries | [] | User overlay for the recommended server directory: entries append, an entry with the same id replaces the built-in one |

Tools & surfaces

| Surface | Kind | Notes | |---|---|---| | /mcp | command | Per-server status row; model-readable and log-reconstructable | | /mcp <server> tools | command | Model-visible mcp__* tool names + descriptions | | /mcp <server> health | command | Derived self-heal suggestions from sanitized error text | | /mcp <server> disable / enable | command | Toggle one server row in the profile patch | | /mcp <server> probe | command | One Streamable HTTP connectivity probe (background job) | | /mcp <server> call <tool> [json] | command | Trial-call through the official tool pipeline | | mcp_probe | tool | Optional Streamable HTTP connectivity probe (background job) | | Settings → Plugins → MCP tab | UI slot | Status cards, server CRUD, and the tool trial console | | mcpPanel Typert Remote | service | Read-only snapshot channel (host → client) |

Resources & Prompts

Resources ARE bridged upstream: the base bundle mounts @deepseek-ai/dsh-mcp-resources, the official client registers each connection's resource provider into ctx.mcpResources, and that package owns the three shared tools (list_mcp_resources, list_mcp_resource_templates, read_mcp_resource). The console feature-detects the service and the registered tools, and offers a read-only Resources browser (list / templates / URI read) on every server card — each call runs through the OFFICIAL tool pipeline, and results never enter model context.

MCP prompt templates and resource subscriptions remain deferred upstream; the capabilities board marks Prompts pending upstream support.

Permissions & data

• Permissions: the dshWorkshop manifest declares network:outbound and native-code:none.
• Data: the panel is read-only; it writes only append-only cordis.patch.yml fragments (approval-gated, backup-first). URL query credentials, userinfo passwords, header values, bearer tokens, and JWTs are redacted before rendering; configured headers never enter any snapshot, and env/header values never leave the host (the editor sees keys only).

Security boundaries

• The bridge stays the bridge. No transport, OAuth, or protocol changes; one mcp-client row per server, exactly as hand-written.
• No fake status. Connection fields without upstream observations read unknown / — with statusSource: 'derived'; exit codes and stderr tails are never invented.
• Writes are append-only, approval-gated, and backed up. The console never rewrites cordis.patch.yml; it appends generated operations, keeps the newest backupCount backups, and re-verifies every write against the loader's re-applied state before reporting success (a skipped patch never reads as success).
• No prompt injection. The panel registers no prompt sections; its only model-facing text is the two tool/command descriptions.

Known limitations

• Prompt templates & resource subscriptions are pending upstream support — the official client bridges tools and resources, but not prompts or subscriptions.
• Exit codes / stderr tails are labeled pending upstream support until the client exposes them.
• Read-only panel — the console never fakes a connection state; unobservable fields read unknown / -1 / —.
• Writes are verified, not guaranteed — the console re-verifies each write against the loader's re-applied state and fails honestly when the loader did not apply it (e.g. a row inserted by $DSH_HOME/cordis.patch.yml, which a profile-layer patch cannot reach).

Development

pnpm run typecheck && pnpm run typecheck:ci && pnpm test && pnpm run build && pnpm run verify:self-contained && pnpm run verify:artifacts && pnpm pack

scripts/verify-headless.mjs boots the real web profile and prints the exact /mcp output. Releases: node scripts/release.mjs <x.y.z> runs the full gate, commits, and tags v<x.y.z> locally (never pushes).

Topics

dsh, dsh-plugin, deepseek-harness, deepseek, cordis, mcp, mcp-client, observability, panel

Contributors

• @PerryLink — creator and maintainer.
• @xiaoyuyu6420 — diagnosed the missing client devDependencies behind clean-checkout build failures (PR #5).
• @feiler0 — contributed the stdio MCP server probe (one MCP initialize handshake over stdin/stdout) (PR #7, merged as PR #15).

PerryLink DSH Plugin Family

This project is one of the 33 actively maintained DeepSeek Harness plugins from PerryLink — the roster is 42, of which 6 are frozen and 3 retired; every one keeps its row below, with the reason in the Status column. If this one helps you, the others likely will too:

| Plugin | One-liner | Status | |---|---|---| | dsh-auto-review | Second-model auto-review on the approval chain, fail-closed by default | | | dsh-autotier | Automatic strong/cheap model-tier routing with deterministic risk guards and a /tier command | | | dsh-background-agents | Durable background child agents with a Web UI sidebar, messaging and interrupt | 🚫 RETIRED — see the note above | | dsh-budget | Cost governance for DeepSeek Harness: budgets, carbon, and latency in one panel. | 🧊 FROZEN — see the repo README | | dsh-catalog | DSH Desktop Market standard catalog source for the PerryLink family | | | dsh-cert-mcp | Read-only MCP server exposing the certification registry: grades, snapshots and five-dimension evidence | | | dsh-checkpoint-rewind | Claude Code /rewind-equivalent: snapshots, session forks, one-shot restore | | | dsh-claude-move | Migrate Claude Code sessions, memory, skills and CLAUDE.md into DSH | 🧊 FROZEN — see the repo README | | dsh-click | Cross-platform native desktop control for DeepSeek Harness — Windows first. | | | dsh-composer-history | Terminal-style input history for the web composer: arrows, Ctrl+R search | | | dsh-data-quality | Dataset quality checks and citation cross-checks (the optional numeric bridge consumed here) | | | dsh-defend | Prompt-injection, jailbreak, and secret-leak defense for DeepSeek Harness. | 🧊 FROZEN — see the repo README | | dsh-doublecheck | Engineering-discipline guard: requirements grill, test gates, adversary review | | | dsh-draw | Unified static-image generation routing for DeepSeek Harness. | 🧊 FROZEN — see the repo README | | dsh-fast | Read-only performance diagnostics for DeepSeek Harness. | | | dsh-fund-research | Deterministic research reports for Chinese public mutual funds | | | dsh-github | GitHub PR/issues integration for DSH, every write gated by approval | | | dsh-industry-research | Industry research orchestration that seals its deliverables through this plugin's ctx.researchReport.assemble | | | dsh-laya | Laya typed decisions (noul/choice/score) as a first-class Cordis service and model-visible tools | | | dsh-library | Local document knowledge base for DeepSeek Harness. | | | dsh-local-ai | Local-model (Ollama) integration for DeepSeek Harness. | | | dsh-lsp-actions | LSP diagnostics, formatting, completion, code actions and rename over language servers | | | dsh-mask | PII masking middleware: anonymize at the model boundary, restore at the display layer | | | dsh-mcp-panel | Read-only MCP runtime panel: /mcp command + Settings tab with status, tools and errors | | | dsh-memento | Approval-gated cross-session memory: ctx.memory seam + SQLite + memory tool | 🧊 FROZEN — see the repo README | | dsh-observe | OpenTelemetry and Langfuse observability exporter for DeepSeek Harness. | | | dsh-output-styles | Claude Code outputStyles-equivalent runtime style switching | | | dsh-permission-rules | Claude Code-style declarative allow/deny/ask permission rules with audit | | | dsh-plugin-certification | Community certification registry with repro-checkable grades and badges | | | dsh-plugin-doctor | Zero-dependency static + sandbox smoke detector for DSH plugins | | | dsh-plugin-guide | Plugin-development knowledge base as an on-demand agent skill | | | dsh-plugin-kit | Shared zero-runtime-dependency toolkit for the PerryLink DSH plugins | | | dsh-plugin-upgrade | One-package, one-corridor-index plugin upgrade skill: routes a repository to the matching closed corridor card | | | dsh-plugin-upgrade-015 | Merged 0.1.3-alpha.1 → 0.1.5-rc.1 upgrade corridor card plus a zero-dependency seam scanner | 🚫 RETIRED — corridors carried by dsh-plugin-upgrade | | dsh-reach | Multi-channel approval/question bridge: WeChat/Telegram/Feishu, session console | 🧊 FROZEN — see the repo README | | dsh-research-report | Verifiable research-report engine: content-addressed evidence ledger and sealed versions | | | dsh-score | Multi-dimensional quality scoring for DeepSeek Harness plugins. | | | dsh-session-pin | Pin sessions in the Web sidebar with durable ordering | 🚫 RETIRED — see the note above | | dsh-session-sync | Cross-device session sync for DeepSeek Harness — a dedicated git mirror of your session store. | | | dsh-skill-pack-security | Security-audit skill pack: secret scan, dependency and supply-chain review | | | dsh-talk | Voice-first session loop for DeepSeek Harness: talk to it, hear it answer. | | | dsh-team-rooms | Cross-session team rooms: shared message bus, task board and timeline | 🚫 RETIRED — see the note above | | dsh-test-drive | Isolated install-and-smoke test drives for DeepSeek Harness plugins. | | | dsh-ticktick | TickTick/Dida365 task bridge: session-header panel + 11 tools | | | dsh-translate | Vendor parameter translation and deterministic JSON repair for DeepSeek Harness. | |

Install from the DSH Desktop Market

All PerryLink plugins are browsable in the built-in DSH Desktop Market: Market → Sources → add source → paste https://perrylink-dsh-catalog.perrylink.workers.dev/catalog-source.json → select it. Installation still goes through the Market's npm-identity verification and your confirmation.

License

Apache License 2.0 © 2026 dsh-mcp-panel contributors
