formlabs-local-mcp

An MCP server for the Formlabs Local API. It lets Claude Code, Claude Desktop, Cursor and any other MCP client drive PreForm from a chat prompt:

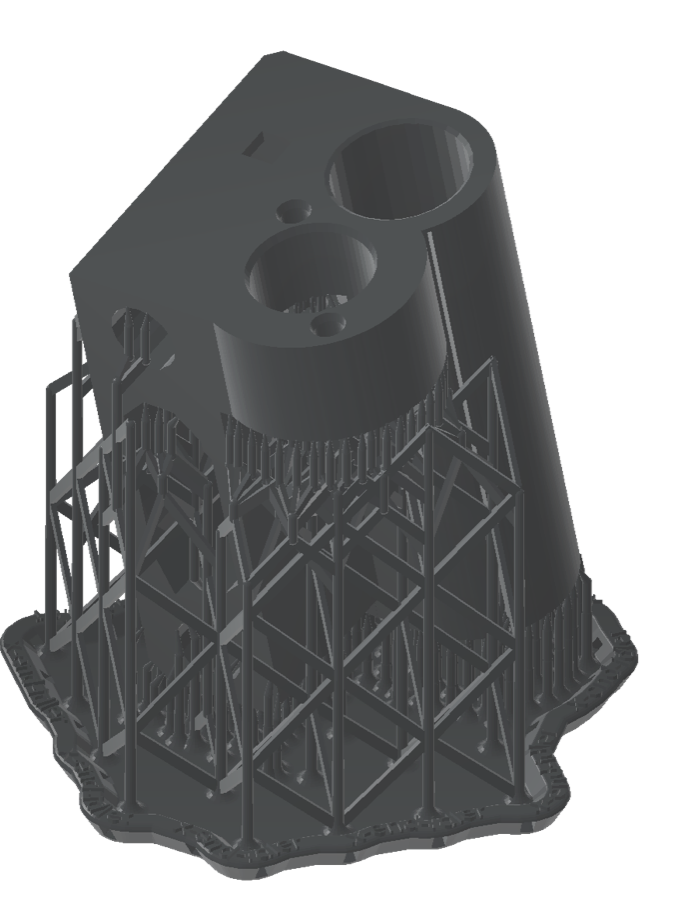

"Import ~/parts/bracket.stl, orient and support it for the Form 4 in Black V5, estimate the print time, then save it as ~/jobs/bracket.form."

See it work: https://mkebiclioglu.github.io/formlabs-claude-skills/ (a downloaded bracket to a validated Form 4 job in one prompt; spin the result, compare materials)

Docs and the Claude Code plugin: https://mkebiclioglu.github.io/formlabs-claude-skills/docs.html

Install

Needs Node.js 20 or newer. Nothing else. Published on npm as formlabs-local-mcp with build provenance. Pin the version you tested with:

claude mcp add --scope user formlabs -- npx -y [email protected]

Using Claude Code? The plugin installs this server plus print-prep skills in one line, so you do not need the command above.

For other MCP clients, put the same command in their config:

{
  "mcpServers": {
    "formlabs": {
      "command": "npx",
      "args": ["-y", "[email protected]"]
    }
  }
}

Then ask Claude to run health_check. If PreFormServer (Formlabs' headless PreForm) is not installed yet, the server says so and offers the install_preform_server tool, which downloads the current release from Formlabs, verifies Formlabs' code signature, and installs it into a folder you own. From a shell the same thing is:

npx -y [email protected] install-preform

If you already have PreFormServer.app in /Applications, it is picked up as is.

Commands

| Command | What it does | |---|---| | formlabs-local-mcp | Serve MCP over stdio (what MCP clients run). | | formlabs-local-mcp install-preform | Download, verify and install the latest PreFormServer. No-op when up to date; --force reinstalls. | | formlabs-local-mcp doctor | Show what is installed, which mode is active, and whether Formlabs has a newer release. |

Tools

| Area | Tools | |---|---| | Setup | preform_status, install_preform_server, health_check | | Scenes | create_scene, list_scenes, get_scene, update_scene, delete_scene, load_form | | Models | import_model, get_model, update_model, duplicate_model, replace_model, delete_model | | Prep | auto_orient, auto_support, auto_layout, fill_build_platform (SLA), auto_pack, fill_build_chamber, pack_and_cage (SLS), hollow_model, label_model | | Drain holes | auto_add_drain_holes, add_drain_holes | | Analysis | get_print_validation, detect_cups, detect_minima, detect_supportedness, detect_thin_walls, get_interferences, estimate_print_time | | Export | save_form, save_screenshot, save_fps_file | | Printers | list_devices, get_device, discover_devices, print_to_printer | | Materials | list_printer_types, list_materials | | Account | login, logout, get_user |

Tools carry MCP annotations (readOnlyHint, destructiveHint) so clients can ask before print_to_printer, save_form, install_preform_server or any delete.

Fuse X1: PreFormServer 3.63.0 prepares jobs for it (machine_type FUSX-1-0, material_code FLP12G01, 0.11 mm, the one setting it ships) but leaves the family out of list-materials; list_printer_types and list_materials add it with an unlisted note until Formlabs lists it. No other material or layer height, and no auto_pack, in this release.

No printer yet? PreFormServer ships a built-in virtual printer for every model (list_devices shows them with connection_type: VIRTUAL), and print_to_printer with "Form 4" runs the whole job upload against one, so a pipeline can be rehearsed end to end before hardware arrives. The integration tests do exactly that on macOS, Windows and Linux. Tracks Formlabs Local API 0.9.30 (PreFormServer 3.63.0). The installer picks the Apple Silicon build on arm64 Macs and the Intel build elsewhere, falling back to Intel for releases that only ship it.

Configuration

None needed in the common case. Everything is an environment variable on the MCP server entry (or in the env block of ~/.claude/settings.json for Claude Code).

| Variable | Default | Purpose | |---|---|---| | PREFORM_SERVER_PATH | auto-detected | PreFormServer executable if it lives somewhere unusual. | | PREFORM_SERVER_PORT | 44388 | Port PreFormServer listens on (local port of the tunnel in remote mode). | | PREFORM_SERVER_URL | http://127.0.0.1:<port> | Connect to a PreFormServer you run yourself (disables spawning). | | PREFORM_SPAWN | 1 | 0 never starts PreFormServer, only connects. | | PREFORM_STARTUP_TIMEOUT | 120 | Seconds to wait for PreFormServer to come up. | | PREFORM_POLL_TIMEOUT | 600 | Longest one operation (supports, packing, upload) may take. | | PREFORM_TELEMETRY | 0 | PreFormServer telemetry is off when spawned; 1 allows it. | | PREFORM_LAUNCHER | wine on Linux | Command prefix used to start PreFormServer, e.g. xvfb-run -a wine. | | PREFORM_SERVER_PATH_STYLE | auto | wine writes file paths as Wine's Z:/... view of this host; native sends them as-is. Auto: wine when this server starts PreFormServer through Wine. | | PREFORM_PATH_MAP | unset | local=remote pairs, comma separated, for a PreFormServer that mounts your directories elsewhere, e.g. ~/jobs=Z:/jobs for the preform-linux container. | | FORMLABS_ALLOWED_PATHS | home directory | Directories the model may read from and write to. :-separated (; on Windows). | | FORMLABS_ALLOW_HIDDEN_PATHS | 0 | Allow paths through dot-directories such as ~/.cache. | | FORMLABS_USERNAME, FORMLABS_PASSWORD | unset | Formlabs account for login (remote printing, Fleet Control). FORMLABS_ACCESS_TOKEN works too. | | FORMLABS_ALLOW_REMOTE_LOGIN | 0 | Permit login against a non-loopback PREFORM_SERVER_URL. | | PREFORM_REMOTE_HOST | unset | Run PreFormServer on another machine over ssh (see below). | | PREFORM_REMOTE_PORT | 22 | ssh port for the remote host. | | PREFORM_REMOTE_SERVER_PATH | well-known paths | PreFormServer executable on the remote host. | | PREFORM_REMOTE_SPAWN | 1 | 0 only tunnels to a PreFormServer already running remotely. | | PREFORM_INSTALL_UNVERIFIED | 0 | Linux only: accept a download whose Authenticode signature cannot be checked (install osslsigncode instead). |

Linux

Formlabs ships PreFormServer for macOS and Windows only. Three ways to use it from Linux, in the order most people should try them:

A container running PreFormServer under Wine (recommended for servers and automation). preform-linux packages the Windows build with Wine and Xvfb, headless, no GPU, signature-checked at first start, with printers reached by IP or through a Formlabs account. Point this server at it:

PREFORM_SERVER_URL=http://127.0.0.1:44388
PREFORM_SERVER_PATH_STYLE=wine
PREFORM_PATH_MAP=/home/me/preform-linux/jobs=Z:/jobs

Files under the mapped directory are sent as Z:/jobs/..., which is how PreFormServer inside the container sees them; everything else works exactly as on macOS.

Wine on this machine. install-preform fetches the Windows build and verifies its Authenticode signature with osslsigncode; the server then starts it through wine with headless defaults (QT_OPENGL=software, no Mono/Gecko prompts) and writes file paths as Z:/home/me/... automatically. Needs Wine 11.5 or newer from WineHQ (distro Wine 9.0 cannot load PreFormServer 3.63.0) and a display: PREFORM_LAUNCHER="xvfb-run -a wine" on a headless box. Wine 11.13+ runs it as is; 11.5 to 11.12 need preform-linux's small dnsapi.dll shim. LAN printer discovery by mDNS does not work under Wine; pass a printer's IP to discover_devices and print_to_printer instead, or login for Fleet Control. A weekly CI job runs the smoke test this way.

Remote mode. Run PreFormServer on any Mac or Windows box on your network and let the MCP server on Linux drive it over ssh:

[email protected]

One ssh session (keys only, BatchMode) forwards a loopback port and starts PreFormServer on the remote machine, so it stops when the MCP server does. Input files are copied over with scp into a per-session staging folder under the remote user's home; .form files and screenshots are copied back. The remote host needs PreFormServer installed (run install-preform there) and a POSIX shell over ssh (macOS, Linux). For a Windows remote host set PREFORM_REMOTE_SPAWN=0 and start PreFormServer yourself.

Security

PreFormServer is a plain-HTTP server with no authentication that reads and writes files as you. This server keeps that surface small:

• Path guard rails. Every file path a tool receives must be absolute, resolve (symlinks included) to somewhere under FORMLABS_ALLOWED_PATHS (default: your home directory), avoid hidden directories, and carry the right extension (models in, .form/.png/.webp/.fps out).
• Verified installs. install_preform_server only downloads over HTTPS from downloads.formlabs.com with Formlabs' release path layout, scans the archive for path traversal before extracting, and checks the code signature before moving anything into place: Developer ID team KVPE3R79SR plus notarization on macOS, a valid Authenticode signature from Formlabs on Windows, osslsigncode on Linux. A failed check leaves the previous install untouched.
• Credentials stay out of the chat. login takes no arguments; it reads FORMLABS_USERNAME / FORMLABS_PASSWORD from the environment and never returns tokens to the model. It refuses non-loopback servers unless you opt in.
• Short-lived server. PreFormServer runs only while an MCP client is connected and is stopped on exit. Telemetry is disabled.
• Remote mode uses ssh keys only, validates the host string so it can never be parsed as an ssh option, binds the forward to 127.0.0.1, and sanitizes staged file names.
• Supply chain. Two runtime dependencies (@modelcontextprotocol/server, zod), a lockfile, SHA-pinned GitHub Actions, Dependabot, CodeQL. Releases are published from CI with npm provenance and 2FA-only access, so npm audit signatures can check that what you installed came from a tagged commit here.

One thing this server cannot change: PreFormServer binds to all network interfaces (*:44388) and has no option to bind loopback only. On a shared or untrusted network keep your OS firewall on so other machines cannot reach that port.

Contributing

git clone https://github.com/mkebiclioglu/formlabs-local-mcp.git
cd formlabs-local-mcp
npm install
npm test              # unit tests, no PreFormServer needed
npm run typecheck && npm run lint
npm run build
npm run smoke         # end-to-end against a real PreFormServer

Issues and PRs are welcome; see CONTRIBUTING.md for how to add a tool and what CI checks. Questions and "here is what I printed" go in Discussions. Security reports: SECURITY.md.

License

MIT. The Formlabs API itself is covered by the Formlabs API License Agreement; this project only makes HTTP calls to PreFormServer and ships no Formlabs code. Not affiliated with or endorsed by Formlabs Inc.
