FreeGantt

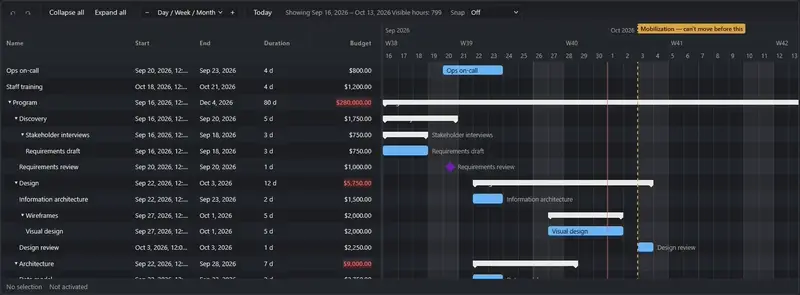

An accessible Gantt chart. A keyboard user can move, resize, reorder, and edit every task. A screen reader user hears the grid as an ARIA grid or tree grid, and a live region announces each refusal. Every demo page passes automated axe checks in CI, in every built-in theme.

Framework-free TypeScript Gantt/timeline library. Library-first: the API, docs, and packaging are designed for external consumers from day one. See docs/05-consumer-api.md for a consumer API index. CONTEXT.md is the glossary.

Quick start

Minimal example: put a small, fixed set of entries into a Gantt.

import { Gantt, Dataset } from 'freegantt';

const dataset = new Dataset({
  entries: [
    { id: 't1', name: 'Design', start: '2026-09-01', end: '2026-09-07' },
    { id: 't2', name: 'Build', start: '2026-09-08', end: '2026-09-21' },
    { id: 't3', name: 'QA', start: '2026-09-22', end: '2026-09-28' },
  ],
});

const gantt = new Gantt({
  container: document.getElementById('gantt')!, // an HTMLElement or a CSS selector
  dataset,
});

Ids are plain strings and dates are plain strings; nothing has to be constructed first. Wrap the entries in a Dataset, mount a Gantt on a container element, and gantt.destroy() tears it down.

The Dataset reads each date in the viewer's own time zone. Pass an IANA timeZone, such as 'America/Chicago', when every viewer must see the same day boundaries — a shared project plan, for example.

Editing after mount is a plain call on dataset.entries — no second render path, no re-mount. Every call auto-wraps in its own transaction (D-S2-8), so a bound Gantt moves the bar on the next frame:

dataset.entries.add({ id: 't9', name: 'Roofing', start: '2026-10-01', end: '2026-10-15' });
dataset.entries.update('t2', { name: 'Framing — north wing' });
dataset.entries.remove('t9'); // and every descendant, in the same changeset

dataset.transaction(() => {
  dataset.entries.update('t1', { start: '2026-10-05' });
  dataset.entries.update('t2', { start: '2026-10-12' });
}); // one changeset, one render

dataset.undo(); // reverts the transaction above in one call
dataset.redo();

undo()/redo() return nothing — like every other commit, what they did arrives on dataset.on('change'), tagged origin: 'undo'/'redo'. canUndo/canRedo say whether there is anything to undo/redo, and dataset.on('historyChange') fires when either answer changes.

Dates and ids a consumer can write

Dataset reads what a consumer writes (EntryInput) into what the library stores (Entry) once, at construction. Two things get looser at that boundary, and only there.

Ids are plain strings. Internally an id is a branded EntryId so it cannot be mixed with an ordinary string, but the brand is applied on the way in — a consumer never calls entryId(). (It is still exported for a consumer that wants to hold branded ids of its own.)

Dates are any InstantInput: a string, a Date, epoch milliseconds, or an already-branded Instant. Every form below is legal in the same entry list:

import { Dataset, instant } from 'freegantt';

const dataset = new Dataset({
  timeZone: 'America/Chicago', // CDT (UTC-5) on the dates below
  entries: [
    // A bare calendar date — that day's start, in the dataset's timeZone.
    { id: 'a', name: 'Date only', start: '2026-09-08', end: '2026-09-10' },
    //                                    -> 2026-09-08T05:00:00Z

    // A wall-clock time with no zone — read in the dataset's timeZone.
    { id: 'b', name: 'With a time', start: '2026-09-08T14:30', end: '2026-09-10' },
    //                                     -> 2026-09-08T19:30:00Z
    // Seconds and a fractional second are optional, and a space works instead of the `T`.
    { id: 'c', name: 'To the ms', start: '2026-09-08 14:30:45.250', end: '2026-09-10' },
    //                                   -> 2026-09-08T19:30:45.250Z

    // A zone of its own — the offset wins and timeZone is not consulted.
    { id: 'd', name: 'UTC', start: '2026-09-08T14:30:00Z', end: '2026-09-10' },
    //                            -> 2026-09-08T14:30:00Z
    { id: 'e', name: 'Offset', start: '2026-09-08T14:30:00+02:00', end: '2026-09-10' },
    //                               -> 2026-09-08T12:30:00Z

    // A Date object — absolute, as written. Its own timezone handling already happened.
    { id: 'f', name: 'Date object', start: new Date('2026-09-08T14:30:00Z'), end: '2026-09-10' },
    //                                    -> 2026-09-08T14:30:00Z

    // Epoch milliseconds, and an Instant a consumer built with instant() — both pass straight through.
    { id: 'g', name: 'Epoch ms', start: 1788000000000, end: '2026-09-10' },
    { id: 'h', name: 'Instant', start: instant('2026-09-08T14:30:00Z'), end: '2026-09-10' },
  ],
});

As a table:

| Written | Read as | | ---------------------------------------------------------- | ------------------------------------------------------- | | '2026-09-08' | that day's start, in the dataset's timeZone | | '2026-09-08T14:30' · '2026-09-08 14:30' · '…:45.250' | that wall-clock time, in the dataset's timeZone | | '2026-09-08T14:30:00Z' · '…+02:00' | absolute — the offset wins, timeZone is not consulted | | new Date(…) · 1788000000000 · instant(…) | absolute, as written |

Which zone applies, and when

A string with no offset is a Plain time — a wall-clock reading that names no instant until a zone resolves it. The dataset's timeZone is that zone. This is why timeZone is required: it makes one entry list render identically for every viewer, rather than shifting with whatever machine opens the page.

If you want an entry pinned to an absolute moment regardless of the dataset's zone, write the zone into the string ('…Z' or '…+02:00') or pass a Date. Those never consult timeZone.

const entries = [{ id: 't1', name: 'Design', start: '2026-09-08', end: '2026-09-10' }];

// One bare date, three zones, three different instants:
new Dataset({ timeZone: 'America/Chicago', entries }); // start -> 2026-09-08T05:00:00Z
new Dataset({ timeZone: 'Asia/Tokyo', entries }); //      start -> 2026-09-07T15:00:00Z
new Dataset({ timeZone: 'UTC', entries }); //             start -> 2026-09-08T00:00:00Z

// Write the zone into the string instead, and all three agree:
const pinned = [{ id: 't1', name: 'Design', start: '2026-09-08T00:00:00Z', end: '2026-09-10' }];
new Dataset({ timeZone: 'Asia/Tokyo', entries: pinned }); // start -> 2026-09-08T00:00:00Z

DST is resolved explicitly rather than left to chance: a Plain time inside a spring-forward gap shifts forward by the gap, and an ambiguous fall-back time takes the earlier offset.

A value that names no instant — 'next tuesday', or a date the calendar does not have such as '2026-02-31' — throws InvalidInstantError rather than sliding to a nearby date.

A bare date on end — what it means

Storage is half-open [start, end), so end is the boundary after the entry, not its last moment. A consumer writing a bare date on end means the last day it wants included:

new Dataset({
  timeZone: 'America/Chicago',
  entries: [{ id: 't1', name: 'Design', start: '2026-09-01', end: '2026-09-07' }],
});
// covers Sept 1 through Sept 7 — the stored end is the start of Sept 8

The rule applies only to a date-only string on an end field (entry ends and segment ends). An end that already carries a time of day, a Date, epoch milliseconds, or an Instant is a boundary already and is read literally. start is never adjusted.

Public API

Everything importable by a consumer lives under src/api/ and src/model/ (types only). Internal layers (time/, data/, scheduling/, layout/, render/, view/) are not part of the public surface.

Dataset

import { Dataset } from 'freegantt';

const dataset = new Dataset<{ cost: number; team: string }>({
  entries, // readonly EntryInput[] — see "Dates and ids a consumer can write"
  timeZone, // IANA zone; omit it and the environment's own zone resolves once, at construction
  fieldTypes: { money: { rollUp: 'sum', formatValue: asCurrency, column: { align: 'end' } } },
  fields: [{ key: 'cost', type: 'money' }, { key: 'team' }],
  aggregators, // optional — named rollUp functions beside the shipped ones
  history: { capacity: 100 }, // optional undo depth
  plugins, // a plugin with a `data` half installs here, at construction only (ADR 0019)
});

dataset.entries.all; // readonly Entry[] — ids branded, dates resolved to Instant
dataset.entries.get('p1')?.children(); // direct children, in store order

dataset.entries.add({ id: 't9', name: 'Roofing', start: '2026-10-01', end: '2026-10-15' });
dataset.entries.update('t2', { name: 'Framing — north wing', cost: 12_000 });
dataset.entries.remove('t9'); // and every descendant, in the same changeset

// There is no `rollUpKinds` and no `hierarchy: { autoGroup }`. An Entry carries no stored kind
// (ADR 0013): a parent rolls up because it has children. One entry opts out with `rollUp: 'none'`,
// which keeps the caller-assigned dates on that parent alone (#470).
dataset.entries.get('t2')?.read('cost'); // reads through the Field registry

dataset.field('cost'); // resolved Field | undefined
dataset.fields.all; // every declared Field, core included

dataset.transaction(() => {
  /* several entries.add/update/remove calls, one changeset */
});

dataset.on('beforeChange', ({ changeSet }) => false); // veto — throws MutationCancelledError
dataset.on('change', ({ changeSet }) => {
  /* changeSet.added / .removed / .updated — a bound Gantt reacts to this itself */
  /* undo()/redo() emit this too, tagged origin: 'undo'|'redo' — sample: docs/05-consumer-api.md */
});

dataset.undo(); // origin: 'undo' on the change event it emits
dataset.redo(); // origin: 'redo'
dataset.canUndo;
dataset.canRedo;
dataset.on('historyChange', ({ canUndo, canRedo }) => {}); // fires when either answer changes

// There is no `toJSON` and no `fromJSON`: the library holds no save format (ADR 0016). A consumer
// reads `entries.all` and `fields.all` above, and saves the shape its own backend wants.

// The write path undo()/redo() are built on, published for a consumer's own History:
dataset.replay(invertChangeSet(recordedChangeSet)); // origin must be 'undo' or 'redo'

Dataset is headless and DOM-free. It reads each EntryInput into an Entry once, at construction. Every mutator auto-wraps in a transaction; dataset.transaction(() => { ... }) batches several into one changeset. A Gantt bound to the dataset subscribes to change itself — editing after mount renders on the next frame with no extra call.

Fields declare what values are (fields, fieldTypes, aggregators on the Dataset). A Field key on entries.update and entries.fieldValue is the one write/read path for entry-sourced, meta-sourced, and compute-sourced values. An unregistered key throws UnknownFieldError.

Fields and grid columns

A field is what a value is; a grid column is where a Gantt shows it. Fields live on the Dataset; grid columns live on the Gantt (gridColumns). Field.column is optional defaults for the bare-key shorthand. A column object supplies presentation. A bare key with no defaults throws FieldColumnNotDefinedError.

gantt.gridColumns = ['name', 'start', 'duration', 'cost'];
gantt.gridColumns = [
  'name',
  'start',
  { field: 'cost', header: 'Budget — site A' }, // per-Gantt presentation override only
];

Default gridColumns is ['name']. Declaring a Field does not add it to the grid — only names it in gridColumns.

Row sources and collapse

gantt.rowSource names the config that decides what rows this Gantt draws. Default: { source: 'entries', tree: true } — every Entry a row, nested under its parentId.

// Entries as a tree (parentId) — the default
gantt.rowSource = { source: 'entries', tree: true };

// One header row per groupBy value
gantt.rowSource = { source: 'group', groupBy: (entry) => String(entry.read('team') ?? '') };

// Consumer-supplied rows
gantt.rowSource = {
  source: 'custom',
  resolve: ({ entries }) => [{ id: 'a', entryIds: ['t1'] }],
};

// Sort and filter live on the row source (entries and group only)
gantt.rowSource = {
  source: 'entries',
  tree: true,
  filter: (entry) => entry.read('team') === 'A',
  filterPolicy: 'keepAncestors', // or 'matchOnly'
  sort: { field: 'start', direction: 'asc' },
};

Assigning gantt.rowSource re-resolves rows live with no remount; scroll position survives.

Collapse is per-Gantt view state (not in the Dataset):

gantt.collapsed = ['p1'];
gantt.collapse('p1');
gantt.expand('p1');
gantt.collapseAll();
gantt.expandAll();
gantt.collapseStateOf('p1'); // 'collapsed' | 'expanded' | 'leaf' | undefined for no such row
gantt.on('collapseChange', ({ to }) => save(to));

For { source: 'entries' }, a RowId equals the EntryId. Group headers use derived ids from the groupBy value.

TimeScaleModel and ScrollAxis

import { TimeScaleModel, ScrollAxis } from 'freegantt';

const scale = new TimeScaleModel({ preset: 'weekAndMonth', range: 'fitDataset' });
const scroll = { x: new ScrollAxis(), y: new ScrollAxis() }; // a `ScrollAxes` — either key is optional

const gantt = new Gantt({ container, dataset, scale, scroll });

Pass the same TimeScaleModel to two Gantt instances to share the time axis, and the same ScrollAxis under x and/or y to share that scroll direction (D9). One axis alone is legal: { x } syncs the timelines and leaves each Gantt its own vertical scroll. Omit both and the Gantt builds private defaults — a single Gantt never has to meet the concept.

On Gantt directly (when no shared scale is passed): preset, range, fit, zoomIn/zoomOut, zoomPresets, panToDate, panToToday, and navigationChange. Supplying scale alongside preset/range/fit is a type error — set axis intent on the shared model instead.

Gantt

import { Gantt, ScrollAxis } from 'freegantt';

const gantt = new Gantt({
  container: element, // HTMLElement or CSS selector
  dataset,
  preset: 'weekAndMonth', // or a shared `scale: TimeScaleModel` — one arm or the other, never both
  range: 'fitDataset', // or { start, end } — InstantInput
  scroll: { x: new ScrollAxis(), y: new ScrollAxis() }, // optional ScrollAxes — either key on its own is legal
  gridColumns: ['name', 'start', 'duration'],
  rowSource: { source: 'entries', tree: true },
  theme: 'auto', // 'light' | 'dark'
  todayLine: true,
  locale: 'de-DE',
  capabilities: { move: true, resize: (entry) => !entry.hasChildren }, // a Capabilities rule
  viewportGestures: { wheelZoom: true },
});

gantt.destroy();

Mounts a Gantt into container: a grid pane (configurable columns), a splitter, and a timeline pane with header bands and bars. Row height comes from --fg-row-height (default 36px). Two Gantt instances on one page are fully independent (I2); two given the same scale/scroll x-sync (D9).

Every config key is a live property — assign gantt.preset, gantt.gridColumns, gantt.rowSource, and so on without remounting.

Selection (S3)

Selection is Gantt state, not Dataset state — two Gantt instances on one Dataset can hold different selections. The Selection holds Entry ids (ADR 0010, ADR 0025) — the Segment type retired in #421, and with it selectedSegmentIds. The library exposes it two ways, and the suffix says which one you get: entry ids, or Entry records.

| Getter | Type | Writable | What it is | | ------------------------ | -------------------- | ---------------------------------- | ------------------------------------------------- | | gantt.selectedEntryIds | readonly EntryId[] | yes (gantt.selectedEntryIds = …) | Which Entry ids are selected, in row order | | gantt.selectedEntries | readonly Entry[] | no | The bound dataset's Entry records for those ids |

A click in the grid pane selects every Entry the row owns — one for an ordinary row, several for a segmented row (childrenAsSegments). A click on a bar in the timeline selects only the Entry that bar belongs to.

Assign selectedEntryIds to set the selection (click parity: assignment runs beforeSelectionChange → selectionChange and opens no transaction).

Use selectedEntries when you need entry fields — name, start, end, and so on — for a toolbar, bulk rename, or any "act on the selected rows" control:

gantt.on('selectionChange', () => {
  const names = gantt.selectedEntries.map((entry) => entry.name);
  selectionLabel.textContent = names.join(', ');
});

renameBtn.addEventListener('click', () => {
  dataset.transaction(() => {
    for (const entry of gantt.selectedEntries) {
      dataset.entries.update(entry.id, { name: input.value });
    }
  });
});

selectedEntries re-reads the store on every access, so field edits show up without a selection change. It keeps Selection order and skips ids that no longer exist — for example after dataset.entries.remove left a stale id behind in selectedEntryIds. To change which entries are selected, assign selectedEntryIds; selectedEntries is read-only.

selectionDataset was not used: Dataset is already the name of the entry store (new Dataset({ … })), so a getter named selectionDataset reads like a second Dataset instance rather than a list of Entry records.

Dragging bars and snapping (S3)

A pointer drag on a move-capable bar previews at full pixel resolution — the grabbed spot on the bar tracks the cursor with no drift — and snaps only the value it writes on release, so the visible motion is always smooth even when the committed start/end lands on a calendar boundary.

Where a drag snaps to comes from gantt.snap, live-reconfigurable and independent of the active ViewPreset — it survives a zoom on its own, and a caller who states nothing gets 'none': free, unsnapped dragging.

import { nextTickBoundary } from 'freegantt';

gantt.snap = 'none'; // default: free placement, no snapping at all
gantt.snap = 'tick'; // whatever the showing preset's own tick is
gantt.snap = { unit: 'hour', increment: 2 }; // every 2 hours, anchored on the calendar (#489)
gantt.snap = (zone, at) => nextTickBoundary(zone, at, { unit: 'hour', increment: 6 }); // a custom SnapRule

Holding Alt during a drag suspends snapping for that one gesture, regardless of the configured snap — useful for fine placement without changing it. The harness (harness/generic.html) has a "Snap" control (Tick / Off / Hour / Day / Week) wired to this same gantt.snap assignment — try it against a live drag at pnpm dev.

Plugins

docs/06-plugin-authoring.md covers both plugin contracts (ChromePlugin, DataPlugin), every registration seam, and the errors an author meets. tooltips(), contextMenu(), inlineEditing(), and timeShading() ship as built-in plugins; installing none of them keeps them out of a consumer's bundle.

import { Gantt, tooltips, contextMenu } from 'freegantt';

const gantt = new Gantt({ container, dataset, plugins: [tooltips(), contextMenu()] });

Decorations — painting behind or over the bars

A decoration is a band the timeline paints that is not an Entry: a weekend (timeShading(), a shipped built-in — see docs/06-plugin-authoring.md), a highlighted row, a freeze window. A plugin registers a provider, and the library calls it with the visible window each time that window changes.

import { definePlugin } from 'freegantt';

function overBudgetRows(threshold: number) {
  return definePlugin({
    id: 'demo.overBudgetRows',
    view(ctx) {
      ctx.view.registerDecoration('underBars', ({ rows }) =>
        rows
          .filter((row) => {
            const entryId = row.entryIds[0];
            if (entryId === undefined) return false;
            const cost = ctx.dataset.entries.get(entryId)?.read('cost');
            return typeof cost === 'number' && cost > threshold;
          })
          .map((row) => ({ kind: 'rowStripe' as const, rowId: row.id })),
      );
    },
  });
}

export { overBudgetRows };

Three things make this work, and they are the whole contract:

• A provider states time or rows, never pixels. A rangeBand names Instants; the library converts them through the bound TimeScale. That is what lets two Gantts share one axis without a provider knowing.
• ctx answers what the window is. rows are the rows in view, span is the visible time range (already widened by overscan), time is zone-bound date maths, and tickUnit/tickIncrement say what one tick column stands for — so a provider that only makes sense at some granularity can return nothing at the others.
• class is how it gets its paint. It lands on the node beside the library's own .fg-row-stripe or .fg-range-band, so a consumer styles it in CSS. The library never invents a colour for you.

'underBars' paints below the bar layer, 'overBars' above it. The other input kind is { kind: 'rangeBand', start, end, class }, for shading a date range rather than a whole row — timeShading() is the shipped example. Registration is retracted with the plugin — ctx.disposables already holds it, so there is no disposer to return.

A worked example lives in harness/plugins/over-budget-rows.ts, written against the public entry point only. docs/06-plugin-authoring.md has the full contract.

Events

Gantt events (entryMove, selectionChange, collapseChange, navigationChange, …) fire on the Gantt. Data events (change, beforeChange) fire on the Dataset. Every mutating interaction has a cancelable before* pair where veto applies.

Talking to a server

Two shapes, and they answer different questions.

| You want | Door | What the user sees | | -------------------------------------------------- | ----------------------------------------- | ---------------------------------------------------------------------------- | | The server is told the move happened | entryMove, or change on the Dataset | Nothing waits. The bar stays where the user dropped it | | The server decides whether the move is allowed | beforeEntryMove returning a Promise | The bar holds at the drop point, dimmed and dotted, until the answer arrives |

Pick the first unless the server can genuinely refuse.

import { invertChangeSet } from 'freegantt';

dataset.on('change', ({ changeSet }) => {
  if (changeSet.origin !== 'user') return; // do not re-post an undo or a rollback
  void api.save(changeSet).catch(() => {
    dataset.replay(invertChangeSet(changeSet)); // reverse this one, not the last one
  });
});

Nothing blocks the thread either way. beforeEntryMove, beforeEntryResize and beforeEntryEdit may return Promise<void | false> (D-S3-17). Every other event is sync-only, beforeChange included: a data commit has nothing to suspend into, so the async door stays where the gestures are.

While such a Promise is unsettled, the Gantt arms no new move or resize, and keyboard editing refuses with it. Scrolling, selection and column drags keep working. So does every write through dataset.entries.update() — which is why a stale draft is possible; see below.

Two open defects sit on that door. A handler that never settles holds the gesture forever (#272), so race your own timeout for now. A commit that lands during the wait leaves the held draft stale (#273).

Styling and theming

Gantt injects its own default stylesheet once per document (<style data-freegantt-styles>), so nothing renders unstyled. A consumer never edits that stylesheet — instead, override the CSS custom properties it defines, in the consumer app's own .css:

/* consumer app's own stylesheet — no build step, no TypeScript */
:root {
  --fg-bar-fill: #2563eb;
  --fg-header-bg: #ffffff;
}

The full set of overridable tokens (--fg-pane-bg, --fg-header-bg, --fg-bar-fill, --fg-warn, --fg-indent-width, and so on) is listed in src/view/styles.ts. Any selector the library renders (.fg-bar, .fg-row, .fg-header, …) can also be targeted directly for changes a token doesn't cover.

Light and dark mode

The base stylesheet ships both a light token set (on :root) and a dark token set, applied two ways:

• Automatic: a prefers-color-scheme: dark media query supplies the dark tokens whenever the consumer page hasn't set data-fg-theme, so a Gantt follows the OS/browser preference with no extra wiring.
• Explicit: setting data-fg-theme="dark" (or "light") on an ancestor element — typically <html> or the Gantt's container — pins the theme regardless of prefers-color-scheme.

To customize dark mode instead of just light mode, scope the override to the dark selector(s):

:root {
  --fg-bar-fill: #2563eb; /* light mode */
}
[data-fg-theme='dark'] {
  --fg-bar-fill: #60a5fa; /* explicit dark mode */
}
@media (prefers-color-scheme: dark) {
  :root:not([data-fg-theme]) {
    --fg-bar-fill: #60a5fa; /* OS-preference dark mode */
  }
}

Further reading

| Doc | Audience | | --------------------------------- | ------------------------------------------------------------------------------- | | docs/05-consumer-api.md | Consumer API index | | CONTEXT.md | Glossary (Entry, Field, Row, Row source, Rollup, …) | | etc/freegantt.api.md | Generated TypeScript export report (api-extractor) | | docs/09-integration-pitfalls.md | Integration traps — theme, zoom notification, overscan, row click | | docs/06-plugin-authoring.md | Plugin authoring guide — ChromePlugin, DataPlugin, every registration seam | | pnpm docs | Docs site from freegantt/docs, run against this checkout's docs/ and src/ |

Development

pnpm install
pnpm dev        # harness at http://localhost:5173
pnpm verify:full # the gate: everything below, then Playwright against the harness
pnpm verify      # the browser-free chain — on its own it cannot see e2e/
pnpm test:e2e    # Playwright against the harness, on its own
pnpm open-pr     # push the branch, open a draft pull request (docs/04 §5.2)

pnpm verify:full is the one command every caller runs: you, .githooks/pre-push, and CI. Its last line is the verdict — quote that, never an exit code (docs/04 §3.2). CI runs it in one job, on any pull request that is ready for review; a draft runs nothing, so pnpm open-pr --ready is what starts it.

isDevMode() is a library-build flag, not a consumer's

src/data/dev-mode.ts reads import.meta.env.DEV. Vite resolves that constant when this repo builds dist/, not when a consumer builds their app. It bakes to false, and Rollup then drops every if (isDevMode()) branch from the shipped bundle.

The built output shows it. src/render/dom/index.ts:81's "falling back to the default output" message sits behind the guard and appears zero times in dist/api/index.js. The two disposer console.error calls that carry no guard both survive. Three console. calls reach the bundle in total.

So isDevMode() is true in exactly one place: this repo's own harness, running from source through pnpm dev. It is a library-development flag. It is not a consumer-environment flag, and a consumer's own dev server never turns it on.

Two consequences for anyone adding a call site:

• Use it for an assertion that helps us develop the library. That is what the existing sites read as.
• Never use it to give a consumer different behaviour in their dev and their production. One dist/ serves everyone, and their mode is invisible when we build it. docs/adr/0009 records the three mechanisms that can see a consumer's mode, and why this project rejects all three.

Not yet audited: thirteen further isDevMode() call sites exist in src/ — data/transaction.ts, data/build-commit-change-set.ts, data/serialization/, extensions/plugin-runtime.ts, view/plugin-ports.ts and view/gantt-shell.ts. Each is dead-code-eliminated from dist/ the same way. The ones read so far are genuine library-development assertions, which is the correct use. None has been checked against the question "was this written expecting a consumer's dev build to reach it?" Parked here until it gets its own issue.

The dev harness (harness/) is the library's first consumer. Open http://localhost:5173 after pnpm dev. Five demo pages share one nav and one theme picker (Auto, Light, Dark, Paper):

• Planner (index.html) — the featured demo: a full design on the public surface, in four themes.
• Generic demo (generic.html) — the smallest setup, with a bench of harness controls.
• Editing & data (editing-and-data.html) — gestures, mutation, undo, vetoes, plugins, JSON.
• Hierarchy & timeline (hierarchy-and-timeline.html) — tree rows, roll-ups, zoom, date lines.
• Performance (performance.html) — 50,000 entries.

Each page lists the features it shows above the chart. The pages under harness/e2e/ are Playwright fixtures, not demos; the nav does not link them.
