Giraflow CLI

CLI tool for visualizing and analyzing Information Flow models (.giraflow.json).

Installation

npm install -g giraflow-cli

Usage

Visualize an existing model

giraflow-cli <file> [options]

Options

| Option | Description | |--------|-------------| | -v, --view <mode> | timeline, slice, or table | | -e, --example | Show example data | | -s, --schema <path> | Validate against JSON schema | | --validate | Validate against bundled schema | | -o, --output <file> | Export to file |

Examples

# Interactive mode (prompts for view)
giraflow-cli model.giraflow.json

# Slice view with scenarios
giraflow-cli model.giraflow.json -v slice

# Timeline with example data
giraflow-cli model.giraflow.json -v timeline -e

# Table view for documentation
giraflow-cli model.giraflow.json -v table

Create a new model

giraflow-cli create [output-file]

Starts an interactive wizard that guides you through building a .giraflow.json model step by step.

Workflow

1. Model metadata — Name (required) and description (optional)
2. Element loop — Repeat until done:

   • Choose element type: Event, State View, Actor, or Command

   • Enter a name

   • Fill in type-specific fields (all optional, press Enter to skip):

     | Type | Optional fields | |------|----------------| | Event | producedBy (command name), externalSource | | State View | sourcedFrom (comma-separated event names) | | Actor | readsView (defaults to last state), sendsCommand | | Command | — |

   • Add example data (choose one):

     • None — skip
     • Free text — stored as a string value
     • Key-Value pairs — interactive loop, stored as a JSON object

   • Confirm whether to add another element

3. Save — writes the model as JSON with 2-space indentation

Examples

# Specify output file directly
giraflow-cli create my-model.giraflow.json

# Let the wizard ask for the filename (defaults to <name>.giraflow.json)
giraflow-cli create

Views

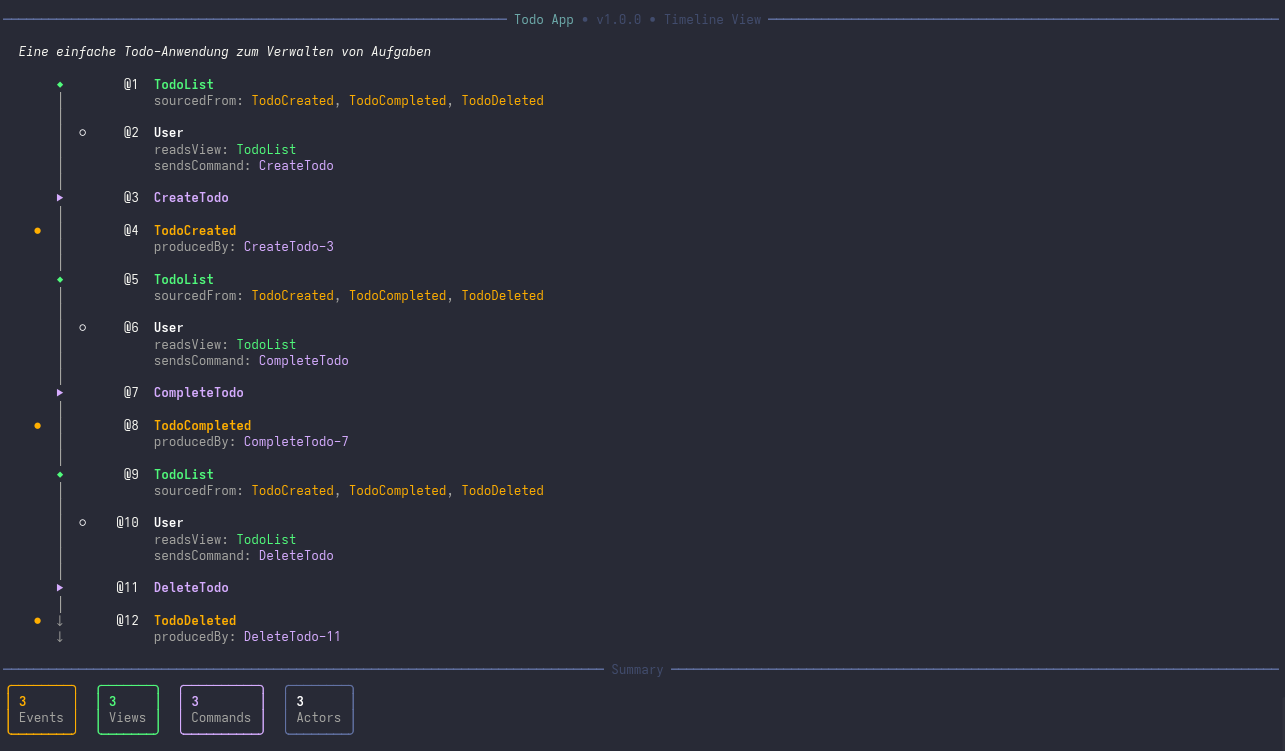

Timeline

Chronological flow with symbols (●Event ◆State ▶Command ○Actor). Use -e to include example data.

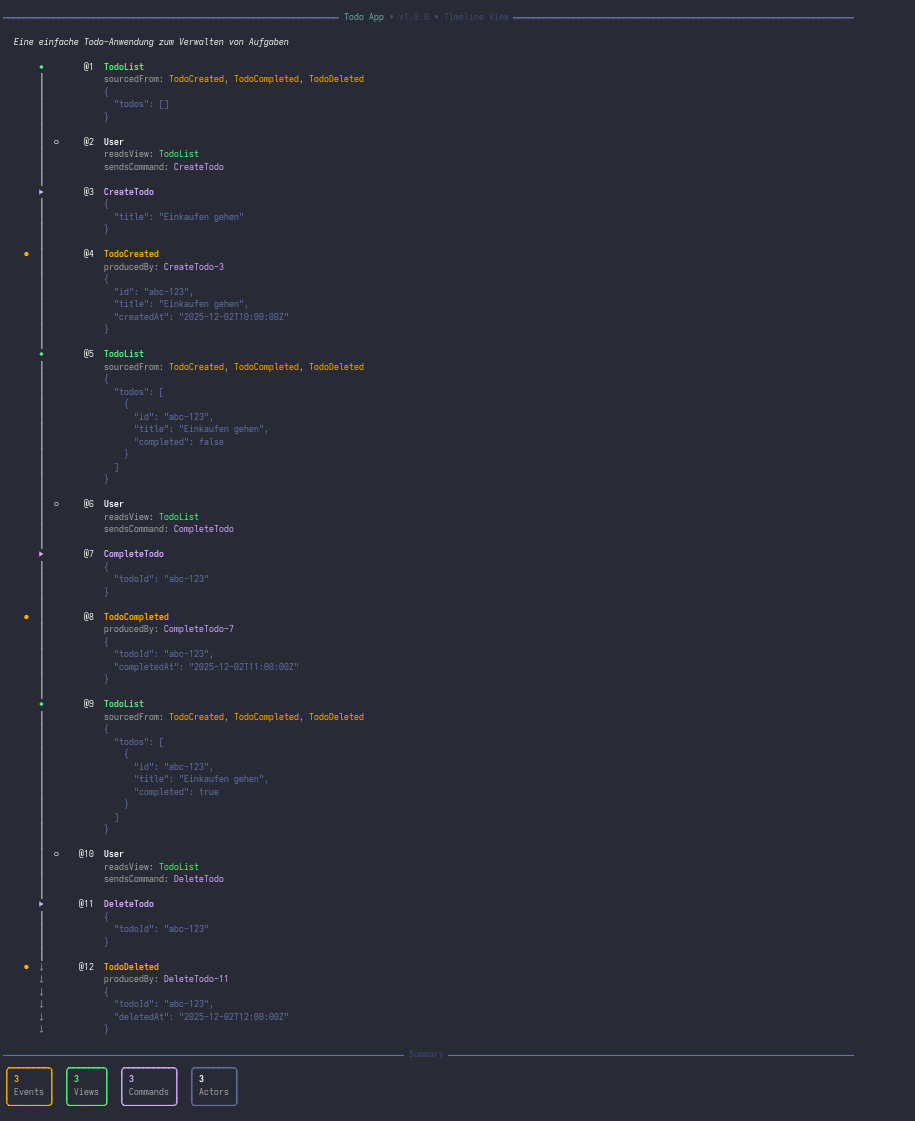

With example data (-e):

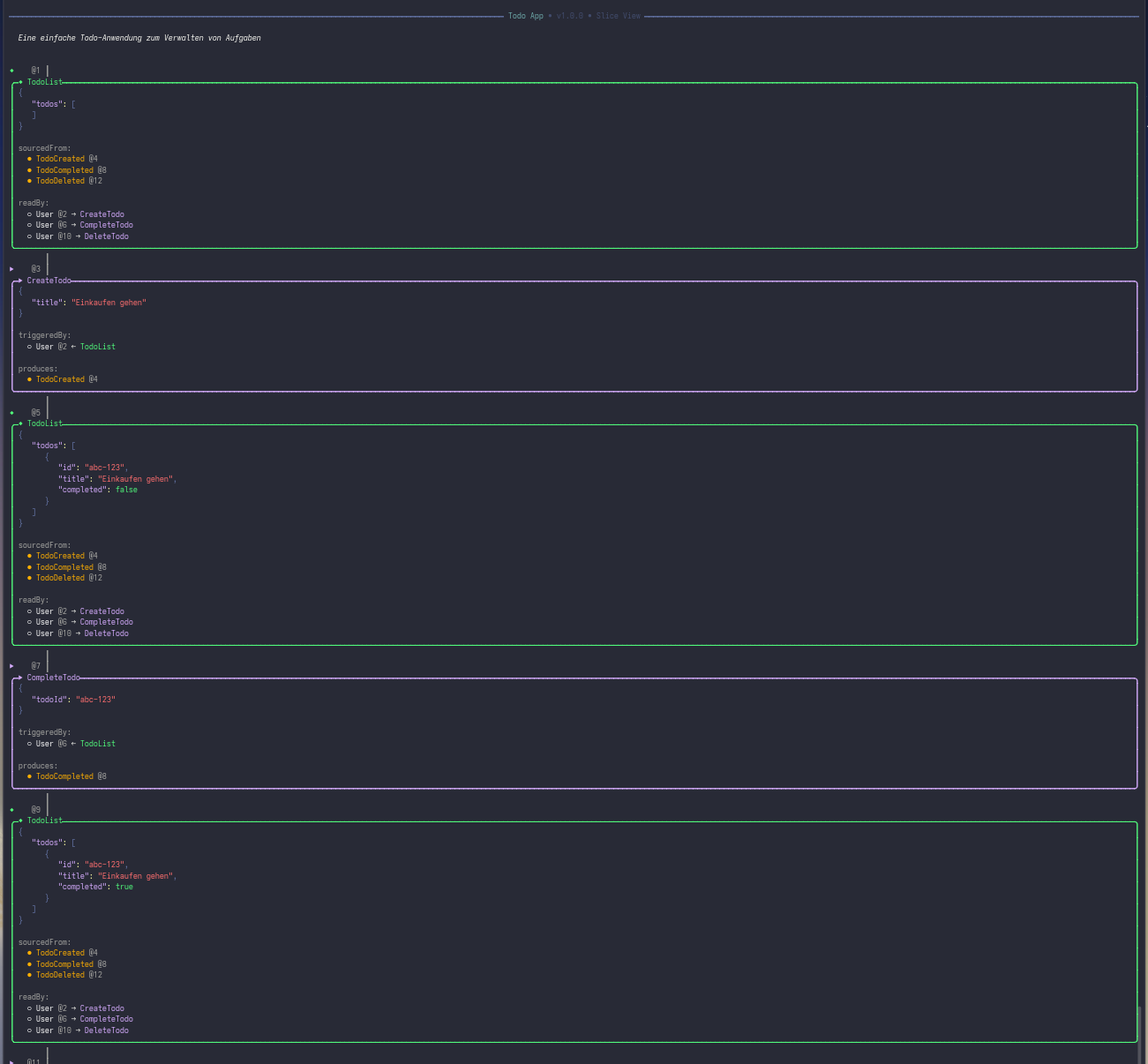

Slice

Detailed panels with JSON examples and Given-When-Then scenarios.

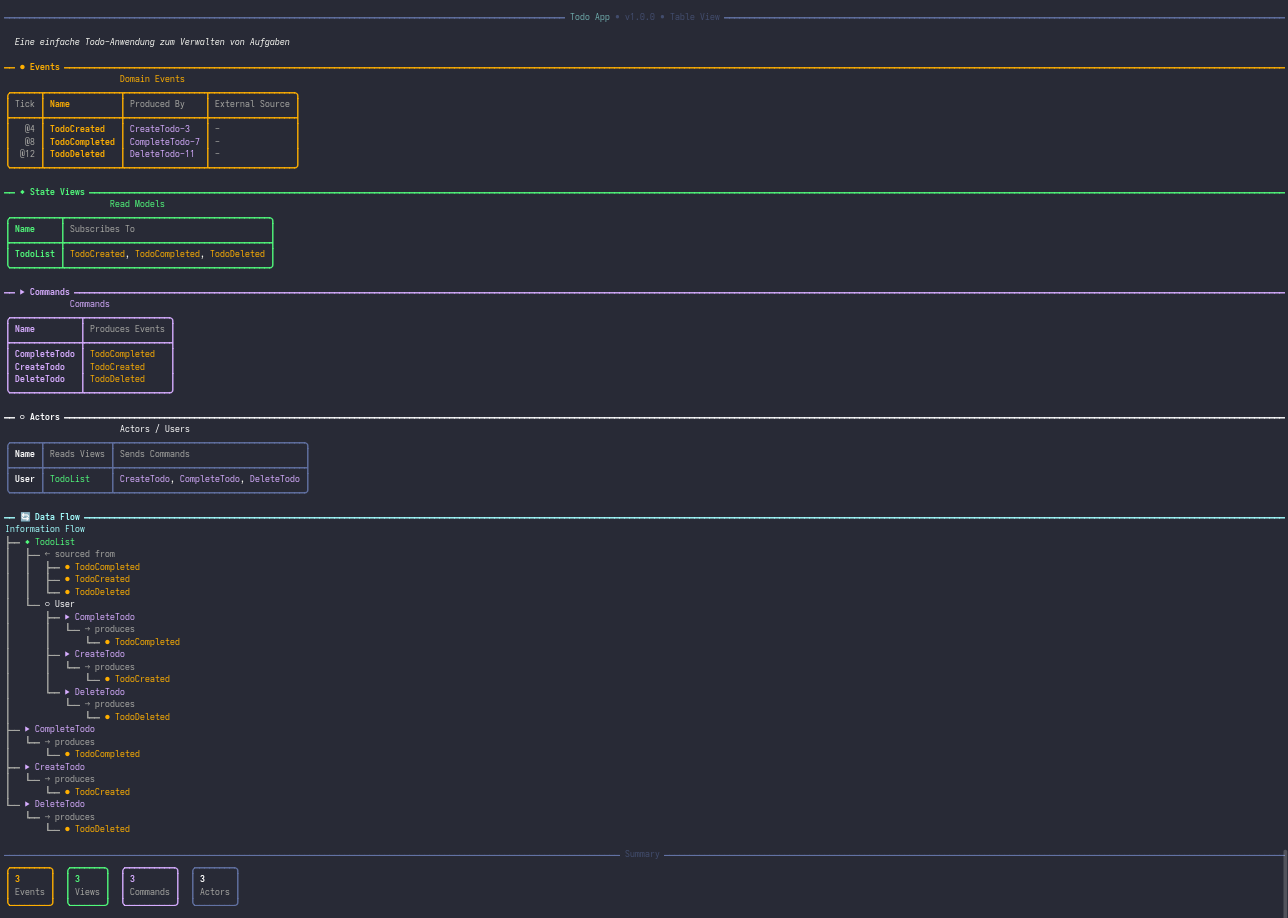

Table

Tabular overview per element type with data flow tree.

See Also

giraflow — Live preview server with hot reload for viewing models in the browser.
