GraphMind

Local semantic code graph for AI agents.

Lets Claude Code, Cursor, Windsurf, and Codex search and reason about your codebase by meaning and structure — not just text. Runs entirely on your laptop. No API keys. No cloud. Code never leaves the machine.

GraphCodeBERT (768-d embeddings) + a Graph Attention Network on top + FAISS, running on Apple Silicon MPS, CUDA, or CPU. Exposes 13 MCP tools to your editor over stdio or streamable-http.

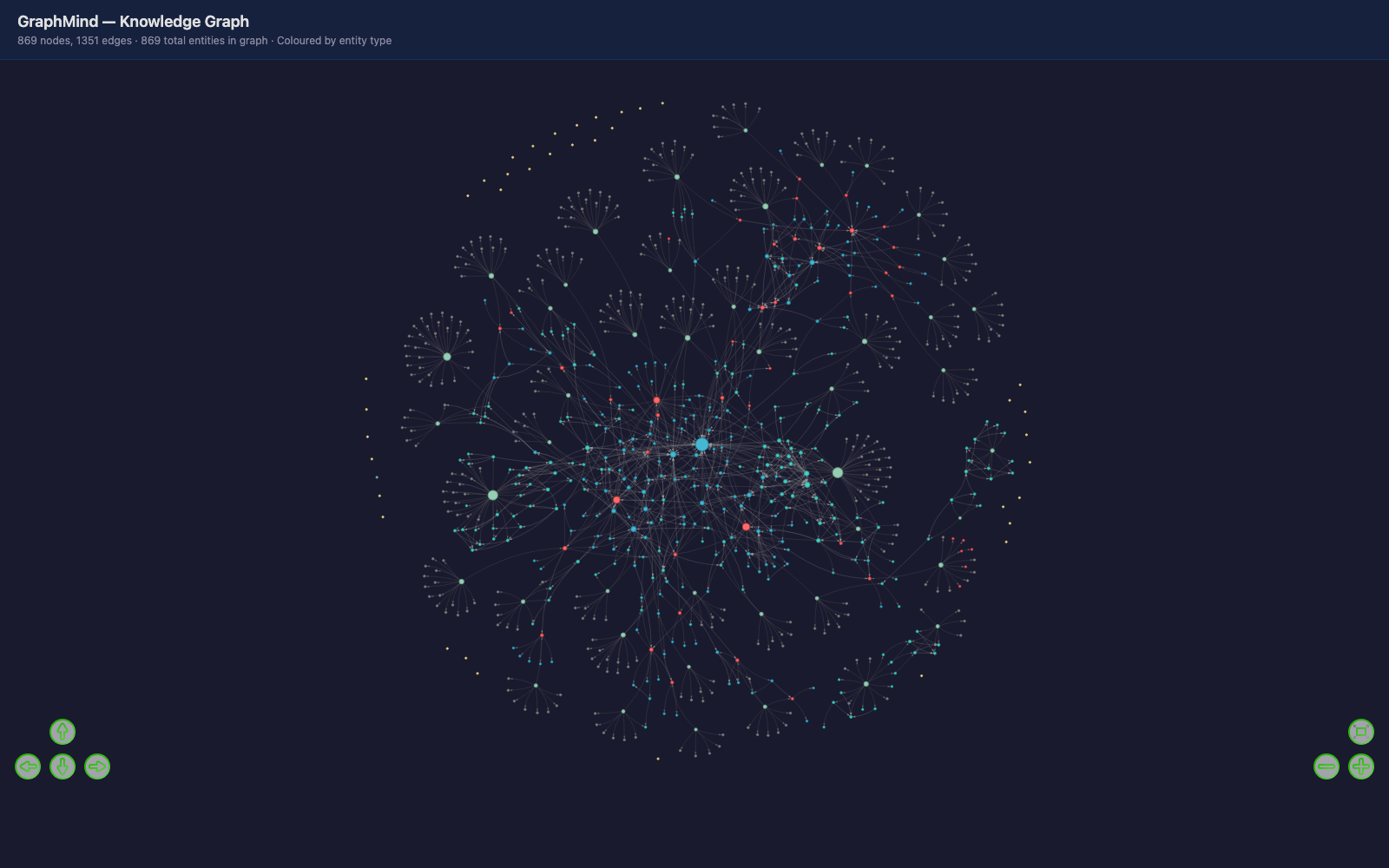

The GraphMind project visualised through itself — every dot is a function, class, or module; every edge is a real call or import; clusters are auto-detected modules.

Why GraphMind

| | grep / ripgrep | GraphMind | | ------------------------------------------------ | -------------- | ------------------------------------ | | Find code by literal name / text | ✅ instant | ✅ | | Find code by intent ("retry backoff logic") | ❌ | ✅ GraphCodeBERT embeddings | | Call graph + dependency chains | ❌ | ✅ resolved across files | | Cross-language unified graph | ❌ | ✅ Py / JS / TS / Go / Rust / Java / C++ | | Module / community detection | ❌ | ✅ Louvain | | Cloud ingest required | — | ❌ everything stays local | | Setup time | 0 | one npx command |

Install

Prerequisites: macOS or Linux (Windows via WSL), Node 18+, ~2 GB disk for the model cache.

npx graphmind-mcp install

That single command:

1. Sets up ~/.graphmind/venv/ with all Python dependencies
2. Installs a launchd agent (macOS) or systemd user unit (Linux) — auto-starts on login, auto-restarts on crash
3. Wires the MCP server (http://127.0.0.1:7890/mcp) into every AI editor it finds: Claude Code, Cursor, Windsurf, Codex

Restart your editor after install. To verify:

graphmind-mcp status            # daemon + editor configs
tail -f ~/.graphmind/logs/graphmind.log

What your AI assistant gets

13 MCP tools, hot-loaded into the editor:

| Tool | What it answers | |------|-----------------| | search_code | "Find code that handles retry backoff" — semantic + structural, not keyword | | get_entity_details | Full source, signature, callers, callees | | find_dependencies | "What calls this? What does it call?" with confidence tags | | analyze_file | Every entity in a file + its inbound / outbound edges | | get_community | "Show me everything in the auth module" — Louvain clusters | | shortest_path | "How does X connect to Y?" — architectural path | | god_nodes | Top-connected entities = your codebase's core abstractions | | surprising_connections | Cross-module edges — accidental coupling, architectural smells | | analyze_nesting | Closure / nested-fn complexity hot-spots | | graph_summary | One-shot architectural health (entities, communities, confidence) | | export_graph | Standalone interactive HTML visualization | | suggest_questions | LLM-friendly prompts derived from your graph | | regenerate_report | Refresh the auto-generated GRAPH_REPORT.md |

Plus an auto-generated GRAPH_REPORT.md at your project root — ~8 KB plain-language architectural overview your AI can read once at session start instead of crawling files.

Quick start

cd /path/to/your/project
# The shell cd-hook auto-sets the active project for all AI editors.
# Or explicitly via Claude Code: /mcp → graphmind → register_project {"path": "/abs/path"}

Indexing runs in the background — ~1–3 minutes for a 50K-LoC codebase. The GraphCodeBERT model downloads once on first use (~500 MB).

Try asking your assistant:

• "Search the codebase for authentication logic"
• "Show me the god nodes"
• "What depends on UserSession?"
• "How is AuthMiddleware connected to DatabasePool?"
• "Export the graph as HTML so I can see it"

When to use it

Shines on:

• Repos > 20 K LoC where ripgrep returns too many hits to skim
• Cross-language codebases where you want one unified call graph
• Architectural questions — what's connected to what, where a module ends
• Onboarding to unfamiliar code

Marginal on:

• Tiny repos (< 5 K LoC) where grep finishes in one turn
• Pure editing where you already know the file
• Exact-string lookups (error messages, log lines) — use grep

Out of scope: linting, type-checking, formatting, build tooling.

Data + privacy

Everything stays on your machine.

• Source, embeddings, FAISS index, communities → <project>/.graphmind/ (already in the default .gitignore template).
• Daemon listens on 127.0.0.1:7890 only. Never bound to a public interface.
• Sensitive files (.env, *.pem, *.key, credentials.*, secrets.yaml, SSH keys) are skipped by filename automatically — they never enter the index.

No API keys. No telemetry. Your code never leaves the machine.

Operating the daemon

# Start / stop (macOS)
launchctl load   ~/Library/LaunchAgents/com.graphmind.daemon.plist
launchctl unload ~/Library/LaunchAgents/com.graphmind.daemon.plist

# Start / stop (Linux)
systemctl --user start graphmind
systemctl --user stop graphmind

# Force restart (pick up a code change)
launchctl unload ~/Library/LaunchAgents/com.graphmind.daemon.plist && \
launchctl load   ~/Library/LaunchAgents/com.graphmind.daemon.plist

# Logs
tail -f ~/.graphmind/logs/graphmind.log

Optional: git hook

Idempotent post-commit hook that logs commit stats. Respects core.hooksPath, preserves existing hooks.

cd /path/to/your/git/repo
graphmind-mcp hook install
graphmind-mcp hook status
graphmind-mcp hook uninstall

Uninstall

graphmind-mcp uninstall
# Removes launchd/systemd unit + MCP entries from editor configs.
# Leaves ~/.graphmind/ intact — nuke manually with: rm -rf ~/.graphmind

Per-project indexes at <project>/.graphmind/ can be removed the same way.

Tradeoffs by design

• Closure-scope resolution is global. Two helper functions in different parent scopes tag as AMBIGUOUS. Conservative by design — the call direction is correct, only the label is noisy.
• .graphmindignore loads once at watcher start. Edit the file and register_project again to pick up changes — keeps the watcher cheap.
• Performance: validated up to ~1 K nodes. Larger repos in active testing — please share what you find.
• One DOCUMENT entity per markdown file, not per-heading. .html files are not indexed by design (usually generated build output).
• PDF ingestion requires pip install pypdf in ~/.graphmind/venv; self-disables otherwise.

Feedback

Actively maintained. Most useful signal from early users:

1. Did npx graphmind-mcp install Just Work? (OS / Node / Python / editor)
2. First question you asked it — did it help or confuse?
3. Surprises — anything obviously wrong, or weirdly good
4. Speed on your biggest repo
5. Tools or queries you wanted that aren't there

Email: [email protected] — screenshots / logs welcome. Daemon log lives at ~/.graphmind/logs/graphmind.log.
