highcharts-custom-symbols

A collection of SVG-based symbols for Highcharts, extending its built-in marker library with curated icon sets for transport, people analytics, decorative, and geometric use cases.

Symbols are generated from SVG source files via a bundled conversion script and registered directly on Highcharts.SVGRenderer.prototype.symbols, so they work anywhere Highcharts accepts a marker symbol string.

Installation

npm install highcharts-custom-symbols

highcharts is a peer dependency — make sure it is installed in your project.

Usage

Import the package once at your app's entry point. This registers all symbols globally with Highcharts.

import 'highcharts-custom-symbols';

Then reference any symbol by name in your chart config:

import Highcharts from 'highcharts';
import 'highcharts-custom-symbols';

Highcharts.chart('container', {
  series: [{
    type: 'scatter',
    data: [
      { x: 10, y: 5,  marker: { symbol: 'bicycle' } },
      { x: 20, y: 15, marker: { symbol: 'hexagon'  } },
      { x: 30, y: 10, marker: { symbol: 'house'    } },
    ]
  }]
});

You can also import individual collections if you want to keep bundle size minimal:

import 'highcharts-custom-symbols/dist/symbols/transportation';
import 'highcharts-custom-symbols/dist/symbols/custom-primitives';

Symbol Collections

Custom Primitives

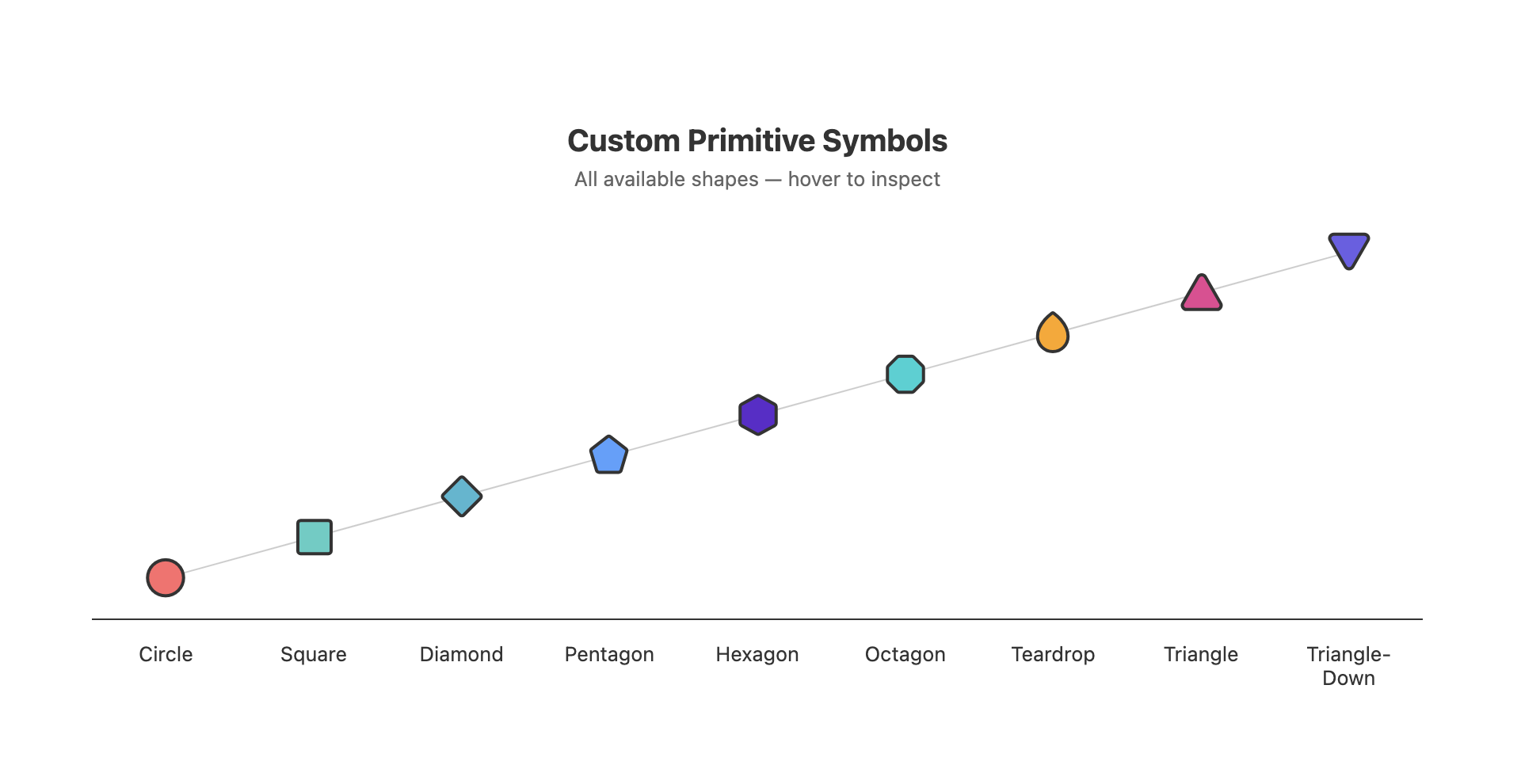

Geometrically precise shapes that extend Highcharts' default circle, square, diamond, and triangle markers.

| Symbol | Name | |---|---| | circle | Circle | | square | Square | | diamond | Diamond | | pentagon | Pentagon | | hexagon | Hexagon | | octagon | Octagon | | teardrop | Teardrop | | triangle | Triangle | | triangle-down | Triangle Down | | egg | Egg |

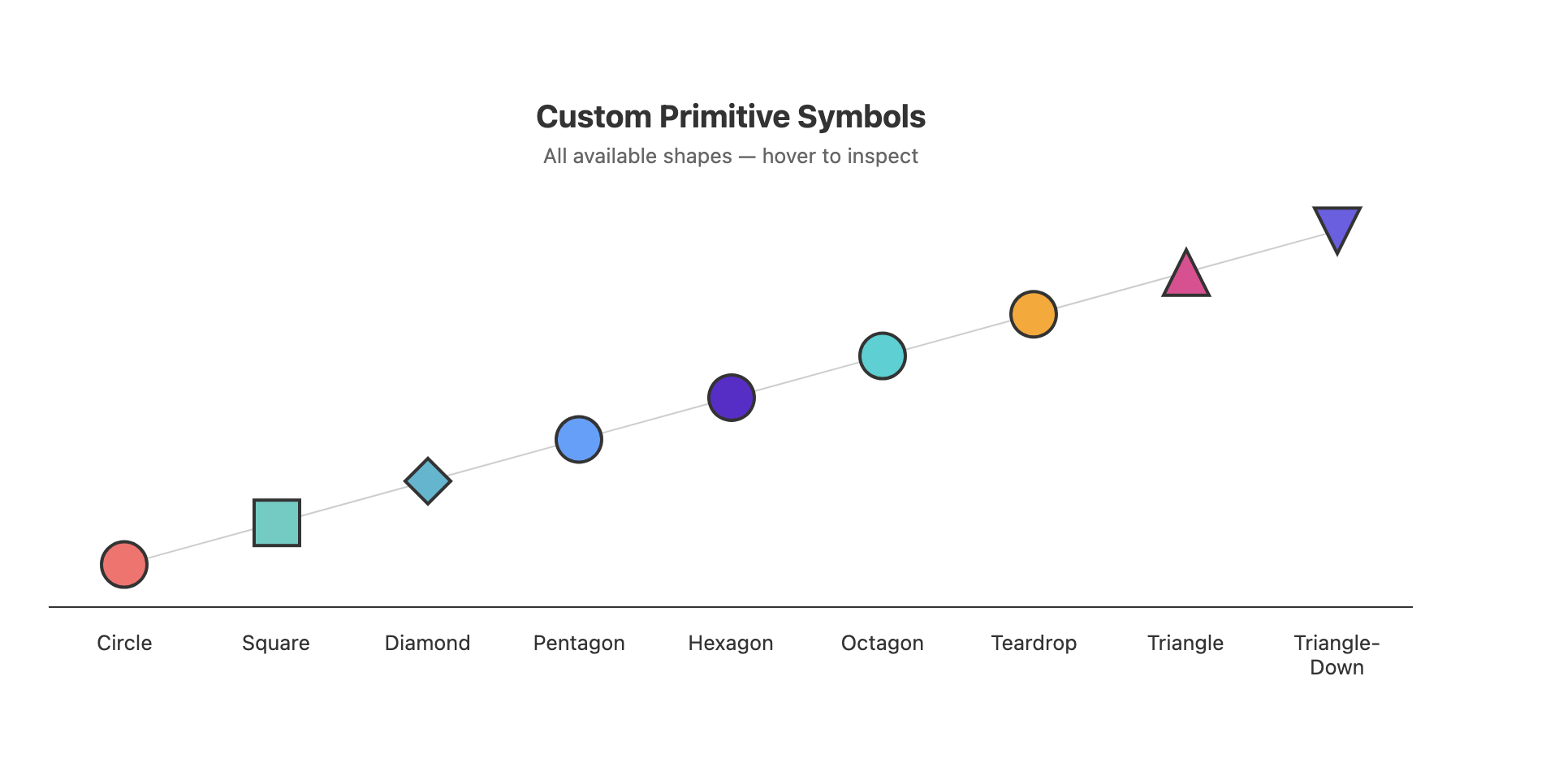

Without this package, Highcharts falls back to generic shapes for unrecognized symbol names.

Transportation

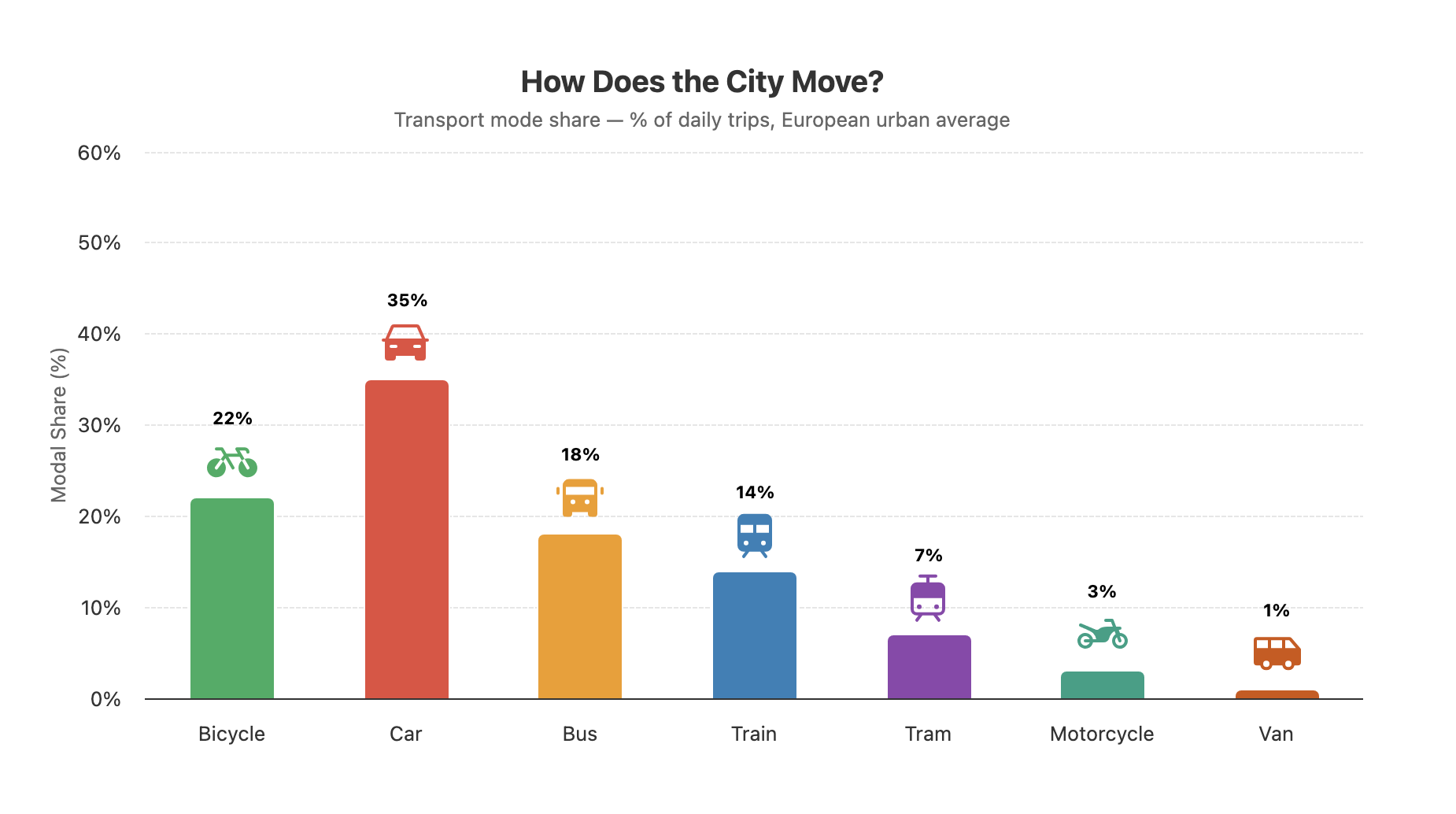

Icons for transport modes — useful for urban mobility dashboards, logistics charts, and route analysis.

| Symbol | Name | Symbol | Name | |---|---|---|---| | airplane | Airplane | airplane-tilt | Airplane Tilt | | airplane-taxiing | Airplane Taxiing | bicycle | Bicycle | | boat | Boat | bus | Bus | | cable-car | Cable Car | car | Car | | moped | Moped | moped-front | Moped Front | | motorcycle | Motorcycle | sailboat | Sailboat | | scooter | Scooter | train | Train | | train-simple | Train Simple | tram | Tram | | van | Van | | |

Decorative

Expressive icons suited to content platforms, sprint dashboards, engagement metrics, and anywhere a bit of personality helps communicate the data.

| Symbol | Name | Symbol | Name | |---|---|---|---| | avocardo | Avocado | balloon | Balloon | | bomb | Bomb | bone | Bone | | heart | Heart | lightling | Lightning | | moon | Moon | puzzle | Puzzle | | star | Star | tag | Tag |

People Analytics

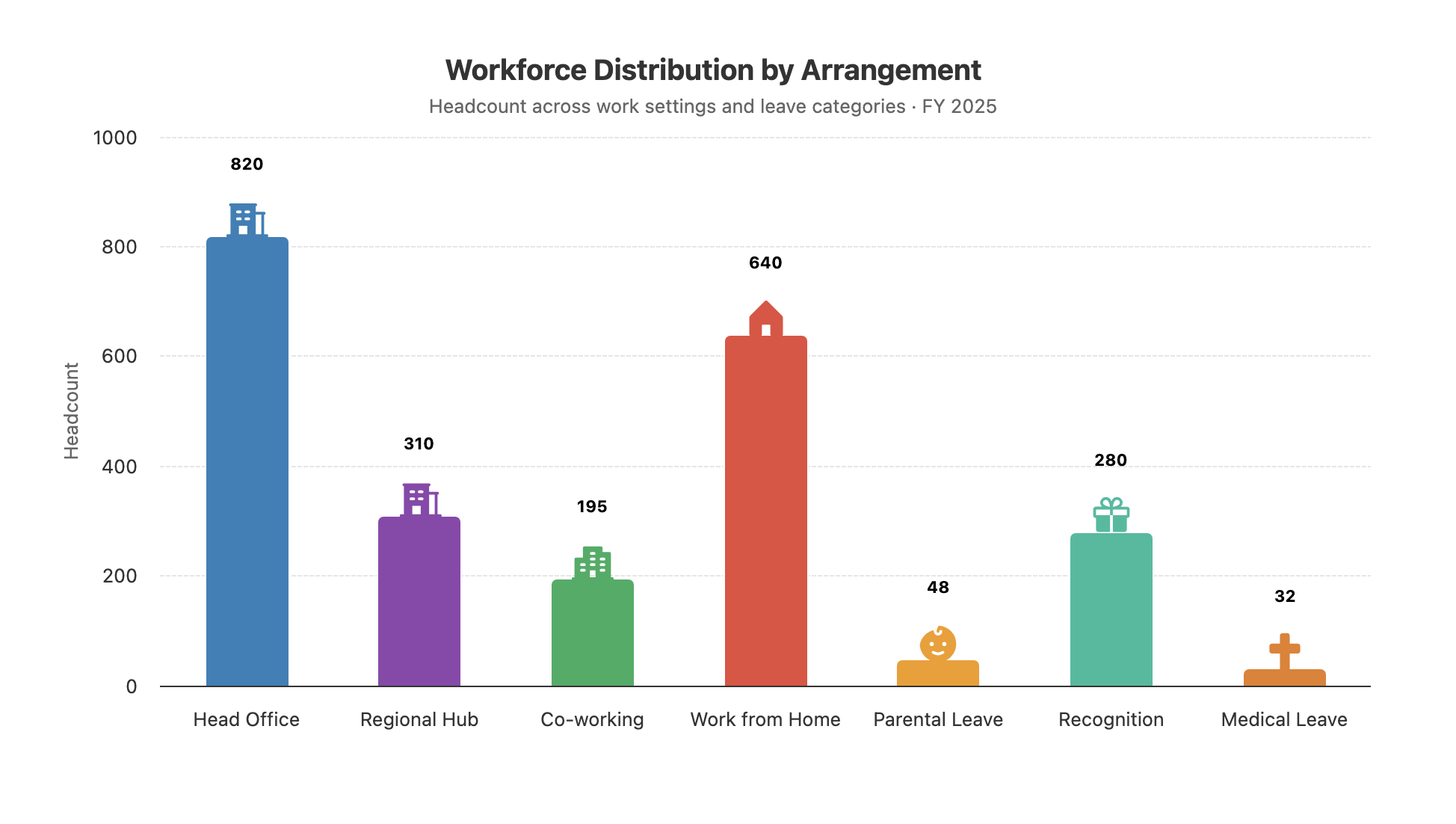

Building and demographic icons for HR dashboards, housing market charts, workforce distribution, and workplace data.

| Symbol | Name | Symbol | Name | |---|---|---|---| | baby | Baby | building | Building | | building-apartment | Apartment | building-office | Office | | cross | Cross | gift | Gift | | house | House | | |

Examples

Live examples are available in Storybook. Run it locally with:

npm run storybook

Stories cover a range of real-world chart patterns:

• Column chart with symbols at bar tops — transport mode share, sprint KPI scores, workforce distribution
• Multi-series line chart — commute times by transport mode, subscription NPS by tier, property values by type

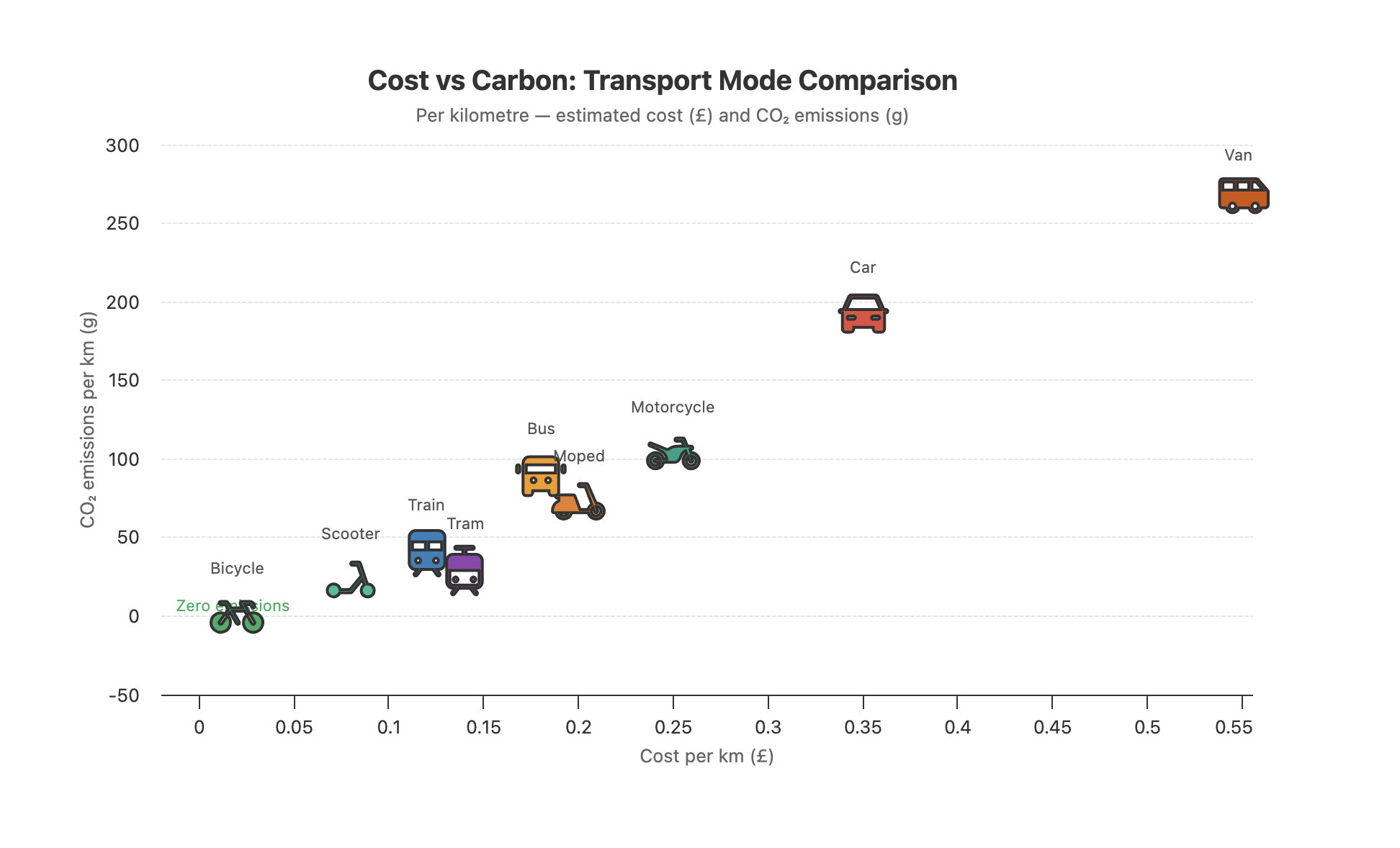

• Scatter chart — cost vs carbon per transport mode

Generating Your Own Symbols

The bundled svg-converter.js script converts any SVG file (or directory of SVGs) into a Highcharts-compatible TypeScript symbol.

Convert a single file:

node svg-converter.js ./svgs/my-icon.svg ./src/symbols/my-collection/

Convert an entire directory (mirrors folder structure):

node svg-converter.js ./svgs/my-collection/ ./src/symbols/my-collection/

The script generates one .ts file per SVG and an index.ts barrel in each output directory. SVG path commands (M, L, C, A, etc.) are preserved and scaled to Highcharts' symbol coordinate system at render time.

Requirements: Node.js (LTS)

Contributing

Contributions are welcome — new symbol sets, converter improvements, or additional Storybook examples. Open an issue or submit a pull request.

Credits

SVG source icons are from Phosphor Icons, a flexible icon family by Tobias Fried and Helena Zhang, licensed under the MIT License.

License

MIT © Alexis Hope
