if-automap

A Trizbort-style live auto-map for interactive fiction shells. Hand it a room graph, feed it discover() events as the player moves, and it draws the map the way players drew them by hand in 1980: labelled boxes on graph paper, direction-true layout, dashed trails at exits not yet taken, arrowheads on one-way passages, stair marks, and region tabs with labelled passages between regions.

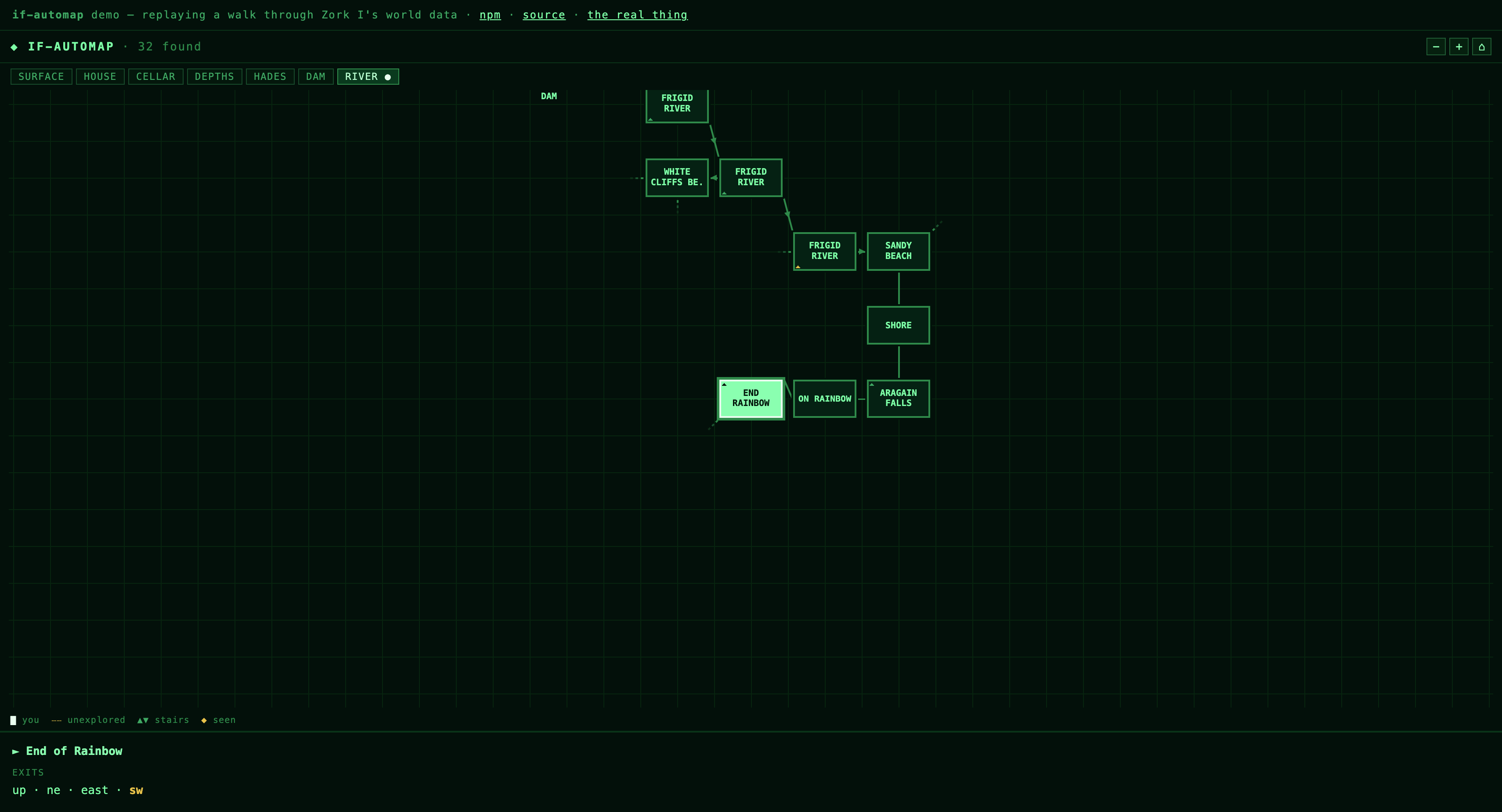

Live demo (a scripted walk through Zork I's world data) and the real thing at zork.arobase.co, where it maps the Great Underground Empire against an untouched Z-machine. Zero dependencies, ~9 kB gzipped, TypeScript types included.

Install

npm install if-automap

ESM-only, shipped unminified with source maps; your bundler does the rest. (No build step? import { createAutomap } from "https://esm.sh/if-automap" works.)

Use

import { createAutomap } from "if-automap";

const map = createAutomap(document.getElementById("map"), {
  rooms: {
    "FIELD": { id: "FIELD", name: "Open Field", exits: { EAST: { to: "FOREST" }, DOWN: { to: "CAVE" } } },
    "FOREST": { id: "FOREST", name: "Forest", exits: { WEST: { to: "FIELD" } } },
    "CAVE": { id: "CAVE", name: "Cave", exits: { UP: { to: "FIELD" } } },
  },
  saveKey: "mygame:map",           // omit or null for no persistence
  onGo: (dir) => game.submit(dir), // tap-to-walk from the exits panel
});

map.discover("FIELD"); // call as the player moves; the map is a diary

The container just needs a height.

Styles don't leak, either direction

By default the widget renders inside a shadow root. Its stylesheet is adopted by that root and never touches your document; your page's CSS (resets, button { } rules, utility frameworks) never touches the widget. Mounting adds zero stylesheets and zero classes to your document.

You still control the look from outside:

• CSS custom properties pierce the boundary: set --automap-font or --automap-scrollbar on the container (or anywhere above it).
• ::part() hooks for structural theming: #map::part(head), ::part(tabs), ::part(stage), ::part(legend), ::part(info), ::part(tip).

If you would rather style everything directly with plain CSS, opt out with isolation: "light", the widget then renders in your DOM with a single class-scoped <style data-automap> in the head (all selectors live under .automap; injected once no matter how many maps you mount).

Regions

Big worlds rarely fit one coherent sheet (a cellar's geometry should never tug on the house above it). Split the world and each region lays out independently, with tabs and labelled stub arrows at every passage between them, labelled only once the player has actually been through:

createAutomap(el, {
  rooms,
  sections: [
    { id: "SURFACE", name: "SURFACE", anchor: "FIELD" },
    { id: "CAVES", name: "CAVES", anchor: "CAVE" },
  ],
  regions: { FIELD: "SURFACE", FOREST: "SURFACE", CAVE: "CAVES" },
  portals: [["FIELD", "DOWN", "CAVE"]], // passages your engine resolves in code
});

API

createAutomap(el, options) returns the instance:

| method | purpose | | --- | --- | | discover(roomId, items?) | register the player entering a room (optionally with visible item names) | | visited() | Set of discovered room ids | | refresh() | re-render (call after resizing the container) | | dump() | layout oracle: placed nodes, live stub hit-rects, active section | | destroy() | stop the heartbeat, remove listeners |

Options: rooms (required), sections, regions, portals, saveKey, storage, onGo, title, heartbeatMs (auto-disabled under prefers-reduced-motion). Directions understood: N/S/E/W, NE/NW/SE/SW, IN, OUT, LAND, UP, DOWN (stairs flatten onto the sheet as diagonals).

The layout engine is invariant-tested against the full 110-room Zork I graph (shuffled discovery orders, random subsets, random walks) in the zork-ui repository's test suite.

License

MIT
