Intervengine React Native SDK

React Native wrapper for the Intervengine Mobile SDK, built with Expo Modules and Kotlin Multiplatform (KMP).

Overview

This SDK provides a React Native interface to the Intervengine platform, enabling mobile apps to:

• Authenticate users and manage sessions
• Listen to real-time updates via Server-Sent Events (SSE)
• Manage user context and state
• Fetch and display embeddable cards
• Fetch contents

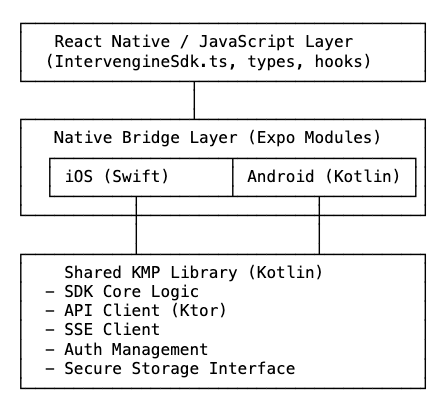

Architecture

The SDK consists of three main layers:

How It Works

1. TypeScript SDK (IntervengineSdk.ts): High-level API that React Native apps use
2. Native Modules: Platform-specific bridge code (Swift for iOS, Kotlin for Android)
3. KMP Shared Library: Cross-platform business logic written in Kotlin

The native modules use Expo Modules API, which provides:

• Automatic type conversion between native and JavaScript
• Promise-based async functions
• Event emitters for native to JavaScript communication
• No need to write JSI/JNI code manually

Installation

NPM Install:

npm install intervengine-rn-sdk

Usage

Basic Setup

// SDK Config
export type SDKConfig = {
  apiUrl: string; // Intervengine API URL
  apiKey: string; // Intervegine API key
  appId: string; // Intervengine application connector ID
  appSecret: string; // Intervengine application connector secret
  userType: UserType; // 'external' or 'participant'
  userId: string; // user identifier
  enableLogging?: boolean;
};

import { IntervengineSdk } from 'intervengine-rn-sdk';

// Initialize the SDK with a sdkConfig object
const sdk = await IntervengineSdk.initialize({
  apiUrl: 'https://your-api-url.com',
  apiKey: 'your-api-key',
  appId: 'your-app-id',
  appSecret: 'your-app-secret',
  userType: 'external|participant',
  enableLogging: true,
});

// Start listening for server events
await sdk.start();

Listening to Auth State Changes

import { useEffect, useState } from 'react';

function MyComponent() {
  const [authState, setAuthState] = useState('loading');

  useEffect(() => {
    if (!sdk) return;

    // Get current auth state
    sdk.getCurrentAuthState().then((state) => {
      setAuthState(state.state);
    });

    // Listen for auth state changes
    const subscription = sdk.addAuthStateListener((state) => {
      console.log('Auth state:', state.state);
      console.log('Access token:', state.accessToken);
      setAuthState(state.state);
    });

    return () => subscription.remove();
  }, [sdk]);

  return <Text>Auth State: {authState}</Text>;
}

Fetching Cards

// Card search parameters
type CardSearchParam = {
  healthAreaId?: string; // Filter by health area ID
  fromDate?: string;  // ISO 8601 date string, default value: today
  toDate?: string;  // ISO 8601 date string, default value: today
  page?: number; // default value: 1
  perPage?: number; // default value: 10
  isActive?: boolean; // default value: true
  isOneOff?: boolean; // default value: null
  isReported?: boolean; // default value: null
};

// Fetch embeddable cards with search param
const cards = await sdk.getEmbeddableCards({
    healthAreaId: 'health-area-123', // Optional: filter by health area
    fromDate: '2025-11-11',
    toDate: '2025-11-11',
    page: 1,
    perPage: 20,
    isActive: true,
});

cards.forEach(card => {
  console.log('Card:', card.title, card.url);
  if (card.healthArea) {
    console.log('Health Area:', card.healthArea.healthAreaName);
  }
});

Listening to Card Updates

useEffect(() => {
  if (!sdk) return;

  const subscription = sdk.addCardsUpdateListener((update) => {
    console.log('New cards received:', update.newCards);
    // Refresh your cards list
  });

  return () => subscription.remove();
}, [sdk]);

Getting User Context

const context = await sdk.getUserContext();
console.log('User ID:', context.userId);
console.log('Access Token:', context.accessToken);

Complete Example

import React, { useEffect, useState } from 'react';
import { View, Text, FlatList } from 'react-native';
import { IntervengineSdk } from 'intervengine-rn-sdk';

function App() {
  const [sdk, setSdk] = useState(null);
  const [authState, setAuthState] = useState('loading');
  const [cards, setCards] = useState([]);

  useEffect(() => {
    // Initialize SDK
    IntervengineSdk.initialize({
      apiUrl: 'https://api.example.com',
      apiKey: 'your-key',
      appId: 'your-app-id',
      appSecret: 'your-secret',
    }).then(async (sdkInstance) => {
      setSdk(sdkInstance);

      // Start listening for events
      await sdkInstance.start();

      // Fetch initial cards
      const initialCards = await sdkInstance.getEmbeddableCards({
        page: 1,
        perPage: 20,
        isActive: true
      });
      setCards(initialCards);
    });
  }, []);

  useEffect(() => {
    if (!sdk) return;

    // Listen for auth state changes
    const authSub = sdk.addAuthStateListener((state) => {
      setAuthState(state.state);
    });

    // Listen for new cards
    const cardsSub = sdk.addCardsUpdateListener(async () => {
      const updatedCards = await sdk.getEmbeddableCards({
        page: 1,
        perPage: 20,
        isActive: true
      });
      setCards(updatedCards);
    });

    return () => {
      authSub.remove();
      cardsSub.remove();
    };
  }, [sdk]);

  return (
    <View>
      <Text>Status: {authState}</Text>
      <FlatList
        data={cards}
        renderItem={({ item }) => (
          <View>
            <Text>{item.title}</Text>
            <Text>{item.descriptionText}</Text>
          </View>
        )}
        keyExtractor={(item) => item.id}
      />
    </View>
  );
}

API Reference

IntervengineSdk.initialize(config)

Initialize the SDK with configuration.

Parameters:

• config.apiUrl: API endpoint URL
• config.apiKey: API key
• config.appId: Application ID
• config.appSecret: Application secret
• config.initialPageSize: Initial page size for cards (default: 10)
• config.enableLogging: Enable debug logging (default: false)

Returns: Promise<IntervengineSdk>

sdk.start()

Start listening for Server-Sent Events (SSE). The userType and userId are provided during SDK initialization.

Returns: Promise<void>

sdk.stop()

Stop listening for SSE events.

Returns: Promise<void>

sdk.signOut()

Sign out and clear SDK state.

Returns: Promise<void>

sdk.getEmbeddableCards(cardSearchParam?)

Fetch embeddable cards with optional search parameters.

Parameters:

• cardSearchParam: Optional CardSearchParam object with filters:
  • healthAreaId: Filter by health area ID
  • fromDate: Start date (ISO 8601 format, default: today)
  • toDate: End date (ISO 8601 format, default: today)
  • page: Page number (default: 1)
  • perPage: Items per page (default: 10)
  • isActive: Filter by active status (default: true)
  • isOneOff: Filter by one-off cards
  • isReported: Filter by reported status

Returns: Promise<EmbeddableCard[]>

sdk.getUserContext()

Get current user context.

Returns: Promise<{ userId: string, accessToken: string }>

sdk.getCurrentAuthState()

Get current authentication state.

Returns: Promise<AuthStatePayload>

sdk.addAuthStateListener(callback)

Listen for authentication state changes.

Parameters:

• callback: (state: AuthStatePayload) => void

Returns: { remove: () => void }

sdk.addCardsUpdateListener(callback)

Listen for card updates.

Parameters:

• callback: (update: CardsUpdatePayload) => void

Returns: { remove: () => void }

sdk.searchContents(params)

Search for contents with various filters.

Parameters:

• params: ContentSearchParam object with filters:
  • keyword: Search keyword
  • contentTypeId: Filter by content type ID
  • title: Filter by title
  • tagIds: Filter by tag IDs (array)
  • groupIds: Filter by group IDs (array)
  • isExternal: Filter by external content
  • isActive: Filter by active status

Returns: Promise<SearchResult<Content>>

sdk.getContent(contentId)

Get a specific content by ID.

Parameters:

• contentId: Content ID (string)

Returns: Promise<Content>

Types

AuthStatePayload

type AuthStatePayload = {
  state: 'authenticated' | 'unauthenticated' | 'loading' | 'error';
  accessToken?: string;  // Present when state is 'authenticated'
  error?: string;        // Present when state is 'error'
}

EmbeddableCard

type EmbeddableCard = {
  id: string;
  url: string;
  activityPlanType: string;
  title: string;
  descriptionText?: string;
  imageUrl?: string;
  isOneOff: boolean;
  scheduledAt: string;
  reportedAt?: string;
  data: CardData | null;
  associatedJourney: AssociatedJourney | null;
  healthArea: HealthArea | null;
}

CardsUpdatePayload

type CardsUpdatePayload = {
  newCards: EmbeddableCard[];
}

HealthArea

type HealthArea = {
  id: string;
  healthAreaCode: string;
  healthAreaName: string;
  descriptionText?: string;
}

AssociatedJourney

type AssociatedJourney = {
  id: string;
  name: string;
}

CardData

type CardData = {
  id: string;
  activityPlanType: string;
  activityValues: ActivityValue[];
}

ActivityValue

type ActivityValue = {
  id: string;
  measureTypeId: string;
  measureTypeName: string;
  measureDataType: string;
  measureTypeOptions: MeasureTypeOption[];
  reportedValue: string;
}

MeasureTypeOption

type MeasureTypeOption = {
  id: string;
  label: string;
  descriptionText?: string;
  score?: number;
}

ContentSearchParam

type ContentSearchParam = {
  keyword?: string;
  contentTypeId?: string;
  title?: string;
  tagIds?: string[];
  groupIds?: string[];
  isExternal?: boolean;
  isActive?: boolean;
}

SearchResult<T>

type SearchResult<T> = {
  results: T[];
  total: number;
}

Content

type Content = {
  id: string;
  uuid?: string;
  publishedVersionId?: string;
  currentVersionId?: string;
  contentTypeId: string;
  contentType?: ContentType;
  externalReference?: string;
  title: string;
  body?: ContentPage[] | null;
  descriptionText?: string;
  tagIds: string[];
  tags: ContentTag[];
  groupIds: string[];
  groups: ContentGroup[];
  uiConfigs?: Record<string, any> | null;
  isActive: boolean;
  createdAt: string;
  createdBy: string;
  updatedAt: string;
  updatedBy: string;
}

ContentType

type ContentType = {
  id: string;
  contentTypeCode: string;
  contentTypeName: string;
  contentTypeDescription?: string;
  isActive: boolean;
  createdAt: string;
  createdBy: string;
  updatedAt: string;
  updatedBy: string;
}

ContentPage

type ContentPage = {
  id: string;
  contentId: string;
  title: string;
  descriptionText?: string;
  contentElements: ContentElement[];
  uiConfigs?: Record<string, any> | null;
  displayOrder: number;
}

ContentElement

type ContentElement = {
  id: string;
  assetId?: string;
  asset?: Asset;
  text?: string;
  displayOrder: number;
}

ContentTag

type ContentTag = {
  id: string;
  tagCode: string;
  tagName: string;
  tagTypeId?: string;
  tagType?: TagType;
}

ContentGroup

type ContentGroup = {
  id: string;
  groupType: string;
  groupCode: string;
  groupName: string;
}

TagType

type TagType = {
  id: string;
  tagTypeCode: string;
  tagTypeName: string;
  description?: string;
}

Asset

type Asset = {
  id: string;
  uuid?: string;
  assetMimeType: string;
  assetName: string;
  resourceName: string;
  resourceType: string;
  resourceURL: string;
  resourceThumbnailURL?: string;
  resourceSize: number;
  tagIds: string[];
  isActive: boolean;
  createdAt: string;
  createdBy: string;
  updatedAt: string;
  updatedBy: string;
}

TODO

• Add more functions that wraps Intervengine Application API API Reference
• Support for Content Library, Message Inbox, Enrolled Journeys
• Support Basic UI components

Running the Example

cd example
npm install
npm run ios     # Run on iOS
npm run android # Run on Android

License

MIT
