Matterbridge Gira X1 plugin
Maintainers
Readme
Matterbridge plugin for Gira IoT REST API
Matterbridge plugin for Gira IoT REST API can be used with the folling Gira Server Product
| Gira Product | Verified | | ------------------ | ------------- | | Gira X1 Server | ✔️ | | Gira HomeServer | ✔️ | | Gira One Server | No | | Gira eNet Server | No |
Installation notes
Native Node.js based installation
Requirements:
- Node.js > 20.18.3
Follow these steps to install Matterbridge:
npm install -g matterbridge --omit=devRun the installation with:

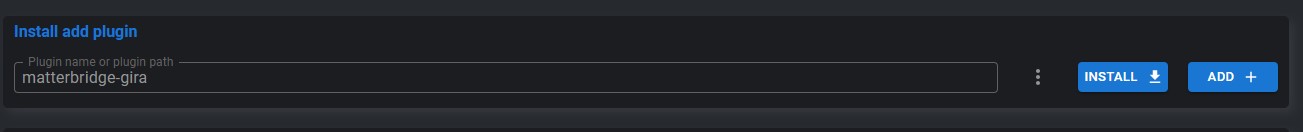

matterbridgeinstall matterbridge-gira plug in:

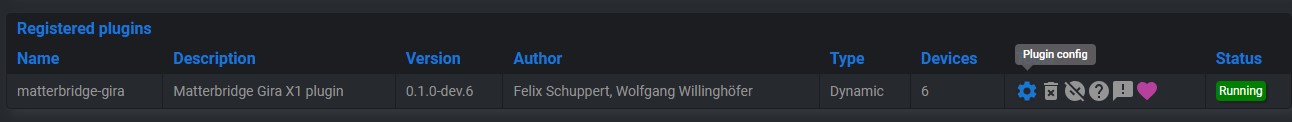

open matterbrige-gira plugin configuration dialog:

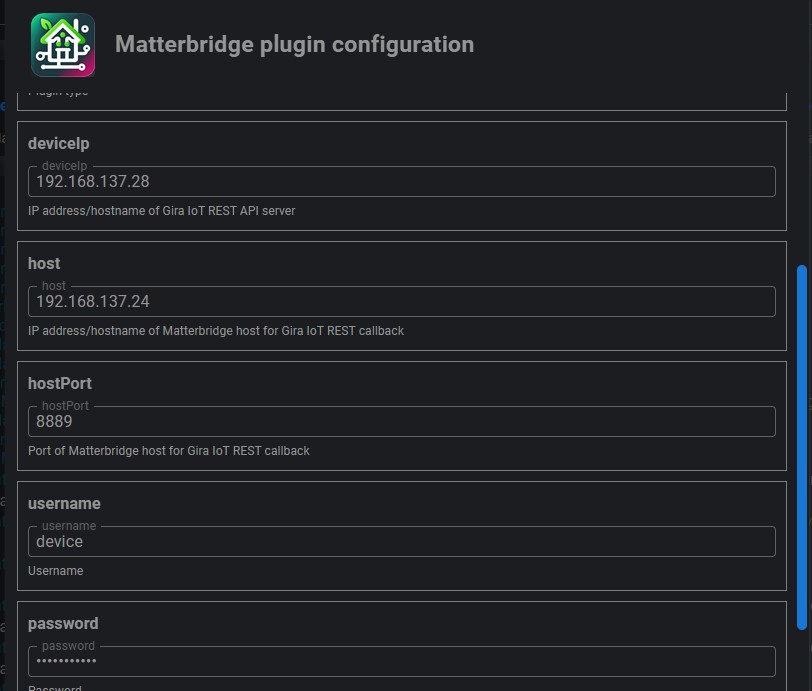

configure matterbridge-gia plugin:

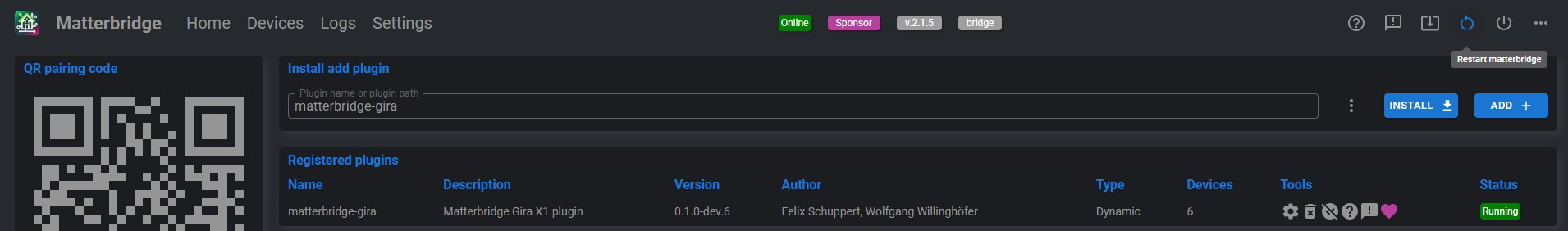

save configuration changes and restart matterbridge:

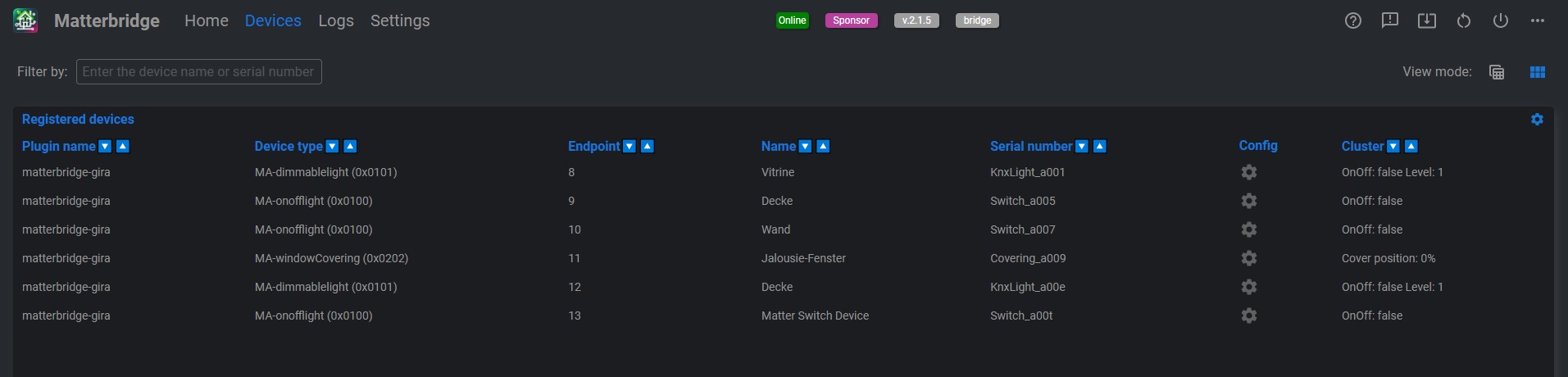

after restart check discovered devices:

Home Assistant
ATTENTION: Currently Home Assistant official Matterbridge Add-on can not be used for matterbrigde-gira Plugin because there is currently no way to add an additional port for Gira IoT Rest API Callback.
Install official Matterbridge Home Assistant Add-on (link)
Make sure to enable the option to view the Matterbridge website.
....
Supported function types
| Function name | Function URN | Matter mapping | Status | Remark | | ------------------- | --------------------------------------- | ---------------- | :------------------------------ | -------------- | | Switched light | de.gira.schema.functions.Switch | Light on/off | ✔️ | | Dimmer | de.gira.schema.functions.KNX.Light | Dimmable Light | ✔️ | | Colored light | de.gira.schema.functions.ColoredLight | | | | Tunable white | de.gira.schema.functions.TunalbeLight | | | | Shutter and Blind | de.gira.schema.functions.Covering | Cover | ✔️ | (no slats supported yet) | | Hue | de.gira.schema.functions.Hue.Light | Color | ✔️ | (Apple Home: only tunable white )
