postman-viewer

A world-class CLI that turns any Postman collection into a beautiful, interactive browser UI — with a Monaco editor, visual API canvas, full documentation view, dark/light themes, and one-click PDF export.

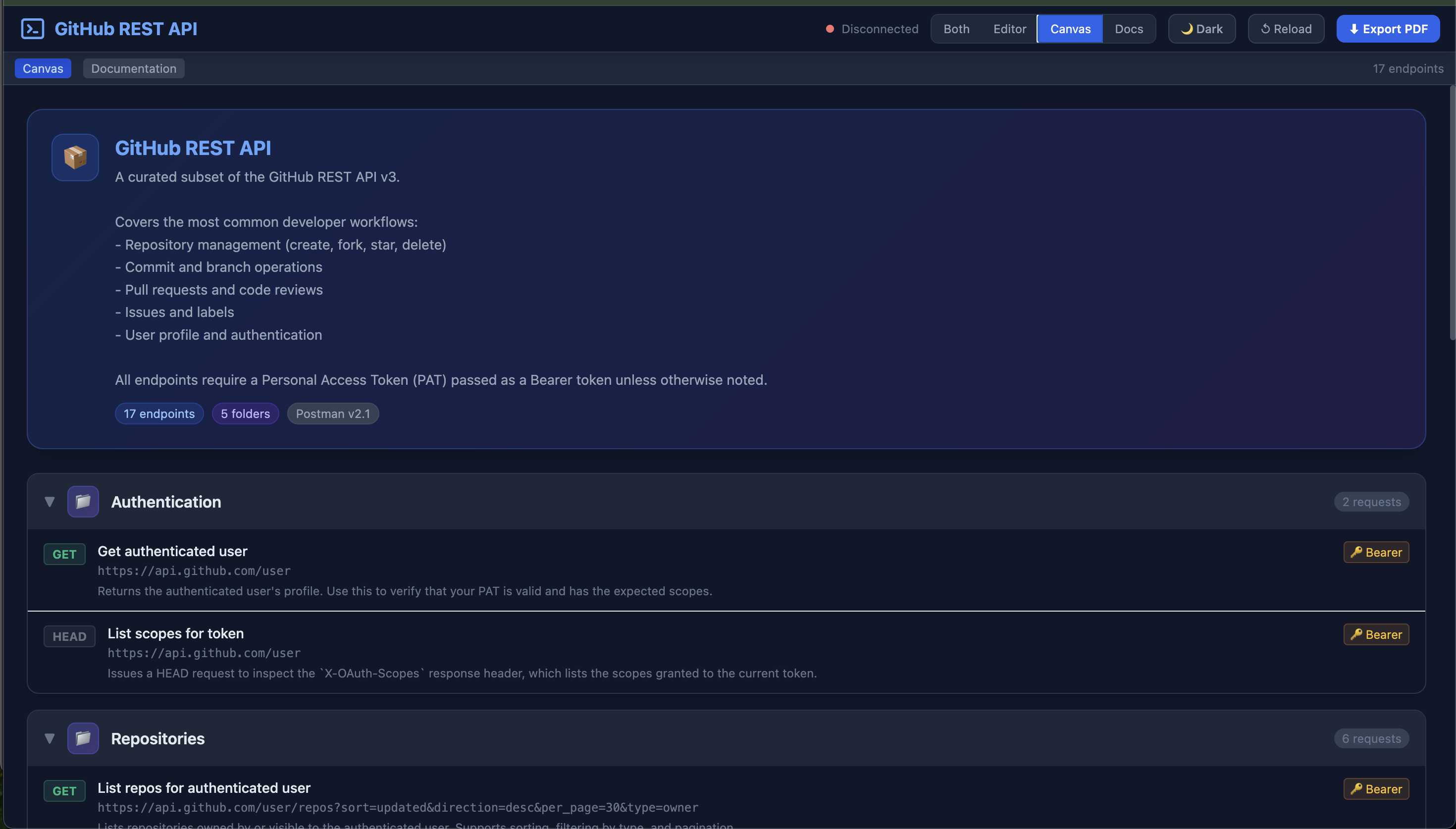

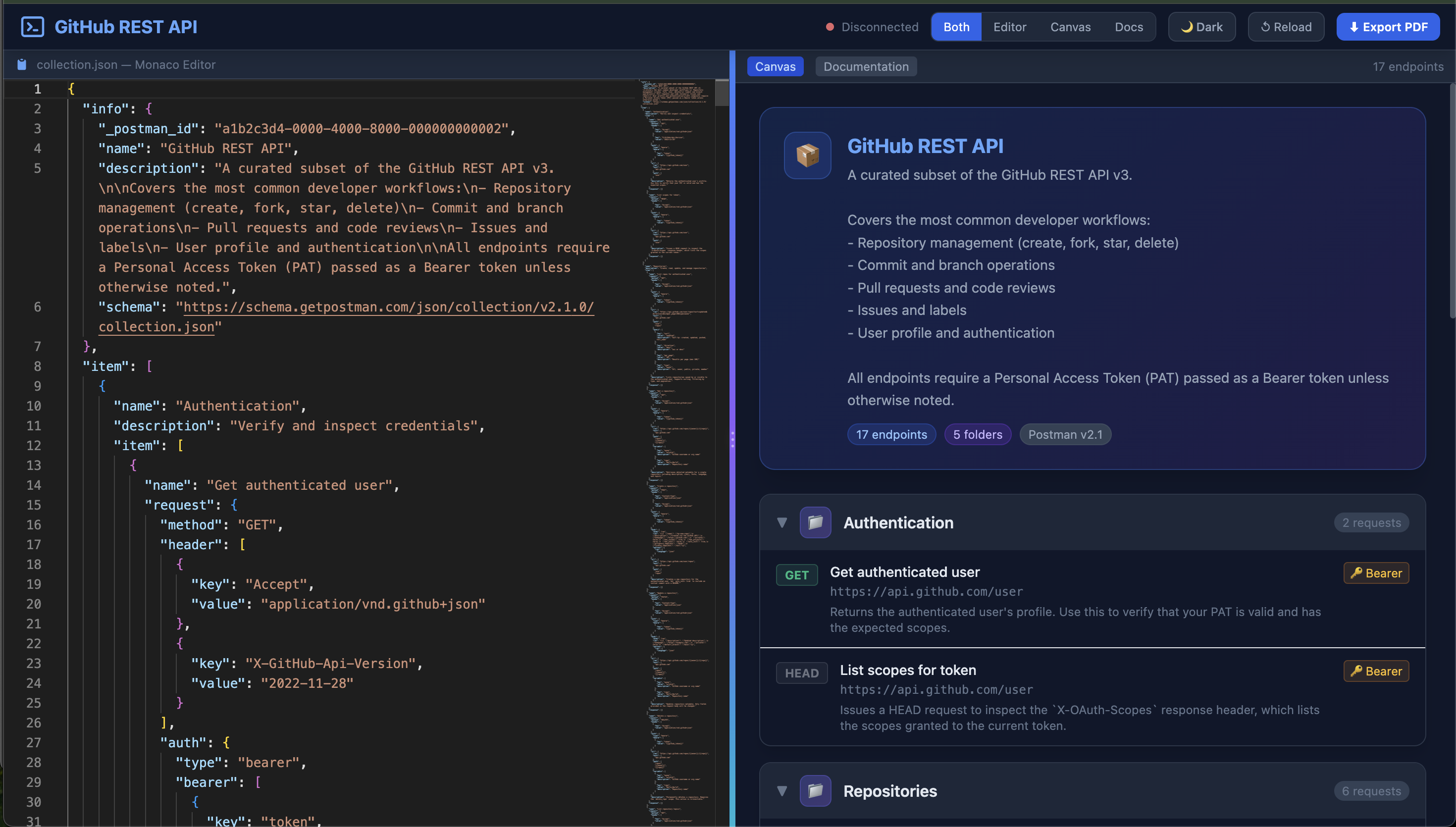

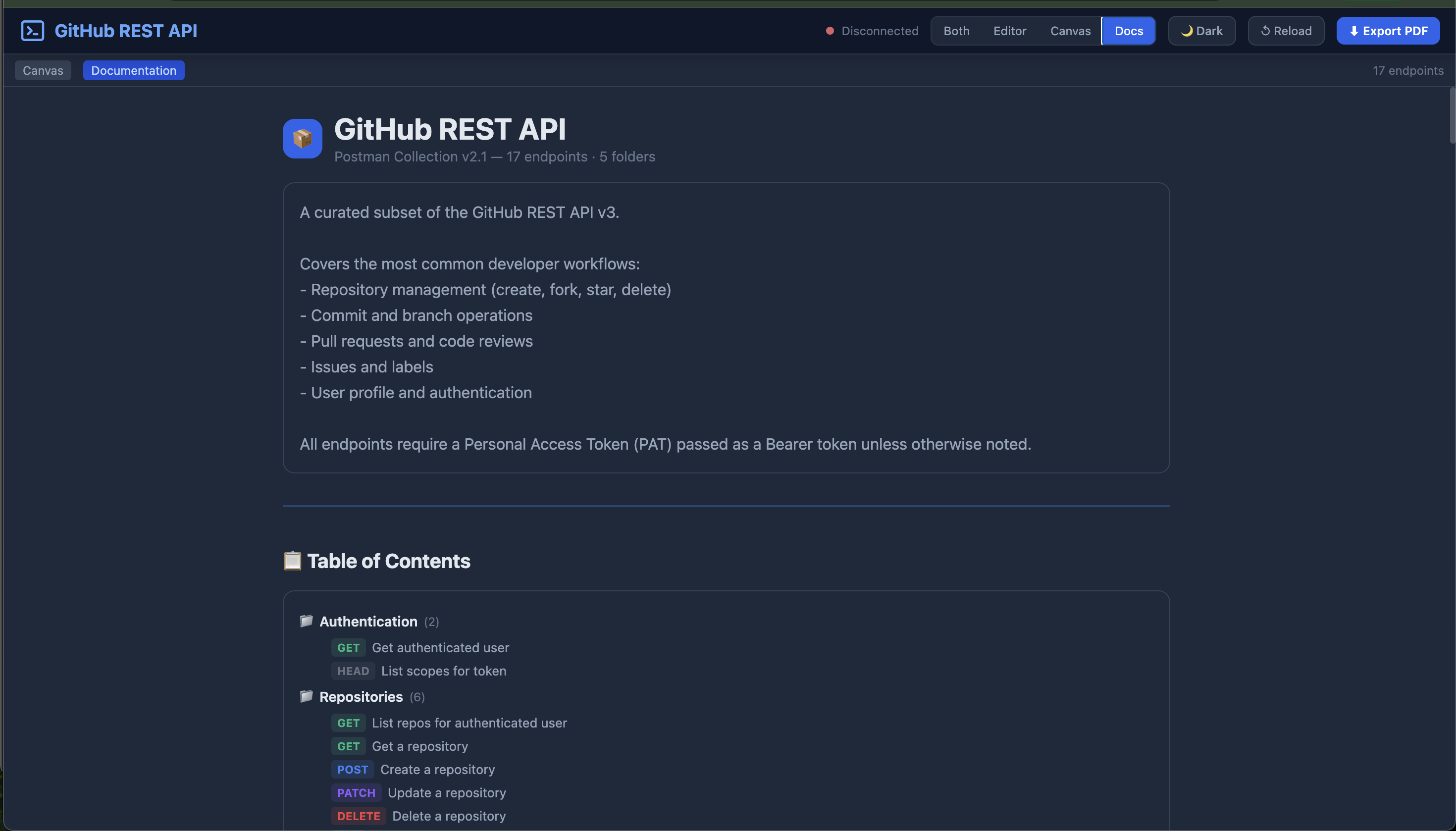

Screenshots

Features

| Feature | Details | |---|---| | Monaco Editor | Full JSON editor with syntax highlighting, minimap, and auto-format on the left pane | | Visual Canvas | Collapsible folder tree with method badges, auth indicators, and hover effects | | API Documentation | Table of contents + full endpoint reference with params, headers, and request body tables | | PDF Export | Opens a clean print window with white-background, print-safe layout | | Dark / Light Theme | Seamless toggle — CSS custom properties ensure every element switches correctly | | Animated Splitter | Drag to resize the editor and canvas panes; gradient handle with pulse animation | | WebSocket Live Reload | Hit ↺ Reload to re-read the file or re-fetch the URL without restarting the server | | 4 View Modes | Both · Editor only · Canvas only · Docs only | | Local file or URL | Load from disk with -f or fetch from any HTTP URL with -r |

Quick Start

Run without installing

npx mc-postman-viewer -f ./my-collection.json

Install globally

npm install -g mc-postman-viewer
postman-viewer -f ./my-collection.json

The browser opens automatically at http://localhost:3000.

Usage

postman-viewer [options]

Options:
  -f, --file <path>    Path to a local Postman collection JSON file
  -r, --url <url>      URL to fetch a Postman collection JSON from
  -p, --port <number>  Port to run the server on (default: 3000)
  --no-open            Do not auto-open the browser
  -V, --version        Output the version number
  -h, --help           Display help

Examples

# Load a local file
postman-viewer -f ./samples/petstore.json

# Fetch from a URL
postman-viewer -r https://raw.githubusercontent.com/your-org/repo/main/collection.json

# Use a custom port, no auto-open
postman-viewer -f ./collection.json -p 4000 --no-open

# Use npx directly without installing
npx mc-postman-viewer -f ./my-collection.json

Panes

Left — Monaco Editor The raw collection JSON is loaded into the Monaco editor (the same engine used in VS Code). You can inspect, search, and read the full source.

Right — Canvas A visual, folder-grouped tree of every endpoint. Each folder is collapsible. Endpoint rows show:

• HTTP method badge with color coding
• Endpoint name and URL
• Auth type badge (Bearer, OAuth2, API Key, Basic)

Right — Documentation A rendered API reference suitable for sharing or printing:

• Cover page with collection name and description
• Table of contents with method badges
• Per-endpoint sections with URL, description, parameters, headers, and request body

Keyboard & Controls

| Control | Action | |---|---| | Drag splitter | Resize editor / canvas panes | | Click folder header | Collapse / expand folder | | Both / Editor / Canvas / Docs | Switch view layout | | Canvas / Documentation tab | Switch right pane content | | 🌙 Dark / ☀ Light | Toggle theme | | ↺ Reload | Re-read file or re-fetch URL live | | ⬇ Export PDF | Open print-ready docs in a new window and trigger browser print dialog |

HTTP Method Colors

| Method | Color | |---|---| | GET | Green | | POST | Blue | | PUT | Amber | | PATCH | Purple | | DELETE | Red | | HEAD | Gray | | OPTIONS | Teal |

Sample Collections

Two ready-to-use sample collections are included in the samples/ directory.

Petstore API

A classic REST API for a pet store — covers pets, orders, and user accounts.

postman-viewer -f ./samples/petstore.json

Folders: Pets · Store · User
Endpoints: 16 (GET, POST, PUT, DELETE, HEAD, form data, file upload)
Auth: Bearer token, API Key

GitHub REST API

A curated subset of the GitHub v3 API covering the most common developer workflows.

postman-viewer -f ./samples/github-api.json

Folders: Authentication · Repositories · Branches & Commits · Pull Requests · Issues
Endpoints: 18 (GET, POST, PUT, PATCH, DELETE, HEAD)
Auth: Bearer token (Personal Access Token)

Postman Collection Format

postman-viewer supports Postman Collection v2.1 (the current format exported by Postman). To export from Postman:

1. Open your collection in Postman
2. Click the ⋯ menu next to the collection name
3. Select Export
4. Choose Collection v2.1
5. Save the .json file and pass it to postman-viewer -f

License

MIT © Mohan Chinnappan
