mcp-webrtc-transport

Reusable browser-side TypeScript module for peer-to-peer MCP sessions over WebRTC.

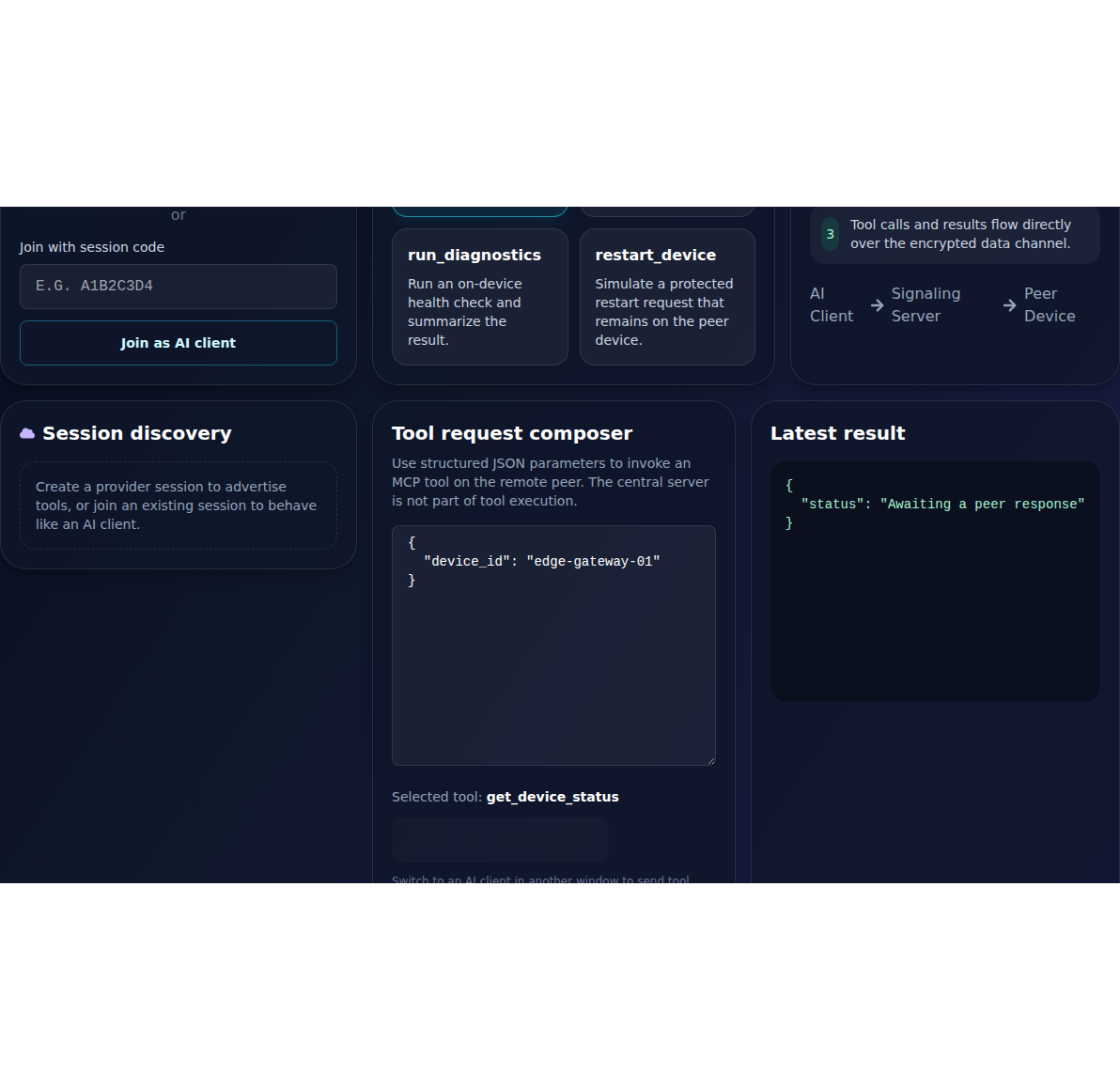

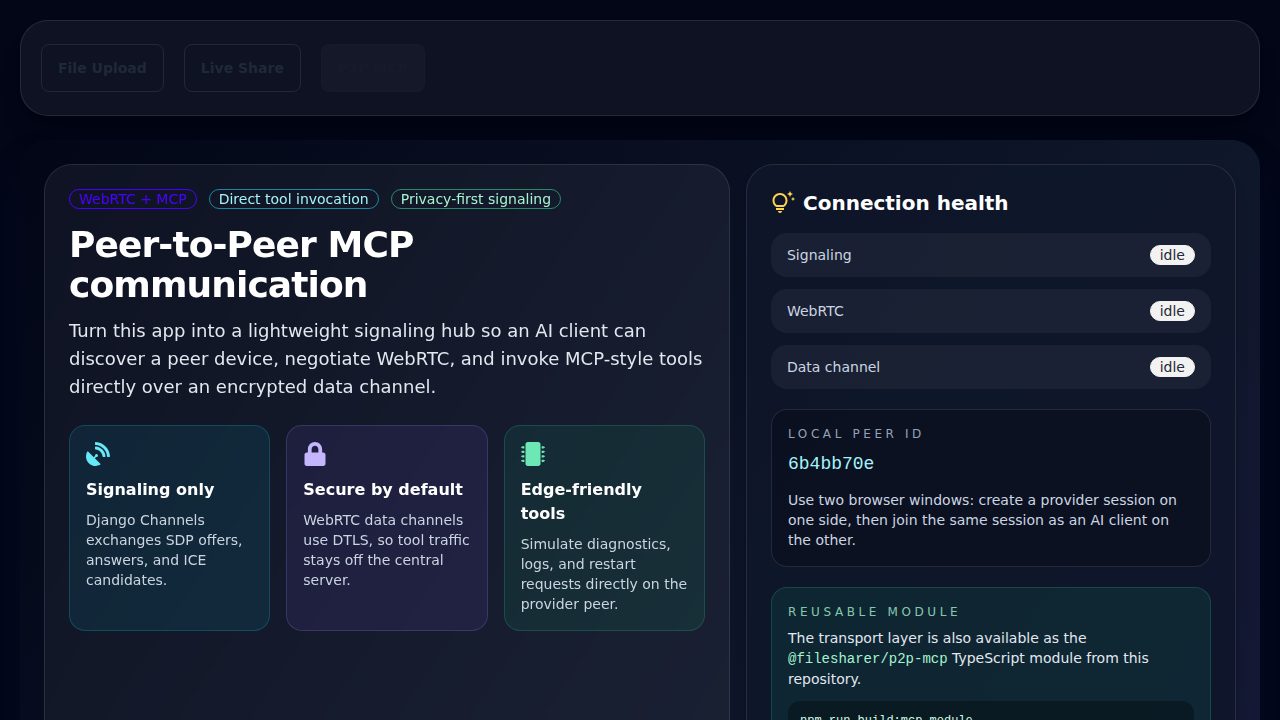

Screenshots

These screenshots are stored in the repository so they can also be reused from README files and package pages.

What it provides

• peer discovery through a signaling websocket
• SDP offer / answer exchange
• ICE candidate relay
• direct MCP tool calls over WebRTC data channels
• event callbacks for peer snapshots, tool catalogs, tool results, and connection state

Use case

This module is useful when an AI client needs to call tools on a nearby browser or edge device without sending the tool payloads through a central server.

For example, you can use it in a support or operations dashboard where:

• a browser-based AI assistant connects to a field gateway or kiosk
• the server is only used to help the two peers discover each other
• diagnostics, log access, and device actions are exchanged directly over WebRTC

Why use it:

• sensitive tool inputs and results stay on the peer-to-peer channel
• it reduces server bandwidth because MCP traffic does not need to be proxied
• it works well for local-device, edge-device, or privacy-first assistant workflows

Sequence diagrams

Backend signaling

sequenceDiagram
  autonumber
  participant Provider as Provider Peer
  participant Server as Signaling Server
  participant Client as AI Client Peer

  Provider->>Server: peer_announce(name, role=provider, tools)
  Client->>Server: peer_announce(name, role=client)
  Server-->>Provider: peer_snapshot
  Server-->>Client: peer_snapshot

  Client->>Server: signal offer (SDP)
  Server-->>Provider: relay offer
  Provider->>Server: signal answer (SDP)
  Server-->>Client: relay answer

  Note over Provider,Client: WebRTC data channel opens
  Provider-->>Client: tool_catalog
  Client->>Provider: tool_call
  Provider-->>Client: tool_result

Backend-free manual signaling

sequenceDiagram
  autonumber
  participant Provider as Provider Peer
  participant OOB as Manual Exchange
  participant Client as AI Client Peer

  Provider->>Provider: createManualOffer()
  Provider->>OOB: Share offer payload
  OOB-->>Client: Offer payload

  Client->>Client: createManualAnswer(offer)
  Client->>OOB: Share answer payload
  OOB-->>Provider: Answer payload

  Provider->>Provider: applyManualAnswer(answer)
  Note over Provider,Client: WebRTC data channel opens
  Provider-->>Client: tool_catalog
  Client->>Provider: tool_call
  Provider-->>Client: tool_result

Build

From the repository frontend workspace:

cd app
npm run build:mcp-module

The compiled package is emitted to:

modules/mcp-webrtc-transport/dist

TypeScript example

import { P2PMcpClient, TMcpTool } from "mcp-webrtc-transport";

const tools: TMcpTool[] = [
  {
    name: "get_device_status",
    description: "Return the current device health summary.",
    parameters: { device_id: "edge-gateway-01" },
  },
];

const client = new P2PMcpClient({
  signalingBaseUrl: "ws://localhost:8001",
  identity: {
    peerName: "Edge Gateway",
    role: "provider",
    tools,
  },
  toolCallHandler: async (message) => {
    if (message.tool === "get_device_status") {
      return {
        device_id: "edge-gateway-01",
        status: "healthy",
        transport: "webrtc-datachannel",
      };
    }

    return { error: `Unknown tool: ${message.tool}` };
  },
});

await client.connect("24f5e189");

Backend-free manual signaling

You can also run MCP peer connection without a signaling backend by exchanging SDP payloads manually (copy and paste, QR, or any out-of-band channel).

This mode is useful for local demos, LAN tests, and environments where running a signaling server is not desired.

Provider flow (manual offer)

import { P2PMcpClient, TMcpTool } from "mcp-webrtc-transport";

const tools: TMcpTool[] = [
  {
    name: "get_device_status",
    description: "Return current status",
    parameters: { device_id: "edge-gateway-01" },
  },
];

const provider = new P2PMcpClient({
  identity: {
    peerName: "Edge Gateway",
    role: "provider",
    tools,
  },
  toolCallHandler: async (message) => {
    if (message.tool === "get_device_status") {
      return {
        device_id: message.parameters.device_id,
        status: "healthy",
        transport: "webrtc-datachannel",
      };
    }
    return { error: `Unknown tool: ${message.tool}` };
  },
});

const offer = await provider.createManualOffer();
// Send `offer.sdp` to the client peer by copy/paste or QR.

Client flow (apply offer, return answer)

import { P2PMcpClient } from "mcp-webrtc-transport";

const client = new P2PMcpClient({
  identity: {
    peerName: "AI Client",
    role: "client",
  },
  onToolCatalog: (message) => {
    console.log("catalog", message.tools);
  },
  onToolResult: (message) => {
    console.log("result", message.result);
  },
});

const answer = await client.createManualAnswer({
  sdp: offerSdpFromProvider,
  type: "offer",
});
// Send `answer.sdp` back to provider.

Provider final step

await provider.applyManualAnswer({
  sdp: answerSdpFromClient,
  type: "answer",
});

// After data channel opens, the client can call tools directly.
client.sendToolCall("get_device_status", { device_id: "edge-gateway-01" });

Notes:

• In manual mode, do not call connect(sessionId).
• In websocket mode, keep using signalingBaseUrl + connect(sessionId).
• A direct connection can still fail on restrictive networks; use TURN infrastructure for high-connectivity production environments.

Python interoperability example

This package is browser-side TypeScript, so Python usage is typically an interoperability story rather than a direct package import. A Python peer can implement the same signaling contract and exchange the same MCP messages over a WebRTC data channel.

import json

SIGNALING_HTTP_BASE = "http://localhost:8001"
SIGNALING_WS_BASE = "ws://localhost:8001"

async def get_device_status(parameters: dict) -> dict:
    return {
        "device_id": parameters.get("device_id", "edge-gateway-01"),
        "status": "healthy",
        "transport": "webrtc-datachannel",
    }

async def handle_tool_call(raw_message: str) -> str:
    message = json.loads(raw_message)
    if message["type"] != "tool_call":
        return json.dumps({"ok": False, "error": "unsupported_message"})

    if message["tool"] == "get_device_status":
        result = await get_device_status(message.get("parameters", {}))
    else:
        result = {"error": f"Unknown tool: {message['tool']}"}

    return json.dumps(
        {
            "type": "tool_result",
            "requestId": message["requestId"],
            "tool": message["tool"],
            "result": result,
            "ok": "error" not in result,
        }
    )

See the repository guide for a longer walkthrough:

• docs.md

Signaling contract

This package expects a signaling backend that exposes:

• GET /v1/mcp/session/
• GET /v1/mcp/session/<session_id>/
• ws://<host>/ws/mcp/<session_id>/<peer_id>

In this repository, Django Channels provides that signaling layer while MCP payloads remain peer-to-peer over WebRTC.
