mermaid-3d

Drop-in replacement for Mermaid.js that renders any diagram in an isometric 3D style — floating shadows, vector-crisp zoom, pan, and fly-to animations. Swap one import and your flat diagrams become isometric.

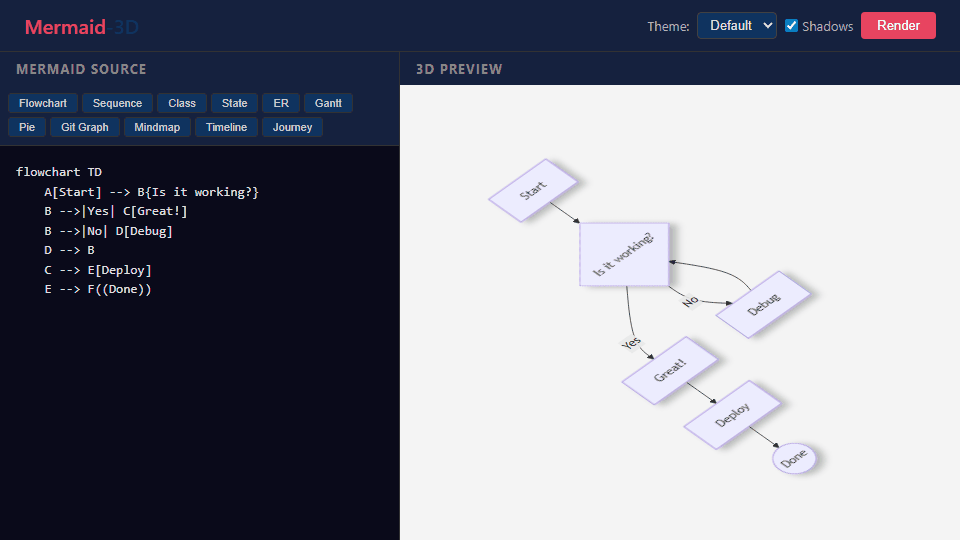

Live Demo | npm

Features

• Isometric projection — orthographic 45° rotation applied as an SVG matrix transform (no CSS 3D, no rasterization)
• Floating shadows — configurable drop shadows on nodes, actors, tasks, commits, pie slices, and more
• Vector zoom — viewBox-based zoom keeps the SVG sharp at any magnification
• Pan & zoom — mouse drag to pan, scroll wheel to zoom, touch support for mobile
• Fly-to — double-click any node to smoothly animate the viewport to it
• All diagram types — flowchart, sequence, class, state, ER, gantt, pie, git graph, mindmap, timeline, journey
• Theme support — all five Mermaid themes (default, dark, forest, neutral, base)
• Drop-in API — same initialize(), render(), run(), and parse() methods as Mermaid
• Tiny — ~10 KB bundled (ESM + UMD), zero runtime dependencies

Install

npm install mermaid-3d mermaid

mermaid is a peer dependency (>= 10.0.0). You must install it alongside mermaid-3d.

Quick Start

Replace your Mermaid import

- import mermaid from 'mermaid';
+ import mermaid from 'mermaid-3d';

Everything else stays the same — initialize(), render(), and run() work identically.

Render to a container

import mermaid from 'mermaid-3d';

mermaid.initialize({ theme: 'default', shadows: true });

const container = document.getElementById('diagram');
await mermaid.render('my-diagram', `
  flowchart TD
    A[Start] --> B{Is it working?}
    B -->|Yes| C[Great!]
    B -->|No| D[Debug]
    D --> B
`, container);

Auto-render <pre class="mermaid"> blocks

import mermaid from 'mermaid-3d';

mermaid.initialize({ theme: 'default' });
await mermaid.run();

<pre class="mermaid">
  sequenceDiagram
    Alice->>Bob: Hello
    Bob-->>Alice: Hi back
</pre>

API

mermaid.initialize(config)

Configure the renderer. Accepts all standard Mermaid configuration options plus:

| Option | Type | Default | Description | |--------|------|---------|-------------| | shadows | boolean | true | Enable floating drop shadows on diagram elements | | theme | string | 'default' | Mermaid theme: 'default', 'dark', 'forest', 'neutral', 'base' |

mermaid.initialize({
  theme: 'dark',
  shadows: true,
  securityLevel: 'loose',
});

mermaid.render(id, text, container?)

Render a diagram from Mermaid markup.

• id — unique identifier for this diagram
• text — Mermaid diagram source text
• container (optional) — DOM element to append the rendered diagram to

Returns Promise<{ svg: string, element: HTMLDivElement, bindFunctions: Function }>.

const { svg, element } = await mermaid.render('demo', 'graph TD; A-->B;');
document.body.appendChild(element);

mermaid.run(options?)

Find and render all Mermaid blocks in the page.

| Option | Type | Description | |--------|------|-------------| | querySelector | string | CSS selector for elements to render (default: 'pre.mermaid, div.mermaid, .mermaid') | | nodes | ArrayLike<HTMLElement> | Explicit list of elements to render | | postRenderCallback | (id: string) => void | Called after each diagram renders | | suppressErrors | boolean | Suppress console error output |

mermaid.parse(text)

Parse Mermaid text without rendering. Returns Promise<{ diagramType: string }>.

const { diagramType } = await mermaid.parse('graph TD; A-->B;');
console.log(diagramType); // 'flowchart'

Interactions

| Action | Effect | |--------|--------| | Scroll wheel | Zoom in/out towards cursor | | Click + drag | Pan the viewport | | Double-click a node | Fly-to: smooth zoom animation centering on the node | | Pinch (touch) | Two-finger zoom | | Drag (touch) | One-finger pan |

Supported Diagrams

All Mermaid diagram types render in isometric 3D:

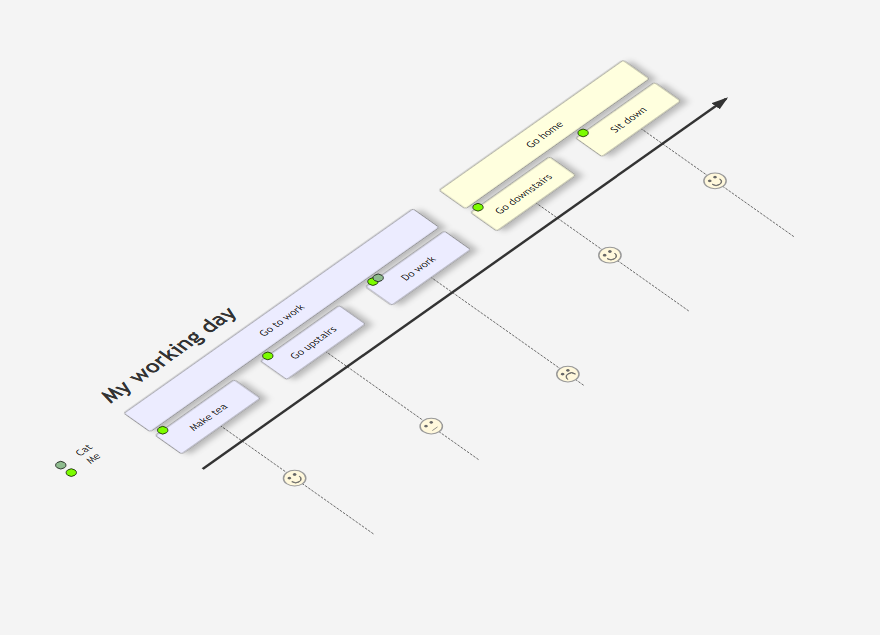

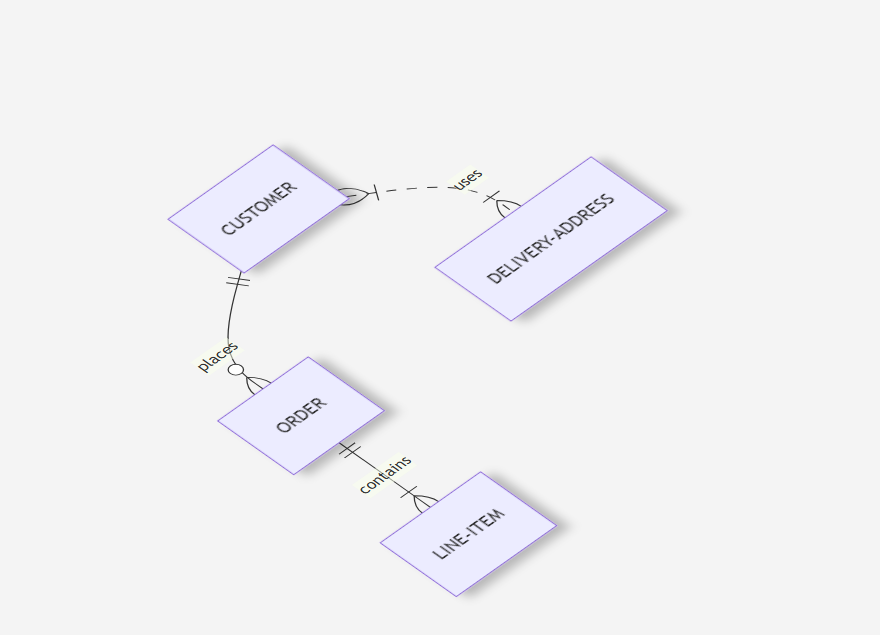

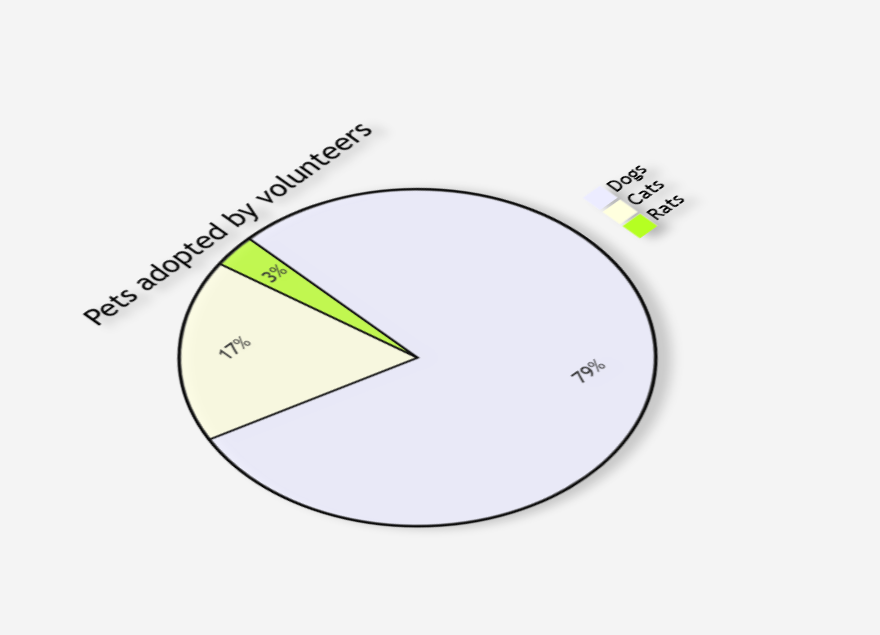

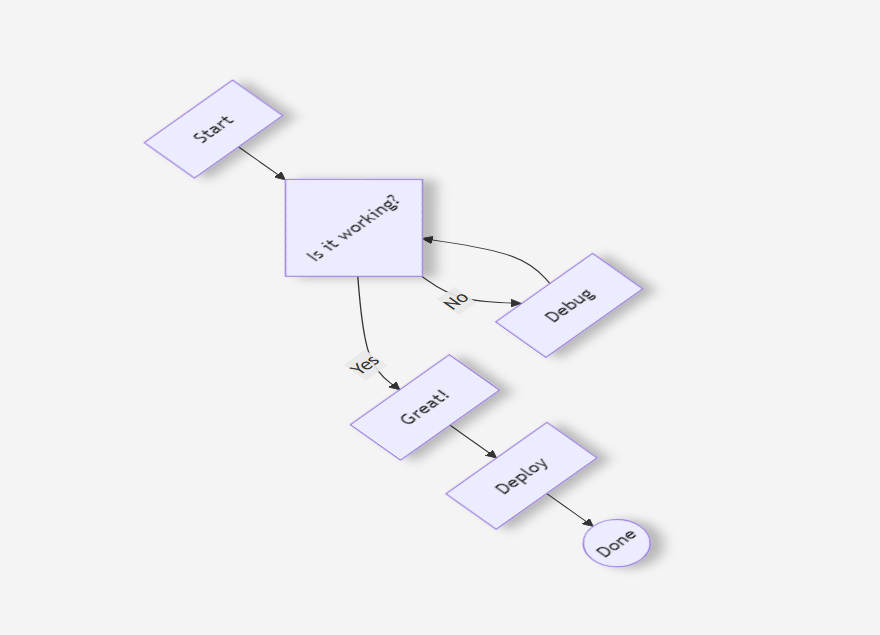

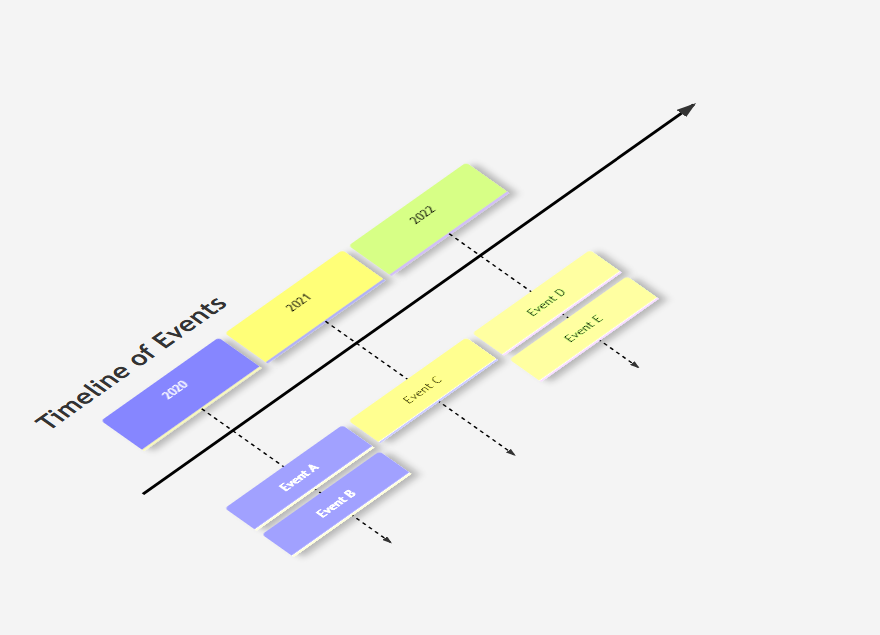

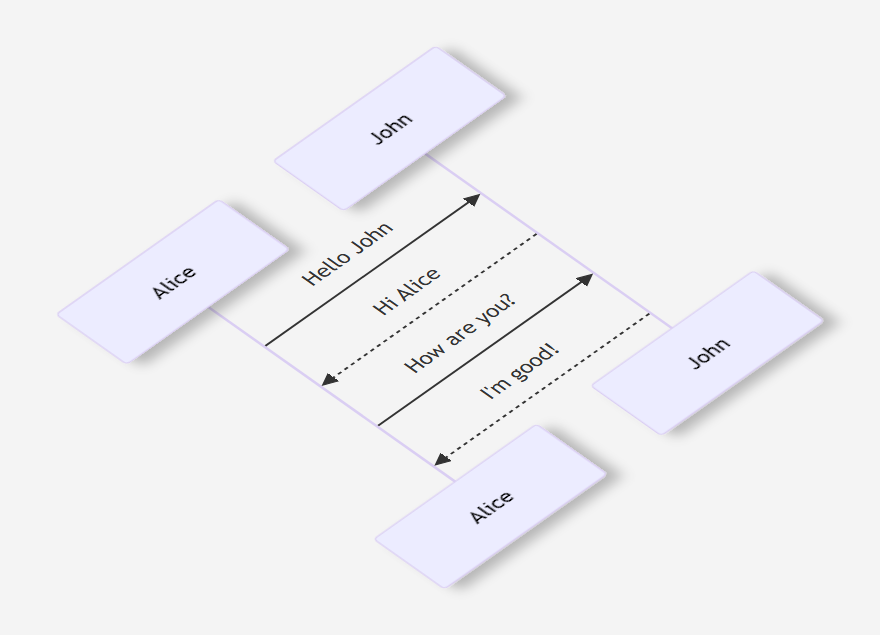

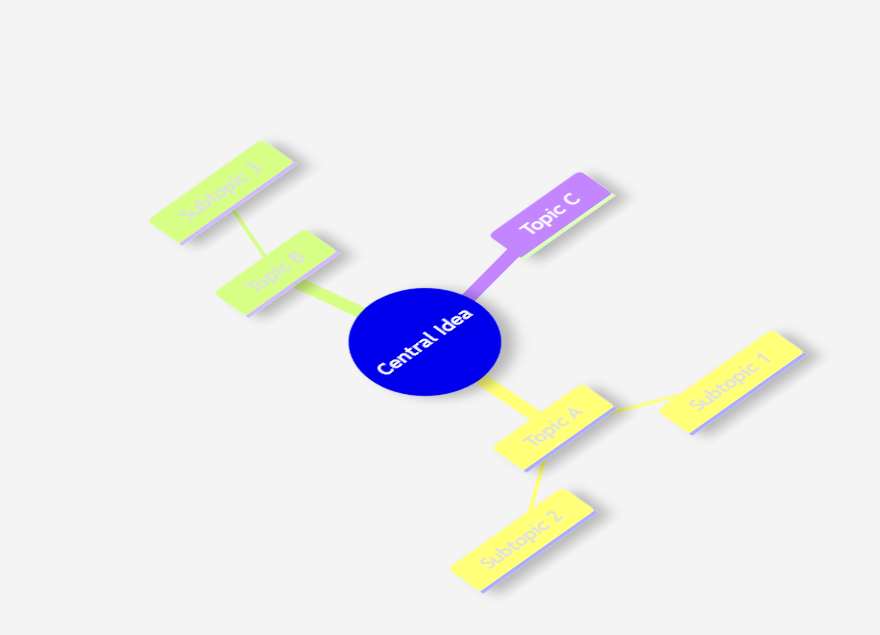

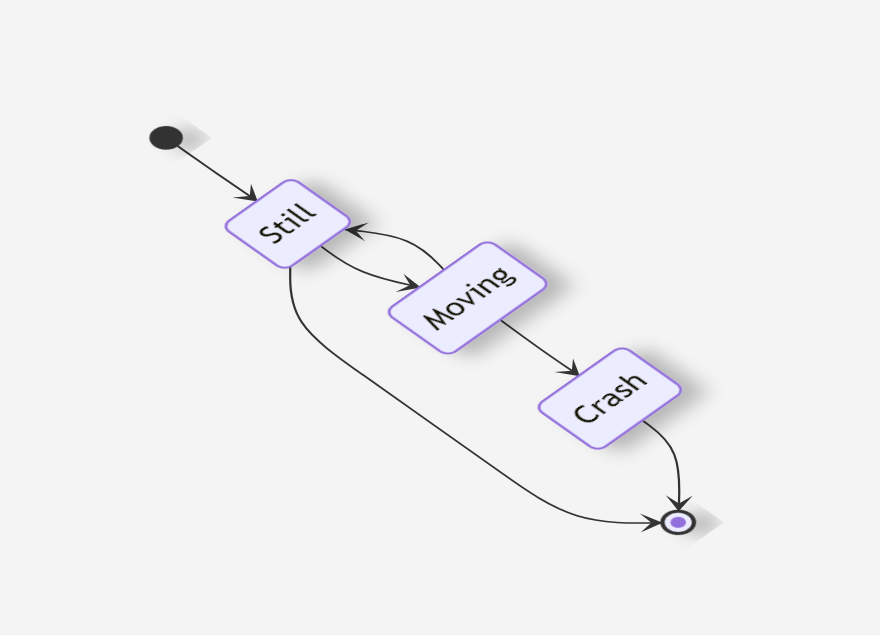

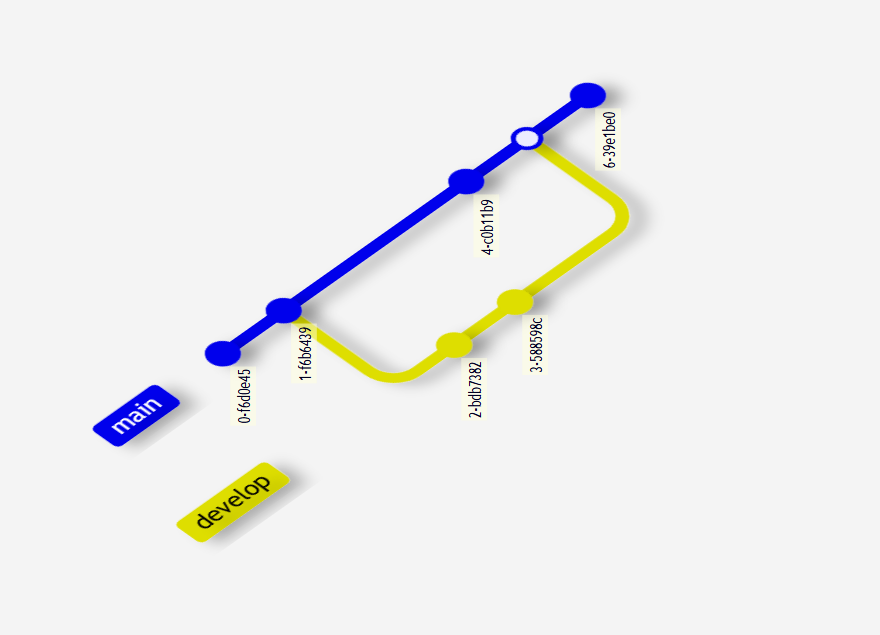

| | | |:---:|:---:| | Flowchart | Sequence Diagram | | | | | Class Diagram | State Diagram | | | | | Entity Relationship | Gantt Chart | | | | | Pie Chart | Git Graph | | | | | Mindmap | Timeline | | | | | User Journey | | | | |

How It Works

1. Parse & render — Mermaid generates a standard SVG diagram
2. Shadow filter — An SVG <filter> (offset + gaussian blur + flood composite) is injected and applied to diagram-specific elements (.node groups, actor rects, task bars, pie slices, commit circles, etc.)
3. Isometric transform — All SVG content is wrapped in a <g transform="matrix(0.707 -0.5 0.707 0.5 0 0)"> — the 2D orthographic projection of a 45° isometric rotation. No CSS 3D transforms, so the SVG stays vector at all zoom levels
4. ViewBox zoom — Pan and zoom manipulate the SVG viewBox attribute directly, so the browser re-rasterizes at native resolution on every frame

Development

git clone https://github.com/sunnydark/mermaid-3d.git
cd mermaid-3d
npm install
npm run dev

Open http://localhost:5174 to see the interactive demo with all diagram types.

Build

npm run build

Produces dist/mermaid-3d.es.js (ESM) and dist/mermaid-3d.umd.js (UMD).

CDN Usage

<script src="https://cdn.jsdelivr.net/npm/mermaid/dist/mermaid.min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/mermaid-3d/dist/mermaid-3d.umd.js"></script>
<script>
  mermaid3d.default.initialize({ theme: 'default' });
  mermaid3d.default.run();
</script>

License

MIT
