🐘 PostgreSQL Viewer CLI

A beautiful, interactive PostgreSQL database viewer with a modern web UI. Browse tables, search data, query data, create visualizations, and export to CSV—all from your browser.

✨ Features

• 🎨 Modern Dark UI - Beautiful, responsive interface with Tailwind CSS
• 📊 Interactive Tables - Browse, search, sort, and paginate through your data
• 💻 SQL Query Editor - Execute custom SQL queries with Monaco Editor (VS Code's editor)
  • Intelligent Autocomplete - Context-aware suggestions for tables, columns, and SQL keywords
  • Syntax Highlighting - Professional SQL syntax coloring
  • Keyboard Shortcuts - Execute queries with Ctrl+Enter (Cmd+Enter on Mac)
  • Query Formatting - Auto-format your SQL for better readability
  • Error Handling - Clear error messages with details
• 📈 Built-in Charts - Create bar, line, pie, and doughnut charts with aggregations
• 🔍 Smart Search - Search across all columns with debounced input (500ms delay or press Enter)
• 💾 CSV Export - Export filtered data to CSV with one click (works for both tables and query results)
• 🎯 Column Sorting - Click any column header to sort ascending/descending
• 📱 Responsive Design - Works on desktop, tablet, and mobile
• ⚡ Fast & Lightweight - No heavy dependencies, just Express and PostgreSQL
• 🎛️ Flexible Charts - Use aggregations (COUNT, SUM, AVG, MAX, MIN) or NONE for raw data

Screenshots

📋 Requirements

• Node.js 14 or higher
• PostgreSQL database
• npm

🚀 Installation

npm install -g pg-viewer-mc

💻 Usage

Basic Usage

pg-viewer  -u postgres -d mydb

With Password

pg-viewer  -u postgres -d mydb -w mypassword

Custom Ports

pg-viewer  -u postgres -d mydb -p 8080 --pgport 5433

All Options

pg-viewer  [options]

Options:
  -u, --user <username>       PostgreSQL username (required)
  -d, --database <dbname>     Database name (required)
  -p, --port <port>           Web server port (default: 3000)
  -h, --host <host>           PostgreSQL host (default: localhost)
  --pgport <port>             PostgreSQL port (default: 5432)
  -w, --password <password>   PostgreSQL password (default: empty)
  --help                      Display help for command

🎯 Quick Start Example

# Start the viewer
pg-viewer  -u postgres -d mydb

# Open your browser
# Navigate to http://localhost:3000

🎨 Features in Detail

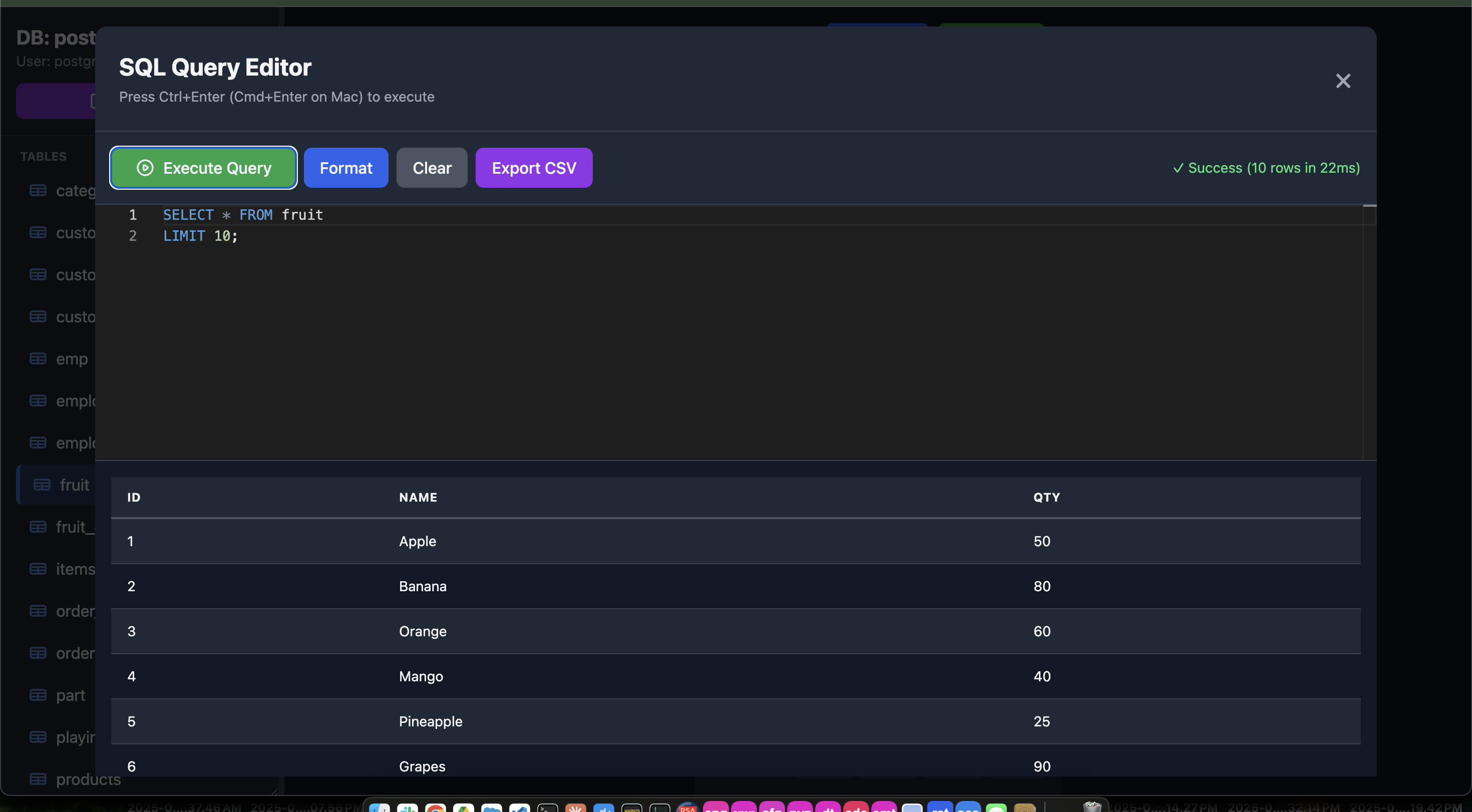

SQL Query Editor

• Monaco Editor: The same editor that powers VS Code
• Smart Autocomplete:
  • Table names from your database
  • Column names with their data types
  • SQL keywords (SELECT, FROM, WHERE, JOIN, etc.)
  • Function names (COUNT, SUM, AVG, etc.)
• Keyboard Shortcuts:
  • Ctrl+Enter / Cmd+Enter - Execute query
  • Ctrl+Space - Trigger autocomplete
• Features:
  • Syntax highlighting for SQL
  • Line numbers and code folding
  • Format button for auto-formatting SQL
  • Export results to CSV
  • Execution time and row count display
  • Detailed error messages

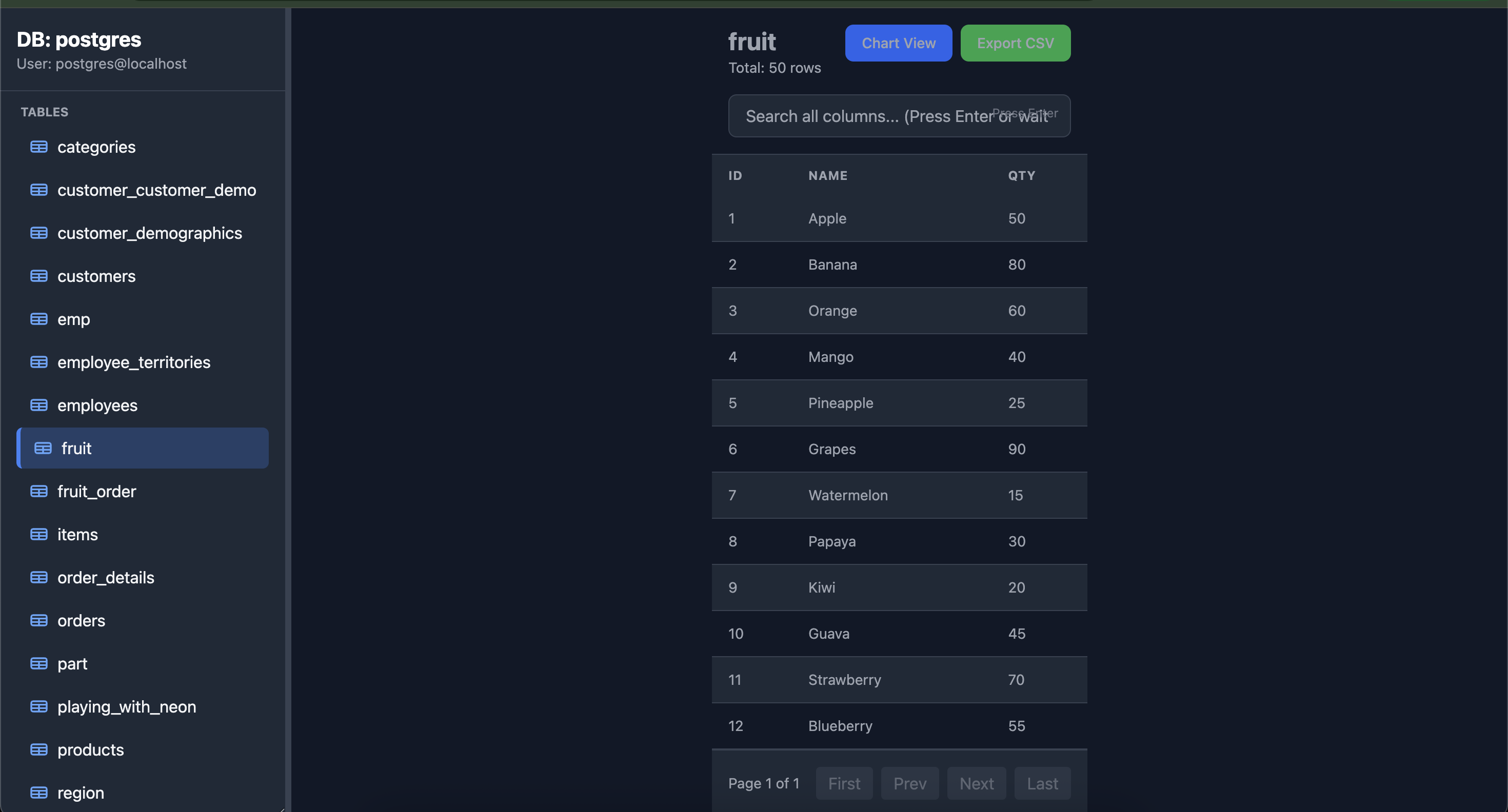

Table Browsing

• View all tables and views in your database
• Click any table to view its data
• See row counts and pagination controls
• Sort by any column (click header to toggle ASC/DESC)

Search Functionality

• Smart Debouncing: Search automatically triggers 500ms after you stop typing
• Instant Search: Press Enter to search immediately
• All Columns: Searches across all columns in the table
• Case-insensitive search with ILIKE

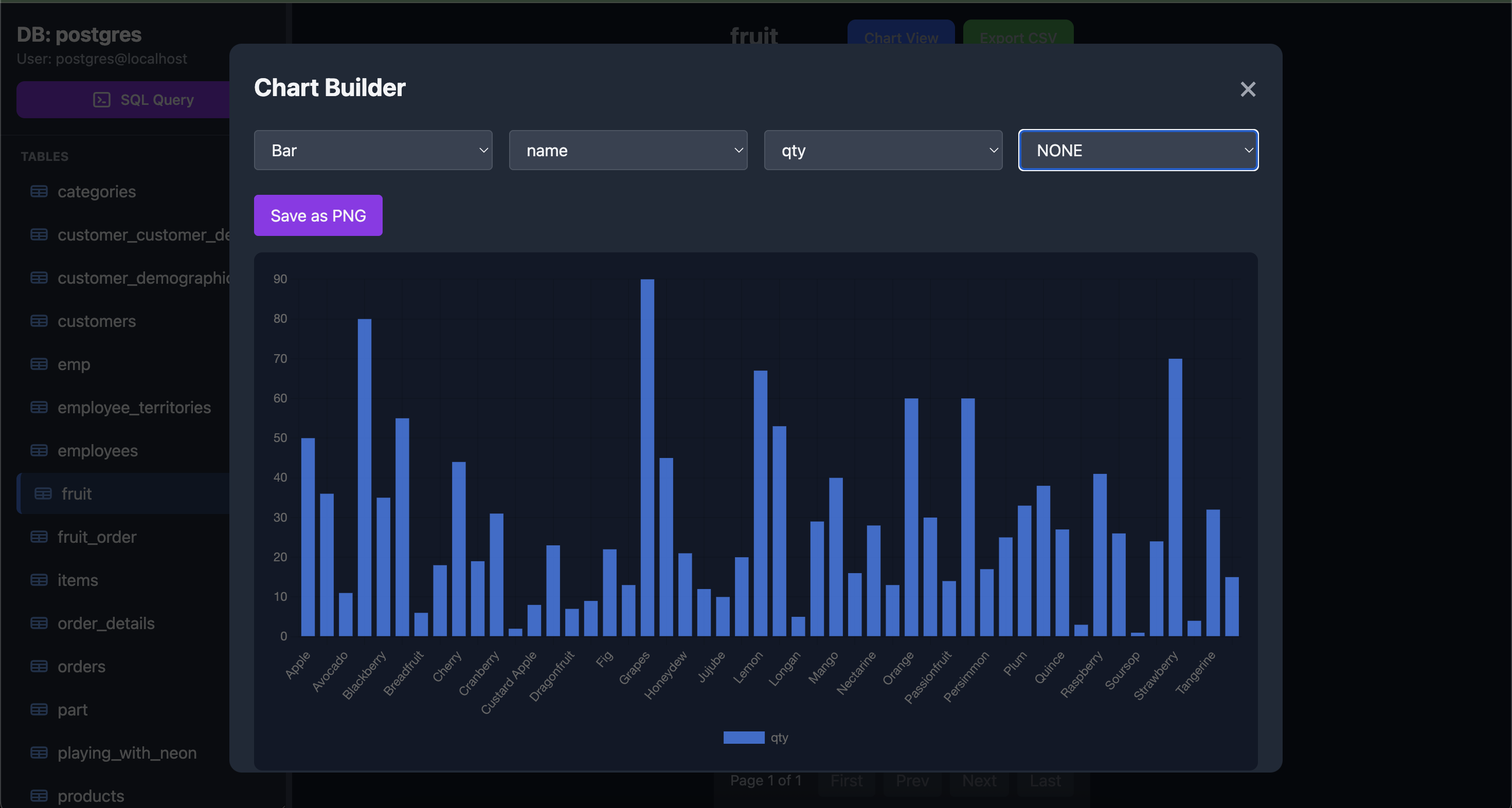

Chart Builder

• Chart Types: Bar, Line, Pie, and Doughnut
• Aggregations: COUNT, SUM, AVG, MAX, MIN, or NONE (raw data)
• Interactive: Select X-axis, Y-axis, and aggregation function
• Export: Save charts as PNG images
• Limit: Shows top 50 results (or 1000 for NONE aggregation)

CSV Export

• Export current filtered view
• Handles up to 100,000 rows
• Proper CSV formatting with quoted values
• Preserves JSON objects and null values

🛠️ Technical Details

Built With

• Express.js - Web framework
• node-postgres (pg) - PostgreSQL client
• Commander.js - CLI argument parsing
• Tailwind CSS - Styling (via CDN)
• Chart.js - Data visualization (via CDN)
• open-resource - to open in browser

Architecture

• Single-file Node.js application
• RESTful API for data access
• Connection pooling for performance
• Embedded HTML/CSS/JS (no build step required)

API Endpoints

• GET /api/entities - List all tables and views
• GET /api/table/:name - Get table data with pagination
• GET /api/table/:name/columns - Get column information
• GET /api/schema - Get complete schema for autocomplete
• POST /api/chart/:name - Generate chart data
• POST /api/query - Execute custom SQL query

🔒 Security Notes

• This tool is intended for development and local use
• No authentication is implemented
• Do not expose to the public internet
• Use PostgreSQL's built-in security features
• Consider SSH tunneling for remote databases

📝 Common Use Cases

Running Custom Queries

1. Click the "SQL Query" button in the sidebar
2. Write your query in the Monaco editor
3. Use autocomplete (Ctrl+Space) for tables and columns
4. Execute with Ctrl+Enter or click "Execute Query"
5. Export results to CSV if needed

Local Development

pg-viewer  -u dev_user -d dev_database

Remote Database

pg-viewer  -u admin -d production -h db.example.com --pgport 5432 -w password

Docker PostgreSQL

docker run -d -p 5432:5432 -e POSTGRES_PASSWORD=mysecret postgres
pg-viewer  -u postgres -d postgres -w mysecret

🐛 Troubleshooting

Connection Issues

• Verify PostgreSQL is running: pg_isready
• Check your connection parameters
• Ensure PostgreSQL accepts connections from your host
• Check pg_hba.conf for authentication settings

Port Already in Use

• Change the web port: -p 8080
• Kill the process using the port: lsof -ti:3000 | xargs kill

Permission Denied

• Ensure your PostgreSQL user has SELECT permissions
• Check database and schema permissions

📄 License

MIT License (c) Mohan Chinnappan

Made with ❤️ for the PostgreSQL community
