pi-thinking-box
v1.2.3
Published
Wrap Pi agent thinking blocks in a styled background box.
Maintainers
Readme
pi-thinking-box
Wrap agent thinking blocks in a styled background box — just like user messages have. A pi extension.

Install
pi install npm:pi-thinking-box
# or for local dev:
# cp -r pi-thinking-box ~/.pi/agent/extensions/Restart pi or run /reload after install.
Usage

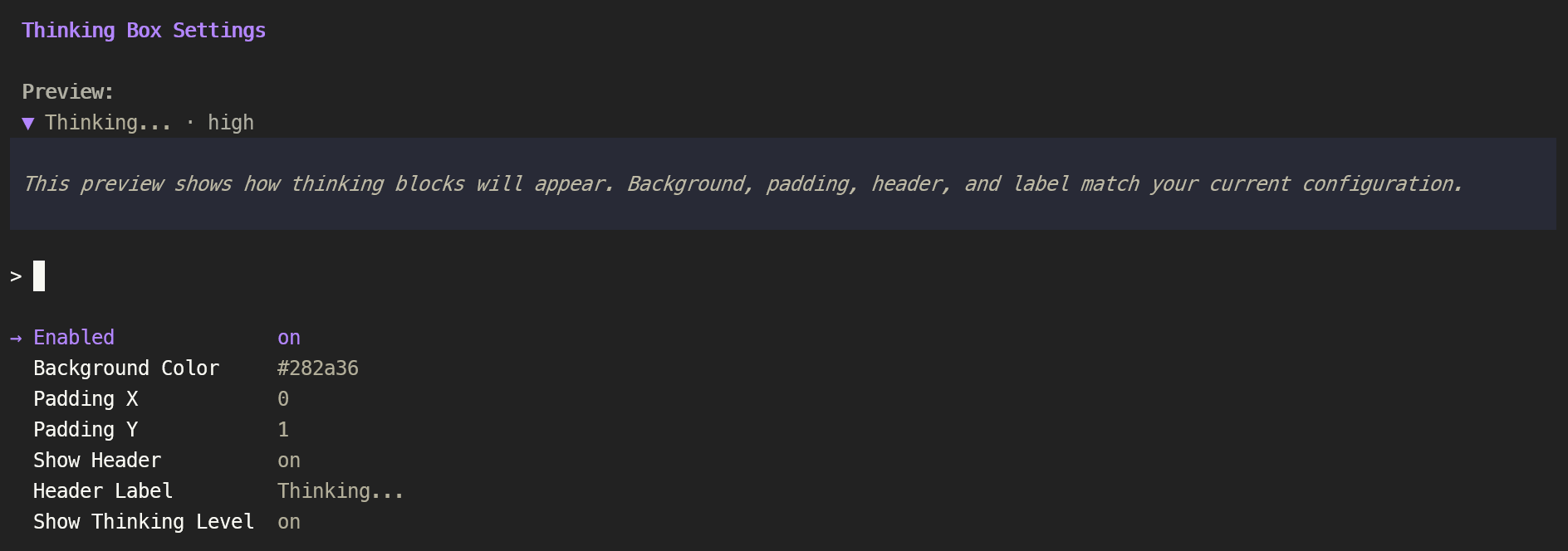

Run /thinking-box to open an interactive settings menu with a live preview. Configure everything in one place:
- Enabled — toggle the thinking box on/off
- Background Color — choose from 9 presets (VS Code Dark, Dracula, Tokyo Night, etc.) or enter a custom hex color
- Padding X / Y — horizontal and vertical padding inside the box (0–5)
- Show Header — toggle a header bar above each thinking block
- Header Label — customise the header text (default: "Thinking")
- Show Thinking Level — append the current thinking level (e.g. "medium") to the header
- **Show Line Count (Collapsed) ** — display the number of lines in thinking block (Only shows when thinking block is collapsed)
All changes apply immediately and preview in real time. Settings persist across sessions to ~/.pi/agent/config/thinking-box.json.
Color Presets
Navigate the color picker with arrow keys — the preview updates live as you browse. Choose "Custom…" to enter any 6-digit hex color.
- Default (ChatGPT-style), VS Code Dark, Dark Blue-Gray, Dracula, Tokyo Night, Purple Twilight, Gruvbox Dark, Deep Black, Pure Black, Custom…
Configuration
Config persists across sessions to ~/.pi/agent/config/thinking-box.json. Changes survive pi restarts, reloads, and package updates. Defaults ship in config.json inside the extension directory.
Defaults:
- Enabled:
true - Background:
#343541 - Padding:
0 × 1(character cells) - Show Header:
true - Header Label:
"Thinking" - Show Thinking Level:
true - Show Line Count:
true - Show Arrow:
true
How It Works
The extension monkey-patches AssistantMessageComponent.prototype.updateContent to wrap thinking blocks in a Box component with configurable background and padding. Thinking text follows the active theme; the background is user-configured hex.
See docs/ARCHITECTURE.md for full implementation details.
Limitations
- Theme changes: Box background is explicit hex — won't auto-adapt on theme switch. Configure manually for your theme.
License
MIT
