pmd-annotations

Analyze @SuppressWarnings PMD annotations in Salesforce Apex class files and visualize them in a rich dashboard.

What is @SuppressWarnings?

In Salesforce Apex you can suppress PMD static-analysis warnings on a class or method:

@SuppressWarnings('PMD.MethodNamingConventions, PMD.ApexCRUDViolation')
public class MyClass { ... }

Over time these accumulate and become technical debt. This tool gives you full visibility into which rules are suppressed, in which files, and by whom.

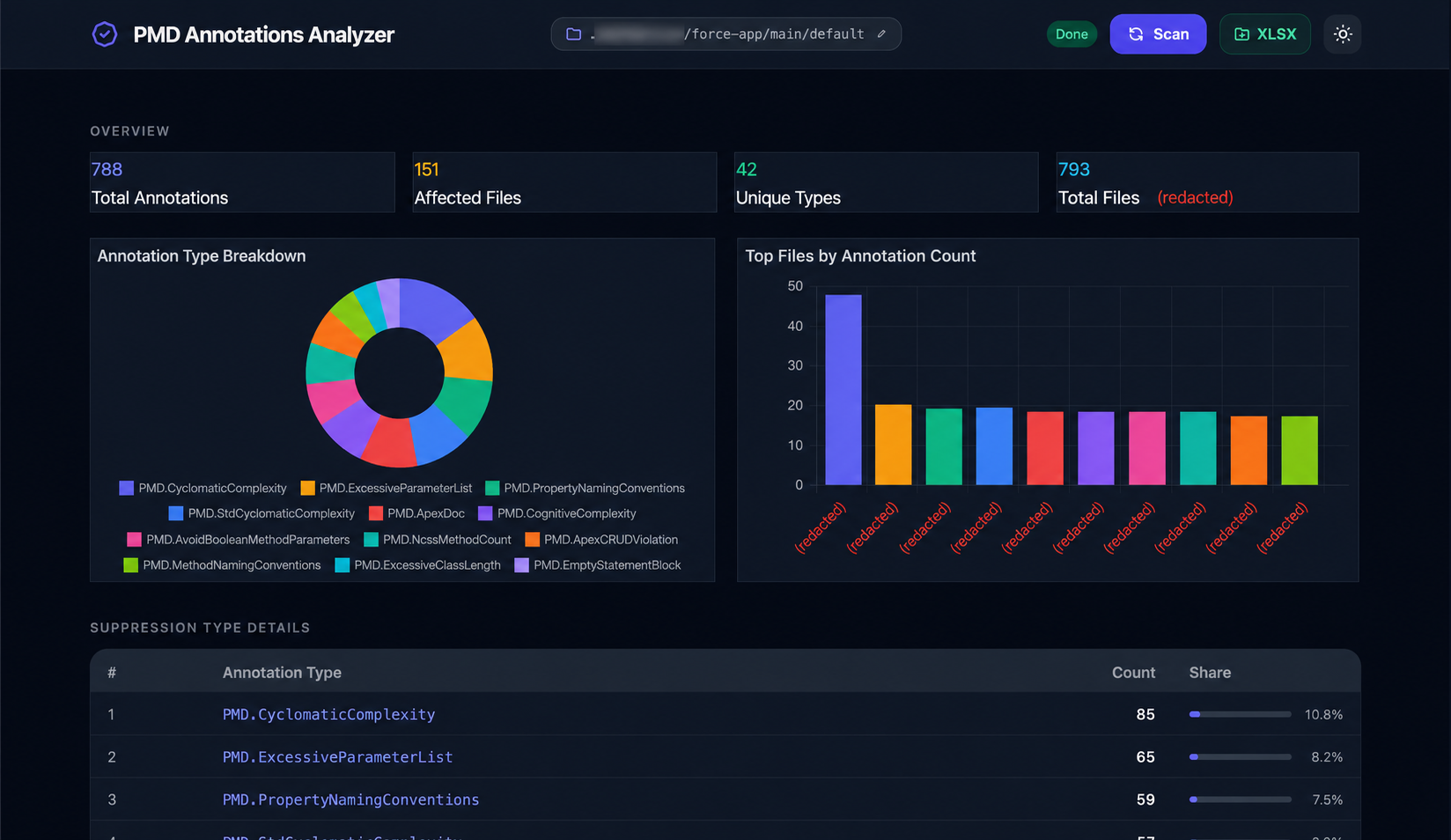

Screenshot

Features

• Scans all .cls files in a given SFDX classes folder
• Parses every @SuppressWarnings('PMD.Xxx') annotation (including comma-separated lists)
• Resolves the git author (Committed By) for each affected file via git log
• Opens a live dashboard automatically in your browser with:
  • KPI cards — total annotations, affected files, unique types, total class files
  • Doughnut chart — annotation type breakdown
  • Bar chart — top 10 files by annotation count
  • Type table — each suppression type with count and percentage share bar
  • File table — file name, committed-by, count badge, deduped annotation pills with repeat counts
  • Live search — filter the file table by filename, committer, or annotation type
  • Folder picker — change the classes folder at runtime without restarting the server
  • XLSX export — download a formatted spreadsheet (Summary, Annotation Types, Files sheets)
  • Monaco editor drawer — click any file row to slide in a full syntax-highlighted Apex source viewer with all @SuppressWarnings lines highlighted; click any annotation chip to jump to that occurrence in the editor
  • Guided tour — interactive step-by-step walkthrough of every UI feature
  • Dark / Light theme toggle (persisted in localStorage)
  • Splash screen — animated progress overlay while the scan runs

Installation

npm install -g pmd-annotations

Usage

pmd-annotations [-f <path-to-classes-folder>] [-p <port>]

| Option | Default | Description | |---|---|---| | -f, --folder | (optional) | Path to your SFDX classes folder — can also be set from the UI | | -p, --port | 3000 | Port for the local web server | | --enable-tour | false | Show the guided tour button in the UI |

Examples

# Start with a folder pre-selected
pmd-annotations -f ./force-app/main/default/classes

# Start without a folder — pick one from the UI
pmd-annotations -p 8080

# Enable the guided tour button
pmd-annotations -f ./force-app/main/default/classes --enable-tour

The app starts a local Express server and opens http://localhost:<port> automatically.

Folder Picker

Click the folder pill in the header (next to the app title) to open the folder browser modal:

• Browse the filesystem directory by directory
• Type or paste a full path directly and press Go
• Click a directory to highlight it, then Use this folder — the server updates and a fresh scan starts automatically
• The -f flag is now optional; the folder can be set entirely from the UI

XLSX Export

Once a scan completes, the XLSX button in the header becomes active. Clicking it downloads a pmd-annotations-<timestamp>.xlsx workbook with three sheets:

| Sheet | Contents | |---|---| | Summary | Folder path, scan timestamp, total files, affected files, total annotations, unique types | | Annotation Types | Rank, type name, count, share % — sorted highest first | | Files | File, Committed By (git author), annotation count, deduped annotation list |

Rows are alternately shaded and the header row is indigo with white text.

Monaco Editor Drawer

Click any row in the Files with @SuppressWarnings table to slide in a full-width Apex source viewer:

• Custom Apex syntax highlighting (keywords, annotations, strings, comments)
• Automatically scrolls to the first @SuppressWarnings occurrence
• Every suppression line is marked in the overview ruler and minimap
• Annotation chips in the drawer header show deduplicated types with repeat counts — click a chip to jump to that rule's next occurrence in the editor (cycles on repeated clicks)
• Close with the ×, Esc, or by clicking the backdrop

Guided Tour

The Tour button is hidden by default. Pass --enable-tour when starting the server to show it.

Click the Tour button in the header to launch a 9-step interactive walkthrough.

| Key | Action | |---|---| | → / Enter | Next step | | ← | Previous step | | Esc | Exit tour |

License

MIT © Mohan Chinnappan
