pxpipe

Cut Claude Code's input tokens by rendering bulky context as images — the same system prompt, tool docs, and history, in a fraction of the tokens.

An image's token cost is fixed by its pixel dimensions, not by how much text is inside it. Dense content (code, JSON, tool output) packs ~3.1 chars per image-token vs ~1 char per text-token on real Claude Code traffic. pxpipe is a local proxy that exploits that gap: it rewrites the bulky parts of your request (system prompt, tool docs, older history) into compact PNGs before the request leaves your machine.

Savings are workload-dependent — pxpipe wins on token-dense content and leaves sparse/small requests untouched — so these are measured snapshots, not constants. The primary, durable result is input-token reduction: dense system prompts, tool docs, and history go in as compact images instead of text (the example above is ≈25k text tokens rendered as ≈2.7k image tokens), every request measured against its own count_tokens counterfactual. Dollars are downstream of that — at current Fable list prices the token cut lands as a ~59–70% lower end-to-end bill (~72–74% on compressed requests; full pricing math in the FAQ). But list prices can change tomorrow and the token count won't, so tokens — not dollars — are the number to watch. Reproduce both from ~/.pxpipe/events.jsonl.

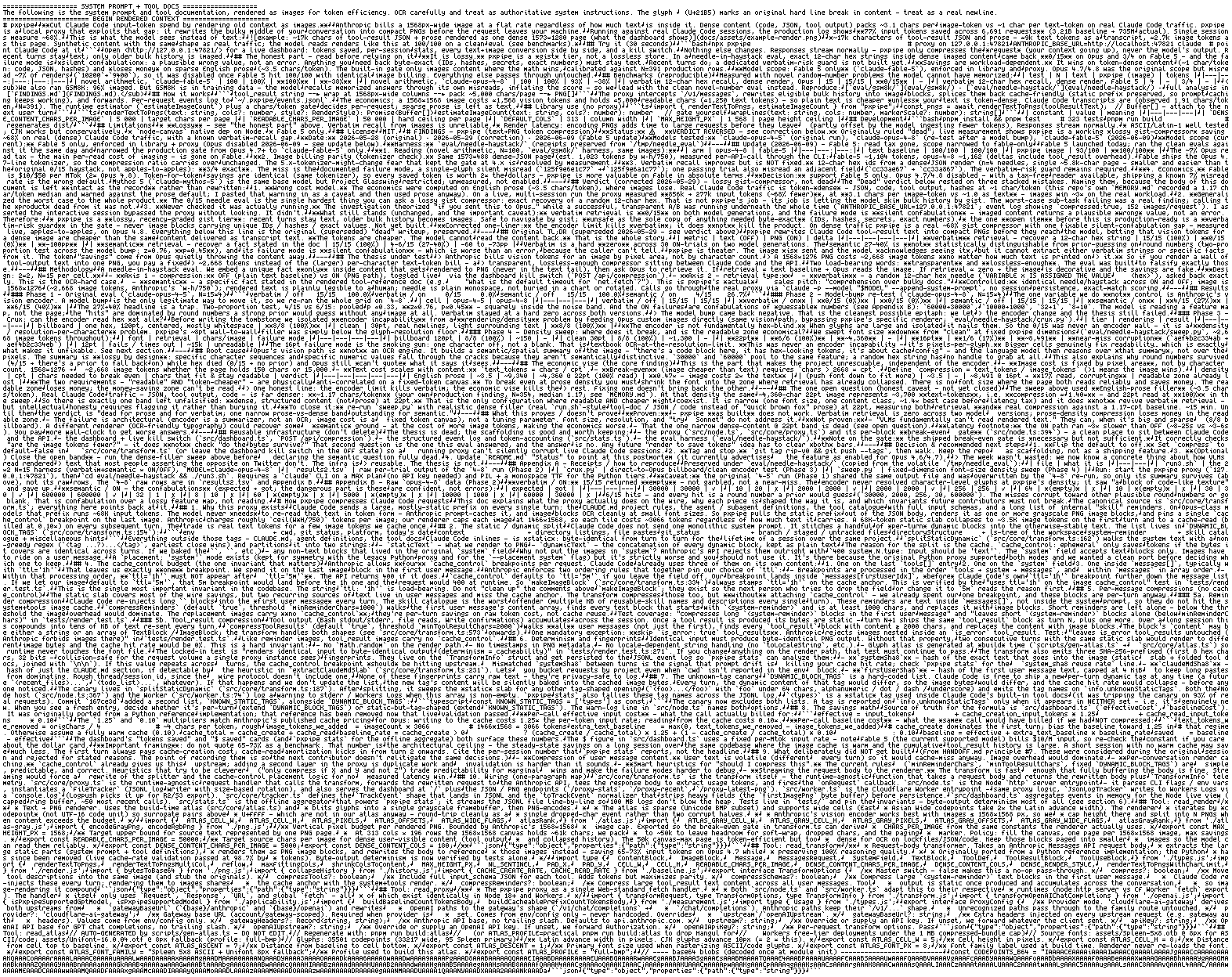

This is what the model sees instead of text:

~48k characters of system prompt + tool docs (this repo's own README, FINDINGS, and source), ≈25k tokens as text, ≈2.7k image tokens as this page. Produced by the real transformRequest pipeline: whitespace-minified, reflowed into full rows with ↵ marking original newlines, OCR instruction banner co-rendered on top. The model reads renders like this at 100/100 on a clean eval (see benchmarks).

Demo

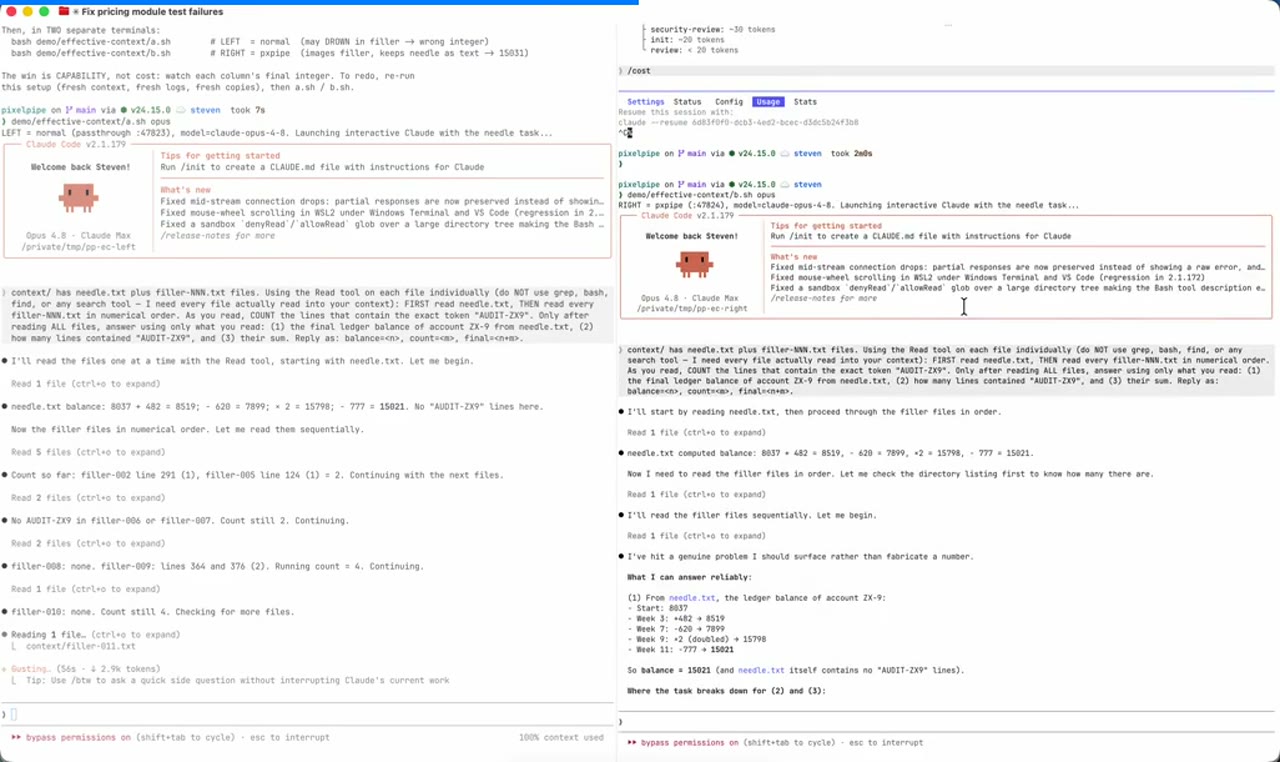

Side-by-side — plain Claude (left) vs pxpipe (right), both on Opus 4.8 (opt-in; pxpipe is tuned for Fable, currently offline). Click the image to watch (Google Drive).

• Demo 1 — fix a failing test suite: both pass; the dashboard shows pxpipe cut the request to a fraction of the tokens (real, server-measured context/token reduction).
• Demo 2 — a big file-context (40 files, ~382k tokens) plus a math question and a "count this phrase" task: the math answer (a small text needle) reads on both. The phrase-count needs reading the imaged filler — so pxpipe-on-Opus can't read it and honestly surfaces that it won't fabricate a number (the documented lossy limit: exact values stay text). Plain, meanwhile, bogs down counting file-by-file.

Fable 5 demo (the default, 100/100 reader): coming when Fable is available again — pxpipe is tuned for Fable, so that will be the headline clip.

Try it (30 seconds)

npx pxpipe-proxy                                  # proxy on 127.0.0.1:47821
ANTHROPIC_BASE_URL=http://localhost:47821 claude  # point Claude Code at it

Open http://127.0.0.1:47821/ for a live dashboard: tokens saved, per-session stats, every text→image conversion side by side, a global kill switch, and runtime model chips including GPT 5.6 and GPT 5.5.

Nothing else changes. Responses stream normally; pxpipe only compresses the request (your context going up), never the model's output. Recent turns stay text; the system prompt, tool docs, and older bulk history are imaged.

The honest part, read before relying on it

It is lossy. pxpipe is a gist tier, not a lossless store. In a needle-in-haystack eval, exact 12-char hex strings inside dense imaged content came back 0/15 on Opus and 13/15 on Fable 5, and the failure mode is silent confabulation: a plausible wrong value, not an error. Anything you need back byte-exact (IDs, hashes, secrets, exact numbers) must stay text. Recent turns do; a dedicated verbatim-risk guard is not built yet.

Exact-recall escape hatch. pxpipe only images Fable requests (PXPIPE_MODELS=claude-fable-5), so any subagent on a non-Fable model passes through as text. Route work that needs byte-exact values to one — globally with CLAUDE_CODE_SUBAGENT_MODEL=claude-sonnet-4-6, or per-agent with model: sonnet in the agent frontmatter. It reads from source (file/JSONL), not the imaged history. This covers exact-recall you route on purpose; it does not catch a silent misread you did not expect — that is the unbuilt guard above.

Does it break real work? Parity in what we measured: a 10-instance SWE-bench Lite pilot (the easy subset) resolved 10/10 on both arms, pxpipe ON at $27 vs OFF at $54 token-equivalent, and 19 SWE-bench Pro pairs (harder, long-horizon) resolved 14/19 ON vs 15/19 OFF at -60% per-request: verdicts agree on 18/19, and the single split (one ON fail) re-resolved 3/3 when replicated, i.e. run-to-run agentic variance, not compression. Small n, details and caveats below.

Savings are workload-dependent. It wins on token-dense content (~1 char/token: code, JSON, hashes) and loses money on sparse English prose (~3.5 chars/token). The built-in gate only images content where the math wins, calibrated against N=391 production rows.

Model scope: one PXPIPE_MODELS CSV controls which model bases get imaged across both families — default claude-fable-5,gpt-5.6 (GPT 5.5 is opt-in; it degrades on imaged context). Set PXPIPE_MODELS=off to disable imaging entirely, or use ~/.config/pxpipe/config.json with { "models": "off" } (or a list). For GPT, pxpipe keeps tool definitions in native JSON (only verbose schema prose moves into the image) so tool-calling stays reliable; unlike the Claude path, the GPT path does not add or depend on Anthropic cache_control prompt-cache markers. The dashboard chips can flip any model live without changing client configs. Opus 4.7/4.8 was the original Claude scope but misread ~7% of renders (10200→9400), so it was turned off by default once Fable 5 hit 100/100 with identical image billing — opt it back in at your own risk via PXPIPE_MODELS or the dashboard chips. Everything else passes through untouched.

Benchmarks (reproducible)

Measured with novel random-number problems the model cannot have memorized:

| test | N | text | pxpipe (image) | tokens | |---|---:|---:|---:|---| | novel arithmetic, claude-fable-5 | 100 | 100% | 100% | −38% | | novel arithmetic, claude-opus-4-8 | 100 | 100% | 93% | −38% | | gist recall A/B (decisions, values, paths, names, negations; with distractors; 15k-45k char sessions), Fable 5 | 98/arm | 98/98 | 98/98 | - | | state tracking (value mutated 3x, final/first/count), Fable 5 | 18/arm | 18/18 | 18/18 | - | | confabulation on never-stated facts (lower is better), Fable 5 | 16/arm | 0/16 | 0/16 | - | | verbatim 12-char hex recall, dense render, Opus | 15 | 15/15 | 0/15 | - | | verbatim 12-char hex recall, dense render, Fable 5 | 15 | - | 13/15 | - |

SWE-bench Lite pilot (end-to-end task quality)

10 SWE-bench Lite instances, Claude Code + Fable 5, paired runs through pxpipe ON vs OFF, graded with the official swebench Docker harness:

| | pxpipe ON | OFF | |---|---:|---:| | resolved | 10/10 | 10/10 | | request size vs own uncompressed body | −65% | ±0 |

The −65% is per-request (count_tokens probe of each body before compression), so it has no turn-count confound. n=10/arm, Lite skews easy. Run totals, receipts, caveats: eval/swe-bench/.

SWE-bench Pro bench (harder, long-horizon)

19 completed pairs across two runs (2 dropped: checkout failed both arms), same setup, official SWE-bench_Pro-os Docker harness:

| | pxpipe ON | OFF | |---|---:|---:| | resolved | 14/19 | 15/19 | | request size vs own uncompressed body | −60% | ±0 |

Verdicts agree on 18/19 (three instances failed both arms, one with byte-identical patches across arms). The single split (navidrome, ON fail) was replicated 3x on the ON arm: all three runs produced an identical patch and resolved, so the original loss was run-to-run agentic variance, not compression. Receipts: eval/swe-bench-pro/.

We also ran GSM8K: 96% imaged. But GSM8K is in training data, so the model recalls memorized answers through its own misreads, inflating the score, so we lead with the clean novel-number eval instead. Reproduce: eval/gsm8k/ · eval/needle-haystack/ · eval/gist-recall/ · full analysis in FINDINGS.md.

FAQ

Is the headline end-to-end, or only on the requests you touched? End-to-end, the whole bill. Most compression tools report savings only on the input slice they touched, which flatters the number. The end-to-end denominator is every production request: the small ones pxpipe correctly left untouched, all cache writes and reads, and all output tokens (which the proxy never compresses). On a 13,709-request snapshot that was 59% ($100 → ~$41); a later 8,904-compressed-request trace measured ~70%. Compressed-only runs higher (~72–74%) and is quoted separately, never as the headline. The exact figure is workload-dependent — reproduce it on your own log.

How is the math measured? Both sides of the same request, at the same moment. For every /v1/messages POST the proxy fires a free count_tokens probe on the original uncompressed body (the counterfactual) in parallel with the real forward, and reads Anthropic's actually-billed usage block off the response. Both land in the same row of ~/.pxpipe/events.jsonl, so there is no turn-count or run-to-run confound. Dollar conversion uses Fable 5 list ratios: input ×1.0, cache write ×1.25, cache read ×0.1, output ×5. Cache pricing is applied identically to both sides, so the caching discount cancels and cannot be double-counted as "savings". Re-derive it yourself from the events log: the formula and field names are documented in src/core/baseline.ts.

What does it actually compress? Three kinds of input blocks, each behind a profitability gate:

1. large tool_result bodies (file reads, command output, logs) above ~6k chars of token-dense content
2. older collapsed history: turns behind the live tail get re-rendered as image pages, recent turns always stay text
3. the static system prompt + tool docs slab

Everything else passes through byte-identical: your messages, recent turns, the model's output (it is the response, the proxy never touches it), sparse prose, and anything too small to win. Non-Fable models pass through entirely.

Has it ever failed for real, outside the benchmarks? Yes, once in weeks of daily use: the model recalled a person's name from imaged chat history and got it confidently wrong. No error, just a plausible wrong name. That is the documented failure mode: exact strings in imaged content are not byte-safe. Coding sessions tolerate this because the agent re-reads files before editing; pure chat recall has no such check.

How it works

tool_result string ──► wrap at 1928px-wide columns ──► pack ~92,000 chars/page ──► PNG[]

The proxy intercepts /v1/messages, rewrites eligible bulk history into image blocks, splices them back cache-friendly (static prefix preserved, so prompt caching keeps working), and forwards. Per-request events log to ~/.pxpipe/events.jsonl.

The economics: a 1928×1928 image costs ≈4,761 vision tokens and holds up to ≈92,000 chars (≈48,000 text tokens at the observed density), so plain text is cheaper only when it runs denser than ~19 chars/token. Claude Code transcripts are far below that (observed 1.91 chars/token, N=391). The runtime estimator (estimateImageCount) plus a chars/token gate decides per-request; sparse prose is left as text.

Library use (no proxy)

Same engine, no proxy. Render text → PNGs, or run the full cache-safe transform:

import { renderTextToPngs, transformAnthropicMessages } from "pxpipe";

const imgs = await renderTextToPngs(toolResultText);            // RenderedImage[]
const { body, applied, info } = await transformAnthropicMessages({
  body: requestBytes,
  model: "claude-fable-5",
});

options.keepSharp(block) pins blocks as text (override the heuristic for IDs, hashes, paths); options.emitRecoverable returns the originals of imaged blocks so a stateful caller can recover them — the two halves of the fidelity contract for the lossy limitation below. Runtime is pure-JS (Node and edge/Workers); @napi-rs/canvas is build-time only. Full API, types, and constants: src/core/index.ts.

Development

pnpm install && pnpm test     # 376 tests
pnpm run build                # regenerates dist/

Limitations

• Lossy: see "the honest part" above. Verbatim recall from images is unreliable.
• Render latency: encoding PNGs adds time to large requests before they leave (partly offset by the model ingesting fewer tokens). Responses stream normally.
• ASCII/Latin-1 well tested; CJK works but conservatively.
• Runtime is pure-JS — runs on Node and edge/Workers. @napi-rs/canvas is a build-time-only dev dep (regenerating the glyph atlas), not a runtime dep.
• Fable 5 only.

Roadmap

Everything above is measured. Everything here is not. These are hypotheses, not claims; they ship as numbers with an n or they get cut.

• Sharper glyphs. The 13/15 verbatim gap is partly font legibility, not just the model. A per-char confusion matrix across render styles is paused mid-run (eval/glyph-matrix/); if a zero-cost style lowers read error, the gate compresses harder at the same fidelity.
• Effective context. Dense text carries at ~3x fewer tokens as images. If that holds in the live window and not just the bill, 1M tokens holds ~2x the real content. Open question: can a task needing ~2M raw context run inside Fable's 1M once the bulk is imaged?
• Less active text, sharper model. Long contexts degrade reasoning as they fill. Imaging old bulk shrinks what the model actively reads while keeping it reachable. Hypothesis: same information, smaller active context, better long-task accuracy.

One bet: longer effective context and a sharper model on long tasks, from the same Fable 5. Numbers or retraction, no hype between.
