rdigital-twin

Framework-agnostic 3D/2D map viewer for digital twin applications — interactive POI markers, heatmaps, crowd evacuation simulation, and floor navigation.

Keywords: digital-twin, 3d-viewer, 2d-viewer, map-viewer, threejs, webgl, poi, heatmap, crowd-simulation, evacuation, floor-navigation, react, angular, vue, svelte, map-builder, drm

Works with React, Angular, Vue 3, Svelte, or plain JavaScript.

🌐 Website: https://rdigital-twin.web.app 📦 npm: rdigital-twin 📁 Example: https://github.com/humsyong/rdigitaltwin-example

Try the free online map builder → https://rdigital-twin.web.app No installation required.

Powered by Three.js (OrbitControls, CSS2DRenderer) and the Web Crypto API (AES-256-GCM in-browser decryption).

Requirements

| Dependency | Version | |-----------|---------| | three | ^0.173.0 |

Note: @noble/ciphers is installed automatically. Browser-script and CommonJS bundles include their dependencies.

Installation

npm install rdigital-twin
npm install --save three@^0.173.0

Quick Start (Vanilla JS)

import { DigitalTwinViewer } from 'rdigital-twin';
import 'rdigital-twin/styles.css';

const viewer = new DigitalTwinViewer({
  apiBaseUrl: 'https://api.your-domain.com/api',
  clientId: 'your-client-license-id',
  mapId: 'floor-plan',
  initialViewMode: '2d', // Top-down view, including solid kitchen and bathroom fixtures
  pois: [],
  onPoiClick: (id) => console.log('POI clicked:', id),
  onReady: () => console.log('Viewer ready'),
});

viewer.mount(document.getElementById('viewer-container'));

Note: The parent container must have explicit width and height — the viewer fills its container via ResizeObserver.

Quick Start (React)

import { useEffect, useRef } from 'react';
import { DigitalTwinViewer } from 'rdigital-twin';
import 'rdigital-twin/styles.css';

function MapViewer() {
  const containerRef = useRef<HTMLDivElement>(null);
  const viewerRef = useRef<DigitalTwinViewer | null>(null);

  useEffect(() => {
    if (!containerRef.current) return;
    const viewer = new DigitalTwinViewer({
      apiBaseUrl: 'https://api.example.com/api',
      clientId: 'demo-client',
      mapId: 'floor-plan',
      pois: [],
    });
    viewer.mount(containerRef.current);
    viewerRef.current = viewer;

    return () => viewer.unmount();
  }, []);

  return <div ref={containerRef} style={{ width: '100%', height: '600px' }} />;
}

Quick Start (Vue 3)

<script setup lang="ts">
import { onMounted, onBeforeUnmount, ref } from 'vue';
import { DigitalTwinViewer } from 'rdigital-twin';
import 'rdigital-twin/styles.css';

const container = ref<HTMLElement>();
let viewer: DigitalTwinViewer;

onMounted(() => {
  if (!container.value) return;
  viewer = new DigitalTwinViewer({
    apiBaseUrl: 'https://api.example.com/api',
    clientId: 'demo-client',
    mapId: 'floor-plan',
    pois: [],
  });
  viewer.mount(container.value);
});

onBeforeUnmount(() => viewer?.unmount());
</script>

<template>
  <div ref="container" style="width:100%;height:600px" />
</template>

Showcase

Viewer & Visualization

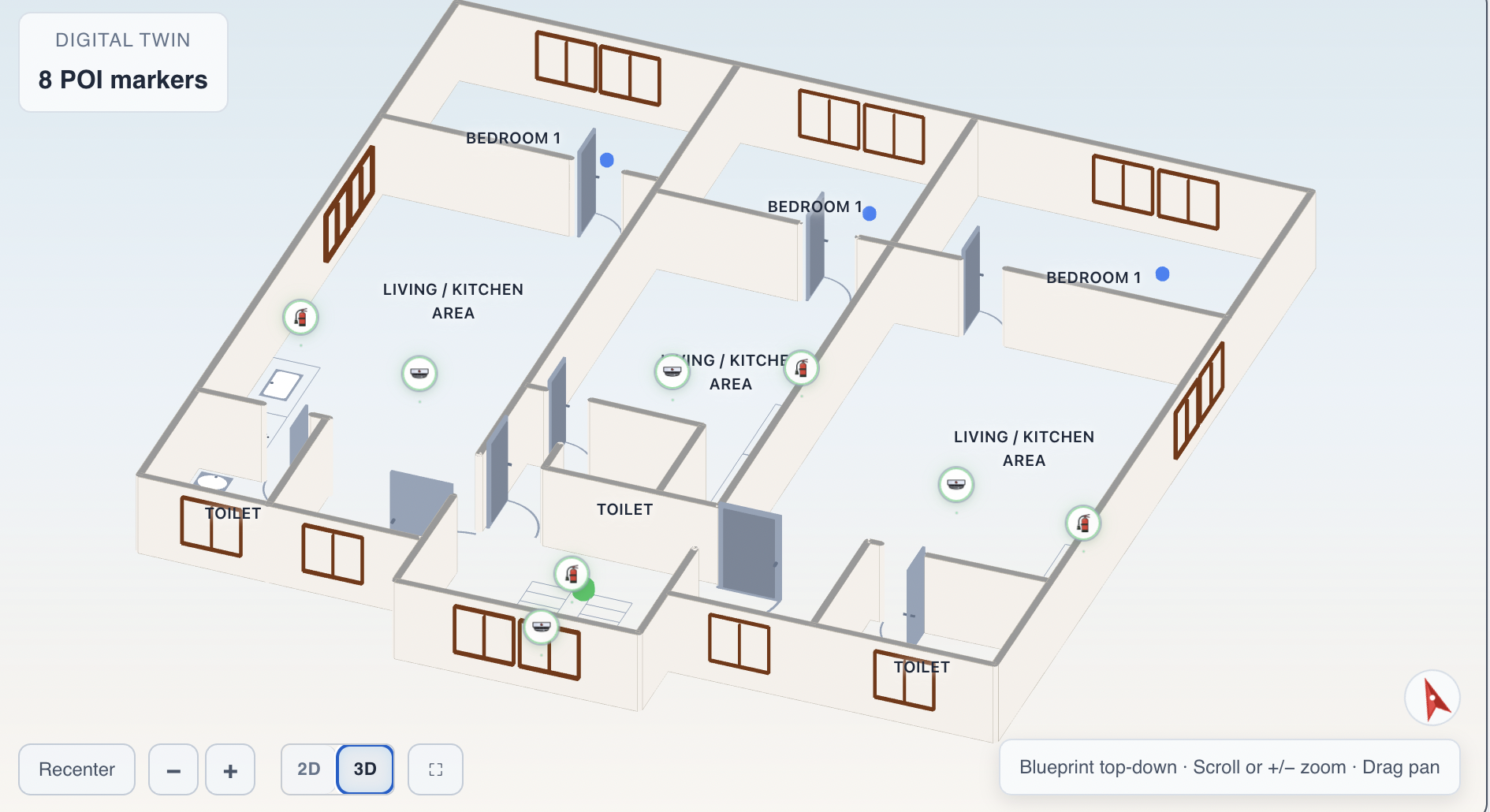

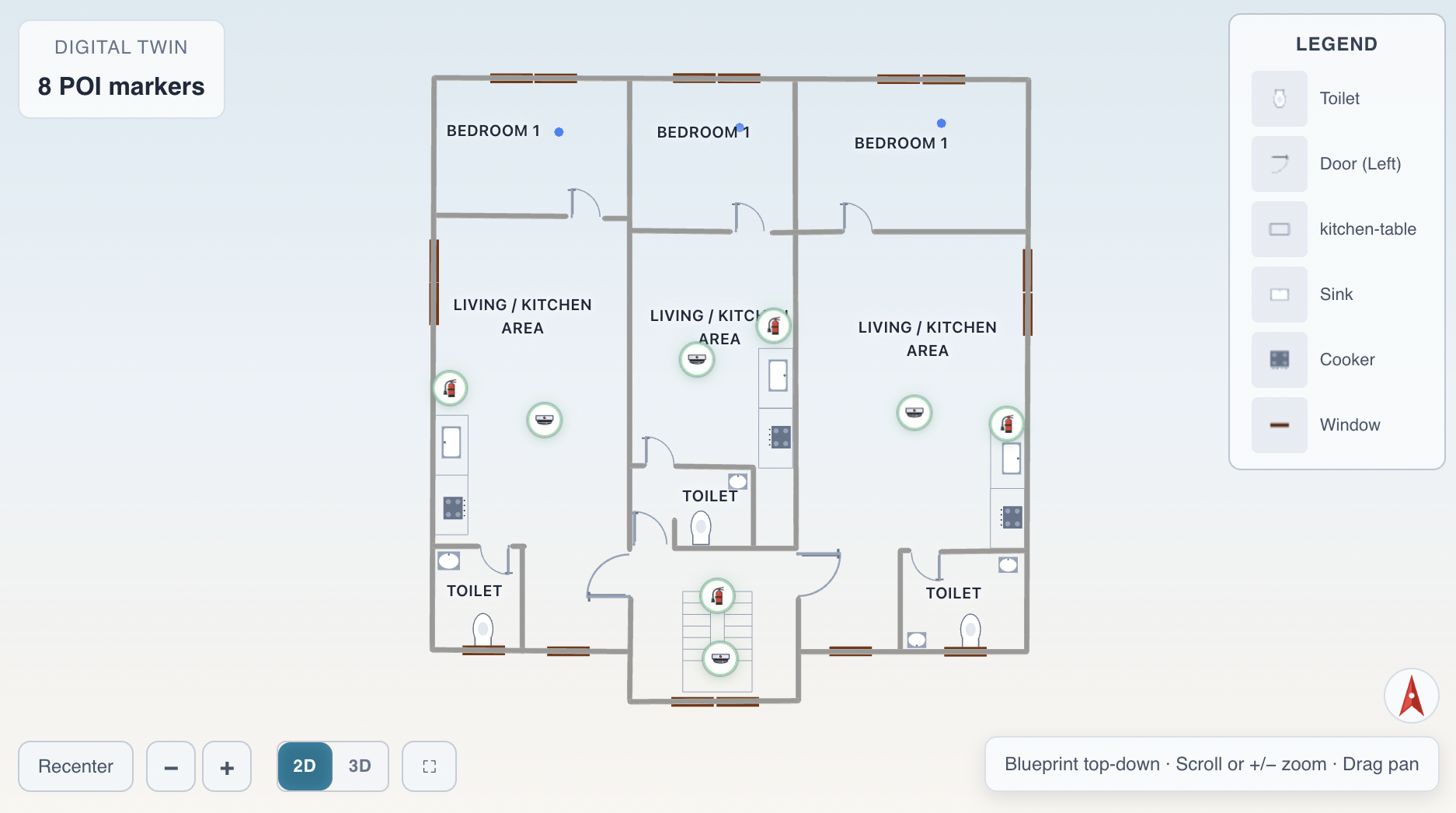

| Feature | Description | |---------|-------------| | 2D / 3D Viewer | High-performance WebGL viewer supporting both top-down blueprint view and free 3D perspective mode. Smooth 60 FPS rendering for large-scale projects. | | Multi-Floor Navigation | Built-in floor switcher with alarm indicators. Navigate between floors, basements, and levels seamlessly with instant map transitions. | | PNG Map Overlay | Upload a PNG floor plan image and overlay interactive elements on top. Perfect for quickly digitizing existing paper maps and diagrams. |

Interactive Elements

| Feature | Description | |---------|-------------| | Interactive Markers | Add interactive points of interest (POIs) with 12+ icon types. Each marker supports status indicators — normal, alert, warning, or offline — with color-coded visual feedback. | | Areas of Interest | Define semi-transparent polygon zones on your map to highlight rooms, restricted areas, or operational zones. Reshape them dynamically by dragging vertices. | | Decoration Objects | Furnish your digital twin with realistic 3D objects — tables, chairs, stairs, windows, doors, meeting areas, and emergency equipment. Fully rotatable and scalable. |

Simulation & Analytics

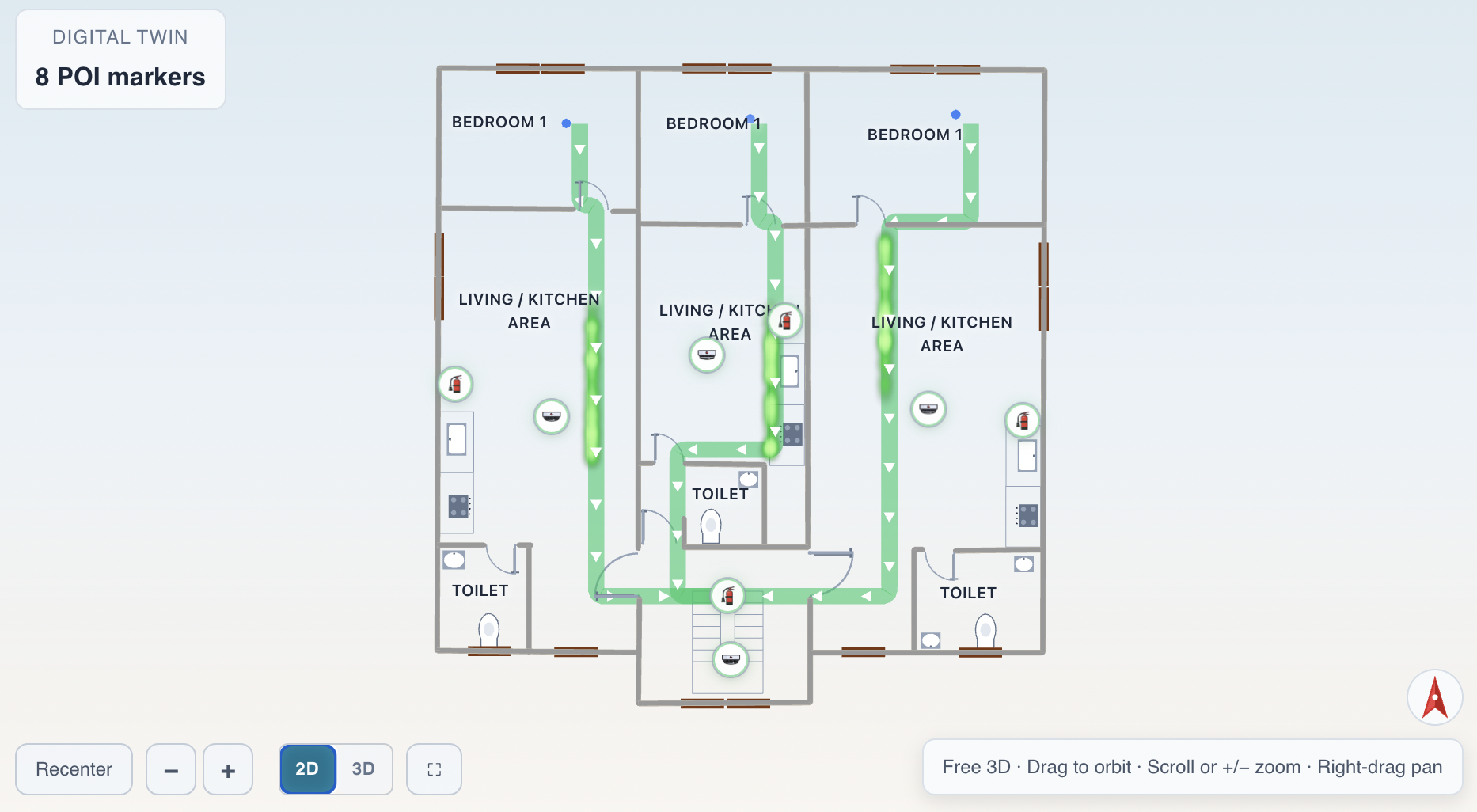

| Feature | Description | |---------|-------------| | Evacuation Simulation | Run multi-agent crowd simulations with smart pathfinding. Agents navigate around obstacles to reach exits, with real-time tracking of evacuated, walking, and trapped occupants. | | Heatmap Visualization | Visualize people density and movement patterns with thermal-style heatmap overlays. Automatically generated from simulation routes or custom sensor data. | | Real-Time Data Feeds | Connect live sensor data, POI updates, and zone changes through polling feeds. Your digital twin reflects real-world changes as they happen. |

Platform & Tools

| Feature | Description | |---------|-------------| | Map Builder | Visual editor for creating and editing digital twin maps without writing code. Drag, drop, and configure your spaces with an intuitive interface. | | REST APIs | Programmatically manage projects, maps, markers, and zones through well-documented REST endpoints. Integrate with your existing infrastructure seamlessly. |

API Reference

DigitalTwinViewer

Constructor Options

| Option | Type | Required | Default | Description | |--------|------|----------|---------|-------------| | apiBaseUrl | string | Yes | — | Absolute backend API URL | | clientId | string | Yes | — | DRM client license identifier | | mapId | string | Yes | — | Encrypted map asset id | | pois | PointOfInterest[] | No | [] | Live POI / sensor data array | | areasOfInterest | AreaOfInterest[] | No | [] | Semi-translucent floor polygons | | draggable | boolean | No | true | Allow dragging POI/AOI markers | | showPoiInfoOnClick | boolean | No | true | Show POI detail panel on click | | backgroundColor | string | No | '#111827' | Scene & container background | | modelSource | ModelSource | No | { type: 'encrypted-gltf', mapId } | Override model loading | | initialCameraPosition | Coordinates | No | — | Override initial camera focus | | initialViewMode | '2d' \| '3d' | No | '2d' | Initial view mode | | hideOverlays | boolean | No | false | Hide all HUD overlays | | hideRecenter | boolean | No | false | Hide Recenter button | | hideZoom | boolean | No | false | Hide Zoom buttons | | hideViewToggle | boolean | No | false | Hide 2D/3D toggle | | hideNorthArrow | boolean | No | false | Hide north arrow | | hideEvacuation | boolean | No | true | Hide evacuation panel | | lockCameraAboveFloor | boolean | No | true | Prevent camera below floor | | heatmapData | HeatmapPoint[] | No | [] | Thermal-camera heatmap data | | evacuationTriggerIcons | string[] | No | ['fire', 'fireAlarmPanel'] | POI types triggering evacuation | | evacuationStartPoints | Coordinates[] | No | [] | Evacuation spawn positions | | allowSelectEvacRoute | boolean | No | false | Allow clicking routes | | selectedEvacRouteId | string \| null | No | null | Currently selected route | | evacuationRouteMode | 'single' \| 'multiple' | No | 'single' | Route computation mode | | theme | 'dark' \| 'light' | No | 'dark' | UI theme | | legend | boolean | No | false | Show decoration legend | | hideLabels | boolean | No | false | Hide map labels |

TypeScript Interfaces

PointOfInterest

interface Coordinates {
  x: number;
  y: number;
  z: number;
}

type PoiStatus = 'NORMAL' | 'ALERT' | 'WARNING' | 'OFFLINE';

type PoiIconType =
  | 'default' | 'sensor' | 'camera' | 'hvac' | 'door'
  | 'fire' | 'fireExtinguisher' | 'breakGlass' | 'fireHose'
  | 'fireAlarmPanel' | 'smokeDetector' | 'sosPanicAlarm';

interface PointOfInterest {
  id: string;
  name: string;
  coordinates: Coordinates;
  iconType: PoiIconType;
  status: PoiStatus;
  color: string;
  customIcon?: string;   // Optional custom icon URL (PNG/SVG)
  scale?: number;        // 1–10, default 5
  radius?: number;       // Hazard radius in meters
}

AreaOfInterest

interface AreaOfInterest {
  id: string;
  name?: string;            // Display label shown on hover
  points: Coordinates[];    // Closed ring of floor vertices
  color: string;
}

HeatmapPoint

A single person's position for the thermal-camera-style heatmap. Each point represents one person — when people stand close together their heat signatures merge into a hotspot, just like a thermal camera.

interface HeatmapPoint {
  /** World X-coordinate on the map floor */
  x: number;
  /** Ground Y (typically 0 or floor height) */
  y: number;
  /** World Z-coordinate on the map floor */
  z: number;
}

Event Callbacks

| Callback | Signature | Description | |----------|-----------|-------------| | onPoiClick | (id: string) => void | POI marker clicked | | onPoiDragMove | (payload: PoiDragPayload) => void | POI being dragged | | onPoiDragEnd | (payload: PoiDragPayload) => void | POI drag finished | | onAoiDragMove | (payload: AoiDragPayload) => void | AOI vertex being dragged | | onAoiDragEnd | (payload: AoiDragPayload) => void | AOI vertex drag finished | | onReady | () => void | Viewer initialized | | onError | (message: string) => void | Error occurred | | onAccessDenied | (error: MapAccessDeniedError) => void | DRM rejected | | onCanvasClick | (coords: Coordinates) => void | Click on empty ground | | onPolygonClick | (payload: {id, name}) => void | Click on room polygon | | onAoiClick | (id: string) => void | Click on AOI body | | onEvacuationRoutes | (routes: Map<string, EscapeRoute>) => void | Routes computed | | onCrowdStatus | (status: CrowdSimulationStatus) => void | Crowd sim progress |

Methods

| Method | Return | Description | |--------|--------|-------------| | mount(container) | void | Attach viewer to DOM element | | unmount() | void | Cleanup and detach | | setPois(pois) | void | Update POI markers | | setAreasOfInterest(areas) | void | Update AOI polygons | | setHeatmapData(data) | void | Update heatmap overlay | | setMapId(mapId) | void | Switch map (triggers reload) | | setClientId(id) | void | Update client ID | | setApiBaseUrl(url) | void | Update API URL | | setTheme(theme) | void | Switch dark/light theme | | setSelectedPoiId(id) | void | Programmatically select a POI | | setSelectedEvacRouteId(id) | void | Select an evacuation route | | setEvacuationStarts(starts) | void | Override evacuation spawn points | | updateOptions(partial) | void | Batch-update options without reload | | recenterCamera() | void | Reset camera to map center | | toggleFreeCamera() | void | Toggle 2D/3D mode | | getFreeCameraEnabled() | boolean | Check if 3D (free camera) mode is active | | zoomIn() / zoomOut() | void | Step zoom | | startCrowdSimulation(count?) | void | Start crowd evacuation | | stopCrowdSimulation() | void | Stop crowd simulation | | generateRouteHeatmap() | HeatmapPoint[] | Sample route heat points | | getSelectedPoi() | PointOfInterest \| null | Currently selected POI | | getMarkers() | PointOfInterest[] | All active POI markers | | recalcEvacuation() | void | Recompute escape routes with current state | | reevaluatePois(pois) | void | Re-evaluate hazard POIs for evacuation |

Tip: setEvacuationStarts() overrides the map JSON start points. Call recalcEvacuation() after changing starts to regenerate routes.

FloorNavigator

import { FloorNavigator } from 'rdigital-twin';
import 'rdigital-twin/styles.css';

const nav = new FloorNavigator({
  floors: [{ id: '6F', label: 'Floor 6' }, { id: '5F', label: 'Floor 5' }],
  currentFloor: '6F',
  alarms: [{ floorId: '5F', count: 3 }],
  onCurrentFloorChange: (floorId) => console.log('Floor:', floorId),
});
nav.mount(document.getElementById('nav-container'));

FloorNavigator Methods

| Method / Property | Return | Description | |-------------------|--------|-------------| | mount(container) | void | Attach to a DOM element | | unmount() | void | Detach and clean up | | setFloors(floors) | void | Replace floor list | | setCurrentFloor(floorId) | void | Switch active floor | | setAlarms(alarms) | void | Update alarm events | | setTheme(theme) | void | Switch dark/light theme | | currentFloor (getter) | string | Currently selected floor ID | | floors (getter) | FloorItem[] | All floor entries | | alarms (getter) | AlarmEvent[] | Active alarm events | | theme (getter) | string | Current theme |

EvacuationPanel

import { EvacuationPanel } from 'rdigital-twin';

const panel = new EvacuationPanel({ onClear: () => console.log('Cleared') });
panel.mount(document.getElementById('panel-container'));

// Update with evacuation data
panel.setIsEvacuating(true);
panel.setEvents(events);
panel.setRoutes(routes);

EvacuationPanel Methods

| Method / Property | Return | Description | |-------------------|--------|-------------| | mount(container) | void | Attach panel to a DOM element | | unmount() | void | Detach and clean up | | setIsEvacuating(val) | void | Show/hide the panel | | setEvents(events) | void | Update hazard events | | setRoutes(routes) | void | Update escape route list | | isEvacuating (getter) | boolean | Whether panel is visible | | events (getter) | readonly EvacuationEvent[] | Current hazard events | | routes (getter) | ReadonlyMap<string, EscapeRoute> | Current route map |

EvacuationEngine

Standalone evacuation logic (no UI) — useful for custom integrations:

import { EvacuationEngine } from 'rdigital-twin';

const engine = new EvacuationEngine({
  onRoutesChanged: (routes) => console.log('Routes:', routes.size),
  onStateChanged: (isActive, events) => console.log('Evacuating:', isActive),
});

engine.init(floorPlanData);
engine.evaluatePois(alertPois);
engine.recalculateRoutes();

EvacuationEngine Methods

| Method / Property | Return | Description | |-------------------|--------|-------------| | init(plan) | void | Initialize with floor plan data (maze or room-based) | | evaluatePois(pois) | void | Detect ALERT hazard POIs and trigger evacuation | | recalculateRoutes(selId?) | void | Recompute escape routes from current hazards | | clearAll() | void | Reset all evacuation state | | setRouteMode(mode) | void | Set 'single' or 'multiple' route mode | | setExternalStarts(starts) | void | Override spawn points (replaces map JSON starts) | | setCallbacks(callbacks) | void | Update or override callbacks | | activeEvents (getter) | readonly EvacuationEvent[] | Current hazard events | | activeRoutes (getter) | ReadonlyMap<string, EscapeRoute> | Current escape routes | | isEvacuating (getter) | boolean | Whether evacuation is active | | selectedRouteId (getter) | string \| null | Currently selected route ID | | routeMode (getter) | 'single' \| 'multiple' | Current route computation mode |

Styles

Import the self-contained CSS separately:

import 'rdigital-twin/styles.css';

All class names are prefixed with dtv- to avoid collisions. No Tailwind or other framework required.

What's Included / Excluded

Included in the package (dist/):

• Minified ESM bundle (rdigital-twin.esm.js)
• Minified UMD bundle (rdigital-twin.umd.js)
• TypeScript declarations (.d.ts)
• Minified CSS (rdigital-twin.css)
• CommonJS bundle (rdigital-twin.cjs)

Not included (install separately as peer dependencies):

• three — 3D rendering engine

Not shipped (no raw source):

• No .vue files
• No .ts source files
• No Vue dependency

Architecture

rdigital-twin/
├── dist/
│   ├── rdigital-twin.esm.js        # ESM bundle
│   ├── rdigital-twin.umd.js        # UMD bundle
│   ├── rdigital-twin.css           # Self-contained styles
│   ├── rdigital-twin.cjs           # CommonJS bundle
│   └── index.d.ts                  # TypeScript declarations
├── package.json
└── README.md

License

Proprietary — see license agreement with your provider.
