remote-scrcpy

Web-based remote control for Android devices powered by scrcpy.

Author

trinhminhieu

Description

remote-scrcpy is a web client for Genymobile/scrcpy that enables remote Android device control through a web browser. It provides smooth H.264 video streaming with low latency and full device interaction capabilities.

Features

• Real-time Screen Mirroring: Smooth H.264 video streaming with multiple decoder options
• Full Device Control: Touch, swipe, keyboard input, and more
• Multiple Decoder Support:
  • H264 Converter (MSE Player) - Best quality, 60fps
  • Broadway.js - Software decoder with WebAssembly
  • Tiny H264 - Lightweight software decoder
  • WebCodecs - Hardware-accelerated decoding (Chrome/Edge)
• Web-based Interface: No client installation required
• Low Latency: Optimized for real-time interaction

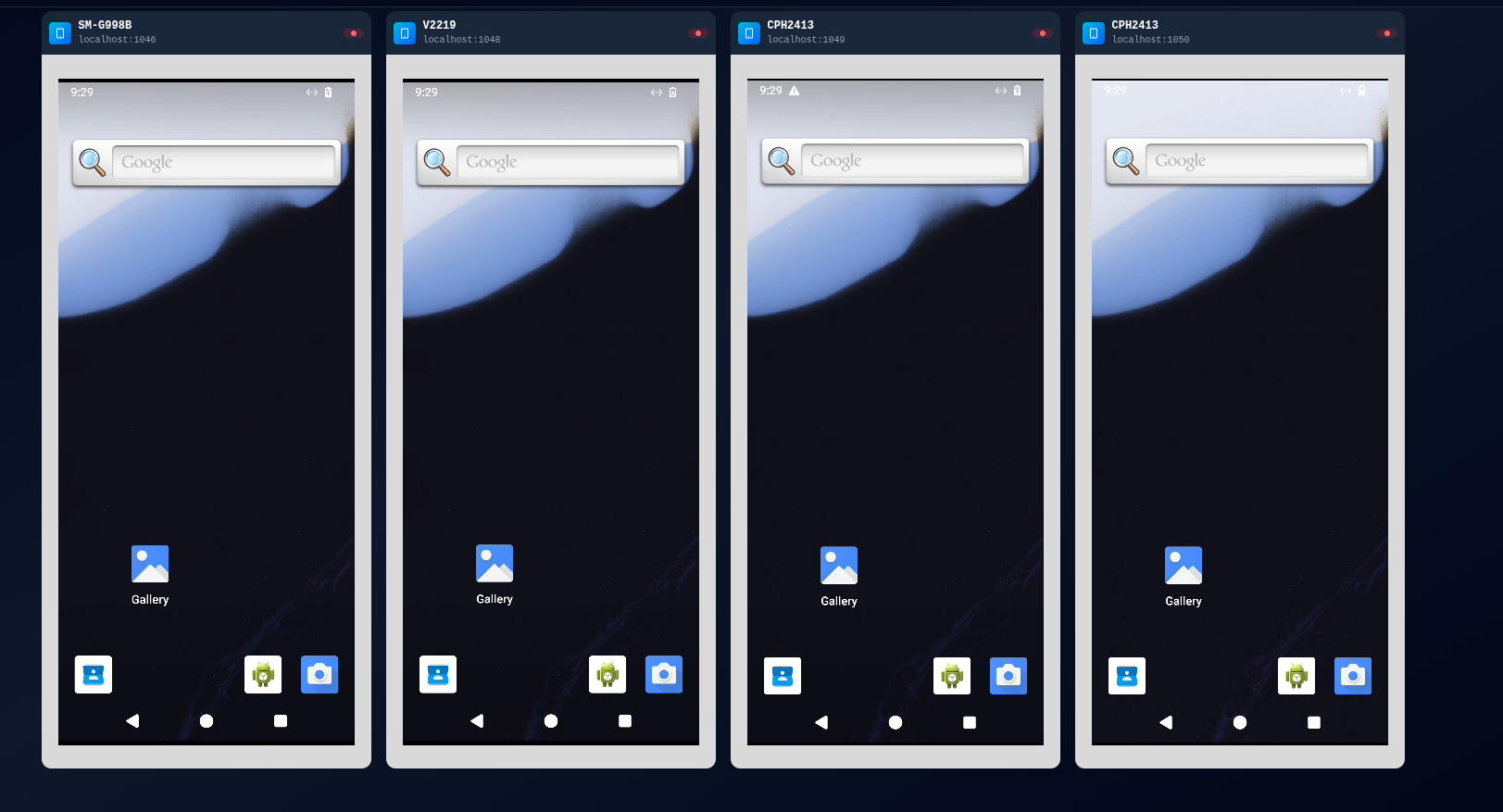

• Multi-device Support: Control multiple Android devices simultaneously

Requirements

Browser

• WebSockets support
• Media Source Extensions and H.264 decoding
• WebWorkers
• WebAssembly

Server

• Node.js v20+
• node-gyp (installation guide)
• adb executable in PATH

Android Device

• Android 5.0+ (API 21+)
• ADB debugging enabled
• Additional option may be required for keyboard/mouse control

Installation

Windows Prerequisites

On Windows, you need to install build tools first:

# Option 1: Install windows-build-tools (Recommended)
npm install --global windows-build-tools

# Option 2: Install Visual Studio Build Tools manually
# Download from: https://visualstudio.microsoft.com/downloads/
# Select "Desktop development with C++" workload

From npm (Recommended)

# Install globally
npm install -g remote-scrcpy

# Run
remote-scrcpy

From source

# Clone the repository
git clone https://github.com/trinhminhieu/remote-scrcpy.git
cd remote-scrcpy

# Install dependencies
npm install

# Build and start
npm start

The server will start on http://localhost:8009

Quick Start Examples

Check out the examples directory for ready-to-use code:

• basic-server.js - Simplest server setup
• express-integration.js - Express app integration
• react-component.jsx - React component
• pm2-ecosystem.config.js - PM2 deployment
• docker-compose.yml - Docker setup
• nginx.conf - Nginx reverse proxy

See examples/README.md for detailed usage instructions.

Usage

Standalone Server

Run remote-scrcpy as a standalone server for device streaming:

# Install globally
npm install -g remote-scrcpy

# Start the server
remote-scrcpy

# Or with custom port
PORT=8009 remote-scrcpy

The server will start on http://localhost:8009 by default.

Access the web interface:

• Open http://localhost:8009 in your browser
• Select your device from the list
• Choose a video decoder (H264 Converter recommended)
• Start controlling your device

Integration into Your Project

You can integrate remote-scrcpy into your own Node.js/Express application:

1. Install as a dependency

npm install remote-scrcpy

2. Basic Integration

const express = require('express');
const path = require('path');

const app = express();
const PORT = 3000;

// Serve remote-scrcpy static files
app.use('/scrcpy', express.static(
  path.join(require.resolve('remote-scrcpy'), '../public')
));

// Your other routes
app.get('/', (req, res) => {
  res.send('My App with remote-scrcpy integration');
});

app.listen(PORT, () => {
  console.log(`Server running on http://localhost:${PORT}`);
  console.log(`Access remote-scrcpy at http://localhost:${PORT}/scrcpy`);
});

3. Programmatic Server Start

Start remote-scrcpy server programmatically:

const { spawn } = require('child_process');
const path = require('path');

// Start remote-scrcpy server
const scrcpyPath = path.join(
  require.resolve('remote-scrcpy'),
  '../index.js'
);

const scrcpyServer = spawn('node', [scrcpyPath], {
  stdio: 'inherit',
  env: { ...process.env, PORT: '8009' }
});

scrcpyServer.on('error', (err) => {
  console.error('Failed to start remote-scrcpy:', err);
});

// Cleanup on exit
process.on('exit', () => {
  scrcpyServer.kill();
});

Remote Server Deployment

Deploy remote-scrcpy on a dedicated server for centralized device management:

Server Setup (Device Server)

1. Install on server with ADB access:

   npm install -g remote-scrcpy

2. Connect Android devices:

   # USB devices are auto-detected
   # For network devices:
   adb connect 192.168.1.100:5555

3. Start the server:

   # Basic
   remote-scrcpy

   # With custom port and host
   PORT=8009 HOST=0.0.0.0 remote-scrcpy

   # Production with PM2
   pm2 start remote-scrcpy --name "device-server"

4. Configure firewall:

   # Allow port 8009
   sudo ufw allow 8009/tcp

Client Setup (Web UI)

Connect your web application to the remote server:

Option A: Direct iframe embed

<iframe
  src="http://your-server:8009/embed.html?udid=device-id&player=mse"
  width="100%"
  height="100%"
  allow="autoplay"
></iframe>

Option B: React/Vue component

function DeviceStream({ deviceId }) {
  const scrcpyUrl = process.env.REACT_APP_SCRCPY_URL || 'http://localhost:8009';
  const embedUrl = `${scrcpyUrl}/embed.html?udid=${deviceId}&player=mse`;

  return (
    <iframe
      src={embedUrl}
      style={{ width: '100%', height: '100%', border: 'none' }}
      allow="autoplay"
    />
  );
}

Option C: Proxy through your backend

// In your Express app
const { createProxyMiddleware } = require('http-proxy-middleware');

app.use('/device-stream', createProxyMiddleware({
  target: 'http://your-device-server:8009',
  changeOrigin: true,
  ws: true, // Enable WebSocket proxying
}));

URL Parameters

Customize the stream with URL parameters:

http://localhost:8009/embed.html?udid=DEVICE_ID&player=PLAYER_TYPE

Parameters:

• udid: Device identifier (required)
  • Format: <ip>:<port> for network devices (e.g., 192.168.1.100:5555)
  • Format: <serial> for USB devices (e.g., emulator-5554)
• player: Video decoder (optional, default: mse)
  • mse - H264 Converter (recommended, best quality, 60fps)
  • broadway - Broadway.js (software decoder, WebAssembly)
  • tinyh264 - Tiny H264 (lightweight software decoder)
  • webcodecs - WebCodecs (hardware-accelerated, Chrome/Edge only)

Examples:

# USB device with MSE player
http://localhost:8009/embed.html?udid=emulator-5554&player=mse

# Network device with Broadway player
http://localhost:8009/embed.html?udid=192.168.1.100:5555&player=broadway

# Auto-stream (no device selection UI)
http://localhost:8009/autostream.html?udid=device-id&player=mse

Configuration

You can customize the build by editing build.config.override.json:

{
  "INCLUDE_GOOG": true,
  "USE_H264_CONVERTER": true,
  "USE_BROADWAY": true,
  "USE_TINY_H264": true,
  "USE_WEBCODECS": true
}

Environment Variables

• PORT: Server port (default: 8009)
• HOST: Server host (default: localhost)
• NODE_ENV: Environment mode (development/production)

Examples

# Custom port
PORT=9000 remote-scrcpy

# Listen on all interfaces (for remote access)
HOST=0.0.0.0 PORT=8009 remote-scrcpy

# Production mode
NODE_ENV=production remote-scrcpy

Deployment Guide

Production Deployment with PM2

1. Install PM2:

   npm install -g pm2

2. Create ecosystem file (ecosystem.config.js):

   module.exports = {
     apps: [{
       name: 'remote-scrcpy',
       script: 'remote-scrcpy',
       instances: 1,
       autorestart: true,
       watch: false,
       max_memory_restart: '1G',
       env: {
         NODE_ENV: 'production',
         PORT: 8009,
         HOST: '0.0.0.0'
       }
     }]
   };

3. Start with PM2:

   pm2 start ecosystem.config.js
   pm2 save
   pm2 startup

Docker Deployment

Create a Dockerfile:

FROM node:20-slim

# Install ADB
RUN apt-get update && apt-get install -y \
    android-tools-adb \
    && rm -rf /var/lib/apt/lists/*

# Install remote-scrcpy
RUN npm install -g remote-scrcpy

# Expose port
EXPOSE 8009

# Start server
CMD ["remote-scrcpy"]

Build and run:

docker build -t remote-scrcpy .
docker run -d -p 8009:8009 --privileged -v /dev/bus/usb:/dev/bus/usb remote-scrcpy

Nginx Reverse Proxy

Configure Nginx for HTTPS and WebSocket support:

upstream remote_scrcpy {
    server localhost:8009;
}

server {
    listen 80;
    server_name your-domain.com;

    location / {
        proxy_pass http://remote_scrcpy;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;

        # WebSocket timeout
        proxy_read_timeout 86400;
    }
}

Systemd Service

Create /etc/systemd/system/remote-scrcpy.service:

[Unit]
Description=remote-scrcpy Android Device Streaming
After=network.target

[Service]
Type=simple
User=your-user
WorkingDirectory=/home/your-user
Environment="PORT=8009"
Environment="HOST=0.0.0.0"
Environment="NODE_ENV=production"
ExecStart=/usr/bin/remote-scrcpy
Restart=always
RestartSec=10

[Install]
WantedBy=multi-user.target

Enable and start:

sudo systemctl enable remote-scrcpy
sudo systemctl start remote-scrcpy
sudo systemctl status remote-scrcpy

Development

# Development build with hot reload
npm run dist:dev

# Production build
npm run dist:prod

Architecture

remote-scrcpy consists of:

• Frontend: React-based web interface with video decoders
• Backend: Node.js server with WebSocket support
• scrcpy: Modified version with WebSocket integration

Security Notice

⚠️ Important Security Considerations:

• No encryption between browser and server by default
• No authorization mechanism
• Suitable for local network use only
• For production use, configure HTTPS and implement authentication

Security Best Practices

1. Use HTTPS: Always use HTTPS in production with valid SSL certificates
2. Implement Authentication: Add authentication layer (OAuth, JWT, etc.)
3. Firewall Rules: Restrict access to trusted IPs only
4. Network Isolation: Run on isolated network segment
5. Regular Updates: Keep dependencies updated for security patches

Example: Basic Authentication with Nginx

server {
    listen 443 ssl;
    server_name your-domain.com;

    ssl_certificate /path/to/cert.pem;
    ssl_certificate_key /path/to/key.pem;

    auth_basic "Restricted Access";
    auth_basic_user_file /etc/nginx/.htpasswd;

    location / {
        proxy_pass http://localhost:8009;
        # ... other proxy settings
    }
}

Troubleshooting

Devices not showing up

1. Check ADB connection:

   adb devices

2. Verify ADB is in PATH:

   which adb  # Linux/Mac
   where adb  # Windows

3. Enable USB debugging on Android device:

   • Settings → About Phone → Tap "Build Number" 7 times
   • Settings → Developer Options → Enable "USB Debugging"

4. For network devices:

   # Enable TCP/IP mode on device
   adb tcpip 5555

   # Connect from computer
   adb connect <device-ip>:5555

Video stream not working

1. Check browser compatibility:

   • Chrome/Edge: All decoders supported
   • Firefox: Broadway and TinyH264 only
   • Safari: Limited support

2. Try different decoder:

   • MSE (H264 Converter): Best quality but requires browser support
   • Broadway: Software decoder, works everywhere
   • TinyH264: Lightweight alternative

3. Check WebSocket connection:

   • Open browser DevTools → Network tab
   • Look for WebSocket connections
   • Check for errors

4. Verify device screen is on:

   adb shell dumpsys power | grep "Display Power"

High latency or lag

1. Use wired connection instead of WiFi when possible
2. Reduce video quality in device settings
3. Close other applications using bandwidth
4. Check CPU usage on server
5. Use MSE decoder for hardware acceleration

Port already in use

# Find process using port 8009
lsof -i :8009  # Linux/Mac
netstat -ano | findstr :8009  # Windows

# Kill the process or use different port
PORT=8001 remote-scrcpy

Permission denied (ADB)

Linux:

# Add user to plugdev group
sudo usermod -aG plugdev $USER

# Create udev rules
sudo nano /etc/udev/rules.d/51-android.rules
# Add: SUBSYSTEM=="usb", ATTR{idVendor}=="<vendor-id>", MODE="0666", GROUP="plugdev"

# Reload rules
sudo udevadm control --reload-rules

Windows:

• Install Android USB drivers from device manufacturer
• Run as Administrator if needed

Performance Optimization

Server-side

1. Use production mode:

   NODE_ENV=production remote-scrcpy

2. Increase Node.js memory:

   NODE_OPTIONS="--max-old-space-size=4096" remote-scrcpy

3. Enable compression in Nginx/Apache

4. Use PM2 cluster mode for multiple CPU cores:

   // ecosystem.config.js
   module.exports = {
     apps: [{
       name: 'remote-scrcpy',
       script: 'remote-scrcpy',
       instances: 'max',  // Use all CPU cores
       exec_mode: 'cluster'
     }]
   };

Client-side

1. Use MSE decoder for hardware acceleration
2. Close unused tabs to free resources
3. Use Chrome/Edge for best performance
4. Disable browser extensions that may interfere

Best Practices

For Development

• Use localhost for testing
• Enable hot reload with npm run dist:dev
• Check browser console for errors
• Use Chrome DevTools for debugging

For Production

• Deploy behind reverse proxy (Nginx/Apache)
• Enable HTTPS with valid certificates
• Implement authentication and authorization
• Set up monitoring and logging
• Use process manager (PM2/systemd)
• Configure firewall rules
• Regular backups and updates
• Load balancing for high traffic

For Multiple Devices

• Use descriptive device names
• Organize devices by location/purpose
• Implement device access control
• Monitor device health and connectivity
• Set up automated device reconnection

Credits

• Original scrcpy by Genymobile
• Video decoders: Broadway.js, TinyH264, h264-converter

License

See LICENSE file for details.

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

Support

For issues and questions, please open an issue on GitHub.

Author: trinhminhieu
Project: remote-scrcpy
Year: 2026
