📊 Salesforce ERD Generator

A powerful command-line tool that generates interactive Entity Relationship Diagrams (ERD) and comprehensive metadata documentation for Salesforce objects.

✨ Features

• 🎨 Visual ERD Diagrams - Generate beautiful SVG entity relationship diagrams
• 📋 CSV Metadata Export - Complete field-level documentation in CSV format
• 🔍 SOQL Query Generation - Auto-generated, formatted SOQL queries for each object
• 🌐 Interactive Dashboard - Dark-themed HTML dashboard with:
  • Zoomable SVG viewer with pan controls
  • Searchable and sortable metadata table
  • Syntax-highlighted SOQL editor
  • Responsive design for all screen sizes
• 🚀 Auto-open in Browser - Dashboard opens automatically after generation

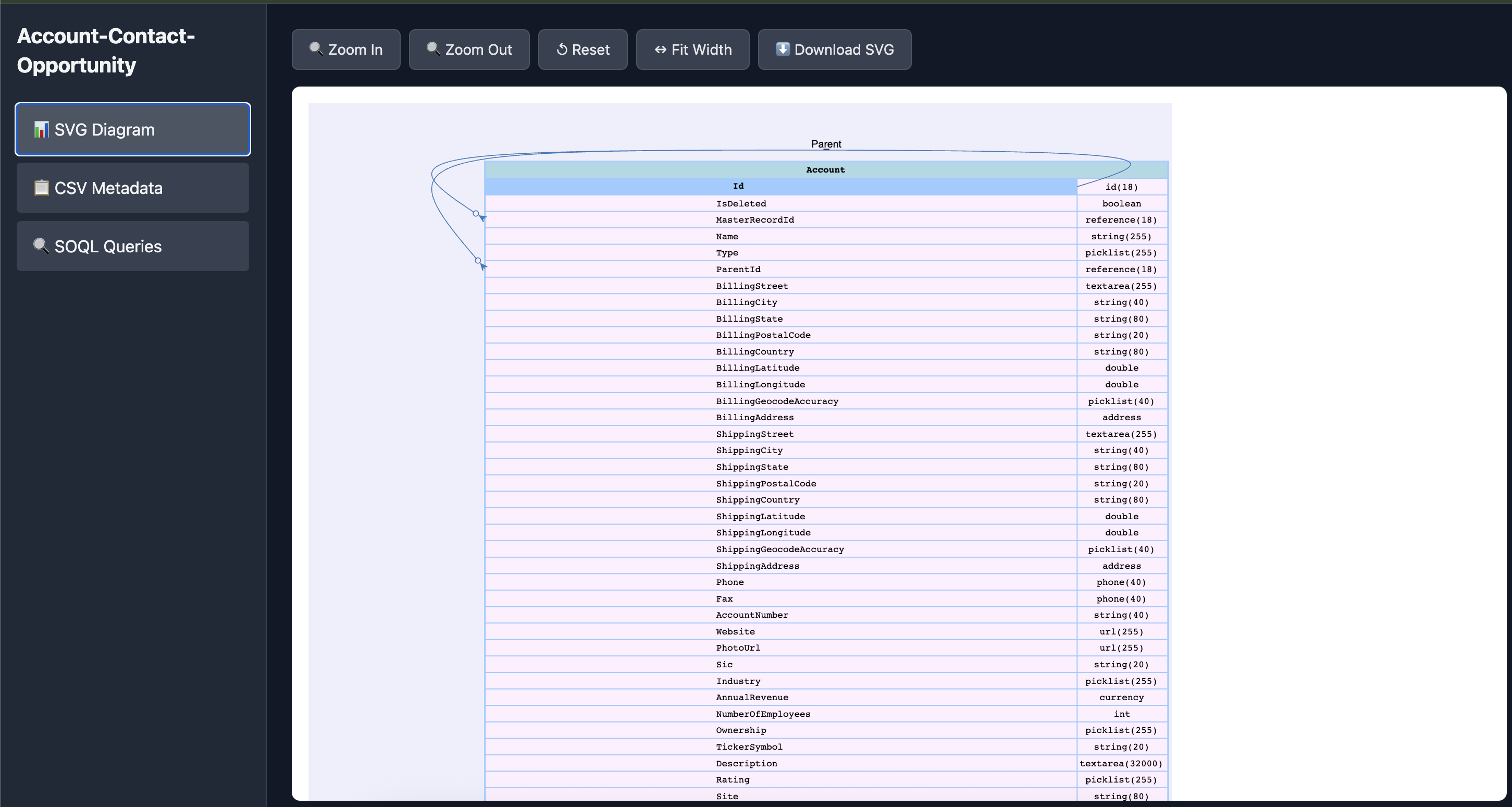

Screenshots

📦 Installation

Global Installation (Recommended)

npm install -g salesforce-erd-generator

Prerequisites

• Node.js >= 14.0.0
• Salesforce CLI (sf) with mohanc plugin installed
  • install mohanc plugin:

    sf plugins install sfdx-mohanc-plugins

• Valid Salesforce org credentials configured

🚀 Quick Start

Basic Usage

sf-erd -o [email protected] -s Account,Contact,Opportunity

This will generate:

• Account-Contact-Opportunity.svg - Combined ERD diagram
• Account-Contact-Opportunity.csv - All metadata in CSV format
• Account-Contact-Opportunity.soql - SOQL queries for all objects
• Account-Contact-Opportunity.html - Interactive dashboard (auto-opens)

Using Alias

sf-erd -o myDevOrg -s Account,Contact

Single Object

sf-erd -o username -s Account

📖 Command-Line Options

| Option | Alias | Description | Required | |--------|-------|-------------|----------| | -o <username> | --org | Salesforce org username or alias | ✅ Yes | | -s <objects> | --sobjects | Comma-separated list of Salesforce objects | ✅ Yes |

📂 Output Files

1. SVG Diagram (*.svg)

• Visual representation of object schemas
• Shows relationships between objects
• Includes all fields with data types
• Can be opened in any browser or SVG viewer

2. CSV Metadata (*.csv)

• Complete field metadata for all objects
• Includes: field name, type, length, nullable, references, etc.
• Import into Excel, Google Sheets, or any CSV tool

3. SOQL Queries (*.soql)

• Pre-formatted SELECT statements for each object
• Fields organized 3 per line for readability
• Ready to copy-paste into Developer Console or Workbench

4. Interactive Dashboard (*.html)

• SVG Tab:
  • Zoom in/out controls
  • Fit to width
  • Pan and scroll
  • Download SVG button
• CSV Tab:
  • Search across all fields
  • Sort by any column
  • Pagination (10/25/50/100 entries)
  • Responsive table
• SOQL Tab:
  • Syntax-highlighted editor
  • Edit and save queries
  • Dark theme for comfortable viewing

🎨 Dashboard Features

SVG Viewer

🔍 Zoom In/Out | ↺ Reset | ↔ Fit Width | ⬇ Download

Metadata Table

• Search: Real-time filtering across all columns
• Sort: Click any column header to sort
• Pagination: Navigate through large datasets
• Responsive: Adapts to screen size

SOQL Editor

• Monaco Editor (VS Code engine)
• SQL syntax highlighting
• Dark theme
• Save edited queries

💡 Usage Examples

Example 1: Standard Objects

sf-erd -o production -s Account,Contact,Lead,Opportunity

Example 2: Custom Objects

sf-erd -o sandbox -s CustomObject__c,AnotherCustom__c

Example 3: Mixed Objects

sf-erd -o myorg -s Account,Contact,CustomProduct__c,Invoice__c

Example 4: Large Schema

sf-erd -o enterprise -s Account,Contact,Lead,Opportunity,Case,Campaign,Product2,PricebookEntry

🛠️ Technical Details

Dependencies

• Salesforce CLI - For org access and metadata retrieval
• mohanc plugin - For metadata describe functionality

Generated Files Structure

.
├── <objects>.svg          # SVG diagram
├── <objects>.csv          # Metadata CSV
├── <objects>.soql         # SOQL queries
└── <objects>.html         # Interactive dashboard

SOQL Format

Queries are formatted for maximum readability:

SELECT
    Id, Name, Type,
    BillingStreet, BillingCity, BillingState,
    Phone, Fax, Website
FROM Account

🎯 Use Cases

• Documentation: Generate comprehensive schema documentation
• Training: Visual aids for team onboarding
• Analysis: Understand object relationships and dependencies
• Development: Reference for building integrations
• Migration: Plan data migration strategies
• Auditing: Review field configurations and settings

🐛 Troubleshooting

"sf CLI not found"

# Install Salesforce CLI
npm install -g @salesforce/cli

"mohanc plugin not found"

# Install mohanc plugin
sf plugins install sfdx-mohanc-plugins

"Org not authenticated"

# Authenticate to your org
sf org login web -a myorg

📝 License

This project is licensed under the MIT License - see the LICENSE file for details.

🙏 Acknowledgments

• Built on top of Salesforce CLI
• Uses mohanc plugin (sf plugins install sfdx-mohanc-plugins)
• Monaco Editor for SOQL syntax highlighting

🗺️ Roadmap

• [ ] Export to PNG/PDF
• [ ] Compare schemas between orgs
• [ ] Support for platform events and big objects
• [ ] Field usage analytics
• [ ] Dependency graph visualization
• [ ] Custom color themes
• [ ] Multi-language support
